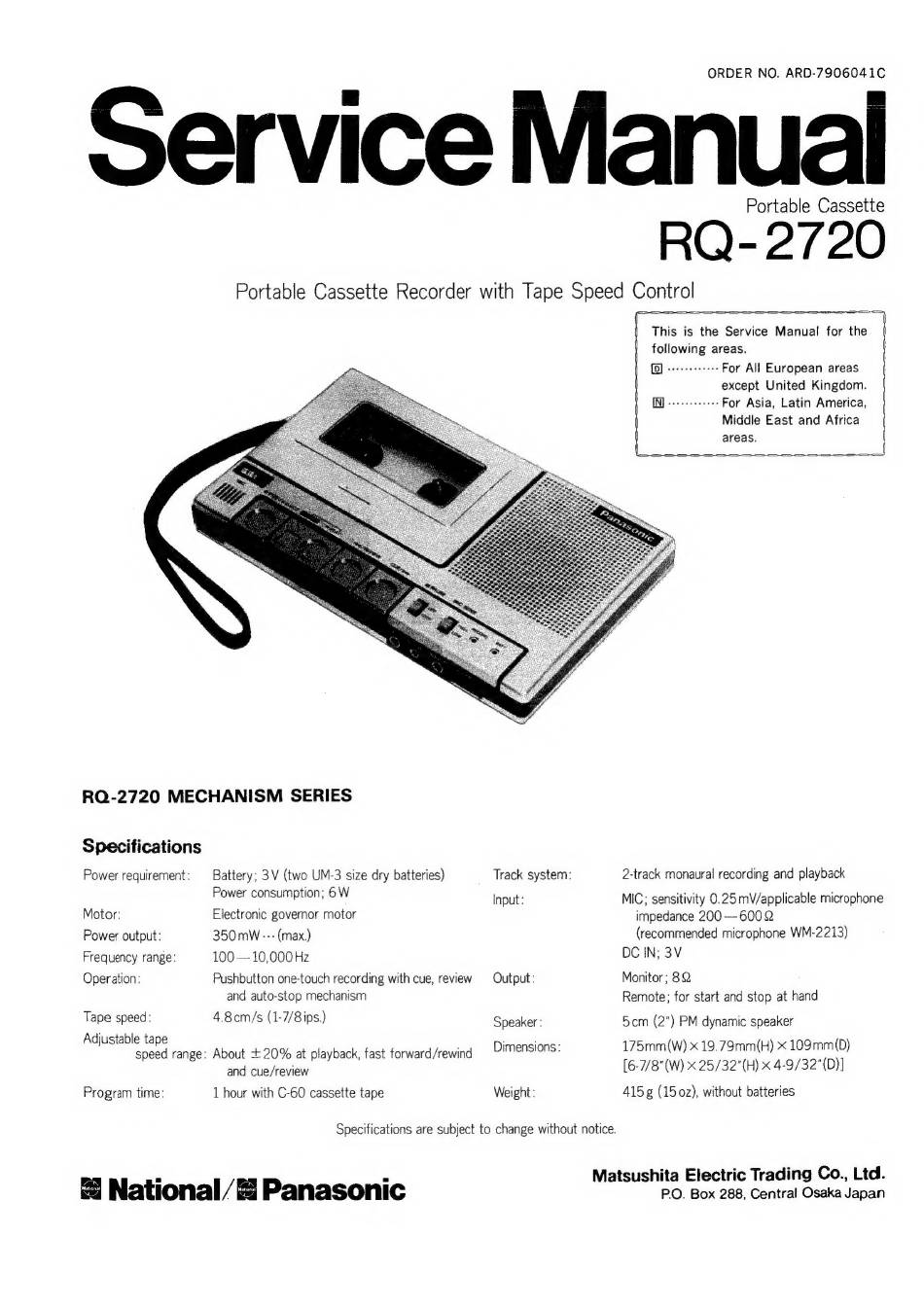

Panasonic RQ-2720 Service Manual

ORDER NO. ARD-7906041C
Service Manual
Portable Cassette
RQ-2720
Portable Cassette Recorder with Tape Speed Control
RQ-2720 MECHANISM SERIES
Specifications
Power requirement:
Motor:
Power output:
Frequency range:
Operation:
Tape speed:
Adjustable tape
speed range:
Program time:
Battery; 3V {two UM-3 size dry batteries)
Power consumption; 6 W
Electronic governor motor
350 mW --: (max.)
100 — 10,000 Hz
Pushbutton one-touch recording with cue, review
and auto-stop mechanism
4.8cm/s (1-7/8 ips.)
About + 20% at playback, fast forward /rewind
and cue/review
1 hour with C-60 cassette tape
Specifications are subject to change without notice.
National/& Panasonic
Track system:
Input:
Output:
Speaker:
Dimensions :
Weight :
o >
This is the Service Manual for the
following areas.
For All European areas
except United Kingdom.
For Asia, Latin America,
Middle East and Africa
areas.
2-track monaural recording and playback
MIC; sensitivity 0.25 mV/applicable microphone
impedance 200 — 600 Q
(recommended microphone WM-2213)
DC IN; 3V
Monitor; 82
Remote; for start and stop at hand
5cm (2") PM dynamic speaker
175mm(W) x 19.79mm(H) x 109mm (D)
[6-7/8"(W) x 25/32"(H) x 4-9/32"(D)]
415g (150z), without batteries
P.O. Box 288, Central Osaka Japan
