Beep Sound:
When a button is pressed correctly, a beep will be heard. If a button is pressed and two beeps are heard, the unit cannot accept the instruction. When operating, the oven will beep once between programmed stages. At the end of any complete program, the oven will beep 5 times.
NOTE:
If there is no operation for 6 minutes after setting program, the oven will automatically cancel the cooking program. The display will return to clock or colon display.
NOTE: These choices can be selected only when you plugin the oven.
NOTES:
NOTES:
Press | Power Level |
once | P10 (HIGH) |
twice | P9 |
3 times | P8 |
4 times | P7 (MED-HIGH) |
5 times | P6 (MEDIUM) |
6 times | P5 |
7 times | P4 |
8 times | P3 (MED-LOW)/ DEFROST |
9 times | P2 |
10 times | P1 (LOW) |
NOTES:
DO NOT OVERCOOK: This oven requires less time to cook than older units. Overcooking will cause food to dry out and may cause a fire. A microwave oven's cooking power tells you the amount of microwave power available for cooking.
For more than one stage of cooking, repeat steps 1 and 2 for each stage of cooking before pressing Dial. The maximum number of stages for cooking is three. When operating, a beep will sound between each stage. Five beeps will sound at the end of the entire sequence. P10 and P9 can be set only once in the stage cooking, and if the P10 or P9 is set in any stage, only P8 or less can be set for the rest of the stage.
NOTES:
(Set or add cooking time in 30 seconds increments)
NOTES:
(Will keep food warm for up to 30 minutes after cooking)
NOTE: Keep Warm can be set as the final stage after cook time has been manually entered. It cannot be used with Sensor Reheat, Sensor Cook, and Auto Defrost.
(Example: To pop 1.75 oz (50 g). of popcorn)
NOTES:
NOTE: The maximum weight for Auto Defrost is 6.6 lbs. (3 kg).
Follow the chart to convert ounces or hundredths of a pound into tenths of a pound. To use Auto Defrost, enter the weight of the food in pounds (1.0) and tenths of a pound (0.1). If a piece of meat weighs 1.95 lbs or 1 lb 14 oz, enter 1.9 lbs.
Ounces | Hundredths of a Pound | Tenths of a Pound |
0 | .01 -.05 | 0.0 |
1 - 2 | .06 -.15 | 0.1 |
3 - 4 | .16 -.25 | 0.2 |
5 | .26 -.35 | 0.3 |
6 - 7 | .36 -.45 | 0.4 |
8 | .46 -.55 | 0.5 |
9 - 10 | .56 -.65 | 0.6 |
11 - 12 | .66 -.75 | 0.7 |
13 | .76 -.85 | 0.8 |
14 - 15 | .86 -.95 | 0.9 |
Preparation For Freezing:
To Defrost:
After Defrosting:
FOOD | DEFROST TIME at P3 mins (per lb) | DURING DEFROSTING | AFTER DEFROSTING | |
Standing Time | Rinse | |||
Fish and Seafood | ||||
Crabmeat [up to 3 lbs. (1.4 kg)] | 6 | Break apart/Rearrange | 5 min. | YES |
Fish Steaks | 4 to 6 | Turn over | ||
Fish Fillets | 4 to 6 | Turn over/Rearrange | ||
Sea Scallops | 4 to 6 | Break apart/ Remove defrosted pieces | ||
Whole fish | 4 to 6 | Turn over | ||
Meat | ||||
Ground Meat | 4 to 5 | Turn over/ Remove defrosted portion | 10 min. | NO |
Roasts [2½-4 lbs. (1.1-1.8 kg)] | 4 to 8 | Turn over | 30 min. in fridge. | |
Chops/Steak | 6 to 8 | Turn over/Rearrange | 5 min. | |
Ribs/T-bone | 6 to 8 | Turn over/Rearrange | ||
Stew Meat | 4 to 8 | Break apart/ Remove defrosted pieces | ||
Liver (thinly sliced) | 4 to 6 | Drain liquid/Turn over/ Separate pieces | ||
Bacon (sliced) | 4 | Turn over | ---- | |
Poultry | ||||
Chicken, Whole [up to 3 lbs. (1.4 kg)] | 4 to 6 | Turn over | 20 min. in fridge. | YES |
Cutlets | 4 to 6 | Break apart/Turn over/ Remove defrosted Pieces | 5 min. | |
Pieces | 4 to 6 | Break apart/Turn over | 10 min. | |
Cornish hens | 6 to 8 | Turn over | ||
Turkey Breast [5-6 lbs. (2.3-2.7 kg)] | 6 | Turn over | 20 min. in fridge. |
NOTES:
Casseroles: Add three to four tablespoons of liquid, cover with lid or vented plastic wrap. Stir when time appears in the display window.
Canned foods: Empty contents into casserole dish or serving bowl, cover dish with lid or vented plastic wrap. After reheating, let stand for a few minutes.
Plate of food: Arrange food on plate; top with butter, gravy, etc. Cover with lid or vented plastic wrap. After reheating, let stand for a few minutes.
DO NOT USE SENSOR REHEAT:
NOTES:
For the best results with the SENSOR, follow these recommendations:
BEFORE Reheating/Cooking:
DURING Reheating/ Cooking:
DO NOT open the oven door until cooking time appears in the display. Doing so will cancel the cooking. Once the cooking time begins to count down, the oven door may be opened to stir, turn or rearrange foods.
AFTER Reheating/Cooking:
All foods should have a standing time.
See the chart below for Sensor Cook categories.
Recipe | Serving/Weight | Hints |
| 1 - 4 potatoes (6 - 8 oz. each) (170 - 225 g) | Pierce each potato with a fork 6 times spacing around surface. Place potato or potatoes around the edge of paper-towel-lined glass tray (Turntable), at least 1 inch (2.5 cm) apart. Do not cover. Turn over after a beep. Let stand 5 minutes to complete cooking. |
| 4 - 16 oz. (110 - 450 g) | All pieces should be the same size. Wash thoroughly, add 1 tbsp. of water per 1⁄2 cup of vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking. After a beep, stir or rearrange. Re-cover and press dial. |
| 6 - 16 oz. (170 - 450 g) | Wash thoroughly, add 1 tbsp. of water per 1⁄2 cup of vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking. (Not suitable for vegetables in butter or sauce.) After a beep, stir or rearrange. Re-cover and press dial. |
| 8 oz. (225 g) | Follow manufacturers' directions for preparation. Add more time of cooking if needed. |
| 8 - 28 oz. (225 - 800 g) | Follow manufacturers' directions for preparation. After a beep, stir or rearrange. Re-cover and press dial. Be careful when removing the film cover after cooking. Remove facing away from you to avoid steam burns. If additional time is needed, continue to cook manually. |
| 16 - 32 oz. (450 - 900 g) | Use appropriate amount of liquid. Cover with lid. After cooking, stand for 5 minutes. (See casserole recipes.) |
| 4 - 16 oz. (110 - 450 g) | Arrange in a single layer. Cover with lid or vented plastic wrap. |
| 1⁄2 - 1 1⁄2 cups. | Place rice with hot tap water in a microwave safe casserole dish. Cover with lid or vented plastic wrap. Let stand 5 to 10 minutes before serving. Add 1 1⁄2 parts water to 1 part rice. |
| 2 - 8 oz. (55 - 225 g) | Place 2 oz. (55 g) pasta with 3 cups (750 ml) hot tap water in a 2 qt microwave safe casserole, salt and oil, if desired, covered with lid or vented plastic wrap. For 4 oz.(110 g) pasta use 4 cups (1000 ml) hot tap water, for 6 oz. (170 g) pasta use 6 cups (1500 ml) hot tap water in 3 qt casserole, for 8 oz. (225 g) pasta use 7 cups (1750 ml) hot tap water. |
| 4 - 6 serv. | In a 3 qt casserole dish, crumble 450 g (1 pound) lean ground beef and stir in 2 medium onions (chopped), 1⁄4 teaspoon dried garlic pieces. Cover with plastic wrap and cook on P10 for 6 minutes. Stir after cooking. Drain. Add 450 g (16 oz) pinto or red kidney beans, 430 g (15 oz) stewed tomatoes (chopped), 430 g (15 oz) tomato sauce, 1 teaspoon salt and 2 to 3 tablespoons chili powder. Cover with lid, using Stew selection. After a beep, stir. Re-cover and press Dial. Stir after cooking. Cover again and let stand 7 minutes before serving. |
2 1⁄2 tablespoons butter
2 1⁄2 tablespoons chopped onion
1⁄2 clove minced garlic
4 tablespoons all-purpose flour
2⁄3 teaspoon dry mustard
2⁄3 teaspoon salt
1⁄8 teaspoon ground black pepper
1 1⁄2 cups milk
1 1⁄2 cups grated cheddar cheese
140 g (5 oz.) (dry weight) macaroni, cooked and drained
3 tablespoons bread crumbs
2⁄3 teaspoon paprika
In a 3-Qt casserole dish, melt the butter for 40 seconds at P10, with cover with lid or vented plastic wrap. Add onion and garlic, cover the casserole dish with lid or vented plastic wrap, and cook for 1 minute at P10. Stir in flour, mustard, salt and pepper, and gradually add the milk. Cover the casserole dish with lid or vented plastic wrap and cook for 3-4 minutes at P10 until sauce thickens, stirring once.
Add the cheddar cheese and the macaroni into the sauce and stir well.
Sprinkle the bread crumbs and paprika on the top of the dish.
Cover the casserole dish with lid or vented plastic wrap. Cook with the "6. Casserole" Sensor Cook.
Yield: 4 - 6 servings
220 g (1⁄2 pound) lean ground beef
1⁄2 small onion, chopped
1⁄4 green bell pepper, chopped
1⁄2 cup chopped celery
1 430 g (15 oz.) can tomato sauce
2⁄3 cup water
1⁄2 cup uncooked elbow macaroni
1⁄2 teaspoon parsley
1⁄4 teaspoon salt
1⁄8 teaspoon grounded back pepper
1⁄4 cup grated cheddar cheese
Crumble the ground beef in a 3-Qt. casserole dish. Cook for 5-7 minutes at P6 or until the meat is cooked, stirring twice. Stir in onion, peppers and celery. Cook for 3-4 minutes at P10. Stir in the remaining ingredients, except cheese. Cover with lid or vented plastic wrap. Cook with the "6. Casserole" Sensor Cook. Sprinkle with cheese. Cover and let stand 5 minutes.
Yield: 4-6 servings
If oven lamp is lit while using the timer feature, the oven is NOT set properly; STOP OVEN IMMEDIATELY and re-read instructions.
Both bone and fat affect cooking. Bones may cause irregular cooking. Meat next to the tips of bones may overcook while meat positioned under a large bone, such as a ham bone, may be undercooked. Large amounts of fat absorb microwave energy and the meat next to these areas may overcook.
Porous, airy foods such as breads, cakes or rolls take less time to cook than heavy, dense foods such as potatoes and roasts. When reheating donuts or other foods with different centers be very careful. Certain foods have centers made with sugar, water, or fat and these centers attract microwaves (for example, jelly donuts). When a jelly donut is heated, the jelly can become extremely hot while the exterior remains warm to the touch. This could result in a burn if the food is not allowed to cool properly in the center.
Two potatoes take longer to cook than one potato. As the quantity of the food decreases so does the cooking time. Overcooking will cause the moisture content in the food to decrease and a fire could result. Never leave microwave unattended while in use.
Uniform sizes heat more evenly. The thin end of a drumstick will cook more quickly than the meaty end. To compensate for irregular shapes, place thin parts toward the center of the dish and thick pieces toward the edge.
Thin pieces cook more quickly than thick pieces.
Foods that are at room temperature take less time to cook than if they are chilled, refrigerated or frozen.
Foods with skins or membranes must be pierced, scored or have a strip of skin peeled before cooking to allow steam to escape. Pierce clams, oysters, chicken livers, whole potatoes and whole vegetables. Whole apples or new potatoes should have a 1-inch strip of skin peeled before cooking. Score sausages and frankfurters. Do not Cook/Reheat whole eggs, with or without the shell. Steam buildup in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED eggs is safe.
Foods will not have the same brown appearance as conventionally cooked foods or those foods which are cooked utilizing a browning feature. Meats and poultry may be coated with browning sauce, Worcestershire sauce, barbecue sauce or shake-on browning sauce. To use, combine browning sauce with melted butter or margarine and brush on before cooking. For quick breads or muffins, brown sugar can be used in the recipe in place of granulated sugar, or the surface can be sprinkled with dark spices before cooking.
Individual foods, such as baked potatoes, cupcakes and appetizers, will cook more evenly if placed in the oven equal distances apart. When possible, arrange foods in a circular pattern.
As with conventional cooking, moisture evaporates during microwave cooking. Casserole lids or plastic wrap are used for a tighter seal. When using plastic wrap, vent the plastic wrap by folding back part of the plastic wrap from the edge of the dish to allow steam to escape. Loosen or remove plastic wrap as recipe directs for stand time. When removing plastic wrap covers, as well as any glass lids, be careful to remove them away from you to avoid steam burns. Various degrees of moisture retention are also obtained by using wax paper or paper towels.
Cooking times will vary because of food shape variations, starting temperature, and regional preferences. Always cook food for the minimum cooking time given in a recipe and check for doneness. If the food is undercooked, continue cooking. It is easier to add time to an undercooked product. Once the food is overcooked, nothing can be done.
Stirring is usually necessary during microwave cooking. Always bring the cooked outside edges toward the center and the less cooked center portions toward the outside of the dish.
Rearrange small items such as chicken pieces, shrimp, hamburger patties or pork chops. Rearrange pieces from the edge to the center and pieces from the center to the edge of the dish.
It is not possible to stir some foods to distribute the heat evenly. At times, microwave energy will concentrate in one area of the food. To help ensure even cooking, these foods need to be turned. Turn over large foods, such as roasts or turkeys, halfway through cooking.
Most foods will continue to cook by conduction after the microwave oven is turned off. After cooking meat, the internal temperature will rise 5°F to 15°F (3°C to 8°C), if allowed to stand, tented with foil, for 10 to 15 minutes. Casseroles and vegetables need a shorter amount of standing time, but this standing time is necessary to allow foods to complete cooking to the center without overcooking on the edges.
The same tests for doneness used in conventional cooking may be used for microwave cooking. Meat is done when fork-tender or splits at fibers. Chicken is done when juices are clear yellow and drumstick moves freely. Fish is done when it flakes and is opaque. Cake is done when a toothpick or cake tester is inserted and comes out clean.
Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures. To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave oven use.
160°F | For fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen prepared food. |
165°F | For leftover, ready-to-reheat refrigerated, and deli and carryout "fresh" food. |
170°F | For white meat poultry. |
180°F | For dark meat poultry. |
Please see below for particular cleaning instructions for each section of the oven.
EFORE CLEANING: Unplug oven at wall outlet. If outlet is inaccessible, leave oven door open while cleaning.
AFTER CLEANING: Be sure to place the Roller Ring and the Glass Tray in the proper position and press Stop/Reset Button to clear the Display.
IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDENSATION MAY CAUSE RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES, INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER GLASS TRAY.
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.panasonic.ca/english/support
Parts Available to Order:
See below before calling for service, as most problems can easily be remedied by following these simple solutions:
The oven causes TV interference. | Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. |
Steam accumulates on oven door and warm air comes from the oven vents. | During cooking, steam and warm air are given off from the food. Most of the steam and warm air are removed from the oven by the air which circulates in the oven cavity. However, some steam will condense on cooler surfaces such as the oven door. This is normal. After use, the oven should be wiped dry. |
Oven will not turn on. | The oven is not plugged in securely or needs to be reset; remove plug from outlet, wait ten seconds and re-insert. Main circuit breaker or main fuse is tripped; reset main circuit breaker or replace main fuse. There is a problem with the outlet; plug another appliance into the outlet to check if it is working. |
Oven will not start cooking. | The door is not completely closed; close the oven door securely. Dial was not pressed after programming; press Dial. Another program is already entered into the oven; press Stop/Reset to cancel the previous program and enter new program. The program is not correct; program again according to the Operating Instructions. Stop/Reset has been pressed accidentally; program oven again. |
The Glass Tray wobbles. | The Glass Tray is not positioned properly on the Roller Ring or there is food under the Roller Ring; take out Glass Tray and Roller Ring. Wipe with a damp cloth and reset Roller Ring and Glass Tray properly. |
When the oven is operating, there is noise coming from the Glass Tray. | The Roller Ring and oven bottom are dirty; clean these parts according to Care and Cleaning of Your Microwave Oven. |
appears in the display. | The CHILD SAFETY LOCK was activated by pressing Dial three times; Deactivate CHILD SAFETY LOCK by pressing Stop/Reset three times. |
Power Source: 120 V, 60 Hz
Power Consumption: 13 Amps, 1,500 W
Cooking Power*:1,100 W
Outside Dimensions (W x H x D): 21 7⁄32" x 11 13⁄16" x 17 7⁄16" (539 mm x 300 mm x 443 mm)
Oven Cavity Dimensions (W x H x D): 14 13⁄16" x 9 7⁄16" x 15 15⁄16" (376 mm x 240 mm x 404 mm)
Operating Frequency: 2,450 MHz
Net Weight: Approx. 36.4 lbs (16.5 kg)
*IEC Test procedure
Specifications subject to change without notice.
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER", "WARNING" or "CAUTION".
These words mean:
You can be killed or seriously injured if you don't immediately follow instructions.
You can be killed or seriously injured if you don't follow instructions.
You can be exposed to a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance. When using this electric appliance, basic safety precautions should be followed, including the following:
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:
SAVE THESE INSTRUCTIONS
TO AVOID THE RISK OF SHOCK:
DO NOT remove outer panel from oven. Repairs must be done only by a qualified service person.
TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door, Control Panel Frame, Safety Interlock Switches, or any other part of the oven. Microwave leakage may result.
TO AVOID THE RISK OF FIRE:
TO AVOID THE RISK OF SCALDING:
POT HOLDERS should always be used when removing items from the oven. Heat is transferred from the HOT food to the cooking container and from the container to the Glass Tray. The Glass Tray can also be very HOT after removing the cooking container from the oven.
Glass Tray
Roller Ring
For proper use of your oven, read remaining safety cautions and operating instructions.
Unpack oven, remove all packing material and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged.
IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.
If it is necessary to use an extension cord, use only a threewire extension cord that has a three-prong polarized grounding plug, and a three-slot receptacle that will accept the plug of the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance.
THIS APPLIANCE MUST BE GROUNDED.
In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
Panasonic is NOT responsible for any damages resulting from the use of the oven with any voltage other than specified.
This product has been tested and found to comply with the limits or Microwave Oven, pursuant to Part 18 of the FCC Rules. This product can radiate radio frequency energy, which could cause interference to such products as radio, TV, baby monitor, cordless phone, Bluetooth, wireless router, etc., which can be confirmed by turning this product off and on. If present, the user is encouraged to try to correct by taking one or more of the following countermeasures:
Follow these Safety Precautions when cooking in your oven.
Proper cooking depends upon the power, the time setting and quantity of food. If you use a smaller portion than recommended but cook at the time for the recommended portion, fire could result.
• DO NOT use your oven for home canning. Your oven cannot maintain the food at the proper canning temperature. The food may be contaminated and then spoil.
• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is difficult to keep the oven at the high temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities of food or foods with low moisture content can dry out, scorch or catch on fire if overheated.
Popcorn may be popped in a microwave oven corn popper. Microwave popcorn that pops in its own package is also available. Follow popcorn manufacturers' directions and use a brand suitable for the cooking power of your microwave oven.
When using pre-packaged microwave popcorn, you can follow recommended package instructions or use the Popcorn button. Otherwise, the popcorn may not pop adequately or may ignite and cause a fire. Never leave the oven unattended when popping popcorn. Allow the popcorn bag to cool before opening, and always open the bag facing away from your face and body to prevent steam burns.
This section answers the question, "Can I use in the Microwave?"
Aluminum Foil | It is not recommended to use. Arcing can occur if foil is too close to oven wall or door and cause damage to your oven. |
Browning Dish | Yes. Only use browning dishes that are designed for microwave cooking. Check browning dish information for instructions/heating chart. Do not preheat for more than six minutes. |
Brown Paper Bags | No. They may cause a fire in the oven. |
Microwave Safe | Yes. If labeled Microwave Safe, check manufacturers' directions for use in microwave heating. Some dinnerware may state on the back of the dish, "Oven-Microwave Safe". |
Dinnerware | If unlabeled, use CONTAINER TEST below. |
Disposable Polyester Paperboard Dishes | Yes. Some frozen foods are packaged in these dishes. Also can be purchased in some grocery stores. |
Fast Food Cartons with Metal Handle | No. Metal handle may cause arcing. |
Frozen Dinner Trays | If made for the microwave, then yes. If it contains metal, then no. |
Glass Jars | No. Most glass jars are not heat resistant. |
Heat Resistant Oven Glassware/Ceramic | Yes, but only ones for microwave cooking and browning. (See CONTAINER TEST below.) |
Metal Bakeware | No. Metal can cause arcing and damage to your oven. |
Metal Twist-Ties | No. May cause arcing which could cause a fire in the oven. |
Oven Cooking Bag | Yes. Follow manufacturers' directions. Close bag with the nylon tie provided, a strip cut from the end of the bag, or a piece of cotton string. Do not close with metal twist-tie. Make six 1⁄2-inch slits near the closure. |
Paper Plates/Cups | Yes. Use to warm cooked foods, and to cook foods that require short cooking time, such as hot dogs. Do not microwave paper cups; they may overheat and ignite. |
Towels & Napkins | Yes, only paper napkins/towels. Use to warm rolls and sandwiches, only if labeled safe for microwave use. Do NOT use recycled paper towels. |
Parchment Paper | Yes. Use as a cover to prevent splattering. |
Plastic Cookware | Yes, with caution. Should be labeled, "Suitable for Microwave Heating." Check Microwave Safe manufacturers' directions for recommended uses. Some microwave safe plastic containers are not suitable for cooking foods with high fat or sugar content. The heat from hot food may cause warping. |
Plastic, Melamine | No. This material absorbs microwave energy. Dishes get HOT! |
Plastic Foam Cups | Yes, with caution. Plastic foam will melt if foods reach a high temperature. Use short term only to reheat foods to a low serving temperature. Do not microwave paper cups; they may overheat and ignite. |
Plastic Wrap | Yes. Use to cover food during cooking to retain moisture and prevent splattering. Should be labeled "Suitable for Microwave Heating". Check package directions. |
Straw, Wicker, Wood | Yes, short term only. Use only for short term reheating and to bring food to a low serving temperature. Wood may dry out, split or crack. |
Thermometers | Only microwave safe thermometers can be used, NOT conventional thermometers. |
Wax Paper | Yes. Use as a cover to prevent splattering and to retain moisture. |
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in the microwave oven along side the empty container to be tested; heat one (1) minute at P 10 (HIGH). If the container is microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This test cannot be used for plastic containers.
For assistance, please contact us via the web at: http://www.panasonic.ca/english/support
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

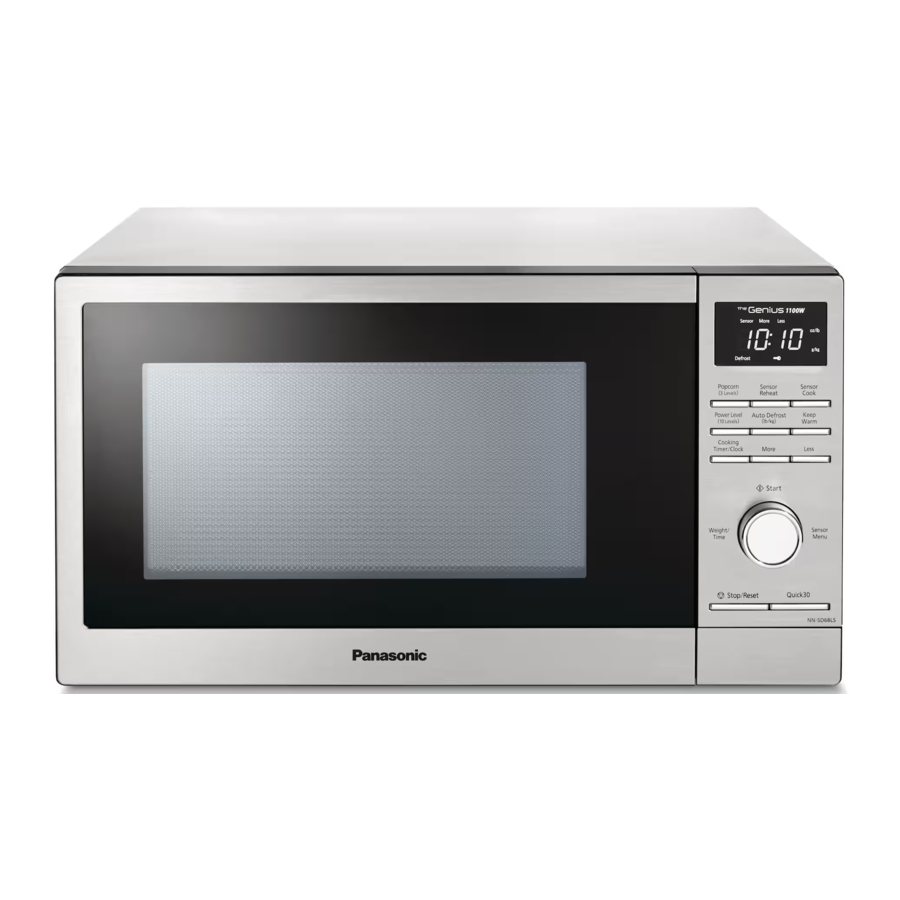

Download Panasonic NN-SD66LS, NN-SD68LS - Microwave Oven Manual
Advertisement
Thank you! Your question has been received!
Need Assistance?
Do you have a question about the NN-SD66LS that isn't answered in the manual? Leave your question here.
