SERVICE MANUAL
TECHNICAL INFORMATION
FOR SERVICE PERSONNEL ONLY
RAC-07CH5
RAC-09CH5
SPECIFICATIONS
TYPE
MODEL
POWER SOURCE
TOTAL INPUT
TOTAL AMPERES
COOLING
CAPACITY
TOTAL INPUT
TOTAL AMPERES
HEATING
CAPACITY
DIMENSIONS
(mm)
NET WEIGHT
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
ROOM AIR CONDITIONER
OCTOBER 2004
RAS-07CH5
RAS-09CH5
RAS-14CH5
RAC-14CH5
INDOOR UNIT
OUTDOOR UNIT
RAS-07CH5
1 PHASE, 50 Hz, 220-240V
(W)
620 - 640
(A)
2.90 - 2.80
(kW)
2.20 - 2.25
(B.T.U./h)
7,510 - 7,680
(W)
510 - 540
(A)
2.40 - 2.30
(kW)
2.20 - 2.25
(B.T.U./h)
7,510 - 7,680
W
780
H
280
210
D
(kg)
9.0
INDOOR UNIT + OUTDOOR UNIT
Refrigeration & Air-Conditioning Division
PM
RAS-07CH5 / RAC-07CH5
RAS-09CH5 / RAC-09CH5
RAS-14CH5 / RAC-14CH5
REFER TO THE FOUNDATION MANUAL
SPECIFICATIONS ----------------------------------------------------- 5
HOW TO USE ---------------------------------------------------------- 6
CONSTRUCTION AND DIMENSIONAL DIAGRAM ------- 29
MAIN PARTS COMPONENT ------------------------------------- 31
WIRING DIAGRAM -------------------------------------------------- 33
CIRCUIT DIAGRAM ------------------------------------------------- 35
PRINTED WIRING BOARD LOCATION DIAGRAM ------- 37
BLOCK DIAGRAM --------------------------------------------------- 39
BASIC MODE --------------------------------------------------------- 41
REFRIGERATING CYCLE DIAGRAM ------------------------- 47
DESCRIPTION OF MAIN CIRCUIT OPERATION --------- 49
AUTO SWING FUNCTION ---------------------------------------- 53
PARTS LIST AND DIAGRAM ------------------------------------ 63
(WALL TYPE)
INDOOR UNIT
OUTDOOR UNIT
RAC-07CH5
RAS-09CH5
RAC-09CH5
1 PHASE, 50 Hz, 220-240V
830 - 860
3.90 - 3.70
2.75 - 2.80
9,380 - 9,560
700 - 740
3.30 - 3.20
3.00
10,240
700
780
570
280
210
210
32
9.0
NO. 0223E
CONTENTS
INDOOR UNIT
OUTDOOR UNIT
RAS-14CH5
RAC-14CH5
1 PHASE, 50 Hz, 220-240V
1,150 - 1,210
5.4 - 5.2
3.65 - 3.70
12,460 - 12,630
1,080 - 1,160
5.10 - 5.00
4.0 - 4.10
13,650 - 14,000
700
780
750
570
280
570
210
210
280
32
9.0
38
After installation
Advertisement
Table of Contents
Related Manuals for Hitachi RAC-07CH5
Summary of Contents for Hitachi RAC-07CH5
-
Page 1: Table Of Contents

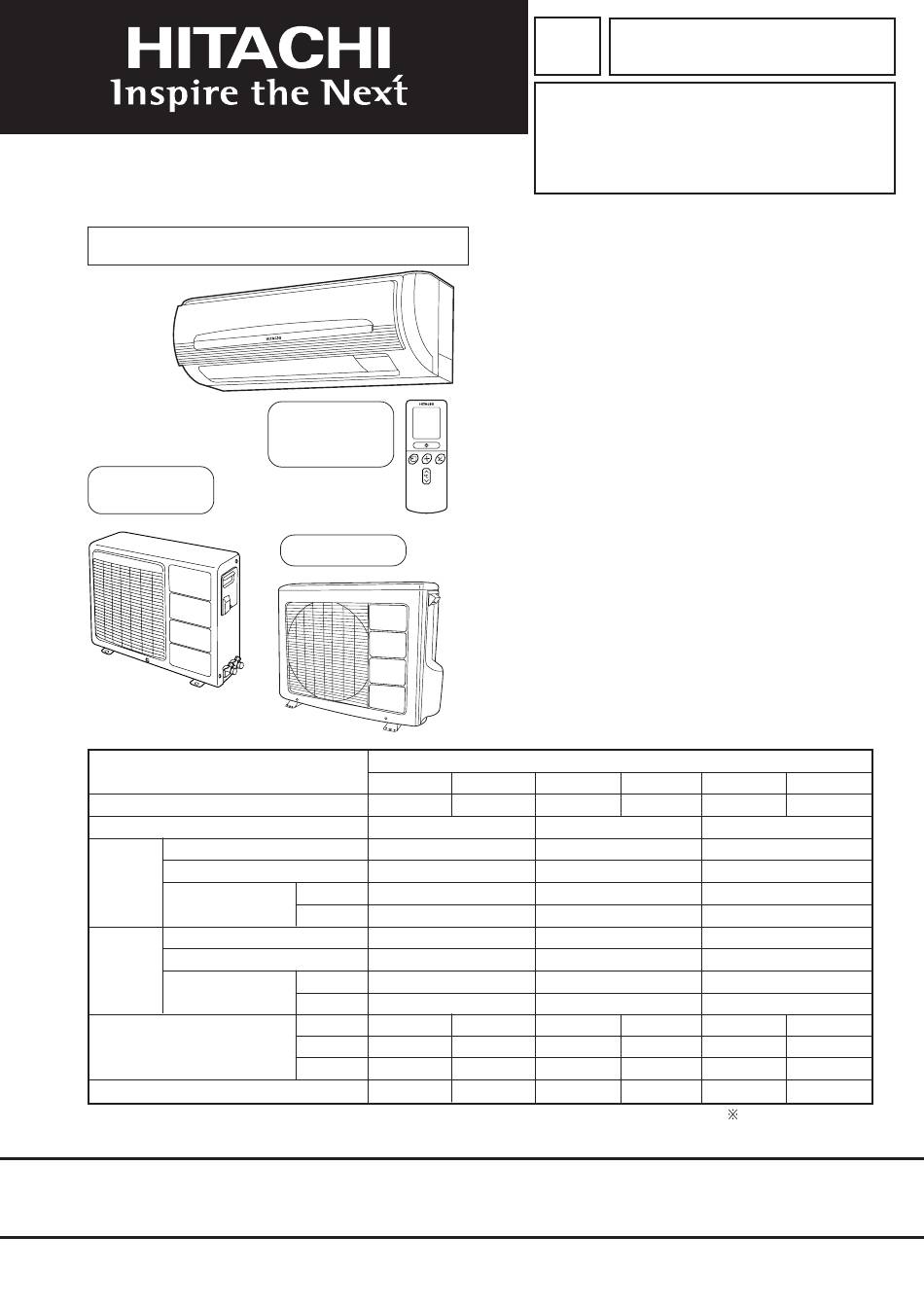

NO. 0223E RAS-07CH5 / RAC-07CH5 RAS-09CH5 / RAC-09CH5 SERVICE MANUAL RAS-14CH5 / RAC-14CH5 TECHNICAL INFORMATION REFER TO THE FOUNDATION MANUAL FOR SERVICE PERSONNEL ONLY CONTENTS SPECIFICATIONS ----------------------------------------------------- 5 HOW TO USE ---------------------------------------------------------- 6 CONSTRUCTION AND DIMENSIONAL DIAGRAM ------- 29 MAIN PARTS COMPONENT ------------------------------------- 31... - Page 2 SAFETY DURING REPAIR WORK 1. In order to disassemble and repair the unit in question, be sure to disconnect the power cord plug from the power outlet before starting the work. 2. If it is necessary to replace any parts, they should be replaced with respective genuine parts for the unit, and the replacement must be effected in correct manner according to the instructions in the Service Manual of the unit.
