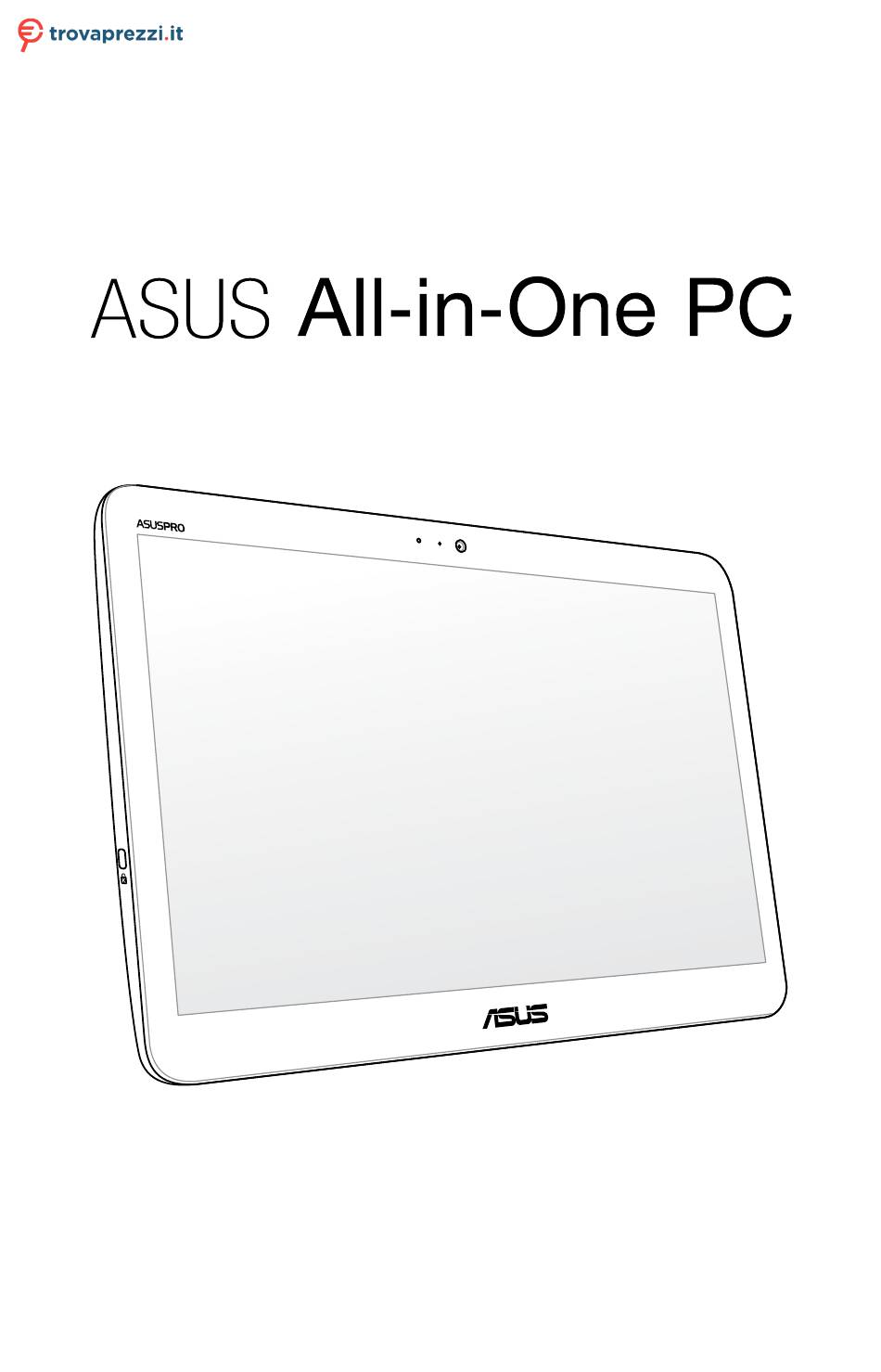

Page 1
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus A41GART BD007D o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation User Guide V161/A41 Series...
Page 2
Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
Connecting a wired keyboard and mouse ............22 Connecting a wireless keyboard and mouse (optional) ........23 Mounting your ASUS All-in-One PC to a wall ............24 Powering on your ASUS All-in-One PC ..............27 Using the touch screen ....................28 Gestures for the touch screen panel ..............29...
Page 4
Configuring a dynamic IP/PPPoE network connection ........48 Configuring a static IP network connection ............49 Turning your ASUS All-in-One PC off ..............50 Putting your ASUS All-in-One PC to sleep ............51 Activating Wake on Touch ..................52 Chapter 4: Recovering your system Entering the BIOS Setup ..................55...
Page 5
India RoHS ......................... 62 Wireless Operation Channel for Different Domains ........... 62 CE Mark Warning ......................63 REACH ..........................66 ASUS Recycling/Takeback Services ................66 Global Environmental Regulation Compliance and Declaration ....66 Prevention of Hearing Loss ..................67 Coating Notice ......................... 67 ENERGY STAR complied product ................
About this manual This manual provides information about the hardware and software features of your ASUS All-in-One PC, organized through the following chapters: Chapter 1: Hardware Setup This chapter details the hardware components of your ASUS All- in-One PC. Chapter 2: Using your ASUS All-in-One PC This chapter provides you with information on using your ASUS All-in-One PC.
Typography Bold =This indicates a menu or an item that must be selected. Italic = This indicates sections that you can refer to in this manual. ASUS All-in-One PC...
Icons The icons below indicate the devices you can use for completing a series of tasks or procedures on your ASUS All-in-One PC. = Use the touch screen panel. = (optional) Use the wired/wireless mouse. = (optional) Use the wired/wireless keyboard.
Safety information Your ASUS All-in-One PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system •...
The power cord or plug is damaged. Liquid has been spilled into the system. The system does not function properly even if you follow the operating instructions. The system was dropped or the cabinet is damaged. The system performance changes. ASUS All-in-One PC...
Input frequency: 50–60Hz Rating output voltage: 19Vdc It is recommended that the power socket is in close proximity to the ASUS All-in-One PC. DC Fan Warning Please note that the DC fan is a moving part and can cause harm when used improperly.
Package contents Wall mount screws ASUS All-in-One PC Power adapter (optional) Warranty card Keyboard (optional) Mouse (optional) Quick Start Guide NOTE: • If any of the items is damaged or missing, contact your retailer. • The keyboard, mouse, and power supply illustrations are for reference only. Actual product specifications may vary with territories. ASUS All-in-One PC...
Chapter 1: Hardware Setup Getting to know your ASUS All-in- One PC Front view Microphone This built-in microphone can be used for video conferencing, voice narration, audio recording, and multimedia applications. Webcam LED Indicates that the built-in webcam is enabled.
Page 14
ASUS All-in-One PC. LCD display panel The LCD display panel provides excellent viewing features for photos, videos, and other multimedia files. The multi-touch support allows you to operate your ASUS All-in-One PC using touch gestures. ASUS All-in-One PC...
Rear view Power button Press this button to turn on your ASUS All-in-One PC. Volume increase button Press to increase the volume. Volume decrease button Press to decrease the volume. ASUS All-in-One PC...
Page 16
VGA port This port allows you to connect your ASUS All-in-One PC to an external display. USB 3.1 Gen1 port This USB 3.1 Gen1 (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0.
Page 17
The bundled power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the ASUS All-in-One PC. To prevent damage to the ASUS All-in-One PC, always use the bundled power adapter.
NOTE: The descriptions of these items are in the section Rear View. Drive activity indicator This indicator lights up when your ASUS All-in-One PC is accessing the internal storage drives. Power indicator This LED power indicator lights up when the ASUS All- in-One PC is turned on.
Left side view Right side view Kensington® security slot The Kensington® security slot allows you to secure your ASUS All-in-One PC using Kensington® compatible security products. Headphone jack This port allows you to connect amplified speakers or headphones. Microphone jack...
Page 20
5 Gbit/s and is backward compatible to USB 2.0. Memory card reader This ASUS All-in-One PC has a built-in memory card reader slot that supports MMC, SD, SDHC, SDXC, MS, and MS PRO cards.
All-in-One PC Positioning your ASUS All-in-One Place your ASUS All-in-One PC on a flat surface such as a table or desk then pull the stand open until it locks into place. Gently push the display panel until the hinge makes a “click” sound to adjust your All-in-One PC from a 15°...
Position the mouse and keyboard at least 20 cm away from other wireless hardware to avoid interference. • The illustrations above are for reference only. Actual hardware and specifications of the optional wired or wireless keyboard and mouse may vary. ASUS All-in-One PC...
PC onto a wall. To install your ASUS All-in-One PC to the wall: NOTE: The optional wall mount should comply with VESA 75 standards. Pull the stand of your ASUS All-in-One PC until it locks into place. ASUS All-in-One PC...
Page 25
Remove the four plastic caps from the rear panel holes. Attach the four wall mount screws to the rear panel holes. ASUS All-in-One PC...
Page 26
NOTE: Ensure that the wall mount kit is stable and fixed firmly on the wall. Attach the wall mount screws and ASUS All-in-One PC assembly to the wall mount kit. ASUS All-in-One PC...
(1 and 2) and then press the Power button on the top of the rear panel (3) of the ASUS All-in-One PC to power on the system. NOTE: For details on turning off your ASUS All-in-One PC, refer to the section Turning your ASUS All-in-One PC off in Working with Windows® 10.
Using the touch screen The touch screen panel of your ASUS All-in-One PC provides excellent viewing features for photos, videos, and other multimedia files on your ASUS All-in-One PC. It also supports the 10-point multi-touch feature that facilitates smoother and more accurate touch gestures allowing you to operate your ASUS All-in-One PC faster and easier.
Using touch screen panel gestures on Windows® 10 The gestures allow you to launch programs and access the settings of your ASUS All-in-One PC. The functions can be activated by using the hand gestures on your ASUS All-in-One PC’s touch screen panel. Left edge swipe...
Page 30
Tap an app to select it. Press and hold to open the right-click menu. • Double-tap an app to launch it. Zoom in Zoom out Spread apart your two fingers on Bring together your two fingers the touch screen panel. on the touch screen panel. ASUS All-in-One PC...
Page 31
Finger slide Drag Slide your finger to scroll up and • Drag to create a selection down and slide your finger to box around multiple pan the screen left or right. items. • Drag and drop an item to move it to a new location. ASUS All-in-One PC...
Chapter 3: Working with Windows® 10 Starting for the first time When you start your ASUS All-in-One PC for the first time, a series of screens appear to guide you in configuring your Windows® 10 operating system. To start your ASUS All-in-One PC for the first time: Press the power button on your ASUS All-in-One PC.
Start menu The Start menu is the main gateway to your ASUS All-in-One PC’s programs, Windows® apps, folders, and settings. Change account settings, lock, or sign out from your account Launch an app from the Start screen Launch Taskview Launch an app from the taskbar...
Use the arrow keys to browse through the programs. Press to launch it. NOTE: Select All apps at the bottom of the left pane to display a full list of programs and folders on your ASUS All-in-One PC in alphabetical order. ASUS All-in-One PC...
Windows ® apps These are apps pinned on the right pane of the Start menu and displayed in tiled-format for easy access. NOTE: Some Windows® apps require signing in to your Microsoft account before they are fully launched. ASUS All-in-One PC...
Working with Windows® apps Use your ASUS All-in-One PC’s touch screen, mouse, or keyboard to launch, customize, and close apps. Launching Windows® apps from the Start menu Tap the app to launch it. Position your mouse pointer over the app then click to launch it.
Page 38
Press and hold the app, then tap the icon. Position your mouse pointer over the app and right- click it, then click Unpin from Start. Use the arrow keys to navigate to the app. Press then select Unpin from Start. ASUS All-in-One PC...
Page 39
Start menu and right-click it, then click Pin to Start. From All apps, press on the app that you want to add to the Start menu, then select Pin to Start. ASUS All-in-One PC...
Launching task view Tap the icon on the taskbar or swipe form the left edge of the screen. Position your mouse pointer over the icon on the taskbar and click it. Press on your keyboard. ASUS All-in-One PC...
Snap feature The Snap feature displays apps side-by-side, allowing you to work or switch between apps. Snap hotspots You can drag and drop apps to these hotspots to snap them into place. ASUS All-in-One PC...
Page 42
Launch the app you wish to snap. Press and hold the key, then use the arrow keys to snap the app. Launch another app and repeat the above steps to snap another app. ASUS All-in-One PC...
Actions section at the bottom. Launching Action Center Click the icon on the taskbar or swipe from the right edge of the screen. Position your mouse pointer over the icon on the taskbar and click it. Press on your keyboard. ASUS All-in-One PC...
Windows® 10. Launches Start menu Launches Action Center Launches the desktop Launches the File Explorer Opens the Share panel Launches Settings Launches Connect panel Activates the Lock screen Minimizes all currently active windows ASUS All-in-One PC...
Page 45
Launches Search Launches Project panel Opens the Run window Opens Ease of Access Center Opens the context menu of the Start button Launches the magnifier icon and zooms in your screen Zooms out your screen Opens Narrator Settings ASUS All-in-One PC...
Access emails, surf the Internet, and share applications via social networking sites using your ASUS All-in-One PC’s Wi-Fi connection. Connecting Wi-Fi Connect your ASUS All-in-One PC to a Wi-Fi network by using the following steps: Select the icon from the taskbar.
Use Bluetooth to facilitate wireless data transfers with other Bluetooth- enabled devices. Pairing with other Bluetooth-enabled devices You need to pair your ASUS All-in-One PC with other Bluetooth-enabled devices to enable data transfers. Connect your devices by using the following steps: Launch Settings from the Start menu.
To configure your settings, refer to the following procedures. IMPORTANT! Ensure that a network cable is connected between your ASUS All-in-One PC’s LAN port and a local area network before performing the following actions. Configuring a dynamic IP/PPPoE network connection Launch Settings.
Select Use the following IP address. Type the IP address, Subnet mask and Default gateway from your service provider. If needed, you can also type the preferred DNS server address and alternate DNS server address then select OK. ASUS All-in-One PC...
Turning your ASUS All-in-One PC You can turn off your ASUS All-in-One PC by doing either of the following procedures: • Launch the Start menu, then select > Shut down to do a normal shutdown. > Shut down. • From the log-in screen, select • Press to launch Shut Down Windows.
> Sleep. • From the log-in screen, select Press to launch Shut Down Windows. Select Sleep from the drop-down list then select OK. NOTE: You can also put your ASUS All-in-One PC to Sleep mode by pressing the power button once. ASUS All-in-One PC...
Activating Wake on Touch NOTE: This function is only available on selected models. The touch screen panel may be used to wake your ASUS All-in-One PC when it is in sleep mode. You can activate Wake on Touch on your ASUS All-in-One PC by doing...
Page 53
Locate and click on Human Interface Devices, then right click on HID-compliant touch screen, then select Properties. Select the Power Management tab and check Allow this device to wake the computer, then click OK when you are finished. ASUS All-in-One PC...
Page 54
Method B Type Device Manager into the Search bar and select Device Manager from the search results Follow steps 2 and 3 from Method A to activate the Wake on Touch function. ASUS All-in-One PC...
(4) seconds to access the BIOS directly. • Press the power button to turn on your ASUS All-in-One PC then press <F2> or <Del> during POST. NOTE: POST (Power-On Self-Test) is a series of software controlled diagnostic tests that run when you turn on your ASUS All-in-One PC. ASUS All-in-One PC...
Note down important customized settings such as network settings, user names, and passwords to avoid data loss. • Ensure that your ASUS All-in-One PC is plugged in to a power source before resetting your system. Windows® 10 allows you to do any of the following recovery options: •...
Use this option if this build is not working for you. • Advanced startup - Using this option allows you to perform other advanced recovery options on your ASUS All-in-One PC such as: Using a USB drive, network connection or Windows recovery DVD to startup your ASUS All-in-One PC.
Page 58
Under the Update and security option, select Recovery then select the recovery option you would like to perform. ASUS All-in-One PC...
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ASUS All-in-One PC...
IMPORTANT! Outdoor operations in the 5.15~5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250~5350 and 5470~5725 MHz. CAUTION: Any changes or modifications not expressly approved by the guarantee of this device could void the user’s authority to operate the equipment. ASUS All-in-One PC...
Page 61
La bande 5150–5250 MHz est réservée uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. CAN ICES-3(B)/NMB-3(B) ASUS All-in-One PC...
0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule. Wireless Operation Channel for Different Domains N. America 2.412-2.462 GHz Ch01 through CH11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI2.412-2.472 GHz Ch01 through Ch13 ASUS All-in-One PC...
NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users PAS DE DÉMONTAGE La garantie ne couvre pas les appareils ayant été désassemblés par les utilisateurs ASUS All-in-One PC...
Page 64
DO NOT expose to or use near liquids, rain, or moisture. This product is not waterproof or oil-proof. Exposition aux liquides NE PAS exposer ou utiliser à proximité de liquides, de la pluie ou d’environnements humides. Cet appareil n’est pas imperméable à l’eau ou à l’huile. ASUS All-in-One PC...
Page 65
Ne jetez PAS la batterie avec les déchets ménagers. Le symbole représentant une benne barrée d’une croix indique que la batterie ne doit pas être jetée avec les déchets ménagers. 請勿將電池當作一般垃圾丟棄。這個標誌表示電池不應視為一般 垃圾丟棄。 ASUS All-in-One PC...
REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http:// csr.asus.com/english/REACH.htm. ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment.
To prevent possible hearing damage, do not listen at high volume levels for long periods. Coating Notice IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located. ASUS All-in-One PC...
U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices. All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default.
