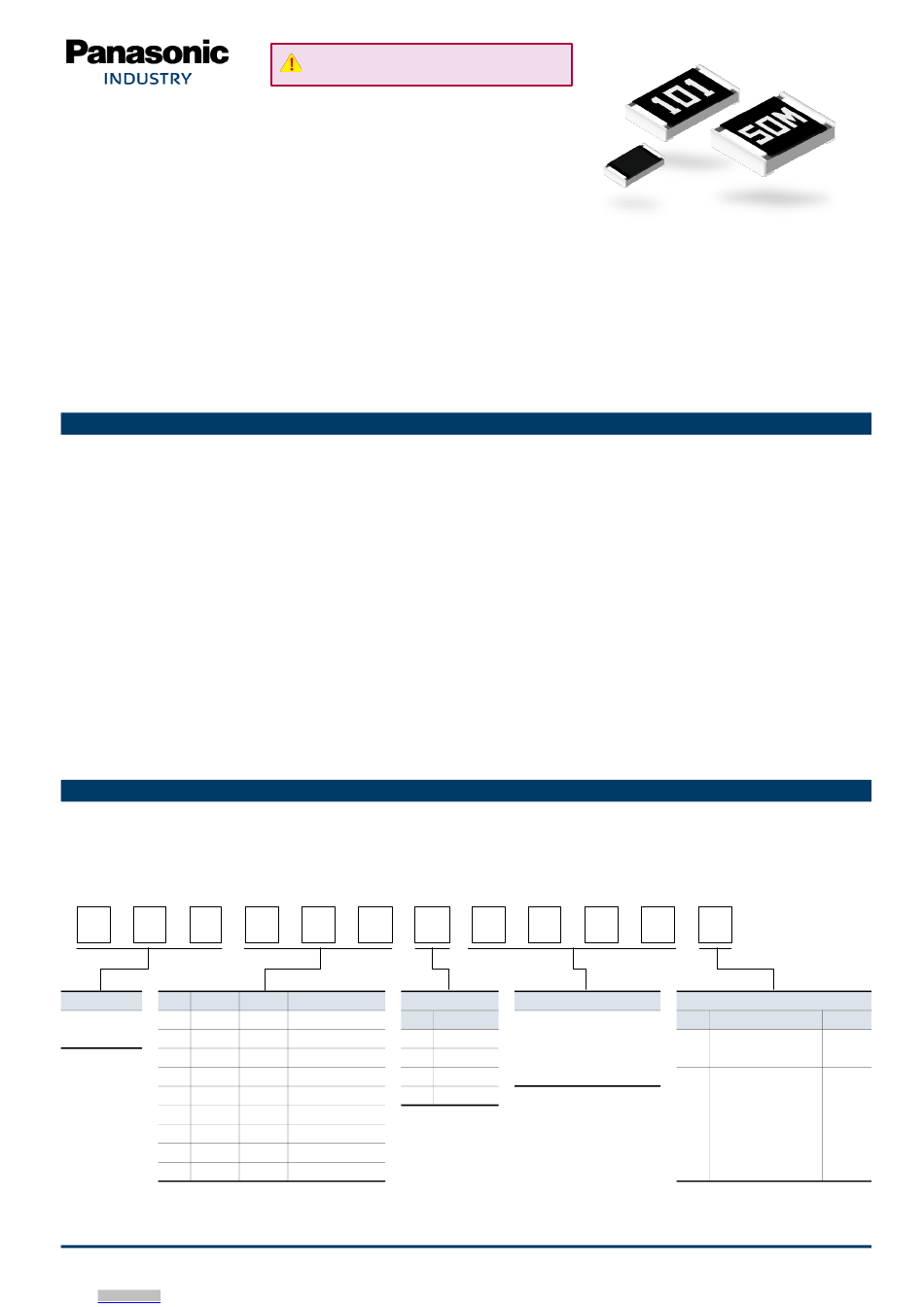

Thick Film Chip Resistors
(Low Resistance Type)
ERJ type
ERJ 2LW, 3LW, 6LW
ERJ 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
ERJ 2B, 3B, 6D, 6B, 8B, 14B
ERJ 3R, 6R, 8R, 14R, 12R, 12Z, 1TR
ERJ L03, L06, L08, L14, L12, L1D,
Features
● Current sensing resistor
● Small size and lightweight
● Realize both low-resistance & High-precision by original thick film resistive element & special electrode
structure
● Suitable for both reflow and flow soldering
● Realize High-power by double-sided resistive elements structure that aimed to suppress temperature rising
● Low TCR
● Low resistance value
● Reference standard
● AEC-Q200 compliant
● RoHS compliant
■ As for packaging methods, land pattern, soldering conditions and safety precautions,
please see data files.
Explanation of part numbers
● ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW series
<High power (double-sided resistive elements structure) type>
1
2
E
R
Product code
Code
2LW
Thick film
chip resistors
3LW
6LW
2BW
3BW
6BW
8BW
6CW
8CW
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Arrow.com.
Downloaded from
ERJL1W are not a recommended product.
Not recommended for new design.
series
: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
－6
: ±75×10
/K(ERJ6CW, ERJ8CW)
: Thick film resistors available from 5 mΩ (ERJ3LW, 6LW)
: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
Note : Please check the "Ratings" for the presence/absence of part numbers for combinations of the symbols below.
3
4
5
6
J
2
B
W
Resistance value
inch size
Power rating
0402
0.2 W
10 mΩ
0603
0.25 W
5 mΩ, 10 mΩ
0805
0.5 W
5, 6, 7, 8, 9 mΩ
0402
0.25 W
47 m to 100 mΩ
0603
0.33 W
20 m to 100 mΩ
0805
0.5 W
10 m to 100 mΩ
1206
1 W
10 m to 100 mΩ
0805
0.5 W
10 m to 30 mΩ
1206
1 W
10 m to 50 mΩ
series
series
series
L1W
series
7
8
9
G
R
0
Resistance value
Resistance tolerance
Tolerance
Code
Shown by 4 digits or letters.
D
±0.5 ％*
(Ex.)
R005 : 0.005 Ω = 5 mΩ
F
±1 ％
R047 : 0.047 Ω = 47 mΩ
G
±2 ％
J
±5 ％
*Please refer to the rating table
for the resistance tolerance.
10
11
12
4
7
X
Packaging methods
Code
Packaging
Pressed carrier taping
X
2 mm pitch, 10,000 pcs
Punched carrier taping
V
4 mm pitch, 5,000 pcs
Part No.
ERJ2LW
ERJ2BW
ERJ3LW
ERJ6LW
ERJ3BW
ERJ6BW
ERJ8BW
ERJ6CW
ERJ8CW
1-Nov-22
