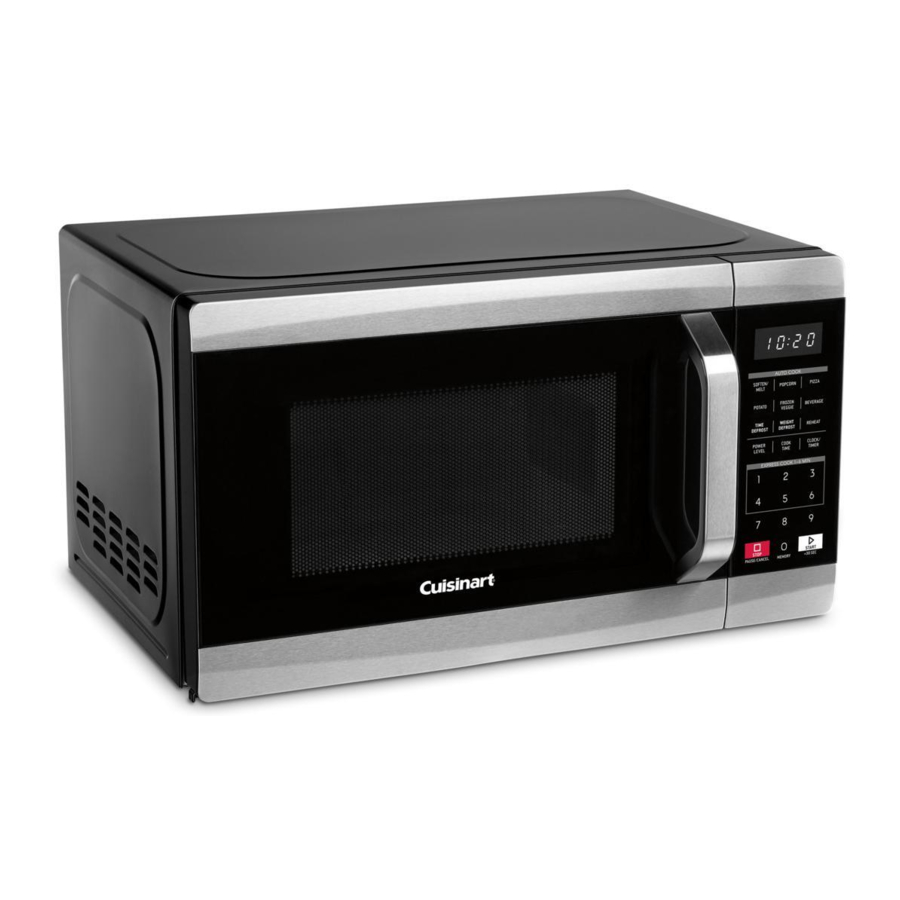

Cuisinart CMW-70 - Microwave Oven Manual

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy when using your appliance, basic safety precautions should be taken, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
2. Read and follow the specific warning section: PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.
3. This appliance must be grounded. Connect only to properly grounded outlet. See GROUNDING INSTRUCTIONS.
4. Install or locate this appliance only in accordance with the SET UP instructions.
5. Some products, such as whole eggs and sealed containers – for example, closed glass jars – can explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when it is used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service technicians. Contact 1-800726-0190.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors.
12. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
13. Do not immerse cord or plug in water.
14. Keep cord away from heated surfaces.
15. Do not let cord hang over edge of table or counter.
16. When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.
17. To reduce the risk of fire in the oven interior:
    1. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
    2. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
    3. If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
    4. Do not use the interior for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use.
18. Liquids such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling. This is called delayed eruptive boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
19. To reduce the risk of injury to persons:
    1. Do not use straight-sided containers with narrow necks. Use wide-mouth containers.
    2. Stir liquid both before and halfway through heating it.
    3. Do not overheat liquid.
    4. Use extreme care when inserting a spoon or other utensil into the container. This may also cause delayed eruptive boiling.
    5. After heating, allow the container to stand in the microwave oven for at least 20 seconds before removing the container.
20. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

SAVE THESE INSTRUCTIONS.

FOR HOUSEHOLD USE ONLY.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open, as this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the door (for example, make sure that it is not bent); hinges and latches (for example, make sure that they are not broken or loosened); door seals and sealing surface.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. If the microwave unit is not kept clean, its surface could be degraded and lead to a hazardous situation.

SPECIAL CORD SET INSTRUCTIONS

Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

NOTICE: PACEMAKERS

Most pacemakers are shielded from interference from electronic products, including microwaves. Patients with pacemakers may wish to consult their physicians if they have concerns.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord with a grounding wire and grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or an extension cord should not be used unless the following precautions are followed (see 3, below).
3. If a long cord or extension cord is used:
   • The marked electrical rating of the cord set or extension cord should match the rating of the appliance.
   • The extension cord must be a grounding-type 3-wire cord.
   • The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

SPECIFICATIONS

Model: CMW-70

Rated Voltage: 120V~60Hz

Rated Input Power: 1050W

Rated Output Power: 700W

Oven Capacity: 20 L temperature.

Turntable Diameter: Ø10 inches

External Dimensions: 14.5" x 17.3" x 10.2"

Approximate Net Weight: 21.8 lb.

IMPORTANT SAFEGUARDS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, take basic precautions, including the following:

1. The oven must be placed on a level surface.
2. The glass turntable and turntable assembly must be in the oven during cooking. Handle the glass turntable carefully and place cookware on it gently to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break. See information about cookware you can use.
4. Use only the correctly specified bag size when using the preset popcorn program.
5. The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven when empty. Operating the oven with no food or food that is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating/hotspots may occur and cause injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
11. Do not attempt home canning in this microwave oven, as it is impossible to be sure all contents of the jar have reached boiling
12. Do not use this microwave oven for commercial purposes. This microwave oven is made for household use only.
13. Failure to maintain the oven in a clean condition could lead to deterioration that could adversely affect the life of the appliance and possibly result in a hazardous situation.

SET UP

1. Select a level surface with a minimum clearance of 12 inches (30 cm) above the oven and at least 3 inches (8 cm) between the oven and any adjacent walls. NOTE: One side must be open.

2. Do not remove bottom oven legs.
3. Remove any protective film from oven.
4. Do not remove the mica cover MicroGuide attached to interior.
   It shields and protects wave action.
5. Plug oven into a standard household outlet. Be sure voltage and frequency are the same as the voltage and frequency on the rating label.

• Blocking the intake and/or outlet openings can damage the oven.
• Operation of the oven may cause interference to nearby electronic equipment.

Do not install this oven over a range cooktop or other heat-producing appliances. If improperly installed near or over a heat source, the oven could be damaged and the warranty would be void. Surfaces may be hot during operation.

PARTS AND FEATURES

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

1. Control panel
2. Turntable shaft
3. Turntable ring assembly
4. Glass tray
   1. Tray hub
5. MicroGuide (DO NOT REMOVE)
6. Observation window
7. Door assembly
8. Cooking Guide Chart

TO INSTALL TURNTABLE

1. Set ring assembly (3) onto oven floor, centered over the turntable shaft (2).
2. Place the glass tray (4) into the oven, carefully fitting the tray hub (4a) onto the turntable shaft.

• Be sure glass tray is never used upside down. Tray must be properly connected to the turntable ring before operating the oven.
• Food, in or out of containers, must be placed on glass tray for cooking.
• If glass tray or turntable ring assembly cracks or breaks, contact the retail store where purchased or call Cuisinart consumer service: 800-726-0190.

MATERIALS YOU CAN USE IN MICROWAVE

Arcing is sparks or electric flashes that crackle or pop. Arcing can produce heat that is quite intense and can damage the interior of the microwave or containers being used in the microwave. It can also cause fire.

Arcing occurs when certain metals are used in the microwave. To prevent arcing, use the charts below to determine which materials are microwave safe, or follow instructions from container/wrap manufacturer.

Plastic cookware should be used carefully. Even microwave-safe plastic may not be as tolerant of overcooking conditions as are glass or ceramic materials and may soften or char if subjected to short periods of overcooking.

In longer exposures to overcooking, the food and cookware could ignite.

Follow these guidelines: Use microwave-safe plastics only and use them in strict compliance with the cookware manufacturer's recommendations.

Do not microwave empty containers.

Do not permit children to use plastic cookware without complete supervision.

MATERIALS TO BE AVOIDED IN MICROWAVE

OPERATING INSTRUCTIONS

Setting the Clock

1. Press CLOCK/TIMER once, the display will show "00:00" or the previously set time. The first digit will flash.
2. Press the number buttons to set time. Example: To set 12:30, press 1–2–3–0.
   NOTE: This is a 12-hour clock. Time will display from 01:00–12:59.
3. Once time is selected, press CLOCK/TIMER to set, [:] will flash in display.
   NOTE: While setting the clock, if the STOP PAUSE/CANCEL button is pressed or if nothing is selected for more than 1 minute, the clock will go back to the previous setting.

Setting the Timer

1. Press CLOCK/TIMER twice, the display will show "00:00."
   Press the number buttons to set the timer. Example: To set 12 minutes and 15 seconds, press 1–2–1–5.
   NOTE: Timer can be set for up to 99 minutes and 99 seconds, 99:99.
2. Press the START +30 SEC button to confirm the setting. Time will begin to count down on the display.
3. When time has elapsed, the tone will beep 5 times.
   NOTE: When the kitchen timer is engaged, the oven will not start with any program and the oven light will not light.

Stop Pause/Cancel

Touch the STOP PAUSE/CANCEL button to:

• Start over if you make a mistake while programming.
• Cancel the timer.
• Stop the oven during operation. (Press START +30SEC to resume.)
• Cancel a program during operation (press twice).

COOKING OPTIONS

Manual Cook

You can manually program your desired cooking time and power level.

1. Press COOK TIME once, the screen will display "00:00."
2. Use the number buttons to input desired cooking time, up to 99 minutes and 99 seconds.
3. Select power level from the Power Level Chart. Press POWER LEVEL, the screen will display PL10 (default power level: 100%). To select a different power level, press a number button, 1 through 9.
4. Once cook time and power level are programmed, press START +30SEC to start cooking. Time will begin to count down in the display.

Power Level Chart

Express Cook

This feature provides a shortcut to programming your oven. Power level is always at 100% when using Express Cook. You can select 1 to 6 minutes or 30-second increments.

1. Select a cooking time from 1 to 6 minutes by pressing Express Cook number buttons 1 to 6.
2. Once the number button is pressed, oven will instantly start cooking.
3. To increase the cooking time by 30-second increments, press the START +30SEC button.
4. To select cooking time in 30-second increments, skip steps 1 to 3. Press START +30SEC button (microwave will begin operating), and then press and release button until desired cooking time appears in the display.
   NOTE: During manual cooking and timed defrost, time can be added by pressing the START +30SEC button.

Auto Cook

Auto Cook functions are preprogrammed to cook many popular foods using professionally recommended power levels and cooking times.

1. FUNCTIONS: Press the button for the desired Auto Cook function. The display window will show the first option for that function, as listed in the DISPLAY column of the Auto Cook Guide. See the TIPS column to help you decide which option to use.
2. OPTIONS: Press the function button repeatedly until the desired option appears on the display. Options include food weight (oz.), or food portions (tablespoons or units).
3. Once you have made your selection, press the START +30SEC button to start cooking. The tone will sound once.
4. Once cook time elapses, the tone will sound 5 times.
   NOTE: Final cooking results will vary according to food's initial temperature, shape, quality, etc. Check the TIPS column in the Auto Cook Guide for the best results.

Time Defrost

This feature allows you to defrost by time.

1. Press TIME DEFROST once, the screen will display "00:00."
2. Press number buttons to input time from 0:01–99:99 minutes/seconds.
3. The default power level for defrost is power level 3. To change the power level, press POWER LEVEL once, the screen will display PL3. Use the number button to select another power level.
4. Press the START +30SEC button to begin defrosting; the display will begin counting down the time.

Weight Defrost

This feature allows you to defrost by weight.

1. Press WEIGHT DEFROST once, the screen will display "0."
2. Press number buttons to input weight to be defrosted. Input the weight in a range 4–100 oz.
3. Press the START +30SEC button to start defrosting; the display will automatically begin counting down the correct defrost time based on the unit's weight.

Defrost Tips

• Frozen food in paper or plastic can be defrosted in the package. Closed packages should be slit, pierced or vented AFTER the food has partially defrosted. Plastic storage containers should be partially uncovered.
• If the food is in a foil container, transfer it to a microwave-safe dish.
• For more even defrosting of larger foods, use Weight Defrost. Be sure large meats are completely defrosted before cooking
• When defrosted, food should be cool but softened in all areas. If food is still icy, return to the microwave for brief additional cooking time, or let it stand for a few minutes.

Auto Cook Guide

Two-Stage Cooking

This function lets you program your oven to automatically switch from one function to a second function. Be sure to follow steps in the order listed below; cooking time must always be selected before choosing the power level.

Example: To begin cooking at an 80% power level for 5 minutes, and then switch to cook at a 60% power level for 10 minutes:

1. Press COOK TIME once, then press 5–0–0 to set the cooking time.
2. Press POWER LEVEL once, then press 8 to select 80% microwave power.
3. Press COOK TIME once, then press 1–0–0–0 to set the cooking time.
4. Press POWER LEVEL once, then press 6 to select 60% microwave power.
5. Press START +30SEC to start two-stage cooking.

NOTE: Auto cooking cannot be set as part of two-stage cooking

Memory

You can save up to three cooking procedures (one or two stages) that you frequently use. They will be stored in the oven's memory as numbers 1, 2 and 3 and can be used at any time. Auto Cook cannot be saved as memory.

To Program Memory Procedure

1. Press 0/MEMORY button. The screen will display 1, 2 or 3, depending on the number of times you press the 0/MEMORY button.
2. Press COOK TIME, then use the number buttons to set the desired cooking time.
3. Press POWER LEVEL button. Default power level PL10 appears in the display, but can be changed by pressing the number button (see Power Level Chart).
4. Press START +30SEC to save the setting. The tone will sound once and the screen will display the number (1, 2 or 3) for the memory procedure you programmed and saved.
5. Press STOP PAUSE/CANCEL.
   NOTE: To program a two-stage memory procedure, press 0/MEMORY button to save it as 1, 2 or 3. Follow instructions under Two-Stage Cooking. After pressing START +30SEC to save it, press STOP PAUSE/CANCEL.

To Run a Saved Procedure

Press 0/MEMORY one, two or three times until the number of the desired saved procedure is displayed, then press START +30SEC.

NOTE: If oven is unplugged or power is cut off, memory will need to be reset.

Child Lock

The child lock prevents unwanted oven operation. The oven can be set so that the control panel is deactivated or locked.

TO LOCK

• Press STOP PAUSE/CANCEL for 3 seconds.
• There will be a long tone indicating that the child lock has been activated.
• The screen will display .
• The keypad will not be able to be used.

TO UNLOCK

• To unlock, press STOP PAUSE/CANCEL for 3 seconds.
• There will be a long tone indicating that the microwave oven is unlocked.
• The symbol will disappear.

CLEANING & CARE

Unplug the cord before cleaning any part of this oven. Clean your oven regularly to avoid grease build-up.

To clean the inside of the unit

• An occasional thorough wiping with a solution of baking soda and water keeps the inside fresh.
• Remove greasy spatters with a sudsy cloth, then wipe with a damp cloth. Never use abrasive cleaners or sharp utensils on any part of the microwave.
• Clean surfaces where the door meets the oven when closed with mild, nonabrasive soap or detergent on a soft cloth. Wipe with damp cloth.
• To remove greasy stains, put 1 cup water mixed with 2 tablespoons lemon juice or baking soda in a cup and bring this mixture to a boil in the microwave. Allow it to stand in microwave for 5 minutes to steam. Then wipe walls of microwave with clean paper towels, a damp clean towel or a dampened microfiber cloth to remove softened cooking residue.

To clean the outside of the unit

• It is important to keep the area clean where the door seals against the microwave.
• Wipe with a damp cloth. Dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects, as they can damage the unit. NOTE: Some paper towels can also scratch the control panel. Use caution.

To remove unwanted odors

• Select Power Level 0 (PL0) and the oven will operate with the fan but, no power.

Maintenance

• Any other servicing should be performed by an authorized service representative.

COOKING GUIDES

The following guides will help you to cook a variety of foods in the microwave.

How to Cook Meat & Poultry

How to Cook Fish & Seafood

How to Cook Vegetables

TROUBLESHOOTING
