LG HOM-BOT CR5 65 Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

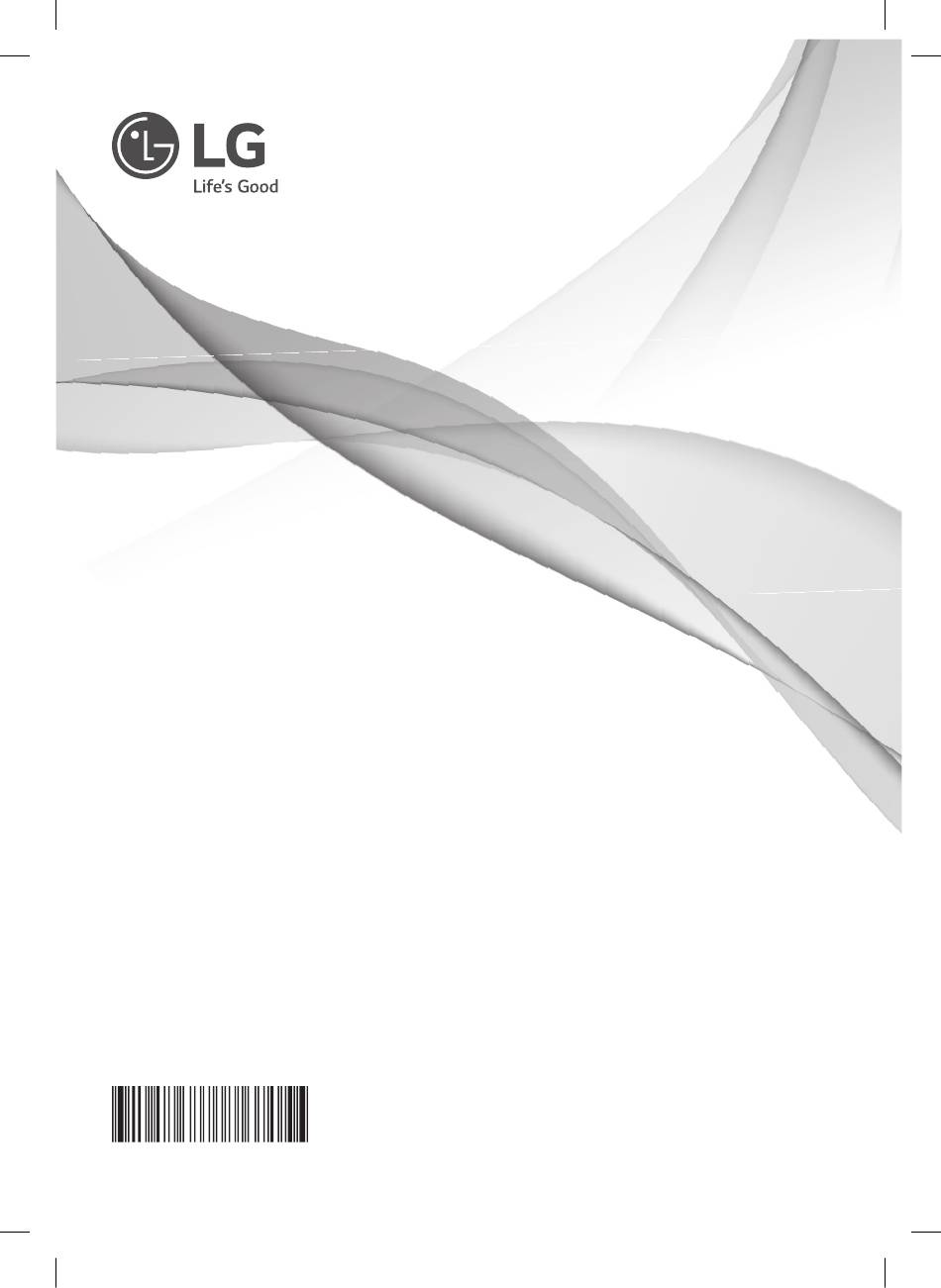

OWNER'S MANUAL
HOM-BOT
• Charge the battery fully before using the product for the first time.
• Before using, carefully read the Safety Precautions to allow for safe
operation of the product.
• After reading this manual, keep it in an easily accessible location.
CR5*65**
MFL67680072
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG HOM-BOT CR5 65 Series

Summary of Contents for LG HOM-BOT CR5 65 Series

  • Page 1 • Before using, carefully read the Safety Precautions to allow for safe operation of the product. • After reading this manual, keep it in an easily accessible location. CR5*65** www.lg.com Copyright © 2017 LG Electronics Inc. All Rights Reserved. MFL67680072...

  • Page 2: Table Of Contents

    Choosing a Cleaning Mode Reference Items Auxiliary Cleaning Modes Performance Testing (IEC 62929 Standard) Setting the Clock Scheduling Cleaning WARRANTY Mop Cleaning (on some models) Location Search Function LG Robot Cleaner WARRANTY Smart Diagnosis™ Smart Application Function Product Info Initialization...

  • Page 3: Features

    If the Robot Cleaner is moved from a spot while operating, the device will automatically search for the previous location and return to the spot where it was interrupted. LG Smart ThinQ Smartphone Application You can control the Robot Cleaner from your smartphone. Cleaning...

  • Page 4: Safety Precautions

    2. Children should be supervised to ensure that they do not play with the appliance. 3. If the supply cord is damaged, it must be replaced by an LG Electronics Service Agent in order to avoid a potential hazard.
  • Page 5 Robot Cleaner. If you need to service personnel using only identical replace the battery of the Robot Cleaner, replacement parts. This will ensure that take it to the nearest authorized LG the safety of the product is maintained. Electronics service center or dealer for assistance.
  • Page 6 SAFETY PRECAUTIONS WARNING To reduce the risk of explosion, fire, death, electric shock, or injury to persons when using this product, follow basic safety precautions, including the following. • Do not allow children or pets to play with • Do not leave children or pets near the or rest upon the Robot Cleaner at any Robot Cleaner unsupervised.
  • Page 7 SAFETY PRECAUTIONS CAUTION To reduce the risk of injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following. • Frequently empty the dust bin and keep it • Remove any cables or string from the floor clean. before use. The dust collected in the dust bin can trigger Cable or string can get tangled in the wheels allergies and may contain harmful insects.
  • Page 8 • Use appliances only with specifically • Do not expose a battery pack or appliance designed battery packs for Robot Cleaner to fire or excessive temperature. Exposure provided by LG Electronics. Use of any to fire or temperature above 265°F (130°C) other battery packs may create a risk of may cause explosion. injury and fire.

  • Page 9: Included With Product

    INCLUDED WITH PRODUCT Robot Cleaner Remote controller Home station Adapter s Appearance and accessories may vary depending on model. Manual Cleaning Tool Dust bin filter* (spare) Manual Magnetic Wall strip* (3.2 ft / 2 m) for cleaning sensors for cleaning the filter Cleaning brush Mop plate*...
  • Page 10 PARTS - ROBOT CLEANER Top view Upper camera sensor Dust bin cover Display and function buttons Dust bin compartment release button Front view Ultrasonic sensors Obstacle detecting sensor window, home station detecting sensors, remote controller receiving sensors. Front Camera Rear view Main Power switch Ventilation port Bottom view...
  • Page 11 PARTS – HOME STATION / DUST BIN Home station Remote holder Charging terminal Adapter jack Power cord keeper Dust bin Dust bin handle Cleaning brush Dust bin cover Suction port flap Sponge filter Dust bin lid opening button Particulate filter Filter cover s Appearance may vary depending on model.
  • Page 12 • Press and hold down the Turbo button for 3 seconds to activate the registration registration mode with a voice message. • This mode is for registering the product in the LG Smart ThinQ app over Wi-Fi. (Wi-Fi) • Press and hold down the MODE and CHARGE buttons for 3 seconds to Front camera activate or deactivate the front camera.

  • Page 13: Button Functions

    BUTTON FUNCTIONS – REMOTE Home Send the Robot Cleaner to the Power Home Station Turn power on, return power to standby Mode Turbo Change cleaning mode Activate or deactivate Turbo mode Directional button Enable manual operation Start/Stop button or selection of an area in Start/Stop cleaning, or confirm a My Space cleaning mode cleaning schedule or time setting...

  • Page 14: Display Status

    DISPLAY STATUS Mute Lock. Remote connection Appears when a Battery level smartphone connects to the robot cleaner. AM/PM Schedule Shows once or daily icon Turbo Repeat cleaning Homing Zigzag cleaning My Space cleaning Spot cleaning Cell by Cell cleaning Time display •...

  • Page 15: Before Starting

    BEFORE STARTING Before Cleaning • Do not use this device in a room where a child is left alone. The child could be injured. • Remove fragile or unnecessary objects from the room to be cleaned, especially expensive ceramics and valuables which could fall or break. •...

  • Page 16: Overview

    OVERVIEW Install the home station. (p17) 5 ft.(1.5 m) Insert the power cord plug into an outlet and locate ft.(2 m) the station against a wall. If power is not supplied to 5 ft.(1.5 m) the home station, the Robot Cleaner will not charge. Turn on the power supply of the Robot Cleaner.

  • Page 17: Installing The Home Station

    Do not operate the Robot Cleaner if the home station has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. To avoid electrical hazards, the cord must be replaced by LG Electronics, Inc. or a qualified service person.

  • Page 18: Turning The Robot Cleaner On/Off

    TURNING THE ROBOT CLEANER ON/OFF Turning On the Main Power Supply Flip the power switch to the ON position. ※ Do not press the Start/Stop button at the same time as flipping the power switch. Doing so may delay the operation. ※...

  • Page 19: How To Start And Stop Cleaning

    HOW TO START AND STOP CLEANING Using the Robot Cleaner's Buttons Once the Robot Cleaner is turned on, press the START/STOP button on the top of the Robot Cleaner to begin cleaning. A melody sounds and cleaning begins. Press the START/STOP button any time during the cleaning cycle to stop cleaning.

  • Page 20: Charging The Battery

    CHARGING THE BATTERY Automatic Charging The Robot Cleaner returns to the home station at the end of a cleaning cycle or when its battery is running low. ※ If 10 minutes elapse without the Robot Cleaner moving or the battery is too low, the Robot Cleaner automatically goes into standby mode.
  • Page 21 CHARGING THE BATTERY Battery Level Indicator The battery level indicator is located on the status display. • The battery level indicator flashes if recharging is in progress, showing the charge level. • If recharging is complete, only the battery and clean mode icons are displayed to save energy. •...
  • Page 22 CHARGING THE BATTERY Energy Saving Charging Mode You can recharge the battery with the Energy Saving mode, if you don't use the Robot Cleaner for a long period of time or overnight. Step 1. Press the Power button on the remote. All functions of the Robot Cleaner are turned off except the recharging mode.

  • Page 23: Using Magnetic Wall Strips

    To purchase a strip for use with a model that did not include one, or to purchase additional strips, visit the LG website at www.lg.com. 1. Use a Magnetic Wall strip to block off areas the robot cleaner should not enter.

  • Page 24: Choosing A Cleaning Mode

    CHOOSING A CLEANING MODE Zigzag Cleaning In Zigzag mode, the Robot Cleaner zigzags through each spot of the cleaning area. Select the Zigzag mode to quickly clean an area. Selecting the Zigzag Mode Press the Mode button continuously, on either the Robot Cleaner or remote, until the Zigzag icon illuminates.
  • Page 25 CHOOSING A CLEANING MODE My Space Cleaning Select the My Space mode to manually set the cleaning space. Selecting the My Space Mode 1. Press the My Space button. 2. Using the arrow buttons on the remote, guide the Robot Cleaner around the perimeter of the desired cleaning space.

  • Page 26: Auxiliary Cleaning Modes

    AUXILIARY CLEANING MODES Manual Cleaning Manual mode moves the Robot Cleaner manually to the front, back and either side using the arrow buttons on the remote. While in Manual mode, the Robot Cleaner runs into obstacles placed behind it if the back arrow key on the remote is held down.
  • Page 27 AUXILIARY CLEANING MODES Turbo Mode Select Turbo Mode for a more intense, powerful clean. Turbo Mode reduces the battery duration. Selecting Turbo Mode Press the Turbo button on the remote or on the Robot Cleaner to activate the Turbo mode. Press the Turbo button at any time during the cleaning operation to cancel the Turbo mode.

  • Page 28: Setting The Clock

    SETTING THE CLOCK You can set or change the current time on the Robot Cleaner. Pressing the Clock button on the remote when the Robot Cleaner is in standby mode starts the clock setting mode. Set the hour by using uv buttons on Flickering the remote.

  • Page 29: Scheduling Cleaning

    SCHEDULING CLEANING Cleaning can be scheduled so that the Robot Cleaner starts cleaning at a scheduled time. Press the Schedule button on the remote while the Robot Cleaner is recharging to set a scheduled cleaning. Setting/Cancelling a scheduled cleaning is only possible when the unit is recharging on the home station Select Schedule Once or Schedule Flickering Daily option using the uv buttons on...

  • Page 30: Mop Cleaning (On Some Models)

    MOP CLEANING (on some models) Remove dust on hard floors by attaching the ultra microfiber mop to the Robot Cleaner. When the mop plate is attached, the Robot Cleaner will not climb on to carpets or over thresholds, in order to prevent transferring dirt from the mop.

  • Page 31: Location Search Function

    LOCATION SEARCH FUNCTION The Robot Cleaner remembers its location while cleaning. If the user moves the Robot Cleaner while it is operating, it will search for the location it was moved from by using its navigational location search function before continuing to clean.

  • Page 32: Smart Diagnosis

    SMART DIAGNOSIS™ Robot Cleaner uses the Smart Diagnosis feature to run a self-diagnosis. If any irregularity is found from the diagnosis, contact the local LG Electronics service center. ft. (50 cm) radius. So, ※ During Smart Diagnosis, the Robot Cleaner moves about within a 1 ft.
  • Page 33 Smart Diagnosis mode will be turned off. Please try Smart Diagnosis again after turning the main power switch off and on from the back of Robot Cleaner. If the problem continues, please contact LG Electronics customer care. Smart Diagnosis mode cannot be operated with mop plate Run Smart Diagnosis again after removing the Mop being attached.

  • Page 34: Smart Application Function

    ※ If you are using a firewall, it may affect product connection. Installing the LG Smart ThinQ Application 1. Search for LG Smart ThinQ in the Google Play Store or the Apple App Store. 2. Download and install the LG Smart ThinQ application.
  • Page 35 You must create an account and register the product to a home network to control the Robot Cleaner from a smartphone. 1. Run the LG Smart ThinQ application. Select "LG Account Login" on the start-up screen. 2. Press Create Account on the sign in screen. Read and agree to the terms and conditions. Fill in the required information and press OK.
  • Page 36 You will need to register the product in the application to control the Robot Cleaner from your smartphone. Add your Robot Cleaner to the app with the Wi-Fi feature to use the Smart Functions. 1. Sign in to the LG Smart ThinQ application and select Register Product. 2. Select Robot Vacuum from the product list.
  • Page 37 SMART APPLICATION FUNCTION 2. Verifying the Product Verify that the product has a Smart ThinQ logo, then select No on the Tag On Screen and select Yes on the Wi-Fi screen. [Product category] [Product category 2] • Registering the product is required for the initial connection only; you can then connect to the Robot Cleaner without having to repeat this process.
  • Page 38 SMART APPLICATION FUNCTION 3. Connecting to the Network (Android) 1. After creating an account and using Wi-Fi to recognize the product, connect the product to your home Wi-Fi network. 2. Select your home network from the list and enter your password if necessary. Turn on the robot cleaner and press and hold the Turbo button on the cleaner for 3 seconds to register the product on the network.
  • Page 39 3. Turn on the Wi-Fi connection function in the iPhone settings. 4. Select LG-HOMBOT_REG from the network list and press Check Connection. 5. The robot cleaner appears on the Dashboard screen once registration is complete. Press the Robot Cleaner icon on the Dashboard screen to connect to the Robot Cleaner.
  • Page 40 SMART APPLICATION FUNCTION Application Startup Screen The following screen will open when you connect to the Robot Cleaner for the first time from the LG Smart ThinQ application: Displays the product Press to check alert nickname. history Menu The home icon selects HomeGuard, Schedule the product list page.
  • Page 41 SMART APPLICATION FUNCTION Application Startup Screen Menu HomeGuard, Schedule Cleaning, Cleaning Diary, Smart Diagnosis, Setting. HomeView Press the camera icon to open the HomeView screen. Mode Menu Cleaning mode, Repeat mode, Turbo mode.
  • Page 42 SMART APPLICATION FUNCTION The HomeView Screen Use the HomeView screen to remotely move the Robot Cleaner and to setup a HomeGuard location. HomeView main menu Set the cleaning mode, start cleaning, or send the Robot Cleaner to the home base to start charging.
  • Page 43 SMART APPLICATION FUNCTION Starting Cleaning from HomeView The cleaning mode can be changed and cleaning started from the HomeView menu. [Waiting to clean] Press "Mode setting" in the HomeView screen to select a cleaning mode. Press "Start Cleaning" to begin cleaning. •...
  • Page 44 SMART APPLICATION FUNCTION Charging from HomeView Press "Start Charging" in the HomeView screen and the Robot Cleaner searches for the home station to charge. Press "Stop" to stop its search for the home station. [Moving to Home station] [Charging] Operating Manually from HomeView Use the manual controls in HomeView to manually operate the Robot Cleaner.
  • Page 45 SMART APPLICATION FUNCTION Using HomeGuard HomeGuard allows you to select a location from which the Robot Cleaner monitors your home while you are away. If the motion sensor is tripped, the Robot Cleaner takes a series of pictures and sends a push message to alert you.
  • Page 46 SMART APPLICATION FUNCTION Setting a HomeGuard Location To use HomeGuard, you must first set the monitoring location on the virtual map. 1. On the Location Setting screen, click a target location within the indicated area. You can also move the Robot Cleaner to the desired location manually. Use the camera view in the screen while adjusting the location.
  • Page 47 SMART APPLICATION FUNCTION 3. Make sure the monitoring location is satisfactory in the video feed and press Save to complete the HomeGuard setup. [Saving Location setting] • The Robot Cleaner searches for the saved location with the Home station as the starting point, so you will have to set up the location again if the station has been moved.
  • Page 48 SMART APPLICATION FUNCTION HomeGuard Alerts Upon detecting any movement while in HomeGuard mode, the Robot Cleaner takes pictures and sends an alert to your smartphone. Press "Confirm" on the alert popup to view the pictures or access the Call and View Home functions. The Call function brings up your phone interface. The View Home function opens the HomeView mode.
  • Page 49 SMART APPLICATION FUNCTION Scheduling Cleaning Use Schedule Cleaning to set a regular time for the Robot Cleaner to begin cleaning. To set a regular cleaning schedule, open the menu at the top right of the Dashboard and select Schedule Cleaning. Toggle the Schedule Cleaning function on and select a time. Choose either "Once"...
  • Page 50 SMART APPLICATION FUNCTION Using the Cleaning Diary View the Cleaning Diary to check your cleaning history. The Cleaning Diary records the date, cleaning mode, and start and completion times of each cleaning. Press the Play button to the right of each list item to see an active cleaning map of that cleaning session.
  • Page 51 Be sure to resolve any issue identified in the diagnosis by taking the recommended measures. If the symptom persists, contact an LG Electronics Customer Information Center. • Smart Diagnosis in the application provides the same function as that of the remote control.
  • Page 52 SMART APPLICATION FUNCTION Setting Menu You can check or change the Robot Cleaner settings. Press "Product nickname" to change the current nickname of the Robot Cleaner; a pop-up where you can enter a new nickname opens (up to 10 characters allowed including English, Korean and numeric). You can check the current software version of the Robot Cleaner and the latest version.
  • Page 53 The network-enabled model of the Robot Cleaner can update the software automatically via the application. 1. Make sure that the LG Smart ThinQ application is up to date on the Play Store.(Unless you update the app to the latest version, software update will not be available.) 2.
  • Page 54 SMART APPLICATION FUNCTION Operating Modes The Robot Cleaner has 4 operating modes. Select a mode to change how the Robot Cleaner operates. Going-home mode : starts searching for home station Holiday mode : starts HomeGuard Away mode : starts cleaning Sleeping mode : starts searching for the home station [Mode] [Away mode]...

  • Page 55: Product Info Initialization

    3. Press Start/Stop again to turn the Robot Cleaner back on. ※ Any dispute between seller and buyer is an issue between the two parties. LG Electronics provides a product initialization function for smooth transaction. • Initialization returns the following information to the factory default settings.

  • Page 56: Cleaning The Dust Bin

    CLEANING THE DUST BIN If the dust bin is full, suction power may be reduced. Clean the dust bin before or after each cleaning session. Clean the dust bin using the following sequence: 1. Open the dust bin compartment cover by pressing the PUSH button on the Robot Cleaner.

  • Page 57: Cleaning The Dust Bin Filter

    CLEANING THE DUST BIN FILTER The Dust Bin Filter consists of a particulate filter and a sponge filter. Clean both the particulate filter and sponge filters using the following sequence. 1. Pull the hook on the left of the particulate filter module on the rear side of the dust bin to separate the particulate filter and the sponge filter.

  • Page 58: Cleaning The Brush

    CLEANING THE BRUSH The rotating brush, located on the bottom of the Robot Cleaner, helps collect dust. Clean the brush using the following sequence. ※ Before turning over the main unit, lay a soft cloth on the floor and remove the Dust Bin. Otherwise, the main unit can get scratched and dust will fall from the Dust Bin.

  • Page 59: Cleaning The Sensor/Charging Terminal

    CLEANING THE SENSORS/CHARGING TERMINALS There are sensors on the Robot Cleaner that detect obstacles, stairways and the home station for charging the battery. In order to maintain the performance of the Robot Cleaner, regularly clean the sensors and charging terminals as follows: 1.

  • Page 60: Cleaning The Side Brush

    CLEANING THE SIDE BRUSH Foreign objects/materials such as hair can easily adhere to the side brush. Remove such materials at least once a week. If excessive amounts of foreign materials are stuck to the brush, there is the risk of damage to the brushes. If the floor is rough or frequently cleaned, the side brushes may bend or become deformed.

  • Page 61: Cleaning The Ultra Microfiber Mop (On Some Models)

    ※ If the mop is used in a damp or wet state, it will cause the Robot Cleaner to malfunction. • To avoid product malfunction, only use the ultra microfiber mop provided with the Robot Cleaner. • Additional microfiber mops can be purchased from an authorized LG service center.

  • Page 62: Troubleshooting

    TROUBLESHOOTING "The wheels are not touching the floor. Please move Robot Cleaner onto flat floor." A warning message will be given if a wheel does not contact the floor surface for any reason. • Is a wheel trapped in the front door, balcony, stairway, etc? s Move the Robot Cleaner on to a flat floor.
  • Page 63 TROUBLESHOOTING "Please check if the dust bin is installed with the filter." A warning message will be given if there is no dust bin or filter housing fitted. • Is the dust bin fitted to the Robot Cleaner? s Open the dust bin compartment cover and check to ensure the dust bin is in place. s Do NOT leave the dust bin cover open.
  • Page 64 TROUBLESHOOTING "Please remove foreign material from the brushes on the bottom." A warning message will be given if foreign materials restrict the brush's rotation. Turn off the main power switch on the rear of the Robot Cleaner. Remove the dust bin, lay a soft cloth on the floor and put the Robot Cleaner upside down on it.

  • Page 65: Before Calling For Service

    The Robot Cleaner does s Use only the Magnetic Wall strip provided with the product or not recognize the Magnetic strips purchased from LG Electronics. The product may not Wall strips or bumps into recognize third-party magnetic strips. an object even though it is...

  • Page 66: Product Specifications

    PRODUCT SPECIFICATIONS Item/Model LG Robot Cleaner CR5*65** 13.4 inch x 13.4 inch x 3.5 inch External Dimensions (340 mm x 340 mm x 89 mm) 6.6 lb (3 kg) Weight 58 W Power Consumption DC 16.8 V Battery (Fully Charging) 1.38 inch/s (350 mm/s) (Maximum)
  • Page 67 PRODUCT SPECIFICATIONS Item/Model Home Station (VR650) EPS : ADS-30FSA-17 17030EPCU 9.3 inch x 7.1 inch x 5.0 inch External Dimensions (236 mm x 181 mm x 128 mm) 120 V~ 60 Hz Rating DC 17.1 V / 1.7 A Output Voltage/Current 30 W Power Consumption Item/Model...

  • Page 68: Reference Items

    REFERENCE ITEMS Open Source Software Notice To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

  • Page 69: Performance Testing (Iec 62929 Standard)

    PERFORMANCE TESTING (IEC 62929 Standard) Dust Removal Test - Box (Hard Floor & Carpet) 1. Put fully charged Robot Cleaner down on start point and turn on. 2. Push TURBO button on the Robot Cleaner or Turbo button on the remote and Robot Cleaner will be set to Turbo Mode.

  • Page 70: Lg Robot Cleaner Warranty

    LG Robot Cleaner WARRANTY LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under personal household use, during the warranty period set forth below, effective from the date of original consumer purchase of the product. This limited warranty is good only to the original purchaser of the product and effective only when used in U.S.A.
  • Page 71 MEMO...
  • Page 72 Made in Korea...
