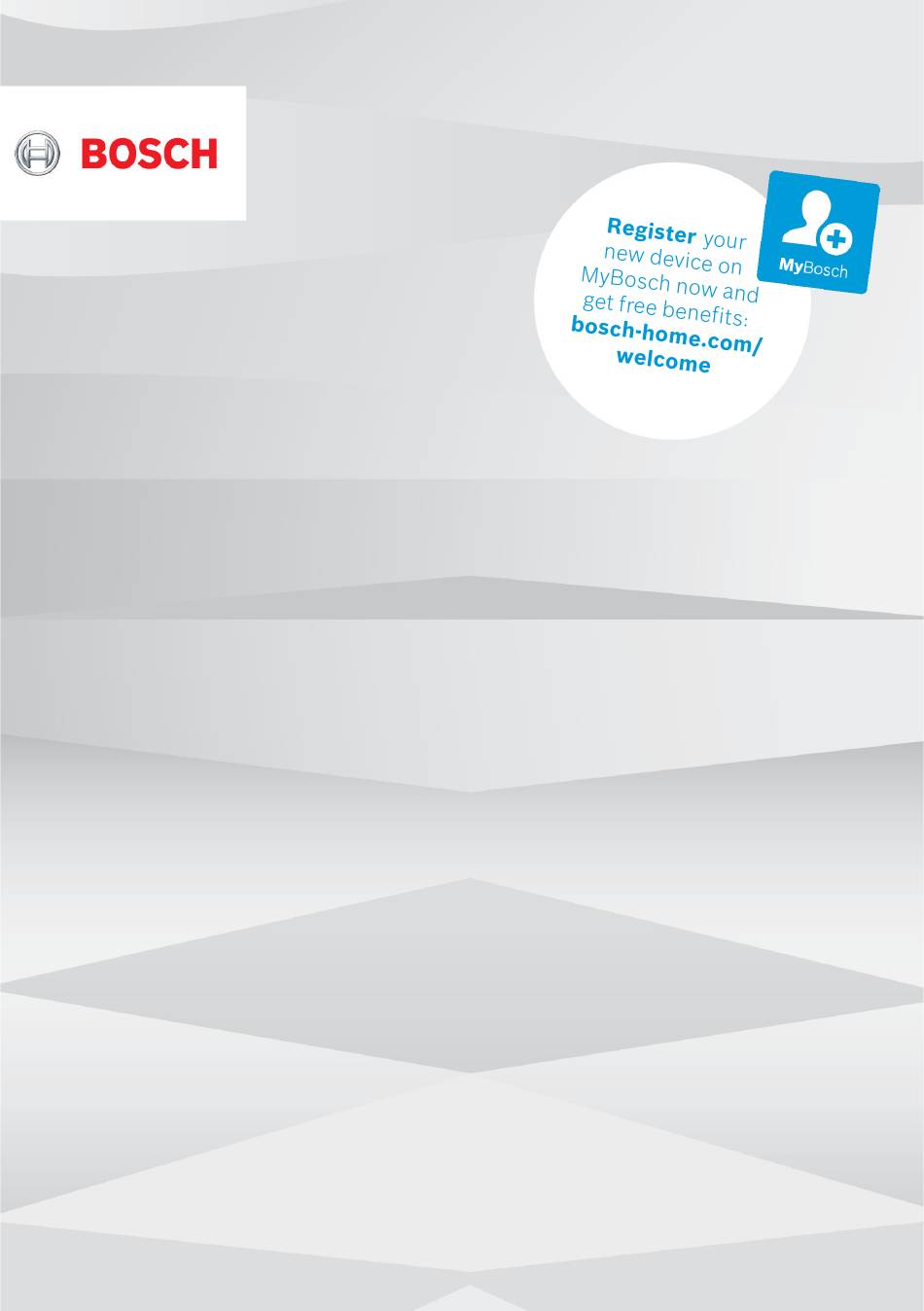

- Page 1 Washer dryer WDU28540EU WDU28560EU Instruction Manual and Installation Instructions...
- Page 2 Your new washer dryer Display rules : Warning! You have chosen a Bosch washer dryer. This combination of symbol and signal Please take a few minutes to read and word indicates a possibly dangerous become familiar with the advantages of situation.
-
Page 3: Table Of Contents
Contents e n I n s t r u c t i o n M a n u a l a n d I n s t a l l a t i o n I n s t r u c t i o n s Dyeing/bleaching . -
Page 4: Intended Use
Intended use Sensors ....41 Intended use Unbalanced load detection system . 41 This appliance is intended for private ■ I n t e n d e d u s e domestic use only. -
Page 5: Safety Instructions
Safety instructions Do not allow children to Safety instructions ■ clean or maintain this appliance unsupervised. T he following safety information Keep children under 3 years S a f e t y i n s t r u c t i o n s and warnings are provided to ■... -
Page 6: Installation
Safety instructions The mains plug and the Warning ■ protective contact socket Risk of poisoning! must match and the earthing Detergents and care products system must be correctly may result in poisoning if installed. consumed. The installation must have an If accidentally swallowed, seek ■... - Page 7 Safety instructions The appliance has sharp Warning Ri s k of i n j u ry! ■ edges on which you could Risk of fire/material damage/ cut your hands. damage to the appliance! Do not take hold of the The use of extension cords or appliance by its sharp power strips may result in fire edges.
-
Page 8: Operation
Safety instructions The use of hoses supplied Rinse the laundry thoroughly ■ ■ by other brands to connect with warm water and to the water supply may detergent before drying it in result in material damage or the machine. damage to the appliance. Do not place laundry in this ■... - Page 9 Safety instructions Warning Warning Risk of fire/material damage/ Risk of injury! damage to the appliance! If you support your weight/sit ■ If a program is terminated on the appliance door when before the drying cycle has it is open, the appliance may finished, this prevents the tip over, which may result in laundry from cooling down...
-
Page 10: Cleaning/Maintenance
Safety instructions If you pour the wrong Warning ■ quantity of detergent or Eye/skin irritation! cleaning agent into the Detergent and care products appliance, this may result in may spray out if the detergent material damage or damage drawer is opened while the to the appliance. - Page 11 Safety instructions Repairs and any other work Caution! ■ on the appliance must only Material damage/damage to be conducted by our the appliance customer service or by an Cleaning agents and agents for electrician. The same applies pretreating laundry (e.g. stain for replacing the mains cable removers, prewash sprays, etc.) (when necessary).
-
Page 12: Environmental Protection
Environmental protection Sleep mode: If the appliance is not ■ Environmental operated for a prolonged period (approx. 5 minutes), the display protection panel lighting goes out before the programme starts and after the P ackaging/used appliance programme has ended, # flashes. E n v i r o n m e n t a l p r o t e c t i o n Touch any area of display panel to Dispose of packaging in an... -
Page 13: Positioning And Connecting
Positioning and connecting Mains lead Positioning and Bag: connecting Installation and operating ■ instructions S tandard accessories Customer Service location ■ P o s i t i o n i n g a n d c o n n e c t i n g directory* Check the appliance for transport Note:... -
Page 14: Installation Surface
Positioning and connecting If the hose and mains cables are not On wooden joist floors, install the Note: ■ routed properly, there is a risk of appliance: tripping and injury. In a corner, if possible, ■ Lay hoses and cables in such a way On a water-resistant wooden board ■... - Page 15 Positioning and connecting Keep the screws and sleeves in b) Remove the sleeves. Note: a safe place. Fit the covers. Take the hoses out of the holders. Lock the covers firmly in place by applying pressure to the snap-in hooks. Unscrew and remove all four transport brace screws.
-
Page 16: Removing The Support Struts
Positioning and connecting Removing the support struts Hose and cable lengths Connection on left side Unscrew and remove all screws in the vertical transport struts. Remove the transport struts. ( ~ 105 cm 0 ~ 100 cm 8 ~ 150 cm @ 0 cm ~ 100 cm Connection on right side Undo and remove the screws on the... -
Page 17: Water Inlet
Positioning and connecting Water inlet Warning Risk of death! There is a risk of electric shock if you touch live components. Do not immerse the Aqua-Stop safety valve* in water (it contains an electric valve). * Depending on the model –... -
Page 18: Water Outlet
Positioning and connecting Water outlet Connection Drainage into a siphon Warning ■ The connection point must be Risk of scalding! secured using a hose clamp with a When you are washing at high diameter of 24 - 40 mm (available temperatures, there is a risk of scalding from specialist dealers). -
Page 19: Alignment
Positioning and connecting Alignment Electrical connection Level the appliance using a spirit level. Warning Incorrect levelling may result in intense Risk of death! noise, vibrations and "wandering". There is a risk of electric shock if you touch live components. Loosen the lock nuts using a Never touch or hold the mains plug ■... -
Page 20: Before Washing For The First Time
Positioning and connecting Before washing for the first Transportation time e.g. when moving home The appliance was inspected Preparatory work: thoroughly before leaving the factory. To Turn off the water tap. remove any residual test water, run the Reduce the water pressure in the Û... - Page 21 Positioning and connecting Insert all four sleeves. Before switching on the appliance again: Notes The support struts must be ■ removed. ~ Page 16 The transport braces must be ■ removed. ~ "Removing the transport locks" on page 14 Pour approx. 1 litre of water into ■...
-
Page 22: Getting To Know The Appliance
Getting to know the appliance Getting to know the appliance A ppliance G e t t i n g t o k n o w t h e a p p l i a n c e Detergent drawer Control panel Loading door Service flap... -
Page 23: Control Panel
Getting to know the appliance Control panel ( Programmes that can be selected. 0 Touch-Display 8 Start/Pause button Touch A button to start, interrupt (e.g. reload washing) and cancel the programme. @ Power button Press the # button to switch the appliance on/off. -
Page 24: Touch-Display
Getting to know the appliance Touch-Display Additional programme settings Programme default settings Display Setting Wash+Dry Display Setting Description — - 90° Temperature Temperature that ¾ (Cupboard can be set in °C dry+) — = cold » (Cupboard dry) 2, 400- Spin speed Spin speed in rpm ö... -
Page 25: Laundry
Laundry Do not exceed maximum load. Status indicators for the programme ■ Overfilling will impair the washing progress (programme sequence) result. Keep detergents and agents for the ■ pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets. -
Page 26: Preparing Laundry For Drying
Laundry – Heavy: Load less laundry, need The following textiles must not be dried: to pretreat or soak laundry firstly. b = care symbol “Do not dry” ■ – Stains: Remove/pretreat stains Delicates (silk, synthetic curtains). ■ while they are fresh. First dab Textiles which contain foam rubber ■... -
Page 27: Overview Of Programmes
Overview of programmes Overview of programmes S electable programme O v e r v i e w o f p r o g r a m m e s Programme/Type of laundry Options/Information Name of the programme Max. load for washing/ Max. - Page 28 Overview of programmes Programme/Type of laundry Options/Information “ Delicates/Silk 2.0 kg/- For delicate, washable fabrics, e.g. made of silk, satin, synthetic — - 40 °C fibres or blends (e.g. silk blouses, silk scarves). 2 - 800 rpm Speed, Eco, Z (Water plus), p (Easy iron), O (Rinse plus), T (Prewash), â...
- Page 29 Overview of programmes Programme/Type of laundry Options/Information Û Drum Clean 0.0 kg/- Special programme for drum hygiene or fluff removal. Do not —, 40°C, 90 °C load any laundry. 1200 rpm 90°C = antibacterial programme. â (Memory), Á (Silent) 40°C = antibacterial programme, special drum cleaning deter- gent can be used.
- Page 30 Overview of programmes Programme/Type of laundry Options/Information o MyTime 2.0 kg/6.0 kg Mixed fabrics; for lightly soiled laundry made of cotton and syn- — - 40 °C thetics. 400 - 1200 rpm The length of the programme can be set each time. The maxi- Z (Water plus), p (Easy iron), O mum programme length is 60 minutes for washing and 120 (Rinse plus), â...
-
Page 31: Drying Table
Overview of programmes Drying table Estimated drying time (min) Recommended drying Option Drying load ö (Iron » (Cup- ¾ (Cup- programme (kg) dry) board dry) board dry+) i Cottons/; Allergy- Speed 1.0-2.0 40-50 50-70 65-90 Plus 2.0-4.0 50-75 70-95 90-135 4.0-6.0 75-90 95-120... -
Page 32: Programme Default Settings
Programme default settings To do this: Programme default Select a programme (except o settings MyTime programme). The programme duration is displayed for the selected Y ou can change the default settings for programme, e.g. 2:30 P r o g r a m m e d e f a u l t s e t t i n g s selected programmes. -
Page 33: Additional Programme Settings33
Additional programme settings Speed Additional programme Washing/drying in a shorter time while settings achieving a washing/drying result that is consistent with the normal performance. You can find possible additional N ote: A d d i t i o n a l p r o g r a m m e s e t t i n g s programme settings in the overview;... -
Page 34: O (Rinse Plus)
Additional programme settings O (Rinse plus) Z (Water plus) Settings that can be selected: Increased water level for gentler treatment of the laundry. + 1 rinse cycle Touch Z (Water plus) to activate or + 2 rinse cycles deactivate it. + 3 rinse cycles Additional rinse cycles for particularly â... -
Page 35: Operating The Appliance
Operating the appliance Switching on the appliance/ Operating the selecting a programme appliance Press the # button till the indicator P reparing the appliance lamp lights up, release the button. The O p e r a t i n g t h e a p p l i a n c e appliance is switched on. -
Page 36: Dosing And Adding Detergent And Care Product
Operating the appliance Notes Filling the dispensers Unfold and load presorted items ■ Pull out the detergent drawer. of laundry. Mix large and small items. Washing items of different Warning size distribute themselves better Eye / skin irritation! during the spin cycle. Individual If the detergent drawer is opened items of washing may cause while the appliance is running,... -
Page 37: Starting The Programme
Operating the appliance The Finish in time is shown in the Measuring aid A* for liquid detergent Touch-Display and counts down until *depending on the model the programme starts. After the programme has started, the programme Position the measuring aid A for duration is displayed. -
Page 38: Adding/Removing Laundry
Operating the appliance Adding/removing laundry Cancel the programme After starting the programme, you can For programmes washing at high add or remove laundry if necessary. temperatures: Touch the A button. Touch the A button. The appliance To cool down laundry: Select Rinse. checks whether reloading is possible. -
Page 39: Removing Laundry/Switching Off The Appliance
Appliance settings Removing laundry/switching Appliance settings off the appliance A utomatic switch-off Press the # button till the indicator A p p l i a n c e s e t t i n g s lamp turns off, release the button. If the appliance is not operated for a The appliance is switched off. - Page 40 Appliance settings End signal Brightness You can select position 1 and use the ˜ Possible setting values: 1 - 4 button to adjust the volume of the end You can select position 3 and use the ˜ signal, e.g. ‘- „. button to adjust the brightness of the Touch-Display, e.g.
-
Page 41: Sensors
Sensors Appliance housing/control Sensors panel U nbalanced load detection Remove the detergent residue S e n s o r s ■ system immediately. Wipe the housing and the control ■ The automatic unbalanced load panel with a soft, damp cloth. detection system detects imbalances Do not use abrasive cloths, sponges ■... -
Page 42: Drain Pump Is Blocked
Cleaning and maintenance To remove the insert: Push the insert Leave the detergent drawer open Note: upwards from below with your finger. so that any residual water can evaporate. Drain pump is blocked Turn the water tap off to prevent Note: more water from flowing in and to ensure that it is drained via the pump. -
Page 43: The Drain Hose At The Siphon Is Blocked
Cleaning and maintenance Carefully unscrew the pump cover; The drain hose at the siphon residual water may leak out. is blocked Clean the interior, pump cover thread and pump housing. The Press the # button. Pull out the impeller in the drain pump must be mains plug. -
Page 44: Faults And What To Do About Them
Faults and what to do about them Clean the filters: Faults and what to do Disconnect the hose from the rear of about them the appliance. E mergency release F a u l t s a n d w h a t t o d o a b o u t t h e m E.g. -
Page 45: Information On The Display Panel
Faults and what to do about them Drain the water. ~ Page 42 Pull the emergency release downwards with a tool and release. The door can then be opened. Information on the display panel Display Cause/Remedy Flashes fast + signal: The door was opened and the water level is too high. Õ... -
Page 46: Faults And What To Do About Them
Faults and what to do about them Display Cause/Remedy The indicator lamp of Run the Û Drum Clean 90°C programme to clean and care for the drum and the the Û Drum Clean outer tub. programme flashes Notes Run the programme without laundry. ■... - Page 47 Faults and what to do about them Faults Cause/Remedy The programme will not Have you touched the A button or selected ñ (Finish in) time? ■ start. Is the door closed? ■ Childproof lock activated? Deactivate childproof lock. ■ Shop mode activated? If the display shows àœ©˜ for 5 s after you have ■...
- Page 48 Faults and what to do about them Faults Cause/Remedy Foam may come out of Too much detergent used? the detergent drawer. Mix 1 tablespoon of fabric softener with ½ litre of water and pour into dispenser II. (Not for outdoor, sports and down-filled textiles!) Reduce detergent dosage for the next wash cycle.
-
Page 49: After-Sales Service
After-sales service Faults Cause/Remedy The drying result is not After the end of the programme, warm laundry feels damper than it actu- ■ satisfactory (laundry is ally is. Spread the laundry out and allow the heat to disperse. not dry enough). Excessively high ambient temperature (above 30 °C) or inadequate ventila- ■... -
Page 50: Consumption Values
Consumption values Consumption values E nergy and water consumption, programme duration and residual moisture for C o n s u m p t i o n v a l u e s the main washing programme (approximate values) Programme Load Energy con- Water con- Programme... -
Page 51: Technical Data
Technical data Technical data Aqua-Stop warranty D imensions: O nly for appliances with Aqua-Stop T e c h n i c a l d a t a A q u a - S t o p w a r r a n t y 848 mm x 598 mm x 620 mm In addition to warranty claims against (height x width x depth) - Page 52 Free and easy registration – also on mobile phones: www.bosch-home.com/welcome Looking for help? You´ll find it here. Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
