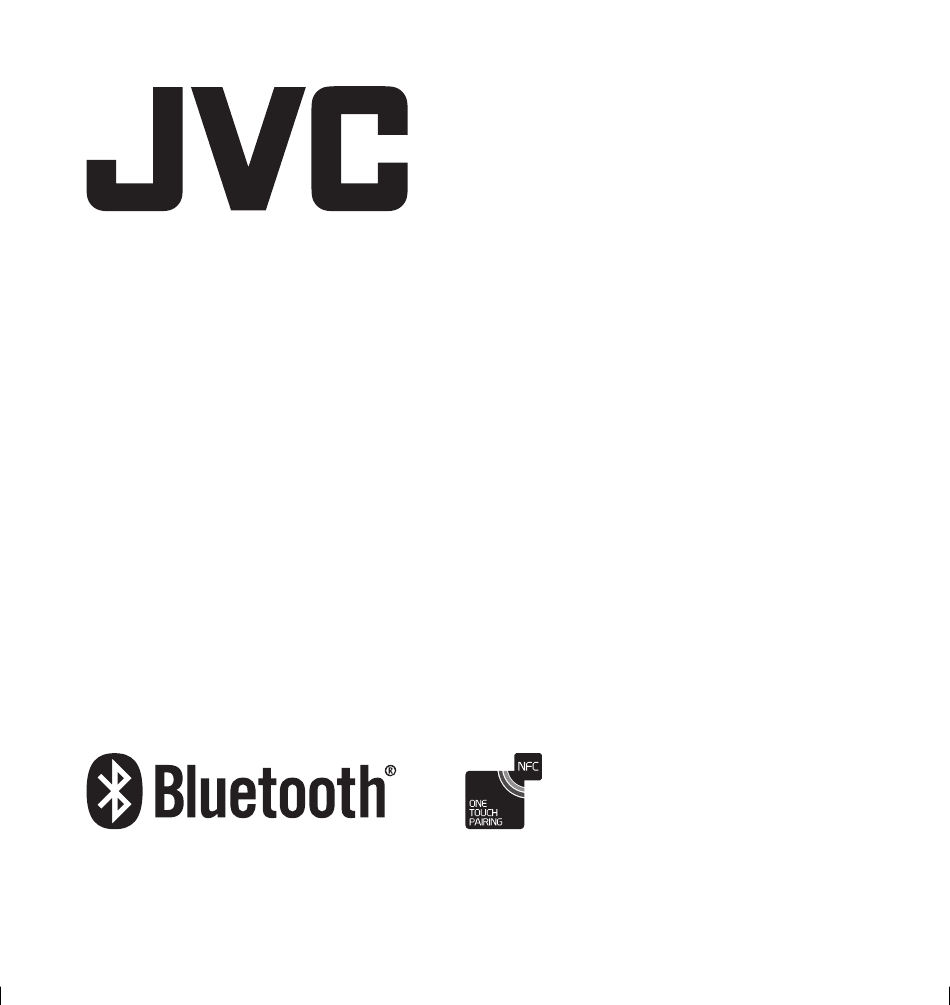

- Page 1 Instruction Manual 360 degree Portable Bluetooth speaker SP-AD85-A / SP-AD85-B...
-
Page 3: Table Of Contents
Contents Safety Warnings............5 Unpacking ..............13 Product Overview .............14 Front View ................14 Rear View ................15 Top View ................16 Important Information about Water Resistant Operation ..............18 Charging the Speaker ..........20 Battery Life ................21 When the Battery is Almost Empty......22 Connection ..............24 Using the AUX Connection .......... - Page 4 Powering ON/OFF ..............26 Automatic Power Off Function ........26 Adjusting the Volume ............27 Bluetooth® Operation ..........28 NFC (Near Field Communication) Operation ..30 Listening to Music ............31 Bluetooth® Mode ..............31 AUX IN Mode ................ 32 Hands-free Calling............33 Making a Call ................34 Redial ..................34 End Call...................34 Receiving a Call ..............
-
Page 5: Safety Warnings
Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. •... - Page 6 Temperature • Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. • Avoid exposure to direct sunlight and other sources of heat. Naked Flames • Never place any type of candle or naked flame on the top of or near the unit.
- Page 7 • Even if your device is resistant to dust and water, you should avoid using it unnecessarily to environments with excessive dust, sand and mud or to moist environments with extreme high or low temperatures. The water resist ability cannot be guaranteed in all environments or conditions.
- Page 8 Service • To reduce the risk of electric shock, do not remove screws. The unit does not contain any user- serviceable parts. Please leave all maintenance work to qualified personnel. • Do not open any fixed covers as this may expose dangerous voltages.
- Page 9 • Leaving the product in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery. • Always try to keep your device in a cool, moisture- free environment that’s less than 32°C.
- Page 10 Battery warning! • The battery used in this product may present a risk of fire or chemical burn if mistreated. • Do not attempt to open the product or replace the battery. It is built-in and not changeable. Use of other batteries may present a risk of fire or explosion and the warranty will be terminated.
- Page 11 Maintenance • Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit’s surface. • Do not use liquids to clean the unit. ~ AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage. DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
- Page 12 Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.
-
Page 13: Unpacking
Unpacking Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: • Main Unit • USB to Micro USB Cable • 3.5mm to 3.5mm Stereo Audio Cable •... -
Page 14: Product Overview
Product Overview Front View 1. Speakers 2. Built-in microphone Manually open the jack cover at the rear of the unit for the connector panel. Do not use any metal or sharp objects to open the jack cover, because they will damage the rubber and impact the waterproofing function. -
Page 15: Rear View
1. Strap Hole Rear View Attach the carry strap with the unit for easy carrying. ON/OFF Button • Press to switch the unit On / Off. • Flash slowly when charging. • Light up when the unit is fully charged. 3. -
Page 16: Top View
Top View Button • Press to answer/end an incoming call in Bluetooth® mode. • Press twice to dial the last called number. • Press and hold to reject an incoming call. 2. Volume +/– Button • Press / Press and hold + button to increase the volume. - Page 17 Button • Press to activate the pairing function in Bluetooth® mode. • Press and hold to disconnect the existing paired Bluetooth® device.
-
Page 18: Important Information About Water Resistant Operation
Important Information about Water Resistant Operation For proper water resistant operation, make sure the plastic jack cover of the unit is completely flush with the unit by pressing along the entire edge of the cover until it is completely and securely in place. - Page 19 • Keep the jack cover free of dirt, sand, or other objects that can interfere with proper sealing. If for any reason the jack cover is not making a tight waterproof seal water may enter the unit. • DO NOT clean unit with oily soaps or use chemicals or solvents.
-
Page 20: Charging The Speaker
Charging the Speaker The unit has a built-in rechargeable battery, which should be charged before using the speaker for the first time. 5 hours Charge the internal battery for before first time use. The battery is charged automatically whenever the unit is connected to a computer or a USB charging device. -
Page 21: Battery Life
1. Open the jack cover of the speaker. 2. Connect the supplied micro-USB cable to the speaker, and then connect the other end to a computer. 3. The ON/OFF button will flash during charging. The light will light up after the unit is fully charged. -
Page 22: When The Battery Is Almost Empty
When the Battery is Almost Empty ON/OFF button will flash per 10 seconds. When the battery becomes empty, the speaker turns off automatically. • Micro-USB socket is for charging the unit only. • Do not overcharge the battery as it may shorten its life. Disconnect the USB cable after the unit is fully charged. - Page 23 • Use the supplied micro-USB cable only, and connect directly to a computer. Charging will not be completed properly by an indirect connection, such as via a USB hub. • If the unit is not used for a long time, the OFF button may not light up when you connect the micro-USB cable to charge the unit.
-
Page 24: Connection
Connection Using the AUX Connection Use the supplied 3.5 mm to 3.5 mm stereo audio cable to connect the headphone socket of an audio device and 3.5mm to 3.5mm stereo the Aux in socket of audio cable (included) the unit. The unit will switch into AUX IN mode after you start playback from the connected audio device. -
Page 25: Charging From The Usb Socket
Charging from the USB Socket The O/P: 5V 2.1A socket is designed only for charging mobile devices (e.g. MP3 player, mobile phone, etc.). It supplies 5V DC at a charging current of up to 2100 mA (2.1A). Use a USB cable (not included) to connect mobile device to the O/P: 5V 2.1A socket of the unit and the mobile device will start charging. -
Page 26: General Operation
General Operation Powering ON/OFF • Press and hold button to switch on/off the unit. Automatic Power Off Function If the speaker is left in any of the following conditions for more than approximately 15 minutes, it turns off automatically. • No Bluetooth® connection has been established between the unit and the external mobile device. -
Page 27: Adjusting The Volume
Adjusting the Volume During playback, press +/– buttons on the unit to increase or decrease the volume. -
Page 28: Bluetooth® Operation
Bluetooth® Operation Switch the speaker on. The unit will find the last paired Bluetooth® device and connect automatically. If there is no previously paired device found, the speaker will enter Bluetooth® pairing mode automatically. The ON/OFF button will flash rapidly. Follow the steps below to pair the unit with a Bluetooth®... - Page 29 • You can enjoy music wirelessly from a smartphone, mobile phone, or music player. Also, you can make or receive a call by operating the unit. • The operational range between the unit and the device is approximately 10 metres. Any obstacle between the device and the unit can reduce operational range.
-
Page 30: Nfc (Near Field Communication) Operation
NFC (Near Field Communication) Operation Pair your NFC-enabled mobile device directly with this unit by just a single tap. 1. Activate NFC on your mobile device. 2. Hold your mobile device about or less than 1 cm close to the icon of unit. -
Page 31: Listening To Music
Listening to Music Bluetooth® Mode You can enjoy listening to music and basic remote control operation of a Bluetooth® device via a Bluetooth® connection. The Bluetooth® device is required to support the following Bluetooth® profiles. • A2DP (Advanced Audio Distribution Profile): you are enable to enjoy high-quality audio content wirelessly. -
Page 32: Aux In Mode
AUX IN Mode If you connect an audio cable to the Aux in socket, make sure that you have started playback in your external audio device. • Press Volume +/– Button to increase/decrease the volume. • Operate your audio device directly for playback features. -
Page 33: Hands-Free Calling
Hands-free Calling You can enjoy a hands-free call with a Bluetooth® smartphone or mobile phone that supports the Bluetooth® profile HFP (Hands-free Profile) or HSP (Headset Profile), via a Bluetooth® connection. Call functions are only applicable if mobile phone is paired and connected with the speaker and both are switched on. -
Page 34: Making A Call
Making a Call 1. Activate Bluetooth® mode on your mobile device. 2. Use the buttons on your mobile device when making a call. Redial Press button twice to redial the last call. End Call Press button on the speaker to hang up the phone. -
Page 35: Receiving A Call
Receiving a Call When an incoming call arrives, a ring tone will be heard via the speaker. Press button on the speaker. You will be able to hear your call through your speaker. The built-in microphone will allow you to converse with the caller. -
Page 36: Maintenance
Maintenance Ensure the unit is fully removed the cables from the unit before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •... -
Page 37: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance, • for UK, please call our UK Call Centre on 0344 561 1234. •... - Page 38 Problem Solution No Sound. • Ensure that the unit is switched on. • Check the volume level of the unit. • Check the sound input source. Sound is distorted. • Volume is too high. Adjust the volume control. Not charging. •...
- Page 39 Problem Solution I cannot find • Ensure that the unit is “SP-AD85“ on my switched on. Bluetooth® device. • Ensure that the Bluetooth® function is activated on your Bluetooth® device. • The unit has a Bluetooth® function that can receive a signal within 10 metres.
- Page 40 Problem Solution NFC Pairing failed. • Ensure that the Bluetooth® device supports NFC function. • Ensure that the unit is in pairing mode. • For first time pairing, ensure that the Bluetooth® device touches NFC sensor of the unit. • Remove mobile phone protection shell for NFC pairing.
- Page 41 Problem Solution The unit does not • The unit may freeze up respond when during use. Press and hold pressing any buttons. button for about 8-10 seconds to reset the unit.
-
Page 42: Product Fiche And Specifications
Product Fiche and Specifications Brand Model SP-AD85-A (Blue) / SP-AD85-B (Black) Speaker 6 Ω × 2 Frequency Response 180 Hz-20 kHz (+/– 3 dB) Power Amplifier Class D @ 10 W × 2 CH < 1% >75dB(A) Charging Input DC 5V, 1A (Micro... - Page 43 Charging Time Approx. 5 hours (DC 5V, 1A [Micro USB]) Dimension (W × D × H) 73 mm × 73 mm × 177 mm Weight 696.7 g Bluetooth® Version V4.2+EDR (A2DP, AVRCP, HFP) Maximum 4 dBm transmitted power Frequency 2402-2480 MHz band IP Rating IPX7...
-
Page 44: Others Information And Licences
Others Information and Licences Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate. - Page 45 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
- Page 46 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of s uch marks by DSG Retail Limited is under license. Other trademarks and trade names are those of their respective owners. All trademarks are the property of their respective owners and all rights are acknowledged.
- Page 48 3rd Floor Office Suite, Omni Park SC Santry, Dublin 9, Republic of Ireland The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-SP-AD85-x-191104V3)
