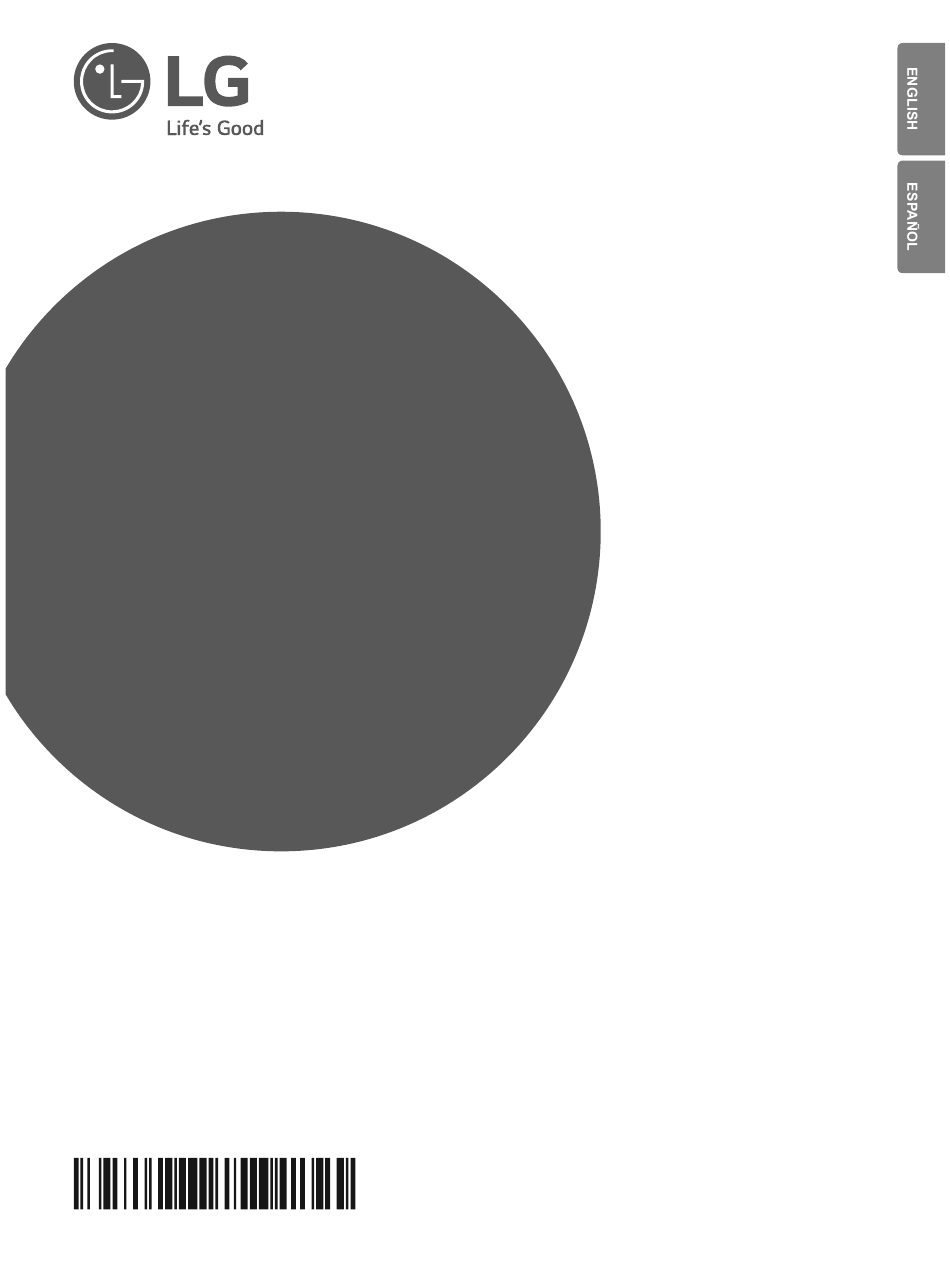

OWNER'S MANUAL
ELECTRIC
RANGE
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
LRE3083ST
LRE3083SB
LRE3061ST
LRE3061BD
LRE3193BD
LRE3193ST
MFL57206015
LRE3083SW
LRE3193SB
LRE3193SW
Copyright © 2016 - 2017 LG Electronics Inc. All Rights Reserved.
(REV.03 170202)
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG LRE3083SW

Summary of Contents for LG LRE3083SW

  • Page 1 Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. LRE3083ST LRE3083SB LRE3083SW LRE3061ST LRE3061BD LRE3193BD LRE3193ST LRE3193SB LRE3193SW www.lg.com Copyright © 2016 - 2017 LG Electronics Inc. All Rights Reserved. MFL57206015 (REV.03 170202)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY Using the Oven Before Using the Oven INSTRUCTIONS Oven Vent Using Oven Racks Bake PRODUCT OVERVIEW Convection Mode Parts Recommended Baking and Roasting Guide Accessories Broil Recommended Broiling Guide INSTALLATION Warm Proof Installation Overview Sabbath Mode (on some models) Product Specifications...

  • Page 3: Important Safety Instructions

    Always contact your service agent or manufacturer about problems that you do not understand. Download this owner's manual at: http://www.lg.com This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS SAFETY PRECAUTIONS WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS FLAMMABLE MATERIALS WARNING Be certain that all packing materials are removed from the appliance before operating. Keep plastic, clothes, paper, and other flammable materials away from parts of the appliance that may become hot. Do not store or use flammable material in the oven or near or on the cooktop. Flammable materials include paper, plastic, pot holders, linens, wall coverings, curtains, and gasoline or other flammable vapors and liquids such as grease or cooking oil.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS CHILD SAFETY Do not touch the hot surface between the bottom of the oven door and the top of the drawer on the front of the oven while the oven is in operation. The surface becomes hot and can cause burns and other injury.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS Always place the pan in the center of the surface unit you are cooking on. Never leave surface units unattended at high heat settings. Proper contact of cookware to burner also will improve efficiency. Boilovers cause smoking and greasy spills that may catch on fire.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS Pull the oven rack to the stop-lock position when loading and unloading food from the oven. This helps prevent burns caused by touching hot surfaces of the door and oven walls. Do not use the oven if a heating element develops a glowing spot during use or shows other signs of damage.

  • Page 9: Product Overview

    Grid Broiler pan NOTE Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing. For your safety and for extended product life, only use authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased, unauthorized components or parts.

  • Page 10: Installation

    10 INSTALLATION INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Black White Red Terminal block Conduit connection plate Check and choose the Install anti-tip device Level the range Connect electric range proper location 240 V...

  • Page 11: Before Installing The Range

    INSTALLATION Before Installing the Range If you did not receive an anti-tip bracket with your purchase, call 1-800-243-0000 (1-888-542-2623 in CANADA) to receive one at no cost. WARNING WARNING Tip - Over Hazard The information in this manual should be A child or adult can tip the range and followed exactly.

  • Page 12: Installing The Range

    12 INSTALLATION Installing the Range Choosing the Proper Location CAUTION Unpacking and Moving the Range Avoid placing cabinets above the range. To CAUTION minimize the hazard caused by reaching over the open flames of operating burners, install a You should use two or more people to move ventilation hood over the range that projects and install the range.
  • Page 13 INSTALLATION Dimensions and Clearances NOTE Save for the use of the local electrical inspector. 24" 3" (7.6 cm) (60.9 cm) 3" (7.6 cm) 25" Normal counter (63.5 cm) Acceptable top depth electrical outlet area Counter 36" top height (91.4 cm) Cabinet opening 24"...

  • Page 14: Connecting Electricity

    14 INSTALLATION Installing the Anti-tip Device Use a level to check your adjustments. Place the level diagonally on the oven rack, and check each direction WARNING for level. First check direction . Tip - Over Hazard Then check direction . If the level doesn’t show level A child or adult can tip the range and on the rack, adjust the leveling legs with a wrench.
  • Page 15 INSTALLATION Use the cord/conduit connection plate to install the WARNING power cord or conduit. Leave the connection plate Allow 2 to 3 ft (61.0 cm to 91.4 cm) of slack as installed for power cord installations. Remove the in the line so that the range can be moved if connection plate for conduit installations and use the servicing is ever necessary.
  • Page 16 16 INSTALLATION 3-Wire Connection : Power Cord 4-Wire Connection : Power Cord WARNING WARNING The middle (neutral or ground) wire, which Only a 4-conductor power-supply cord is white, of a 3-wire power cord or a 3-wire kit rated 120/240 volts, 50 amperes and conduit has to be connected to the middle marked for use with ranges with closed- post of the main terminal block.
  • Page 17 INSTALLATION 3-Wire Connection: Conduit 4-Wire Connection: Conduit Install the conduit as follows: WARNING Remove the conduit connection plate from the rear of The white middle (neutral) wire of the power the oven and rotate it. The conduit hole (1 ") must cord or 4-wire conduit has to be connected be used.

  • Page 18: Engaging The Anti-Tip Device

    18 INSTALLATION Engaging the Anti-tip Device Test Run Move the range close enough to the opening to Check if the range is properly installed and run a test plug into the receptacle. cycle. Slide the range into position ensuring that the back Press Clear/Off to start test.

  • Page 19: Operation

    OPERATION OPERATION Control Panel Overview For Model: LRE3061 For Model: LRE3083 For Model: LRE3193 1 Features 5 Clear Off / Lockout Key 2 Oven Control 6 Smart Diagnosis (on some models) 3 Number Keys 7 Cooktop Control 4 Start Key Hot Surface Indicator The HS(hot surface) indicator appears in the display as long as any surface cooking area is too hot to touch.

  • Page 20: Changing Oven Settings

    20 OPERATION Changing Oven Settings Minimum & Maximum Default Settings Clock All of the features listed have a minimum and a The clock must be set to the correct time of day in maximum time or temperature setting that may be order for the automatic oven timing functions to work entered into the control.

  • Page 21: Timer On/Off

    OPERATION Timer On/Off Settings The Timer On/Off serves as an extra timer in the Press the Settings key repeatedly to toggle through kitchen that beeps when the set time has run out. It and change oven settings. does not start or stop cooking. The Settings key allows you to: The Timer On/Off feature can be used during any of enable/disable convection auto conversion...

  • Page 22: Language

    22 OPERATION Adjusting the Beeper Volume Press Settings repeatedly until AdJU appears in the display. Press Settings repeatedly until BEEP appears in the display. Use the number keys to enter the number of degrees you want to adjust the oven Press 1 for NORMAL or press 2 for MUTE.

  • Page 23: Start Time (Delayed Timed Cook)

    OPERATION Start Time (Delayed Timed Cook) Cook Time (Timed Cook) The automatic timer of the Delayed Timed Cook Set the oven to cook for a specific length of time function turns the oven on and off at the time you using the Timed Cook feature.

  • Page 24: Using The Cooktop

    24 OPERATION Using the Cooktop Using the Cooktop Elements CAUTION Cooking Areas Only use cookware and dishes that are safe for The cooking areas on your range are identified by oven and cooktop use. permanent circles on the glass cooktop surface. For the most efficient cooking, fit the pan size to the Always use oven mitts when removing food element size.

  • Page 25: The Recommended Surface Cooking Setting

    OPERATION Turning on the Dual Element Turning on the Warming Zone Adjust the dual element according to the pot/pan size Use the Warming Zone to keep food warm after it has being used. already been cooked. The warming zone is not meant for cooking food.

  • Page 26: Using The Proper Cookware

    Do not use pans less than 7 inches in diameter on the front elements. Do not use foil or foil-type containers. Foil may melt onto the glass. Do not use the cooktop if metal has melted on it. Call an authorized LG Service Center.

  • Page 27: Using The Oven

    OPERATION Using the Oven Replacing Racks Place the end of the rack on the support. Before Using the Oven Tilt the front end up and push the rack in. NOTE Because the oven temperature cycles, an oven CAUTION thermometer placed in the oven cavity may not Replace oven racks before turning the oven on show the same temperature that is set on the to prevent burns.

  • Page 28: Convection Mode

    28 OPERATION Baking Tips Tips for Convection Baking Baking time and temperature will vary depending Use Convection Bake for faster and more even on the characteristics, size, and shape of the multiple-rack cooking of pastries, cookies, muffins, baking pan used. biscuits, and breads of all kinds.

  • Page 29: Recommended Baking And Roasting Guide

    OPERATION Recommended Baking and Roasting Baking rack guide Guide Rack Food position Baking results will be better if baking pans are centered in the oven as much as possible. If cooking Layer cakes on multiple racks, place the oven racks in the Cakes Bundt cakes positions shown.

  • Page 30: Broil

    30 OPERATION Broil Smoking Due to the intense heat associated with broiling, it The Broil function uses intense heat from the upper is normal to experience smoke during the cooking heating element to cook food. Broiling works best for process. This smoke is a natural byproduct of tender cuts of meat, fish, and thinly cut vegetables.

  • Page 31: Recommended Broiling Guide

    OPERATION Recommended Broiling Guide The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature. For best results when broiling, use a pan designed for broiling. Second Quantity and/or Rack First Side...

  • Page 32: Warm

    32 OPERATION Tips for Broiling Setting the Warm Function after a Timed Cook Beef Select the cooking function. Steaks and chops should always be allowed to rest for five minutes before being cut into and eaten. Enter the oven temperature using the number This allows the heat to distribute evenly through the keys.

  • Page 33: Sabbath Mode (On Some Models)

    OPERATION Sabbath Mode (on some models) Setting the SABBATH mode Press the Bake button. Sabbath mode is typically used on the Jewish Sabbath and Holidays. When the SABBATH mode is activated, the oven does not turn off until the Press the number buttons to enter the bake SABBATH mode is deactivated.

  • Page 34: Maintenance

    34 MAINTENANCE MAINTENANCE Burned-On Residue While the cooktop is still hot, remove any burnt on deposits or spilled food from the Cleaning the Glass-Ceramic glass-ceramic cooking surface with a suitable Cooktop metal razor scraper. (Similar to scraping paint off of a windowpane, it will not damage the decorated cooking surface.) Hold the scraper at CAUTION an approximate 30°...

  • Page 35: Easyclean

    Cookware with rough or uneven bottoms can to provide ventilation. Compared to the more intense mark or scratch the cooktop surface. Self Clean process, your LG oven gives you the option of cleaning with LESS HEAT, LESS TIME, and virtually NO SMOKE OR FUMES.
  • Page 36 36 MAINTENANCE When to Use EasyClean ® Suggested Types of Common Food Items Example of Oven Soiling Soil Pattern Cleaning Method Soils That Can Soil Your Oven Cheese Small drops or or other Pizza spots ingredients Steaks, broiled ® EasyClean Fish, broiled Light splatter Fat/grease...
  • Page 37 MAINTENANCE Spray or pour the remaining 1 cup (8 oz or 250 If some light soils remain, repeat the above ml) of water onto the bottom center of the oven steps, making sure to thoroughly soak the cavity. The indentation on the oven bottom soiled areas.

  • Page 38: Self Clean (On Some Models)

    38 MAINTENANCE Self Clean (on some models) CAUTION Do not leave small children unattended near The Self Clean cycle uses extremely hot temperatures the appliance. During the Self Clean cycle, the to clean the oven cavity. While running the Self Clean outside of the range can become very hot to cycle, you may notice smoking or an odor.
  • Page 39 MAINTENANCE Setting Self Clean with a Delayed During the Self Clean cycle, the cooktop elements cannot be used. Start NOTE Remove all racks and accessories from the Remove oven racks and accessories before oven. starting the Self Clean cycle. Press Self Clean. The oven defaults to the If oven racks are left in the oven cavity during recommended four-hour self clean for a the Self Clean cycle, they will discolor and...

  • Page 40: Changing The Oven Light

    40 MAINTENANCE Changing the Oven Light After the Self Clean Cycle The oven door remains locked until the oven The oven light is a standard 40-watt appliance bulb. It temperature has cooled. turns on when the oven door is open. When the oven You may notice some white ash in the oven.

  • Page 41: Cleaning The Exterior

    Always wipe in the direction of the metal surface finish. To purchase stainless steel appliance cleaner or polish, or to locate a dealer near you, call our toll-free customer service number: 1-800-243-0000 (USA), 1-888-542-2623(CANADA) or visit our website at: www.lg.com...

  • Page 42: Removing And Replacing The Lift-Off Oven Doors And Drawer

    42 MAINTENANCE Removing and Replacing Broiler Pan and Grid the Lift-Off Oven Doors and Drawer CAUTION Do not store a soiled broiler pan or grid anywhere in the range. Be careful when removing and lifting the Do not clean the broiler pan or grid in a door.

  • Page 43: Door Care Instructions

    MAINTENANCE Replacing the Door Removing the Drawer Firmly grasp both sides of the door at the top. CAUTION Disconnect the electrical power to the range at With the door at the same angle as the removal the main fuse or circuit breaker panel. Failure to position, seat the indentation of the hinge arms do so can result in severe personal injury, death, into the bottom edge of the hinge slots.

  • Page 44: Troubleshooting

    44 TROUBLESHOOTING TROUBLESHOOTING During convection cooking the fan stops when I open the door. Is that normal? Yes, this is normal. When the door is opened, the FAQs convection fan will stop until the door is closed. What types of cookware are recommended for use with the cooktop? Can I use aluminum foil to catch drippings in my oven cavity?
  • Page 45 TROUBLESHOOTING Why aren't the function buttons working? Are there any tricks to getting some of the stubborn soils out? Make sure that the range is not in Lockout mode. The lock will show in the display if Lockout is activated. Scraping the soils with a plastic scraper before and during hand cleaning is recommended.

  • Page 46: Before Calling For Service

    46 TROUBLESHOOTING Before Calling for Service Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Symptoms Possible Causes / Solutions Poor installation.
  • Page 47 TROUBLESHOOTING Symptoms Possible Causes / Solutions Plug on range is not completely inserted in the electrical outlet. - Make sure electrical plug is plugged into a live, properly grounded outlet. A fuse in your home may be blown or the circuit breaker tripped. - Replace the fuse or reset the circuit breaker.
  • Page 48 48 TROUBLESHOOTING Symptoms Possible Causes / Solutions Aluminum foil used on the broiling pan and grid has not been fitted properly and slit as recommended. - See the Using the Oven section. Food does not broil properly In some areas the power voltage may be low. - Preheat the broil element for 5-7 minutes.
  • Page 49 TROUBLESHOOTING Symptoms Possible Causes / Solutions Excessive soil. Excessive smoking - Press the Clear/Off button. Open the windows to rid the room of smoke. Wait during a Self Clean until the Self Clean mode is cancelled. Wipe up the excess soil and reset the cycle.* clean.

  • Page 50: Smart Diagnosis

    Smart Diagnosis™ Through the Call Center (For Model : LRE3061 / LRE3193) Call the LG call center at: (LG U.S.) 1-800-243- 0000 (LG Canada) 1-888-542-2623. When instructed to do so by the call center agent, hold the mouthpiece of your phone over Should you experience any problems with your range, the Smart Diagnosis™...

  • Page 51: Warranty

    Should your LG Electric Range fail due to a defect in materials or workmanship under normal home use, during the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and applies only when purchased and used within the United States including U.S.
  • Page 52 The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including LG’s owner’s and installation manuals. Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or specified by LG.
  • Page 53 LG Electronics at the number below. For assistance or service, call 1-800-243-0000. If you need further assistance, you can write to LG with any questions or concerns at the address below: LG Electronics, 201 James Record Road, Huntsville, Alabama 35813...

This manual is also suitable for:
