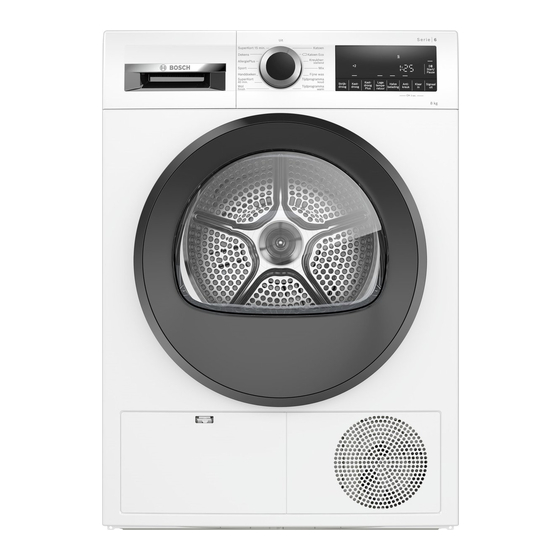

- Page 1 Translated from Dutch to English - www.onlinedoctranslator.com Clothes dryer WPG23150NL [NL] User manual and installation instructions...
-
Page 2: Table Of Contents
Refer to the Digital User's Guide for more information. Index 1 Safety..........4 9 Programs ........ 26 1.1 General instructions ....4 9.1 Automatic programs ..26 1.2 Destination of the device 9.2 Time programs........ 27 rate ........4 10 Accessories........ 28 1.3 Restriction of users .. - Page 3 16 Troubleshooting ....39 17 Transporting, Storing and drain........43 17.1 Preparing the device for transport ........ 43 17.2 Disposal of your old appliance ........43 18 Customer Service......44 18.1 Product number (E no.) and production number (FD) ... 44 19 Consumption values ....
-
Page 4: Safety
NLSafety 1 Safety Observe the following safety regulations. 1.1 General instructions sRead this manual carefully. sKeep the operating instructions and product information for future reference. for use or for subsequent owners. sDo not connect the device in case of transport damage. 1.2 Destination of the device Only use the device: sto use dryer-safe and water-washed textiles... -
Page 5: Secure Installation
SafetyNL 1.4 Secure installation WARNING ‒ Risk of electric shock! Improper installations are dangerous. ▶ Only connect and use the device in accordance with the information on the type plate. ▶ Only connect the device to a mains supply with alternating current via a properly installed earthing socket. - Page 6 NLSafety ▶ Use only manufacturer-approved adapters and power cords. ▶ If the power cord is too short and a longer power cord is not available, contact an electrical retailer to adjust the home installation. WARNING ‒ Risk of injury! The heavy weight of the device can cause injuries when lifted. ▶...
-
Page 7: Safer Use
SafetyNL There is a tripping hazard with incorrectly laid hoses and mains connection cables. ▶ Lay the hoses and connection cables in such a way that they cannot be tripped over. If the appliance is moved by protruding parts, such as the loading door, the parts can break off. - Page 8 NLSafety WARNING ‒ Risk of health hazard! Children can lock themselves in the appliance and endanger their lives. ▶ Do not install the appliance behind a door that blocks or prevents the opening of the appliance door. ▶ In the case of discarded appliances, remove the plug of the mains cable from the socket, then cut the mains cable and damage the lock of the appliance door so that the appliance door no longer closes.
- Page 9 SafetyNL Highly flammable items, such as lighters or matches, can ignite during drying. ▶ Before drying, remove all highly flammable objects from the pockets of the laundry. If unwashed laundry has come into contact with solvents, oil, wax, wax remover, paint, grease or stain remover, it can ignite during drying.
-
Page 10: Safe Cleaning And Maintenance
NLSafety ▶ Set up the appliance with the rear wall close to a wall. 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Improper repairs are dangerous. ▶ Only trained specialist personnel may carry out repairs on the device. -
Page 11: Avoiding Material Damage
Avoid material damageNL ▶ Do not use hard scouring or 2 Material damage dishwashing sponges. avoid Clean the device only with water ▶ and a soft, damp cloth. ▶ Remove all detergent residues, spray PAY ATTENTION! Incorrect dosage of fabric softeners, mist residues or residues immediately detergents, care products and upon contact with the appliance. -
Page 12: Energy Saving Mode
NLSet up and connect Observe the maximum load for the 4 Set up and connect programmes. → "Programs", Page 26 aExceeding the maximum 4.1 Unpacking device male load quantity extends the program duration and increases PAY ATTENTION! energy consumption. Objects that remain in the drum and that are not intended for use with the Clean the fluff filter after drying →... -
Page 13: Installation Site Requirements
Set up and connectNL Description delivery amount installation site To demand catch The device al- in a laundry borrow with the Clothes dryer drying column original connection set of the drug ger manufacturer in a washer-dryer to set up a column. Accompanying sConnection set documents... - Page 14 NLSet up and connect water drain hose to direct excess Pull the condensate hose from condensation water into the the connection. wastewater. Comments sUse this appliance with the supplied water drain hose. When you connect the water drain hose → Page 14 , you do not need to empty the condensed water container regularly →...
- Page 15 Set up and connectNL Push the water drain hose onto Water drainage connection types the connection as far as it will go. PAY ATTENTION! A clogged or closed drain can allow accumulated waste water to flow back into the unit. Before using the device, ensure ▶...
-
Page 16: Adjusting The Device
NLSet up and connect Drain in a the water drainage feed hose com- ditch. crack through the slide and with the confirmation securing material The bend on the gutter. 4.5 Adjusting the device To reduce noise and vibration, level the device. To adjust the appliance, turn the ▶... -
Page 17: Getting To Know Your Device
Getting to know your deviceNL 5 Getting to know your device 5.1 Device Here you will find an overview of the components of your device. Depending on the device type, details in the picture may differ, e.g. the color and the shape. Vent Door Condensate tank... -
Page 18: Control Panel
NLGetting to know your device 5.2 Control panel You can set all functions of your device and obtain information about the operating status via the control panel. Programs → Page 26 Program selector → Page 29 Display → Page 19 Buttons →... -
Page 19: Display
DisplayNL 6 Display The display shows the current setting values, options or information texts. Example display indication name Description Indication 0:40 Expected program duration or remaining Program duration / remaining time of time of the program in hours and minutes. the program 1:25 Time program... - Page 20 NLDisplay name Description Indication The drying target is activated. (Closet- Drying purpose cabinet- → "Buttons", Page 23 dry) The drying target is activated. (cupboard dry Drying purpose cabinet- → "Buttons", Page 22 Plus) dry Plus Drying target The custom drying target is activated. →...
- Page 21 DisplayNL name Description Indication Program end Program status Example...
-
Page 22: Buttons
NLButtons 7 Buttons Here you will find an overview of the buttons and their setting options. Knob Description Choice Start/ Pause sstart Start program, an- zero or pause. sCancel spause 3 sec. sactivate Activate or deactivate the child lock. sdeactivate The control panels secure against accidental operation. - Page 23 ButtonsNL Knob Description Choice sCupboard Dry sWith the selection Cabinet- Cupboard Dry dry, the drying target is activated. Laying the drying target determine how damp or dry the laundry is at the end of the programme → "drying target", Page 25 sWith the selection +1 , + 2 or +3 the drying target is adjusted.
- Page 24 NLButtons Knob Description Choice Low temperature sactivate Activate soft drying or deactivate. sdeactivate The temperature becomes lowered for sensitive textiles, e.g. for polyacrylic or elastane. The program duration is extended. sProgram end sThe program end Ready in sProgram duration to establish. The program duration is already included in the set number of...
-
Page 25: Drying Target
Drying targetNL 8 Drying target A drying target is specified for each automatic programme. The drying target determines how dry or damp your laundry is after the program has ended. laundry Drying result Drying target The laundry is dry. Multi-layer thick laundry Cupboard Dry Plus that dries hard. -
Page 26: Programs
NLPrograms 9 Programs You can dry your textiles with either an automatic program or a timed programme. 9.1 Automatic programs Tips Automatic programs in which moisture sensors measure the sChoose the drying target according to residual moisture of the laundry adjust the textile or the desired during drying. -
Page 27: Time Programs
ProgramsNL Program Description Max. bela- thing (kg) Quick-drying sportswear with functional Sport fibres, microfibres and synthetic drying. Dry shirts and blouses made of cotton, Super Short 15 min. linen, synthetic materials or blended fabrics. Remark:For an optimal drying result, dry a maximum of 5 shirts or 5 blouses. -
Page 28: Accessories
NLaccessories 10 Accessories Use only original accessories. These are adapted to the device. Remark:Some accessories are available in other colours. Contact the → "Customer Service", page 44 . Usage Order number Device space saving WTZ20410 Connection set run on a suitable washing machine of the same the manufacturer and with the same width and... -
Page 29: Laundry
laundryNL 12.2 Set program 11 Laundry Turn the program selector and set it to the desired programme. 11.1 Preparing the laundry → "Programs", Page 26 If desired, adjust the program PAY ATTENTION! settings. Objects left in the laundry can damage the laundry and the drum. 12.3 Filling the drum with Before use, remove all objects from ▶... -
Page 30: Adding Laundry
NLService Remark:If you do not clean the device 12.5 Adding laundry as described, the device function may You can always remove or add the be impaired. laundry after the program has started. Requirements sThe display shows after drying: Start/ Pauseto press. "end"... -
Page 31: Condensate Tank
ServiceNL Remove the fluff from the recess. Clean the fluff filter thoroughly with running warm water and dry it. Make sure that no fluff falls into the air duct. Close the fluff filter. Open the fluff filter. Install the fluff filter. Remove the fluff. -
Page 32: Child Lock
NLChild lock condensed water is collected in the Empty the condensed water container. condensed water container of the device at the factory. Remark:Use this appliance with the supplied water drain hose. When you connect the water drain hose → Page 14 , you do not need to empty the condensed water container regularly →... -
Page 33: Deactivating The Child Lock
Child lockNL aThe display shows reflected to give. aThe controls are blocked. aThe childproof lock remains in effect even after the switching on the device and activated in the event of a power failure. 13.2 Deactivate child lock Required:To deactivate the child lock, the appliance must be switched on. -
Page 34: Basic Settings
NLBasic settings 14 Basic Settings You can configure the basic settings of your device according to your needs. 14.1 Overview of the basic settings Program- Description Basic setting Where the ling position Signal 0 (off) Adjust the volume of the signal 1 (soft) after the program has ended. -
Page 35: Changing Basic Settings
Remark:You can find more information in the digital operating instructions by scanning the QR code in the table of contents or on www.bosch-home.com. 15.1 Cleaning and maintenance tips This keeps The housing and PressIron dryand at the same time... -
Page 36: Base Unit
NLCleaning and maintenance 15.2 Base unit Pull out the heat exchanger cover by the handle. The bottom unit is the lower, accessible part of the unit that houses the heat exchanger. Open bottom unit Requirements sThe appliance has been switched off for 30 minutes cooled. - Page 37 Cleaning and maintenanceNL Pull out the heat exchanger Push in the heat exchanger horizontally. horizontally as far as the stop. Make sure that the heat Clean and dry the heat exchanger on exchanger is pushed in with the all sides under running water. handle downwards.
-
Page 38: Humidity Sensor
NLCleaning and maintenance Close the heat exchanger cover the residual moisture of the laundry, handles. the appliance changes the duration of the automatic programme. Clean Humidity Sensor Remains of limescale, detergents and care products can build up on the humidity sensor over time. Clean the humidity sensor regularly. -
Page 39: Troubleshooting
TroubleshootingNL 16 Troubleshooting You can remedy minor faults on the device yourself. Before contacting customer service, please refer to the troubleshooting information. This way you avoid unnecessary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Only trained specialist personnel may carry out repairs on the device. ▶... - Page 40 NLTroubleshooting Cause and Troubleshooting Malfunction wrinkling. The load quantity is too high. Pay attention to the maximum load of the ▶ → "Programs", Page 26 . The laundry is left in the drum for too long after drying. Remove the laundry from the drum immediately after drying.
- Page 41 TroubleshootingNL Cause and Troubleshooting Malfunction The device uses condensed water for automatic self- Condensation water in the cleaning. condensed water reservoir voir, although the water No error - no action required. ▶ drain hose is attached Water drain hose is not connected correctly. locks.
- Page 42 NLTroubleshooting Cause and Troubleshooting Malfunction Clean heat exchanger. Drying time is too long. → "Cleaning the bottom unit", page 36 . Close base unit. → "Close base unit", page 37 . The appliance is not leveled properly. Water is leaking. →...
-
Page 43: Transporting, Storing And Drain
Transport, storage and disposalNL 17.2 Disposal of your old 17 Transport, on- appliance hit and drain Environmentally friendly disposal allows valuable raw materials to be 17.1 Preparing the device for reused. transport WARNING Tip:The device may contain residual Risk of health hazard! water and drip during transport. -
Page 44: Customer Service
NLcustomer service son the inside of the bottom chemical equipment (waste electrical and electronic holding valve. son the back of the device equipment - WEEE). The directive sets the honeycomb. framework for the take- In order to quickly find your device back valid in the EU data and the service telephone and disposal of old... -
Page 45: Consumption Values
Consumption valuesNL 19 Consumption values The program Cotton eco Depending on the type of fabric, the (indicated by "arrow") is suitable for composition of the laundry to be drying cotton laundry with normal dried, residual moisture in the fabric, humidity and from the point of view of the degree of dryness set, load the combined energy consumption for quantity, environmental conditions... -
Page 46: Technical Data
NLTechnical data End- Out- Pro- Program bela- centri- energy- gangly gram- fugue thing gibberish moisture (kg) maduur revving vigilance moisture (h:min) (kWh/ vigilance number (t/ min) cycle) 1000 Cotton eco 02:47 / 4.79 / 4.71 02:30 1000 Cotton eco 01:37 / 2.63 / 2.56 01:23... - Page 47 Technical dataNL 13/10 A Length of the 145 cm Minimum input installation fuse mains connection cable Rated power 2800||2300 W You can find more information about gene your model on the Internet at https:// eprel.ec.europa.eu/ . This web address Recorded Ver- sOff state: refers to the official EU product 0.15W...
- Page 48 Contact data of all countries are listed in the attached service directory. BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 Munich, GERMANY www.bosch-home.com A Bosch Company * 9001621382* 9001621382(021012)
