Bosch RF920 Installation Instructions

Installation Instructions
for the RF920
Passive Infrared Detector
1.0 General Information
The RF920 is a high performance PIR Motion Sensor which uses
advanced signal processing to provide outstanding catch
performance and unsurpassed false alarm immunity. It contains an
integral RF transmitter capable of transmitting at least 500 feet
(150 m) open air. (Actual acceptable transmitter range should be
verified for each installation). The transmitter sends a battery report
with each transmission and transmits a supervisory signal to the
Control Panel every 65 minutes.
2.0 Specifications
• Dimensions (HxWxD):
• Coverage Area:
• Operating Temperature: -4°F to +120°F (-20°C to +49°C).
• Supply Voltage:
• Battery Life:
• Recommended Battery Types: Duracell DL123A,
• Compatible Receivers:
NOTE: UL has not verified operation on the RF3212, RF3213, or
RF3222.
• Compliance: This device complies with Part 15 of the FCC Rules
and with RSS-210 of Industry and Science Canada. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesirable operation.
NOTE: Changes or modifications not expressly approved by Bosch
Security Systems can void the user's authority to operate the
equipment.
3.0 Mounting
3.1 Mounting Considerations
The maximum wireless range of the detector, in open air, is
approximately 500 feet (150 m). In normal residential or
commercial applications it is recommended that the detector
be kept within 100 feet (30 m) of the control panel receiver to
which it is assigned.
It is recommended that the detector be temporarily mounted,
using double sided tape, and tested from the desired location
before permanent mounting.
Do Not mount in areas with large metallic surfaces
(e.g. heating ducts) or electrical wiring which may inhibit the
sensor's RF signals from reaching the Control Panel
Receiver.
Consult the pattern drawings (see Section 6.0) and the
following recommended adjustment table to choose an
appropriate mounting height.
3.875 in. x 2.75 in. x 2.25 in.
(9.8 cm x 7.0 cm x 5.7 cm)
35 ft. x 40 ft. (10 m x 12 m)
0% to 95% relative humidity (non-
condensing). For UL Certificated
Installations, the range is +32°F to
+120°F (0°C to +49°C), 0% to 85%
relative humidity (non-condensing).
Supplied by one 3 VDC lithium battery.
Approximately five years under normal
operating conditions with the
recommended battery types.
Panasonic CR123A, or
Sanyo CR123A.
RF3224, RF3222, RF3212, RF3213
Standard Broad
Coverage Lens
6.5 ft.
(2 m)
Range
20 ft. (6 m) -7°
35 ft. (10.7 m) -4°
3.2 Surface or Corner Mounting (without swivel bracket)
NOTE: Corner Mounting may not be used in Central Station Burglary,
Grades AA and A, Installations.
• Remove the mounting plate (see Figure A) from the PIR Base by
prying it up and out from the bottom.
Swivel Swivel Mounting
Ball Bracket Plate

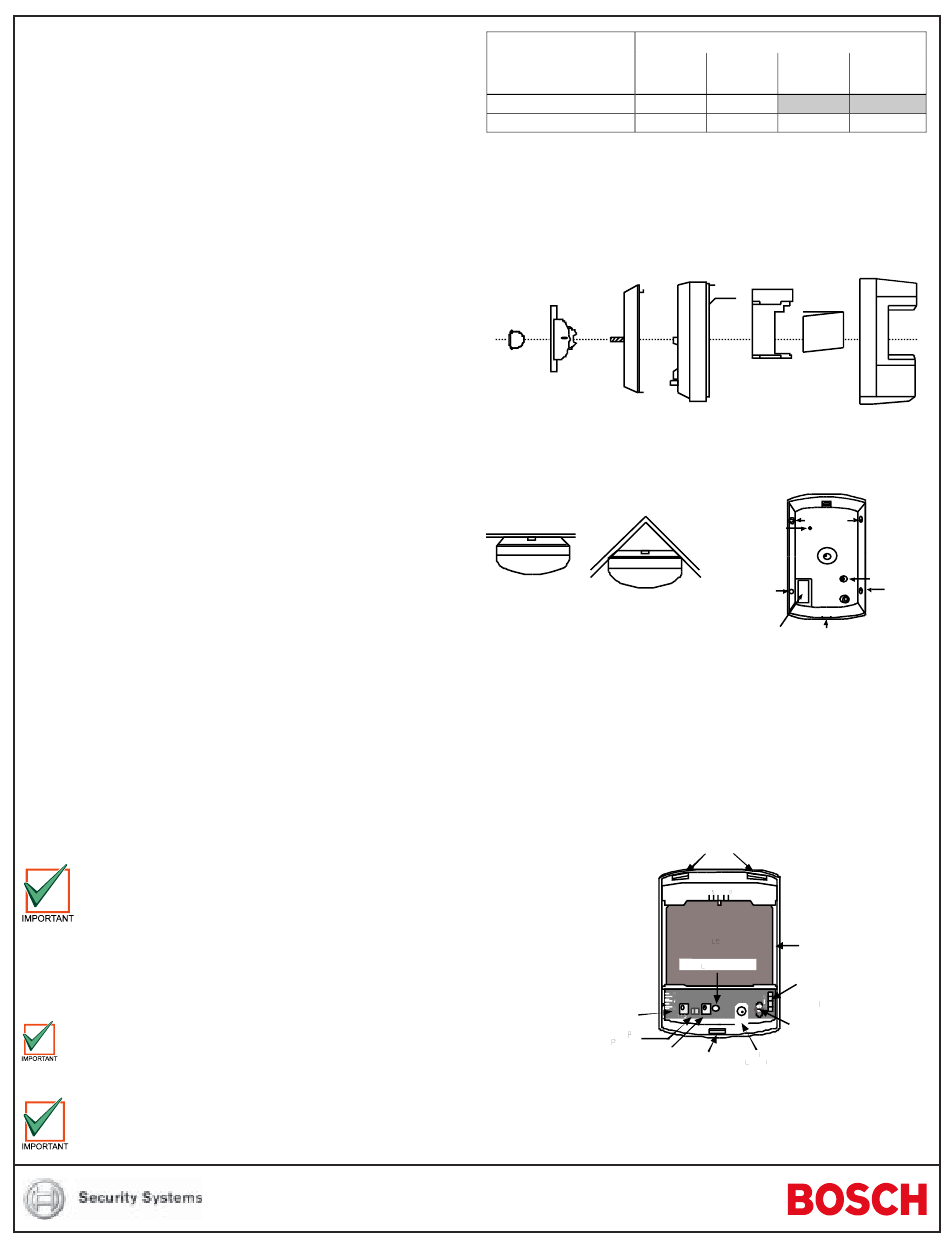

Figure A - Components (Side View)
• Punch out two appropriate holes (see Figure B) in the mounting
plate (for surface or corner applications).
Surface Corner
Mount Mount
Option Option
Figure B - Mounting Options and Plate
NOTE: The wall tamper can not be used when corner mounting.
Corner Mounting may not be used in Central Station Burglary,
Grades AA and A, Installations.
• If the wall tamper function is required, remove the rectangular
knockout. Locate the small spring in the hardware kit. Hold the PIR
base so the battery is visible. Place the spring on the black plastic
shaft of the wall tamper switch just below the battery.
• Remove the wall tamper bypass jumper (see Figure C) located
next to the walk test switch.
Walk
Test
Switch
Wall Tamper
Bypass
Tamper
Jumper
Switch
Figure C - Enclosure (Front View) With Cover Off
• Using the mounting plate as a template, mark the location of the
required holes on the mounting surface.
Mounting Height
7.5 ft. 8.5 ft.
(2.3 m) (2.6 m)
-10°
-6° -7°
PIR Lens
Base Frame Lens
Mounting Plate
Corner
Surface
Corner
Knockout
for Wall
Tab
Tamper
Cover
Hinges
10 5 0 5 10
Lens
Lens
Frame
Walk Test LED
Sensitivity
Pins
Vertical
Adjust
Screw
Mounting Base
Cover
Locking Screw
Latch
10.0 ft.
(3 m)
-10°
Cover
Hinge
Surface
Corner
