global_main.book.book Page 2 Friday, February 24, 2023 1:51 PM TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE............3 WARNING ......................3 CAUTION ......................6 CARING FOR THE ENVIRONMENT ..............9...
global_main.book.book Page 3 Friday, February 24, 2023 1:51 PM SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.
Page 4
global_main.book.book Page 4 Friday, February 24, 2023 1:51 PM SAFETY INSTRUCTIONS • This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space. • Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating plate.
Page 5
global_main.book.book Page 5 Friday, February 24, 2023 1:51 PM SAFETY INSTRUCTIONS • Unstable or misshapen pans should not be used on the appliance as they can cause an accident by tipping or spillage. • Do not use or store flammable materials in the storage drawer near this appliance.
global_main.book.book Page 6 Friday, February 24, 2023 1:51 PM SAFETY INSTRUCTIONS CAUTION CAUTION • To reduce the risk of injury to persons, malfunction, or damage to the product or property when using the appliance, follow basic safety precautions, including the following: Installation •...
Page 7
global_main.book.book Page 7 Friday, February 24, 2023 1:51 PM SAFETY INSTRUCTIONS ventilation, for example increasing the level of mechanical ventilation where present. Operation • This appliance is designed to be operated by adults. • Children can also injure themselves by pulling pans or pots off the appliance.
Page 8
global_main.book.book Page 8 Friday, February 24, 2023 1:51 PM SAFETY INSTRUCTIONS • If you will not use the appliance for a long time, plug it off. Keep the main control switch off. Also when you do not use the appliance, keep the gas valve off.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling.

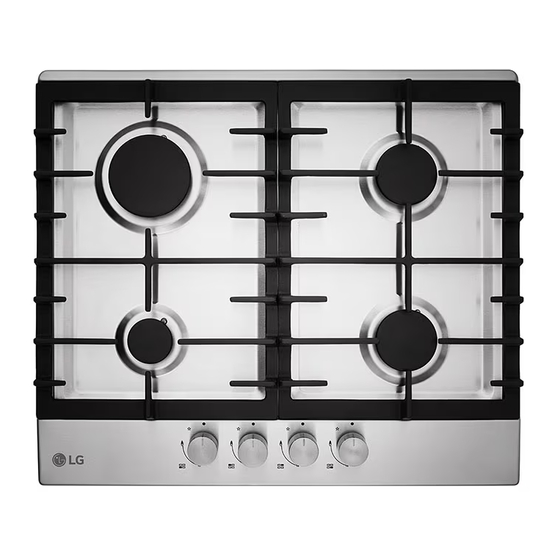

global_main.book.book Page 10 Friday, February 24, 2023 1:51 PM INSTALLATION INSTALLATION Product Overview Parts and Features Pan Support Cast iron Wok pan Support Not available Top plate Stainless steel Dimensions (W X D X H) 594 mm X 514 mm X 90 mm Ignition device Continuous Ignition Type Gas connection...
global_main.book.book Page 11 Friday, February 24, 2023 1:51 PM INSTALLATION Screw (4 ea) Injector for LNG G20 20 mbar (4 ea) Seal (2 ea) LNG Gas Pipe Elbow (1 ea) Technical Instructions • The panels located above the work surface, directly next to the appliance, must be made of nonflammable material.
Page 12
global_main.book.book Page 12 Friday, February 24, 2023 1:51 PM INSTALLATION Installing the Appliance 400 mm, then it must be at least 50 mm away from the outer edges of the hob. Sponge • There should be 50 mm clearance around the appliance.
Page 13
global_main.book.book Page 13 Friday, February 24, 2023 1:51 PM INSTALLATION • It is the law that all gas appliances are installed On the underneath of the hob, adjust the by competent persons in accordance with the brackets into a position that is suitable for your current edition of the Gas Safety Installation and worktop.
Page 14
global_main.book.book Page 14 Friday, February 24, 2023 1:51 PM INSTALLATION • The hoses must not go behind the gas hob or close to the hot air exits. • The hoses must come into contact with parts that could reach a temperature higher than 70 ℃, above room temperature.
Page 15
global_main.book.book Page 15 Friday, February 24, 2023 1:51 PM INSTALLATION Gas category Gas type Destination country I2H: G20 methane at 20 mbar CH, CZ, ES, GB, GR, IE, IT, PT, SI 2H3+ I3+: G30 butane at 30 mbar and G31 propane at 37 mbar I2E: G20 methane at 20 mbar BE, FR...
Page 16
global_main.book.book Page 16 Friday, February 24, 2023 1:51 PM INSTALLATION After replacing the injectors, strongly tighten Ignition the injectors in place. NOTE • Make sure to connect the green and yellow wires to the terminal marked with the letter E or earth symbol.
Page 17
global_main.book.book Page 17 Friday, February 24, 2023 1:51 PM INSTALLATION Repeat this process for each one of the gas taps. Ring of Panel By-pass Screw CAUTION • Do not dismantle the tap shaft: in the event of a malfunction, change the whole tap. •...
global_main.book.book Page 18 Friday, February 24, 2023 1:51 PM OPERATION OPERATION Using the Surface Burners • To switch the burner off, turn the control knob fully clockwise to the gas off position. How to Use the Appliance • In case of power failure, the burners can be lit by carefully using a match.
Page 19
global_main.book.book Page 19 Friday, February 24, 2023 1:51 PM OPERATION • Only use pots, saucepans and frying pans with a that they increase the temperature in this area thick, flat bottom. and may cause damage. • Always place the cookware right over the •...
global_main.book.book Page 20 Friday, February 24, 2023 1:51 PM MAINTENANCE MAINTENANCE Care and Cleaning • Dry everything with a clean soft cloth. Cleaning the Appliance Top plate • Regularly wipe over the top plate using a soft CAUTION cloth well wrung-out in warm water to which a little washing up liquid has been added.
Page 21
global_main.book.book Page 21 Friday, February 24, 2023 1:51 PM MAINTENANCE Burners • Remove the burner lids and flame spreaders by pulling them upwards and away from the top plate. • Soak them in hot water and a little detergent or washing up liquid.
Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. However, some minor problems can be resolved as in the table below: If a problem is not solved, please contact an LG Electronics Customer Information Centre. Parts and Features Symptoms Possible Cause &...
Page 23
Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution. Please contact the dealer where you buy this appliance. Rated voltage 220 - 240 V~ Rated frequency 50/60 Hz Manufacturer LG Electronics Inc. 170, Seongsanpaechong-ro, Seongsan-gu, Changwon-si, Gyeonsangnam-do, 51533, Republic of Korea Country of Origin : China...
