2 Post ROPS Extension Kit
Groundsmaster
Unit
Model No. 31351—Serial No. 400000000 and Up
Safety
This product contains a chemical or chemicals known to the State of California

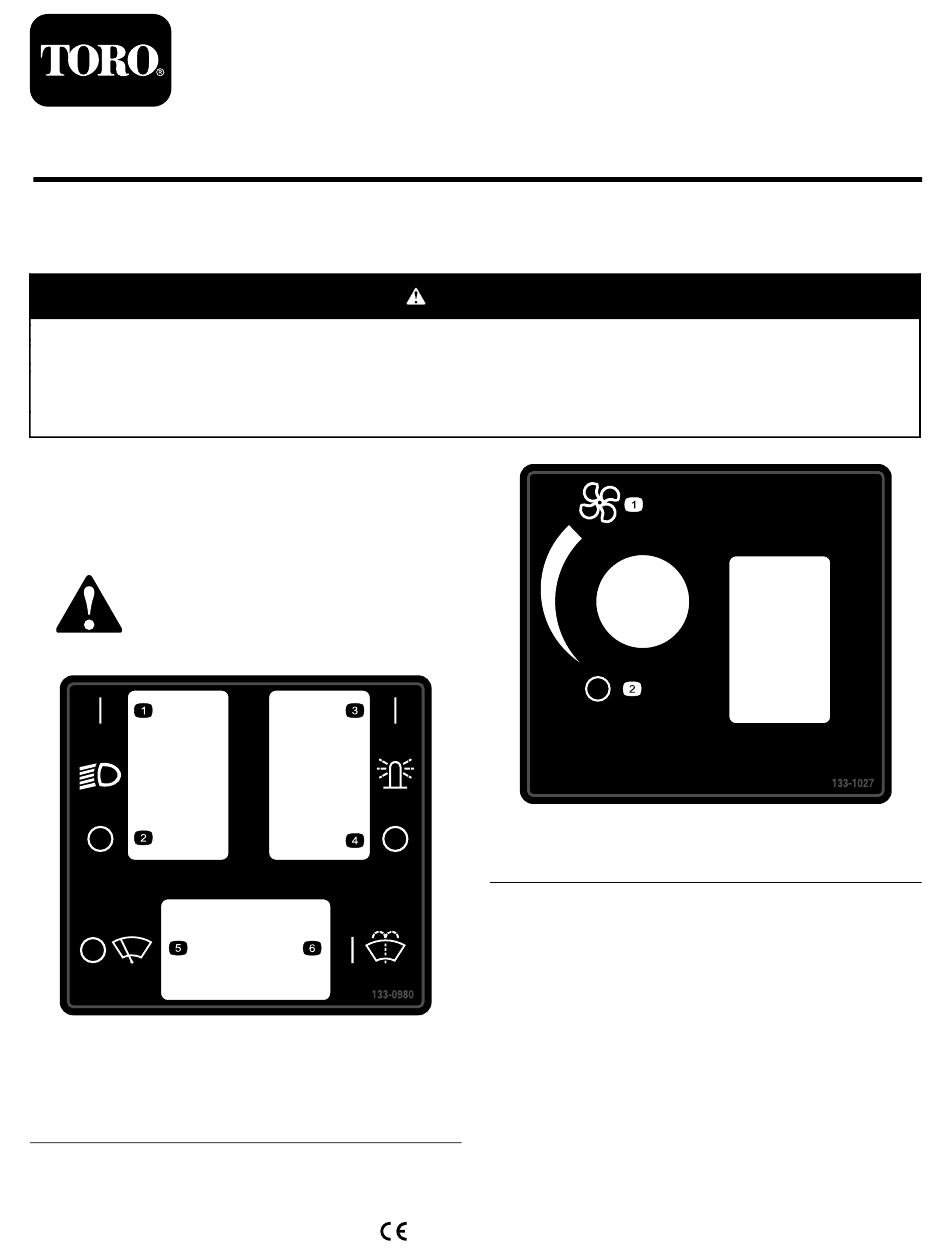

Safety and Instructional
Decals
Safety decals and instructions are
easily visible to the operator and are
located near any area of potential
danger. Replace any decal that is
damaged or missing.
1. Head light—on
2. Head light—off
3. Overhead light—on
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
4500, 4700 or Reelmaster
Proposition 65 Warning
to cause cancer, birth defects, or reproductive harm.
133-0980
4. Overhead light—off
5. Wipers—off
6. Wiper fluid—on
Register at www.Toro.com.
WARNING
CALIFORNIA
1. Fan—max
decal133-0980
Form No. 3416-616 Rev A
®
7000 Series Traction
Installation Instructions
133-1027
2. Fan—off
Original Instructions (EN)
All Rights Reserved *3416-616* A
Printed in the USA
decal133-1027
Advertisement
Related Manuals for Toro 31351
Summary of Contents for Toro 31351
- Page 1 2 Post ROPS Extension Kit Groundsmaster ® 4500, 4700 or Reelmaster ® 7000 Series Traction Unit Model No. 31351—Serial No. 400000000 and Up Installation Instructions Safety WARNING CALIFORNIA Proposition 65 Warning This product contains a chemical or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
-
Page 2: Installation
Installation Preparing the Machine No Parts Required g204217 Procedure Figure 2 Foot frame Park the machine on a level surface. Lower the cutting units. Engage the parking brake. Shut off the engine and remove the key. If there are lights on the roll bar, remove the lights and the mounting hardware from the roll bar. -
Page 3: Assembling The Frame
Install 2 bolts (3/4 x 4 inches), 4 washers, and 2 locknuts (3/4 inch) to the left and right pivot plates on the roll bar. Install the left and right front mount bases onto Assembling the Frame the floor panel using 4 bolts (3/8 x 1 inch) and 4 flange nuts (3/8 inch). - Page 4 Install 3 push rivets into the left brace and 5 push rivets into the right brace. Install the grab handle to the left brace with 2 carriage bolts (5/16 x 3/4 inch) and 2 flange nuts (5/16 inch). Install the lower window seal to the front mounts with 4 carriage bolts (1/4 x 3/4 inch) and 4 flange nuts (1/4 inch).
- Page 5 g219683 Figure 5 1. Roll bar 11. Hex-head-flange bolt 21. Plastic rivet 31. Bolt (3/4 x 4 inches) (5/16 x 1 inch) 2. Left front mount 12. Front roof mount 22. Plastic plug 32. Washer 3. Right front mount 13. Left upper bracket 23.
- Page 6 Open the hood (Figure Installing the Wire Harness Groundsmaster 4700 Machine Only Parts needed for this procedure: Wire harness Cable tie Procedure Unlatch and raise the battery box cover (Figure g036674 Figure 7 Route the wire harness as shown in Figure Use the cable ties to secure the wire harness to machine;...
- Page 7 g203834 Figure 8 1. Cable ties Close the hood and the battery box cover. Note: Secure the battery box cover closed with the latch.
-
Page 8: Completing The Installation
Secure the front panel onto the front roof mount by inserting 12 plastic rivets into their respective holes and pushing the plunger on each plastic rivet until it is secure (Figure Installing the Control Panel Install the sunshade onto the frame with 4 hex-head flange bolts (1/4 x 1 inch), 4 sealing and Sunshade washers, and 4 clips... - Page 9 Notes:...
- Page 10 Notes:...
- Page 11 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
- Page 12 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
