LG LDF6810 Installation Instructions Manual

LG LDF6810 Installation Instructions Manual

Lg ldf6810: install guide
Hide thumbs Also See for LDF6810:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: Service Manual , Instruction and Installation Manual
MODEL : LDF7810WW / LDF7810BB / LDF7810ST
LDF7811WW / LDF7811BB / LDF7811ST
LDS5811WW / LDS5811BB / LDS5811ST
LDF6810WW / LDF6810BB / LDF6810ST
Please read this manual carefully.
Retain for future reference.
If you have questions, call 1-800-243-0000
or visit our website at: http://www.lgservice.com
or http://us.lgservice.com

Advertisement

Table of Contents
loading

Related Manuals for LG LDF6810

Summary of Contents for LG LDF6810

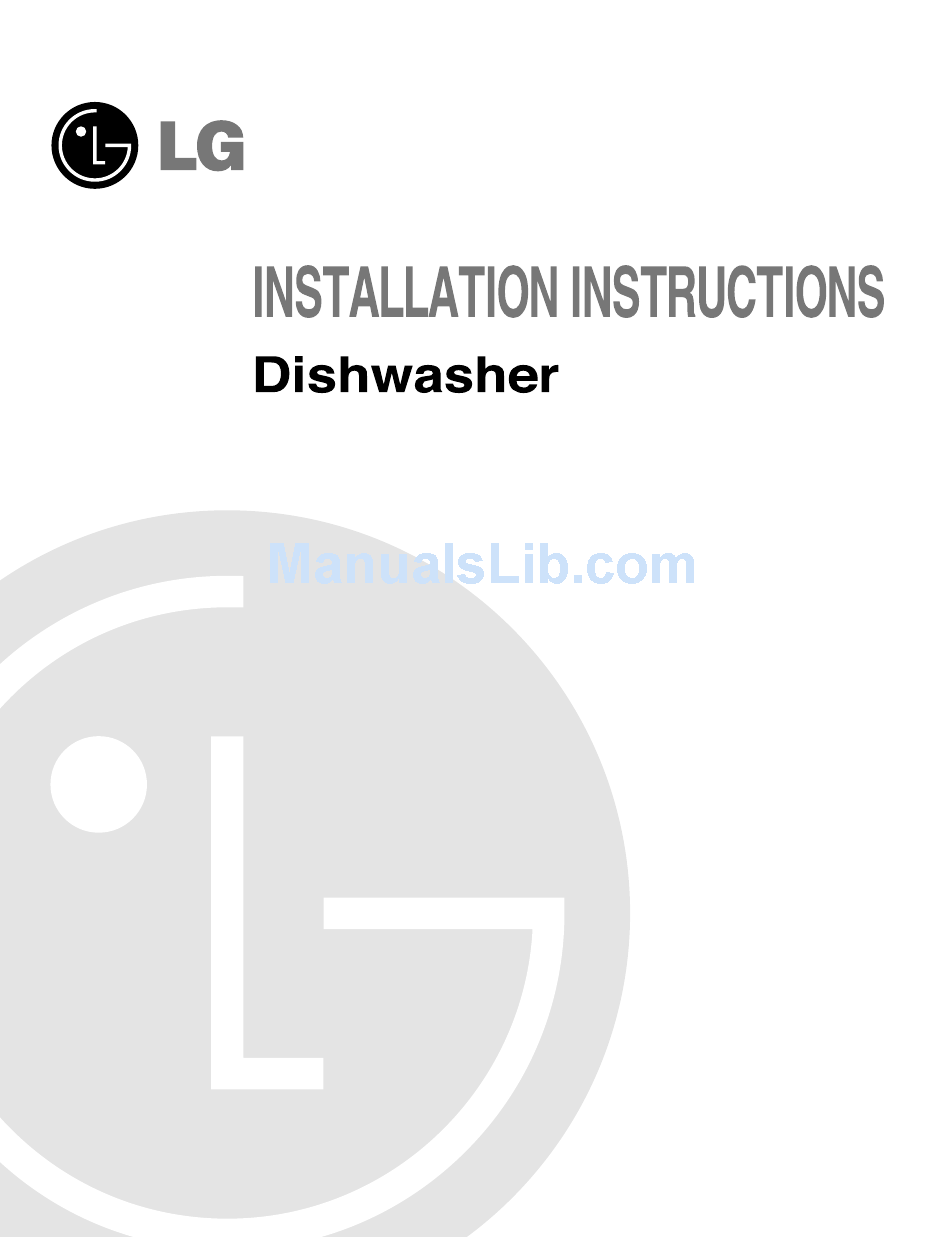

  • Page 1 MODEL : LDF7810WW / LDF7810BB / LDF7810ST LDF7811WW / LDF7811BB / LDF7811ST LDS5811WW / LDS5811BB / LDS5811ST LDF6810WW / LDF6810BB / LDF6810ST Please read this manual carefully. Retain for future reference. If you have questions, call 1-800-243-0000 or visit our website at: http://www.lgservice.com or http://us.lgservice.com...

  • Page 2: Important Safety Instructions

    • If electrical supply is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. • This dishwasher must be connected to a hot water supply between 120℉(49℃)~149℉(65℃). This temperature range provides the best washing results and shortest cycle time.

  • Page 3: Product Dimension

    I Weight: 115 Ibs. (52 , Fully- Integrated), 110 Ibs. (50 Semi- Integrated) Specifications are subject to change to improve performance. NOTE The features on your dishwasher may vary from the figure shown. Semi Integrated LDS5811WW/BB/ST Product Dimension 1/5″ (5mm) 24-5/8″ (625mm) Felt 23-7/8″...
  • Page 4 O O O O L L S S A A N N D D M M A A T T E E R R I I A A L L S S N N E E E E D D E E D D (See page 8 for installation detail) ELECTRICAL CABLE WATER SUPPLY TUBE...

  • Page 5: Prepare Cupboard Opening

    3. The dishwasher should not be installed more than 10 ft. (3m) from the sink for proper drainage. 4. If dishwasher is to be installed in a corner, a minimum of 2 in. (50mm) is required between the dishwasher and an adjacent a wall.
  • Page 6 5. Check the dishwasher for any damage before trying to install it. 6. Make sure Electrical line are oriented in the bottom channels as shown in the figure below. If you find any damage to the dishwasher, Please contact your dealer or builder immediately.
  • Page 7 This temperature range provides the best washing results and shortest cycle time. Temperature should not exceed 149℉(65℃) to prevent damage to dishes. 2. When connecting the dishwasher water line, sealing tape or compound should be used to avoid leaks. 3. When connecting the dishwasher water line, the house supply should be shut off.
  • Page 8 � Install a 90。 elbow onto the water valve. Step 7 SLIDE DISHWASHER INTO CABINET � Slide the dishwasher into the cabinet opening carefully. � Make sure the drain hose inside the cabinet is not kinked. Drain Hose...

  • Page 9: Step 8 Level Dishwasher

    Check that gap between door and tub is equal on both side’s (L, R) (Fig. C) If the dishwasher is not level or both side gap is not equal, adjust four leveling feet up or down until dishwasher is level and both side gap is equal.

  • Page 10: Drain Line Connection

    Min. 30″ (770mm) Max. 40″ (1000mm) DRAIN LINE CONNECTION Dishwasher Drain Requirements �Follow local codes and ordinances. �Do not exceed 10 ft. (3m) Dishwasher distance to drain. �Do not connect drain lines from other devices to the dishwasher drain hose.

  • Page 11: Step 11 Water Supply Connection

    1. Turn electrical power back on at the circuit breaker. 2. Turn house water supply back on. 3. Operate the dishwasher through one cycle (Quick cycle is recommended) to check for water leaks and operating conditions. 4. Replace the Lower Cover.
  • Page 12 P/No.: 3828DD3003A...
  • Page 13 MODEL : LDF7810WW / LDF7810BB / LDF7810ST LDF7811WW / LDF7811BB / LDF7811ST LDS5811WW / LDS5811BB / LDS5811ST LDF6810WW / LDF6810BB / LDF6810ST Antes de instalar su lavavajillas le rogamos que lea detenidamente este manual y lo guarde futuras consultas. Si tiene alguna duda, llámenos al 1-800-243-0000 o visite nuestra web en: http://www.lgservice.com o http://us.lgservice.com...

  • Page 14: Instrucciones Importantes De Seguridad

    í í N N D D I I C C E E PARTE 1. SEGURIDAD Y PRECAUCIÓN ... 2 PARTE 2. ESPECIFICACIONES DEL LAVAVAJILLAS ... 3 PARTE 3. HERRAMIENTAS Y MATERIALES NECESARIOS ... 4 PARTE 4. INSTRUCCIONES DE INSTALACIÓN ... 5~11 E E G G U U R R I I D D A A D D Y Y P P R R E E C C A A U U C C I I Ó...
  • Page 15 S S P P E E C C I I F F I I C C A A C C I I O O N N E E S S D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S Totalmente integrado LDF7810WW/BB/ST LDF7811WW/BB/ST...
  • Page 16 E E R R R R A A M M I I E E N N T T A A S S Y Y M M A A T T E E R R I I A A L L E E S S N N E E C C E E S S A A R R I I O O S S SOPORTE DE TUBO DE INSTALACIÓN...
  • Page 17 N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.

  • Page 18: Preparación Del Cableado Eléctrico

    N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.
  • Page 19 N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.
  • Page 20 N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.

  • Page 21: Paso 8 Nivele El Lavavajillas

    N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.
  • Page 22 N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.

  • Page 23: Comprobaciones Finales

    N N S S T T R R U U C C C C I I O O N N E E S S D D E E I I N N S S T T A A L L A A C C I I Ó Ó N N Esta instruccion de instalacion es hecha para ser usado por instaladores calificados.
  • Page 24 N。 de Ref.: 3828DD3003A...
