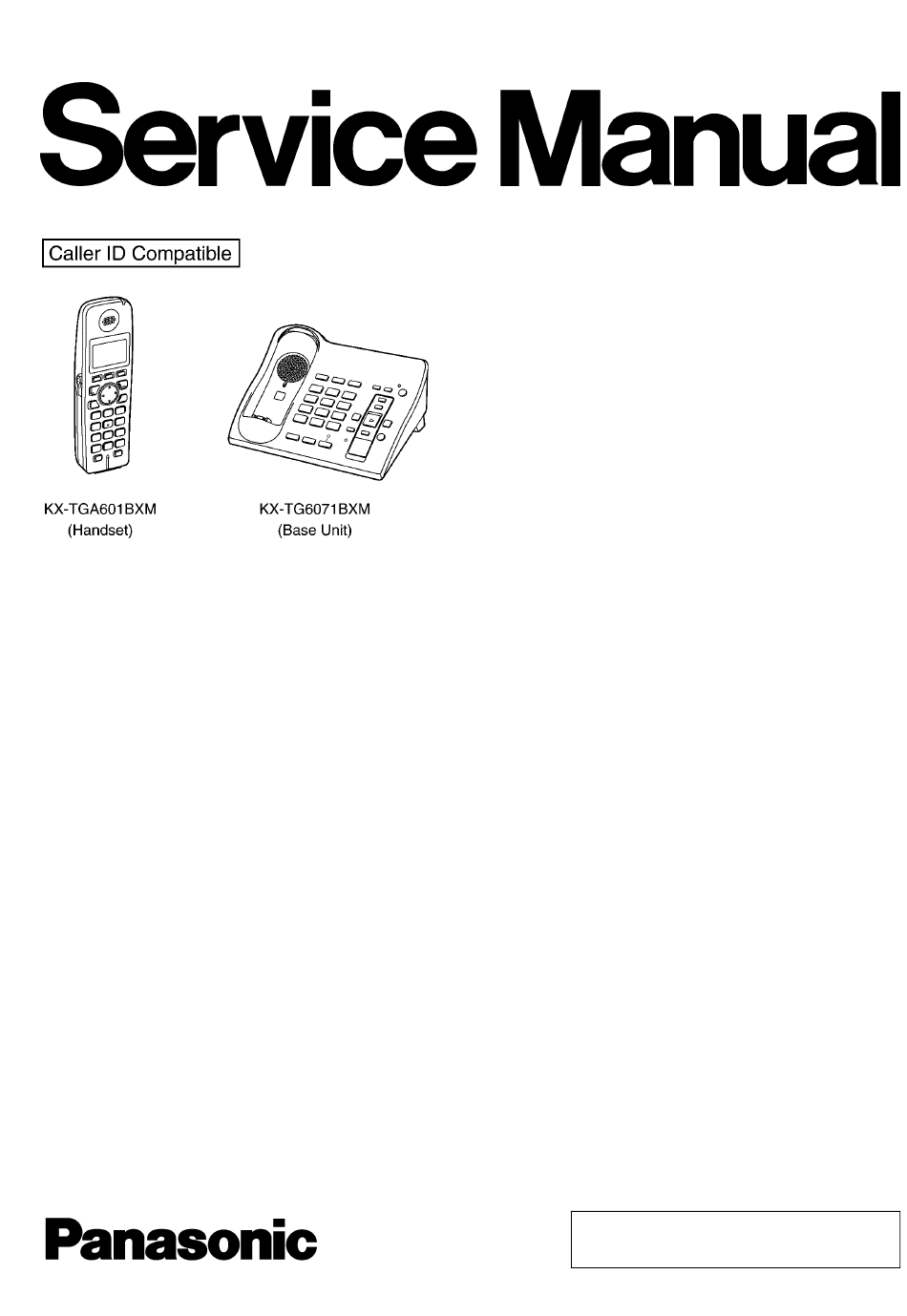

Panasonic KX-TG6071BXM Service Manual

Panasonic KX-TG6071BXM Service Manual

Telephone equipment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Telephone Equipment
KX-TG6071BXM
KX-TGA601BXM
5.8 GHz Digital Cordless Answering
System
Metallic Gray Version
(for Asia, Middle Near East and Other areas)
© 2007 Panasonic Communications Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO. KM40704321CE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TG6071BXM

Summary of Contents for Panasonic KX-TG6071BXM

  • Page 1 Telephone Equipment KX-TG6071BXM KX-TGA601BXM 5.8 GHz Digital Cordless Answering System Metallic Gray Version (for Asia, Middle Near East and Other areas) © 2007 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.
  • Page 2 KX-TG6071BXM/KX-TGA601BXM...

  • Page 3: Table Of Contents

    KX-TG6071BXM/KX-TGA601BXM TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions----------------------------------------------- 4 14.4. Circuit Board (Base Unit_Antenna)------------------ 99 1.1. For Service Technicians --------------------------------- 4 14.5. Circuit Board (Handset_Main) -----------------------101 2 Warning-------------------------------------------------------------- 4 14.6. Circuit Board (Handset_RF Part) -------------------103 2.1. Battery Caution -------------------------------------------- 4 15 Appendix Information of Schematic Diagram--------104 2.2.

  • Page 4: Safety Precautions

    KX-TG6071BXM/KX-TGA601BXM 1 Safety Precautions 1.1. For Service Technicians ICs and LSIs are vulnerable to static electricity. When repairing, the following precautions will help prevent recurring malfunctions. 1. Cover plastic parts boxes with aluminum foil. 2. Ground the soldering irons. 3. Use a conductive mat on worktable.

  • Page 5: Specifications

    KX-TG6071BXM/KX-TGA601BXM 2.2.1. Suggested PbF Solder There are several types of PbF solder available commercially. While this product is manufactured using Tin, Silver, and Copper (Sn+Ag+Cu), you can also use Tin and Copper (Sn+Cu), or Tin, Zinc, and Bismuth (Sn+Zn+Bi). Please check the manufac- turer's specific instructions for the melting points of their products and any precautions for using their product with other materi- als.

  • Page 6: Technical Descriptions

    KX-TG6071BXM/KX-TGA601BXM 4 Technical Descriptions 4.1. FHSS Description 4.1.1. Frequency The frequency range of 5.76 GHz-5.84 GHz is used. Transmitting and receiving channel between base unit and handset is same frequency. Refer to Frequency Table (P.79). 4.1.2. FHSS (Frequency Hopping Spread Spectrum) This telephone is using an IC chip which has similar specification to WDCT (World Digital Cordless Telephone) and is the tele- phone system that can use multiple portable unit simultaneously.
  • Page 7 KX-TG6071BXM/KX-TGA601BXM 4.1.2.1. TDD Frame Format Sync Field (72 bit): Preamble 56 bit + SyncWord 16 bit Base unit (handset) adjusts the timing of reception so that reception of base unit (handset) can correspond to transmission of handset (base unit). It is necessary for sync-field that handset gets synchronization.
  • Page 8 KX-TG6071BXM/KX-TGA601BXM 4.1.3. Signal Flowchart in the Whole System Reception CN101 of the base unit is connected to the TEL line, and signal is input through the bridge diode D101. While talking, the relay (Q141) is turned ON and amplified at the Q171, then led to DSP (IC501). The DSP encodes ADPCM and TDD/TDMA with FHSS to TXDATA.

  • Page 9: Explanation Of Link Data Communication

    KX-TG6071BXM/KX-TGA601BXM 4.2. Explanation of Link Data Communication 4.2.1. Calling 4.2.2. To Terminate Communication 4.2.3. Ringing...

  • Page 10: Block Diagram (Base Unit_Main)

    KX-TG6071BXM/KX-TGA601BXM 4.3. Block Diagram (Base Unit_Main)

  • Page 11: Block Diagram (Base Unit_Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 4.4. Block Diagram (Base Unit_RF Part)

  • Page 12: Circuit Operation (Base Unit)

    KX-TG6071BXM/KX-TGA601BXM 4.5. Circuit Operation (Base Unit) General Description: (DSP, Flash Memory) is a digital speech/signal processing system that implements all the functions of speech compression, record and playback, and memory management required in a digital telephone answering machine. The DSP system is fully controlled by a host processor DSP. The host processor provides activation and control of all that func- tions as follows.
  • Page 13 KX-TG6071BXM/KX-TGA601BXM 4.5.3. Power Supply Circuit Function: The power supply voltage from AC adaptor is converted to the desired voltage of each block. Circuit Operation: • Q300 and IC300: 4.0 V DCDC Converter • IC331: 3.3 V Regulator...
  • Page 14 KX-TG6071BXM/KX-TGA601BXM 4.5.3.1. Charge Circuit The voltage from the AC adaptor is supplied to the charge circuits.
  • Page 15 KX-TG6071BXM/KX-TGA601BXM 4.5.4. Reset Circuit Function: This circuit is used to initialize the microcomputer when it incorporates an AC adaptor. Circuit Operation: When the AC Adaptor is inserted into the unit, then the voltage is shifted by IC331 and power is supplied to the DSP.
  • Page 16 KX-TG6071BXM/KX-TGA601BXM 4.5.5. Telephone Line Interface Telephone Line Interface Circuit: Function • Bell signal detection • ON/OFF hook and pulse dial circuit • Side tone circuit Bell signal detection and OFF HOOK circuit: In the idle mode, Q141 is open to cut the DC loop current and decrease the ring load. When ring voltage appears at the Tip (T) and Ring (R) leads (When the telephone rings), the AC ring voltage is transferred as follows: T →...
  • Page 17 KX-TG6071BXM/KX-TGA601BXM 4.5.6. Auto Disconnect Circuit Function: This circuit is used to detect the fact that another telephone connected to the same line is OFF-HOOK while the unit is in a receiving status or OGM transmitting status. Circuit Operation: The voltage of pin 90 of IC501 is monitored. If a parallel-connected telephone is put into OFF HOOK status, the presence/ absence of a parallel connection is determined when the voltage changes by 0.2 V or more.
  • Page 18 KX-TG6071BXM/KX-TGA601BXM 4.5.7. Parallel Connection Detect Circuit Function: In order to disable call waiting and stutter tone functions when using telephones connected in parallel, it is necessary to have a circuit that judges whether a telephone connected in parallel is in use or not. This circuit determines whether the telephone con- nected in parallel is on hook or off hook by detecting changes in the T/R voltage.
  • Page 19 KX-TG6071BXM/KX-TGA601BXM 4.5.8. Calling Line Identification (Caller ID) Function: The caller ID is a chargeable ID which the user of a telephone circuit obtains by entering a contract with the telephone company to utilize a caller ID service. For this reason, the operation of this circuit assumes that a caller ID service contract has been entered for the circuit being used.

  • Page 20: Block Diagram (Handset)

    KX-TG6071BXM/KX-TGA601BXM 4.6. Block Diagram (Handset) IC541 X501 EEPROM 13.824 MHz Q531 CHG_DET CHARGE DETECT OSC_IN Q362, Q363 RF part TX_DATA RX_DATA CHARGE CHG_CTL PA_CONT CONTROL RADIO_EN CON_EN Q521 SYN_LE2 SYN_OUT RESET RESET SYN_DATA Q361 D361 SYN_CLK CHARGE SYN_LE1 IC521 RX_GAIN...

  • Page 21: Block Diagram (Handset_Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 4.7. Block Diagram (Handset_RF Part)

  • Page 22: Circuit Operation (Handset)

    KX-TG6071BXM/KX-TGA601BXM 4.8. Circuit Operation (Handset) 4.8.1. Construction The circuit mainly consists of DSP and RF part as shown in the block diagram. 4.8.1.1. DSP: IC501 Function • Battery Low, Power down detect circuit • Ringer Generation • Interface circuit RF part, Speaker, Mic, LED, Key scan, LCD, Headset...
  • Page 23 KX-TG6071BXM/KX-TGA601BXM 4.8.2. Power Supply Circuit Voltage is supplied separately to each block.
  • Page 24 KX-TG6071BXM/KX-TGA601BXM 4.8.3. Charge Circuit When the handset is put on the cradle of the base unit, the power is supplied from CHARGE+ and CHARGE- terminals to charge the battery via R366 or Q361. The voltage between CHARGE+ and CHARGE- flows R531 → Q531 → pin 38 of IC501, where the charge is detected.
  • Page 25 KX-TG6071BXM/KX-TGA601BXM 4.8.5. Sending Signal The voice signal from the microphone is input to DSP (90, 91). CN431 is the headset jack. When the headphone is connected, the Q431 detects it. The input from the microphone of the handset (MIM, MIP) is cut and the microphone signal from the head- set is input to DSP (95).

  • Page 26: Circuit Operation (Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 4.9. Circuit Operation (RF Part) General Description: RF part includes Transmitter and Receiver functions. Digital signals (Mainly voice data) that come from DSP, are modulated and are transmitted. On the other hand, received signals are demodulated and go out to DSP.
  • Page 27 KX-TG6071BXM/KX-TGA601BXM 4.9.2. 5.8 GHz Mod/Demod Circuit IC701 incorporates all of the modulation and demodulation functions. TX Digital data (TX_DATA) from DSP is supplied to pin 17 of IC701, and then 5.8 GHz TX modulated signals is output from pin 1.
  • Page 28 KX-TG6071BXM/KX-TGA601BXM 4.9.3. 5.8 GHz PA (Power Amplifier), 5.8 GHz LNA (Low Noise Amplifier) and Antenna Switch Circuit IC801 includes PA (Power Amplifier) block, LNA (Low Noise Amplifier) Block and Antenna Switch Circuit. PA block amplifies 5.8 GHz TX signal. 5.8 GHz TX signal from 5.8 GHz RF IC (IC701) is filtered by 5.8 GHz-BPF FL711, and amplified by PA (Power Amplifier) block of IC801.

  • Page 29: Signal Route

    KX-TG6071BXM/KX-TGA601BXM 4.10. Signal Route...
  • Page 30 KX-TG6071BXM/KX-TGA601BXM RF part signal route...

  • Page 31: Location Of Controls And Components

    KX-TG6071BXM/KX-TGA601BXM 5 Location of Controls and Components 5.1. Controls 5.1.2. Handset 5.1.1. Base Unit 5.2. Display...

  • Page 32: Installation Instructions

    KX-TG6071BXM/KX-TGA601BXM 6 Installation Instructions 6.1. Setting Up the Base Unit 6.1.1. Connecting the AC Adaptor and Telephone Line Cord 6.2. Battery Installation /Replacement...

  • Page 33: Battery Charge

    KX-TG6071BXM/KX-TGA601BXM 6.3. Battery Charge 6.3.2. Panasonic Battery Performance Note for service: The battery strength may not be indicated correctly if the battery is disconnected and connected again, even after it is fully charged. In that case, by recharging the battery as mentioned above, you will get a correct indication of the battery strength.

  • Page 34: Operation Instructions

    KX-TG6071BXM/KX-TGA601BXM 7 Operation Instructions 7.1. Programmable Settings 7.1.1. Programming by Scrolling through the Display Menus...
  • Page 35 KX-TG6071BXM/KX-TGA601BXM 7.1.2. Programming using the Direct Commands...

  • Page 36: Dial Lock

    KX-TG6071BXM/KX-TGA601BXM 7.2. Dial Lock For Service Hint: *: If the current password is forgotten, refer to Dial lock in Troubleshooting (P.38).

  • Page 37: Error Messages

    KX-TG6071BXM/KX-TGA601BXM 7.3. Error Messages...

  • Page 38: Troubleshooting

    KX-TG6071BXM/KX-TGA601BXM 7.4. Troubleshooting...
  • Page 39 KX-TG6071BXM/KX-TGA601BXM...
  • Page 40 KX-TG6071BXM/KX-TGA601BXM...

  • Page 41: Test Mode

    KX-TG6071BXM/KX-TGA601BXM 8 Test Mode 8.1. Adjustment and Test Mode Flow Chart 8.1.1. Test Burst Mode for Base Unit Note: (*1) Refer to Check Table for RF part (P.60).
  • Page 42 KX-TG6071BXM/KX-TGA601BXM 8.1.2. TX-CW Mode for Base Unit Note: (*1) Refer to Check Table for RF part (P.60).
  • Page 43 KX-TG6071BXM/KX-TGA601BXM 8.1.3. RX-CW Test Mode for Base Unit Note: (*1) Refer to Check Table for RF part (P.60).
  • Page 44 KX-TG6071BXM/KX-TGA601BXM 8.1.4. Test Link Mode for Base Unit Note: (*1) Refer to Test Link Mode for Handset (P.49). If you can not proceed to the next step, refer to Registering a Handset (P.58). (*2) Refer to Check Table for RF part (P.60).
  • Page 45 KX-TG6071BXM/KX-TGA601BXM 8.1.5. Adjustment Mode for Base Unit Cross Reference Check and Adjust Frequency (Base Unit) (P.76)
  • Page 46 KX-TG6071BXM/KX-TGA601BXM 8.1.6. Test Burst Mode for Handset Note: (*1) LCD displays the Channel number. (exception: default/ CH00 = 1ch.) (*2) Refer to Check Table for RF part (P.60).
  • Page 47 KX-TG6071BXM/KX-TGA601BXM 8.1.7. TX-CW Mode for Handset Note: (*1) LCD displays the Channel number. (exception: default/ CH00 = 1ch.) (*2) Refer to Check Table for RF part (P.60).
  • Page 48 KX-TG6071BXM/KX-TGA601BXM 8.1.8. RX-CW Test Mode for Handset Note: (*1) LCD displays the Channel number. (exception: default/ CH00 = 1ch.) (*2) Refer to Check Table for RF part (P.60).
  • Page 49 KX-TG6071BXM/KX-TGA601BXM 8.1.9. Test Link Mode for Handset Note: (*1) LCD displays the Channel number. (exception: default/ CH00 = 1ch.) (*2) If can not proceed to the next step, refer to Registering a Handset (P.58). (*3) for factory use only. (*4) Refer to Check Table for RF part (P.60).
  • Page 50 KX-TG6071BXM/KX-TGA601BXM 8.1.10. Adjustment Mode for Handset Cross Reference (*1) Adjust Battery Low Detector Voltage (Handset) (P.76) Note: (*2) These are the default values. (*3) These values may not be fixed depending on the battery strength.

  • Page 51: Service Mode

    KX-TG6071BXM/KX-TGA601BXM 9 Service Mode 9.1. How to Clear User Setting Units are reset to the Factory settings by this operation (Erase recorded Voice messages, stored Phone numbers, Caller list and etc.). This operation should not be performed for a usual repair.
  • Page 52 KX-TG6071BXM/KX-TGA601BXM 9.1.2. Handset Note: (*1) Be sure to short the battery terminals of the handset with a lead wire, etc. for 2 seconds for discharge after removing the battery.

  • Page 53: Troubleshooting Guide

    KX-TG6071BXM/KX-TGA601BXM 10 Troubleshooting Guide 10.1. Troubleshooting Flowchart Cross Reference: Note: Check Power (P.54) (*1) When a user claims that the unit disconnects a call right Check Playback (P.56) after the greeting message and no incoming messages can Check Record (P.55) be recorded, this symptom can not be reappeared with TEL Check Battery Charge (P.57)
  • Page 54 KX-TG6071BXM/KX-TGA601BXM 10.1.1. Check Power Cross Reference: Note: Power Supply Circuit (P.13) Flash Memory is IC601. Reset Circuit (P.15) DSP is IC501. (*1) Refer to Specifications (P.5) for part number and sup- ply voltage of AC adaptor. (*2) Refer to Circuit Board (Base Unit_Main) (P.93).
  • Page 55 KX-TG6071BXM/KX-TGA601BXM 10.1.2. Check Record BASE UNIT A) Not record Greeting Message B) Not record Incoming Message C) How to change the Auto Disconnect activation (time) Some Telephone Company lines (fiber or cable) ON Hook and OFF Hook voltages are lower than conventional lines, which may cause a malfunction of Auto Disconnect detection.
  • Page 56 KX-TG6071BXM/KX-TGA601BXM 10.1.3. Check Playback Cross Reference: Note: Power Supply Circuit (P.13) Flash Memory is IC601. DSP is IC501. (*1) Refer to Circuit Board (Base Unit_Main) (P.93). 10.1.4. Check Sp-phone Transmission Cross Reference: Note: Signal Route (P.29) Flash Memory is IC601.
  • Page 57 KX-TG6071BXM/KX-TGA601BXM 10.1.6. Check Battery Charge Note: Flash Memory is IC601. (*1) Refer to Specifications (P.5) for part number and supply voltage of AC adaptor. 10.1.7. Check Link Note: Flash Memory is IC601. DSP is IC501. Cross Reference: (*1) Refer to Finding out the Defective part (P.58).
  • Page 58 KX-TG6071BXM/KX-TGA601BXM 10.1.8. Check the RF part 10.1.8.1. Finding out the Defective part After All the Checkings or Repairing 1. Re-register the checked handset to the checked base unit, and Regular HS to Regular BU. Note: (*1) HS: Handset (*2) BU: Base Unit 10.1.8.1.1.
  • Page 59 KX-TG6071BXM/KX-TGA601BXM 10.1.8.2. RF Check Flowchart Each item (1 ~ 6) of RF Check Flowchart corresponds to Check Table for RF part (P.60). Please refer to the each item. Note: (*1) Refer to Things to Do after Replacing IC or X'tal (P.76)
  • Page 60 KX-TG6071BXM/KX-TGA601BXM 10.1.8.3. Check Table for RF part Item BU (Base Unit) Check HS (Handset) Check Link Confirmation Normal 1. Register Regular HS to BU (to be 1. Register HS (to be checked) to Regular checked). HS, BU Mode [Normal Mode] 2.
  • Page 61 KX-TG6071BXM/KX-TGA601BXM 10.1.8.4. TEST RANGE Check Circuit block which range is defective can be found by the following check. Item BU (Base Unit) Check HS (Handset) Check Range Confirmation TX TEST 1. Register Regular HS to BU (to be checked). 1. Register HS (to be checked) to Regular BU.
  • Page 62 KX-TG6071BXM/KX-TGA601BXM 10.1.8.5. RF-DSP Interface Signal Wave Form Test Burst Mode...
  • Page 63 KX-TG6071BXM/KX-TGA601BXM Test Burst Mode...
  • Page 64 KX-TG6071BXM/KX-TGA601BXM Test Burst Mode and TX-CW Mode when TX confirmation and RX confirmation...
  • Page 65 KX-TG6071BXM/KX-TGA601BXM 10.1.9. Check Handset Transmission Cross Reference: Signal Route (P.29) 10.1.10. Check Handset Reception Cross Reference: Signal Route (P.29) Note: When checking the RF part, Refer to Check the RF part (P.58). 10.1.11. Check Caller ID Cross Reference: Telephone Line Interface (P.16) Calling Line Identification (Caller ID) (P.19)

  • Page 66: How To Replace The Flat Package

    KX-TG6071BXM/KX-TGA601BXM 10.2. How to Replace the Flat Package IC 10.2.1. Preparation • PbF (: Pb free) Solder • Soldering Iron Tip Temperature of 700°F ± 20°F (370°C ± 10°C) Note: We recommend a 30 to 40 Watt soldering iron. An expert may be able to use a 60 to 80 Watt iron where someone with less experience could overheat and damage the PCB foil.
  • Page 67 KX-TG6071BXM/KX-TGA601BXM 10.2.3. How to Install the IC 1. Temporarily fix the FLAT PACKAGE IC, soldering the two marked pins. *Check the accuracy of the IC setting with the corresponding soldering foil. 2. Apply flux to all pins of the FLAT PACKAGE IC.

  • Page 68: How To Replace The Llp

    KX-TG6071BXM/KX-TGA601BXM 10.3. How to Replace the LLP (Leadless Leadframe Package) IC 10.3.1. Preparation • PbF (: Pb free) Solder • Soldering Iron Tip Temperature of 700°F ± 20°F (370°C ± 10°C) Note: We recommend a 30 to 40 Watt soldering iron. An expert may be able to use a 60 to 80 Watt iron where someone with less experience could overheat and damage the PCB foil.
  • Page 69 KX-TG6071BXM/KX-TGA601BXM 10.3.4. How to Install the IC 1. Place the solder a little on the land where the radiation GND pad on IC bottom is to be attached. 2. Place the solder a little on the land where IC pins are to be attached, then place the IC.

  • Page 70: Disassembly And Assembly Instructions

    KX-TG6071BXM/KX-TGA601BXM 11 Disassembly and Assembly Instructions 11.1. Disassembly Instructions 11.1.1. Base Unit...
  • Page 71 KX-TG6071BXM/KX-TGA601BXM...
  • Page 72 KX-TG6071BXM/KX-TGA601BXM 11.1.2. Handset...

  • Page 73: How To Replace The Handset Lcd

    KX-TG6071BXM/KX-TGA601BXM 11.2. How to Replace the Handset LCD...
  • Page 74 KX-TG6071BXM/KX-TGA601BXM...

  • Page 75: Antenna Soldering Work

    KX-TG6071BXM/KX-TGA601BXM 11.3. Antenna Soldering Work Preparation • PbF (: Pb free) Solder • Soldering Iron Tip Temperature of 700°F ± 20°F (370°C ± 10°C) Note: We recommend a 30 to 40 Watt soldering iron. Solder the antenna P.C. board as below.

  • Page 76: Measurements And Adjustments

    KX-TG6071BXM/KX-TGA601BXM 12 Measurements and Adjustments 12.1. Things to Do after Replacing IC or X'tal 12.1.1. Preparation Equipment: Frequency counter Check Point for measurement: BCK Checking tolerance: 13.824 MHz ± 100 Hz (Base Unit)/13.824 MHz ± 100 Hz (Handset) 12.1.2. Check and Adjust Frequency (Base Unit) 1.

  • Page 77: Base Unit Reference Drawing

    KX-TG6071BXM/KX-TGA601BXM 12.2. Base Unit Reference Drawing When connecting the simulator equipment for checking, please refer to below. 9.0V ANT1 ANT1 ANT2 CN101 Spectrum analyzer CN301 JOINT2 C822 FL811 FL821 C821 C811 C873 R722 IC801 C871 R723 CHARGE- L721 CHARGE+ C876...

  • Page 78: Handset Reference Drawing

    KX-TG6071BXM/KX-TGA601BXM 12.3. Handset Reference Drawing When connecting the simulator equipment for checking, please refer to below. Note: (*1) is referred to No.3 of Check Table for RF part (P.60).

  • Page 79: Frequency Table

    KX-TG6071BXM/KX-TGA601BXM 12.4. Frequency Table Channel Ch. (hex) TX/RX Frequency Channel Ch. (hex) TX/RX Frequency Channel Ch. (hex) TX/RX Frequency (MHz) (MHz) (MHz) 5759.702 5788.242 5816.782 5760.594 5789.134 5817.674 5761.486 5790.026 5818.566 5762.378 5790.918 5819.458 5763.270 5791.810 5820.350 5764.162 5792.702 5821.241 5765.054...

  • Page 80: Schematic Diagram

    KX-TG6071BXM/KX-TGA601BXM 13 Schematic Diagram 13.1. For Schematic Diagram 13.1.1. Base Unit (Schematic Diagram (Base Unit_Main)) 13.1.1.1. Acoustic Testing Mode Notes: 1. DC voltage measurements are taken with voltmeter from the negative voltage line. 2. The schematic diagrams may be modified at any time with the development of new technology.
  • Page 81 KX-TG6071BXM/KX-TGA601BXM Memo...

  • Page 82: Schematic Diagram (Base Unit_Main)

    KX-TG6071BXM/KX-TGA601BXM 13.2. Schematic Diagram (Base Unit_Main) RF Interface V_PA V_PA (VPA) V_RF V_RF RADIO_EN RADIO_EN SLOT_CTRL SLOT_CTRL SYN_OUT SYN_OUT 4.0V SYN_DATA SYN_DATA SYN_CLK SYN_CLK SYN_EN SYN_EN TX_DATA TX_DATA RX_EN 3.3V TX_EN RX_DATA RX_DATA RX2 RX1 RF_RSTN RF_RSTN BCLK C521 BCLK K0.1...
  • Page 83 KX-TG6071BXM/KX-TGA601BXM 4.0V 3.3V 4.0V CONVERTOR IC331 Q300 L300 22uH VOUT VDET *RESET REFERENCE 1XX : TEL LINE 3XX : POWER, CHARGE Charge detection 4XX : RESET, MIC, SP 5XX : DSP, RF I/F IC300 6XX : FLASH, KEY, LCD 7XX : RF(2.4G) ON/*OFF 8XX : RF(5.8G)

  • Page 84: Schematic Diagram (Base Unit_Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 13.3. Schematic Diagram (Base Unit_RF Part) 4.0V 5.8GHz TX R846 FL711 5.8GHz_BPF R711 C872 C713 R845 IC801 FL811 5.8GHz_LPF ANT1 PA_IN C811 GND_ISO_1 R844 PA_EN ANT1 R843 ANTSEL_A GND_ISO_2 C821 ANTSEL_B GND_ISO_3 LNA_EN ANT2 LNA_GAIN GND_ISO_4 FL821 L724 5.8GHz_LPF C724 3.3nH...
  • Page 85 KX-TG6071BXM/KX-TGA601BXM L878 V_PA 3.0V 4.0V IC761 L761 VRF(3.0V) VOUT V_RF ATESTP ATESTN C781 J100P BCLK R748 R740 SYN_OUT C715 R741 L711 1.8nH SYN_EN R742 SYN_CLK SYN_DATA R743 DTEST PAEN SYN_OUT ANTSEL_A SYN_EN ANTSEL_B SYN_CLK IC701 LNAEN SYN_DATA R744 SLOT_CTRL RXGAIN...

  • Page 86: Schematic Diagram (Base Unit_Operation)

    KX-TG6071BXM/KX-TGA601BXM 13.4. Schematic Diagram (Base Unit_Operation) SPP2 SPN2 2APVCC LED904 MEG_LED LED903 ANS_LED LED902 INUSE_LED LED905 SP_LED KEYS_A KEYS_B KEYS_C KEYS_D KEYIN3 KEYIN2 KEYIN1 DOWN SKIP LOCAT/INT ERASE STOP MSG/VM KEYIN4 KEYIN5 KEYIN6 KEYS_E HOLD REDIAL MUTE CONF MEMO KX-TG6071 SCHEMATIC DIAGRAM (Base Unit_Operation)
  • Page 87 KX-TG6071BXM/KX-TGA601BXM Memo...

  • Page 88: Schematic Diagram (Handset_Main)

    KX-TG6071BXM/KX-TGA601BXM 13.5. Schematic Diagram (Handset_Main) RF circuit BCLK BCLK BGPIO9 TX_DATA TX_DATA C552 SLOT_CTRL SLOT_CTRL C551 R552 R554 C554 RX_DATA Q551 RX_DATA RF_POWER DSP Part (control circuit) RF_POWER RF control line RADIO_EN R540 C540 K0.1 X501 RF_RSTN RF_RSTN 13.824MHZ SYN_DATA...
  • Page 89 KX-TG6071BXM/KX-TGA601BXM TEST SIGNAL FREQUENCY: 1kHz SPPP SPPN Voice circuit SP phone RX L427 (MIC Mute: ON) 1.8Vp-p/8 (Vol. Max) L426 Rear speaker Headset TX -37dBm/600 R431 Headset detection TR 50mVp-p CN431 R525 L431 Q431 L432 Headset jack L434 C435 HEADSET_JACK...

  • Page 90: Schematic Diagram (Handset_Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 13.6. Schematic Diagram (Handset_RF Part) 3.3V 5.8GHz TX R846 FL711 R711 5.8GHz_BPF C872 C713 IC801 R845 FL811 5.8GHz_LPF ANT1 C812 C811 GND_ISO_1 PA_IN R844 ANT1 PA_EN R843 B0.1P GND_ISO_2 ANTSEL_A C821 GND_ISO_3 ANTSEL_B ANT2 LNA_EN GND_ISO_4 LNA_GAIN FL821 L724 5.8GHz_LPF...
  • Page 91 KX-TG6071BXM/KX-TGA601BXM L878 V_PA 3.0V IC761 RF_POWER L761 VRF(3.0V) VOUT V_RF 3.6~4.2V ATESTP ATESTN C781 J100P BCLK R748 R740 SYN_OUT C715 R741 L711 1.8nH SYN_EN R742 SYN_CLK SYN_DATA R743 DTEST PAEN SYN_OUT ANTSEL_A SYN_EN ANTSEL_B SYN_CLK IC701 LNAEN SYN_DATA RXGAIN SLOT_CTRL...
  • Page 92 KX-TG6071BXM/KX-TGA601BXM Memo...

  • Page 93: Printed Circuit Board

    KX-TG6071BXM/KX-TGA601BXM 14 Printed Circuit Board 14.1. Circuit Board (Base Unit_Main) 14.1.1. Component View ANT2 ANT1 CN101 CN301 JOINT2 C822 FL811 C821 FL821 C811 V_PA C873 R722 IC801 C871 R723 CHARGE- L721 CHARGE+ C876 C723 C726 C877 FL711 C724 Q340 DC 1...
  • Page 94 KX-TG6071BXM/KX-TGA601BXM 14.1.2. Flow Solder Side View ANT1_HOT ANT2_HOT DCM DCM2 ANT2_GND ANT1_GND DCP2 CHARGE- CHARGE+ D101 BCLK Q141 Q143 JOINT3 KEY2 KEY3/TE KEYB KEY_GND KEY1 Q142 Q156 Q161 FCLK FRST IC611 MIN2 MIP2 MIC1 PQUP11458Y KX-TG6021/31/51/71H KX-TG6071 CIRCUIT BOARD (Base Unit_Main (Flow Solder Side View))

  • Page 95: Circuit Board (Base Unit_Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 14.2. Circuit Board (Base Unit_RF Part) FL811 C822 C821 FL821 C811 C873 IC801 R722 C871 R723 L721 V_PA C876 C723 C726 C877 FL711 C724 C879 C768 C766 V_RF IC701 IC761 C764 KX-TG6071 CIRCUIT BOARD (Base Unit_RF Part (Component View))
  • Page 96 KX-TG6071BXM/KX-TGA601BXM Memo...

  • Page 97: Circuit Board (Base Unit_Operation)

    KX-TG6071BXM/KX-TGA601BXM 14.3. Circuit Board (Base Unit_Operation) 14.3.1. Component View PQUP11461Z KX-TG6071H LED903 MUTE CONF DOWN MSG/VM LED904 SKIP MEMO STOP ERASE LOCAT/INT LED905 LED902 REDIAL HOLD KX-TG6071 CIRCUIT BOARD (Base Unit_Operation (Component View))
  • Page 98 KX-TG6071BXM/KX-TGA601BXM 14.3.2. Flow Solder Side View WBX02 WBX01 KX-TG6071H PQUP11461Z KX-TG6071 CIRCUIT BOARD (Base Unit_Operation (Flow Solder Side View))

  • Page 99: Circuit Board (Base Unit_Antenna)

    KX-TG6071BXM/KX-TGA601BXM 14.4. Circuit Board (Base Unit_Antenna) KX-TG6071 CIRCUIT BOARD (Base Unit_Antenna)
  • Page 100 KX-TG6071BXM/KX-TGA601BXM Memo...

  • Page 101: Circuit Board (Handset_Main)

    KX-TG6071BXM/KX-TGA601BXM 14.5. Circuit Board (Handset_Main) 14.5.1. Component View KX-TGA60 R PQUP11463Z ANT2 FL811 C822 FL821 C821 C811 C873 IC801 R722 C871 R723 L721 C876 C723 C726 FL711 C877 C724 C879 C768 C766 3.0 V IC701 IC761 C764 SPPP SPPN RA565 3.3 V...
  • Page 102 KX-TG6071BXM/KX-TGA601BXM 14.5.2. Flow Solder Side View KX-TGA60 PQUP11463Z LED561 TAPE LEFT MENU RIGHT TALK BACK NEXT PAUSE DOWN FLASH HOLD KX-TGA601 CIRCUIT BOARD (Handset_Main (Flow Solder Side View))

  • Page 103: Circuit Board (Handset_Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 14.6. Circuit Board (Handset_RF Part) FL811 C822 FL821 C821 C811 C873 IC801 R722 C871 R723 L721 C876 C723 C726 FL711 C877 C724 C879 C768 C766 3.0 V IC701 IC761 C764 KX-TGA601 CIRCUIT BOARD (Handset_RF Part (Component View))

  • Page 104: Appendix Information Of Schematic Diagram

    KX-TG6071BXM/KX-TGA601BXM 15 Appendix Information of Schematic Diagram 15.1. CPU Data (Base Unit) 15.1.1. IC501 Description High High_Z 60 KEYIN6 Key In Description High High_Z 61 KEYIN5 Key In GNDPA 62 KEYIN4 Key In 63 KEYIN3 Key In BCLK 64 KEYIN2...

  • Page 105: Cpu Data (Handset)

    KX-TG6071BXM/KX-TGA601BXM 15.2. CPU Data (Handset) IC501 15.2.1. Description High High_Z 61 NC Normal Description High High_Z 62 NC Normal GNDPA 63 KEYSTROBE_E Active SPOUTP 64 KEYSTROBE_D Active BCLK 65 KEYSTROBE_C Active 66 KEYSTROBE_B Active 67 KEYSTROBE_A Active XOUT 68 GND...

  • Page 106: Explanation Of Ic Terminals (Rf Part)

    KX-TG6071BXM/KX-TGA601BXM 15.3. Explanation of IC Terminals (RF Part) IC701 15.3.1.
  • Page 107 KX-TG6071BXM/KX-TGA601BXM 15.3.2. IC801...

  • Page 108: Terminal Guide Of The Ics, Transistors And Diodes

    KX-TG6071BXM/KX-TGA601BXM 15.4. Terminal Guide of the ICs, Transistors and Diodes 15.4.1. Base Unit 15.4.2. Handset...

  • Page 109: Exploded View And Replacement Parts List

    KX-TG6071BXM/KX-TGA601BXM 16 Exploded View and Replacement Parts List 16.1. Cabinet and Electrical Parts (Base Unit)

  • Page 110: Cabinet And Electrical Parts (Handset)

    KX-TG6071BXM/KX-TGA601BXM 16.2. Cabinet and Electrical Parts (Handset) Note: (*1) This cable is fixed by welding. Refer to How to Replace the Handset LCD (P.73). (*2) Refer to Handset (P.108) of Terminal Guide of the ICs, Transistors and Diodes. (*3) Stick the MAGNETIC SHIELD (No. 118) to the exact location described above.

  • Page 111: Accessories And Packing Materials

    KX-TG6071BXM/KX-TGA601BXM 16.3. Accessories and Packing Materials...

  • Page 112: Replacement Parts List

    KX-TG6071BXM/KX-TGA601BXM 16.4. Replacement Parts List Ref. Part No. Part Name & Description Remarks Note: PQHR11276Z GUIDE, JACK HOLDER PS-HB 1. RTL (Retention Time Limited) PQMG10025Z RUBBER PARTS, MIC The marking (RTL) indicates that the Retention Time is PQKF10730Y2 CABINET COVER...
  • Page 113 KX-TG6071BXM/KX-TGA601BXM Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks (VARISTORS) C113 PQCUV1A684KB 0.68 SA102 PQVDDSS301L VARISTOR (SURGE ABSORBER) C120 ECUV1H102KBV 0.001 SA103 PQVDDSS301L VARISTOR (SURGE ABSORBER) C121 ECUV1H681JCV 680P (RESISTORS) C122 ECUV1H681JCV...
  • Page 114 KX-TG6071BXM/KX-TGA601BXM Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C741 ECUE1H4R0CCQ PQHS10681Y SPACER, BATTERY C742 ECUE1H4R0CCQ PQKK10600Z4 LID, BATTERY COVER ABS-HB C743 ECUE1H4R0CCQ PQHS10683Z TAPE, ADHESIVE C746 ECUE1C103KBQ 0.01 16.4.2.2. Main P.C.Board Parts...
  • Page 115 KX-TG6071BXM/KX-TGA601BXM Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D424 D4ED1180A013 VARISTOR C540 ECUE1A104KBQ D426 D4ED1180A013 VARISTOR C541 ECUE1A104KBQ D427 D4ED1180A013 VARISTOR C542 ECUE1H101JCQ 100P (RESISTORS) C562 ECUV1A105KBV R361 ERJ2GEJ473 C564 ECUV1C104KBV...
  • Page 116 KX-TG6071BXM/KX-TGA601BXM 16.4.3. Accessories and Packing Materials Note: (*1) You can download and refer to the operating instruc- tions (Instruction book) on TSN server. Ref. Part No. Part Name & Description Remarks PQLV203BXZ AC ADAPTOR PQJA10075Z CORD, TELEPHONE PQKL10078Z2 STAND, WALL MOUNT...
