Summary of Contents for Electrolux EVL8E08WX

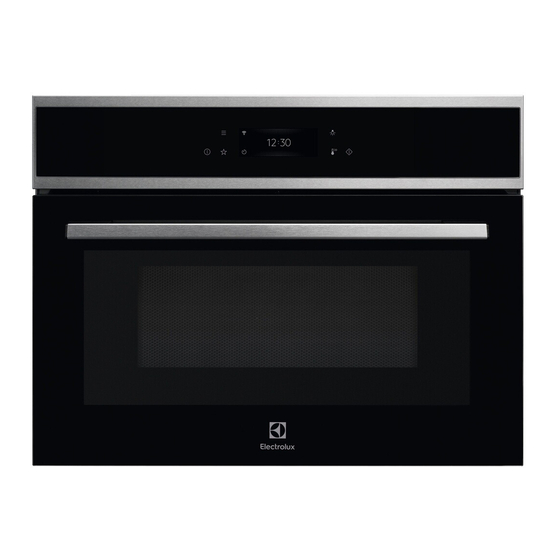

- Page 1 EVL8E08WX EVL8E08WZ KVLBE08WX Microwave combi-oven User Manual...
-
Page 2: Table Of Contents
WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. -
Page 3: Safety Information
SAFETY INFORMATION 9. ADDITIONAL FUNCTIONS....... 23 12. TROUBLESHOOTING......30 9.1 How to save: Favourites....23 12.1 What to do if.........31 9.2 Function lock........24 12.2 How to manage: Error codes..32 9.3 Automatic switch-off.......24 12.3 Service data.........33 9.4 Cooling fan........25 13. ENERGY EFFICIENCY......33 10. -
Page 4: General Safety
SAFETY INFORMATION Children should be supervised to ensure that they do not • play with the appliance and mobile devices with My Electrolux Kitchen. Keep all packaging away from children and dispose of it • appropriately. WARNING: Keep children and pets away from the appliance •... - Page 5 SAFETY INFORMATION Metallic containers for food and beverages are not allowed • during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking. WARNING: If the door or door seals are damaged, the •...
-
Page 6: Safety Instructions
SAFETY INSTRUCTIONS The appliance should be cleaned regularly and any food • deposits removed. Do not use a steam cleaner to clean the appliance. • Do not use harsh abrasive cleaners or sharp metal scrapers • to clean the glass door since they can scratch the surface, which may result in shattering of the glass. -
Page 7: Electrical Connection
SAFETY INSTRUCTIONS Width of the back of the appliance 559 mm Depth of the appliance 567 mm Built in depth of the appliance 546 mm Depth with open door 882 mm Ventilation opening minimum size. Opening placed 560x20 mm on the bottom rear side Mains supply cable length. -
Page 8: Use
SAFETY INSTRUCTIONS 2.3 Use WARNING! Risk of injury, burns and electric shock or explosion. • This appliance is for household (indoors) use only. • Do not change the specification of this appliance. • Make sure that the ventilation openings are not blocked. •... -
Page 9: Glassware Use
SAFETY INSTRUCTIONS • Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre. • Be careful when you remove the door from the appliance. The door is heavy! • Make sure the cavity and the door are wiped dry after each use. Steam produced during the operation of the appliance condensates on cavity walls and can cause corrosion. -
Page 10: Product Description
PRODUCT DESCRIPTION • Contact your municipal authority for information on how to dispose of the appliance. • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. • Remove the door catch to prevent children or pets from becoming trapped in the appliance. 3. -
Page 11: How To Turn Oven On And Off
HOW TO TURN OVEN ON AND OFF Baking tray For cakes and biscuits. Microwave bottom glass plate To prepare food in microwave mode. 4. HOW TO TURN OVEN ON AND OFF 4.1 Control panel ON / OFF Press and hold to turn the oven on and off. Menu Lists the oven functions. -
Page 12: Display
HOW TO TURN OVEN ON AND OFF Press Move Press and hold Touch the surface with finger‐ Slide fingertip over the sur‐ Touch the surface for 3 sec‐ tip. face. onds. 4.2 Display After turning on, the display shows the main 12:30 12:30 screen with the heating function and the default... -
Page 13: Before First Use
BEFORE FIRST USE To go one To confirm the selection / set‐ To undo the To turn the options on and level back in ting. last action. off. the menu. Sound alarm function indicators - when the set time of cooking ends, the signal sounds. The function is on. -
Page 14: Wireless Connection
To connect the oven you need: • Wireless network with the Internet connection. • Mobile device connected to your wireless network. Step 1 Download the mobile app My Electrolux Kitchen and follow the instructions for the next steps. Step 2 Turn on the oven. -
Page 15: Software Licences
5.4 Software licences The software in this product contains components that are based on free and open source soft‐ ware. Electrolux gratefully acknowledges the contributions of the open software and robotics com‐ munities to the development project. To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://electrolux.opensoftwarerepository.com (folder NIU5). -
Page 16: How To Use: Microwave Quick Start
DAILY USE Step 2 Press the symbol of the heating function to enter the submenu. Step 3 Select the microwave heating function and press: . The display shows: micro‐ wave power. Step 4 Set: microwave power. Press: Step 5 Press: - press to turn off the function. -
Page 17: How To Set: Assisted Cooking
DAILY USE 6.4 How to set: Assisted Cooking Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature. For some of the dishes you can also cook with: • Weight Automatic Step 1 Turn on the oven. - Page 18 DAILY USE Heating function Application To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy. Frozen Foods To bake and roast food on one shelf position. Conventional Cooking To bake pizza. To make intensive browning and a crispy bottom. Pizza Function To bake cakes with crispy bottom and to preserve food.
- Page 19 DAILY USE Heating function Application To prepare tender, succulent roasts. Slow Cooking To keep food warm. Keep Warm Use this function to prepare bread and bread rolls with a very good pro‐ fessional-like result in terms of crispiness, colour and crust gloss. Bread Baking MICROWAVE Heating function...
-
Page 20: Clock Functions
CLOCK FUNCTIONS Heating function Application To cook food in a short time and to brown it. The function with MW boost. Grill + MW To roast large pieces of meat on one level. To make gratins and to brown. The function with MW boost. Turbo Grilling + 7. - Page 21 CLOCK FUNCTIONS How to set cooking time Step 1 Choose the heating function and set the temperature. Step 2 Press: Step 3 Set the time. Press: Take a shortcut! How to choose end option Step 1 Choose the heating function and set the temperature. Step 2 Press: Step 3...
-
Page 22: How To Use: Accessories
HOW TO USE: ACCESSORIES How to delay start of cooking Step 6 Choose the value. Step 7 Press: . Repeat the action until the display shows the main screen. How to extend cooking time When 10% of cooking time is left and the food seems not to be ready, you can extend cooking time. -
Page 23: Additional Functions
ADDITIONAL FUNCTIONS Baking tray: Push the tray between the guide bars of the shelf support. Wire shelf, Baking tray: Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above. Microwave bottom glass plate: CAUTION! Use the microwave bottom glass plate only with micro‐... -
Page 24: Function Lock
ADDITIONAL FUNCTIONS Step 1 Turn on the oven. Step 2 Select the preferred setting. Step 3 Press: . Select: Favourites. Step 4 Select: Save current settings. Step 5 Press + to add the setting to the list of: Favourites. Press - press to reset the setting. -
Page 25: Cooling Fan
HINTS AND TIPS 9.4 Cooling fan When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down. -
Page 26: Microwave Suitable Cookware And Materials
HINTS AND TIPS 10.3 Microwave suitable cookware and materials For the microwave use only suitable cookware and materials. Use below table as a reference. Check the cookware / material specification before use. Cookware / Material Ovenproof glass and porcelain with no metal components, e.g. heat-proof glass Non-ovenproof glass and porce‐... -
Page 27: Recommended Power Settings For Different Kinds Of Food
HINTS AND TIPS Cookware / Material Wire shelf Microwave glass bottom plate Cookware for microwave use, e.g. crisp pan 10.4 Recommended power settings for different kinds of food The data in the table is for guidance only. 700 - 1000 W Searing at the start of the cook‐... -
Page 28: Cooking Tables For Test Institutes
HINTS AND TIPS 10.5 Cooking tables for test institutes Information for test institutes Tests according to IEC 60705. Use wire shelf unless otherwise specified. MICROWAVE FUNCTION (kg) (min) Sponge cake 0.475 Bottom 7 - 9 Turn container around by 1/4, half‐ way through the cooking time. -
Page 29: Care And Cleaning
CARE AND CLEANING Use the wire shelf. MICRO‐ WAVE COMBI (°C) (min) FUNC‐ TION Chicken, Turbo Grill‐ 35 - 40 Put the meat in 1.1 kg ing + MW round glass con‐ tainer and turn it upside down half‐ way through the cooking time. -
Page 30: How To Remove: Shelf Supports
TROUBLESHOOTING 11.2 How to remove: Shelf supports Remove the shelf supports to clean the oven. Step 1 Turn off the oven and wait until it is cold. Step 2 Carefully pull the shelf supports up and out of the front catch. Step 3 Pull the front end of the shelf support away from the side... -
Page 31: What To Do If
TROUBLESHOOTING 12.1 What to do if... The oven does not turn on or does not heat up Possible cause Remedy The oven is not connected to an electrical sup‐ Check if the oven is correctly connected to the ply or it is connected incorrectly. electrical supply. -
Page 32: How To Manage: Error Codes
TROUBLESHOOTING Problems with Wi-Fi signal Possible cause Remedy The wireless network signal is weak. Move router as close to the oven as possible. The wireless signal is disrupted by a micro‐ Turn off the microwave appliance. wave appliance placed near the oven. 12.2 How to manage: Error codes When the software error occurs, the display shows error message. -
Page 33: Service Data
ENERGY EFFICIENCY 12.3 Service data If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. -
Page 34: Submenu For: Options
MENU STRUCTURE Menu item Application Assisted Cooking Lists automatic programmes. Favourites Lists the favourite settings. Options To set the oven configuration. Settings Connections To set the network configuration. Setup To set the oven configuration. Service Shows the software version and con‐ figuration. -
Page 35: Submenu For: Setup
IT'S EASY! Submenu Description Remote operation To enable and disable remote control. Option visible only after you turn on: Wi-Fi. Auto remote operation To start remote operation automatically after pressing START. Option visible only after you turn on: Wi-Fi. Network To check network status and the signal power of: Wi-Fi. - Page 36 IT'S EASY! 15. IT'S EASY! Before first use you have to set: Display bright‐ Language Key tones Buzzer volume Time of day ness Familiarize yourself with the basic icons on the control panel and the display: Wi-Fi ON / OFF Menu Favourites Timer...
-
Page 37: Take A Shortcut
IT'S EASY! Get to know how to cook quickly Assisted Step 1 Step 2 Step 3 Step 4 Cooking Choose the dish. Press: Press: Press: Assis‐ ted Cooking. Use quick functions to set the cooking time 10% Finish assist To extend the cooking time press +1min. Use 10% Finish assist to add extra time when 10% of the cooking time is left. - Page 38 TAKE A SHORTCUT! How to cancel: Set Timer 17. ENVIRONMENTAL CONCERNS Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.
- Page 39 39/40...
- Page 40 www.electrolux.com/shop...
