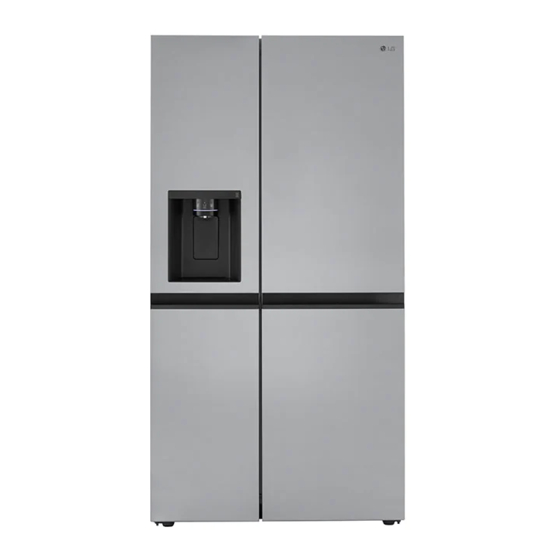

OWNER'S MANUAL
SIDE BY SIDE
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
LRSDS2706* / LRSXS2706* / LRSOS2706* / LRSOC2306* / LRSXC2306* /
LHSXS2706* / LRSVS2706*
www.lg.com
MFL71823901
Copyright © 2021-2022 LG Electronics Inc. All Rights Reserved.
Rev.08_060322

Advertisement

Table of Contents
loading

Related Manuals for LG LRSXC2306 Series

Summary of Contents for LG LRSXC2306 Series

  • Page 1 Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH LRSDS2706* / LRSXS2706* / LRSOS2706* / LRSOC2306* / LRSXC2306* / LHSXS2706* / LRSVS2706* www.lg.com MFL71823901 Copyright © 2021-2022 LG Electronics Inc. All Rights Reserved. Rev.08_060322...

  • Page 2: Table Of Contents

    Ice and Water Dispenser In-Door Ice Bin Automatic Icemaker Storing Food Drawers Refrigerator Shelves InstaView Door-in-Door Door Bins 33 SMART FUNCTIONS LG ThinQ Application Smart Grid Function Smart Diagnosis Feature 38 MAINTENANCE Cleaning Air Filter Water Filter 44 TROUBLESHOOTING FAQs...

  • Page 3: Important Safety

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS • Do not bend or pinch the power cord excessively or place heavy objects on it. Operation • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments;...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Maintenance • Do not use a hair dryer to dry the inside of the refrigerator. • Do not light a candle to remove odors in the refrigerator. • In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.

  • Page 6: Caution

    IMPORTANT SAFETY INSTRUCTIONS CAUTION CAUTION • To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation • Do not install the refrigerator where there may be a danger of the unit falling. •...

  • Page 7: Product Overview

    PRODUCT OVERVIEW PRODUCT OVERVIEW Product Features The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. Exterior † This feature is only available on some models. †...
  • Page 8 PRODUCT OVERVIEW Interior † This feature is only available on some models. Door in Door Model: LRSDS2706* Standard Door Model: LRSXS2706*, LRSXC2306*, LHSXS2706*...
  • Page 9 PRODUCT OVERVIEW InstaView Door-in-Door Model: LRSOS2706*, LRSOC2306*, LRSVS2706* LED Lamp The LED lamps inside the appliance light up when you open the door. Temperature Sensor This sensor senses the temperature of the fridge compartment. • Maintain the distance between the sensor and food to accurately sense the temperature. †...
  • Page 10 10 PRODUCT OVERVIEW Control Panel Sets the refrigerator and freezer temperatures or other functions. Fridge Drawer Stores fruits and vegetables to keep fresh for as long as possible. Bottom Drawer Cover CAUTION • Do not store any items at the front of the bottom shelf. The items may fall and cause an injury or appliance damage.

  • Page 11: Installation

    INSTALLATION INSTALLATION Before Installing Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Unpacking the Refrigerator Choosing the Proper Location Disassembling/Assembling Connecting the Water Line Leveling and Door Alignment WARNING •...

  • Page 12: Choosing The Proper Location

    12 INSTALLATION Unpacking the Refrigerator install a booster pump to compensate for the low pressure. WARNING • Use two or more people to move and install the refrigerator. Failure to do so can result in back Electricity injury or other injury. Use an individual, grounded outlet:115 Volts, 60 •...

  • Page 13: Removing/Assembling Doors

    INSTALLATION Dimensions and Clearances • Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings. • If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/ Assembling the Doors and Drawers in this manual.
  • Page 14 14 INSTALLATION • Tools Needed - Flat-head screwdriver - Phillips screwdriver Removing the Hinge Cover Remove the screws from the hinge cover at the top of the refrigerator. Lift the hook (not visible), located at the bottom of the front side of the cover with a flat-head screwdriver.
  • Page 15 INSTALLATION Removing the Refrigerator Door Place the door, inside facing up, on a non- scratching surface. Detach all the wire harnesses . Unscrew the ground wire Assembling the Refrigerator Door Place the door onto the bottom hinge pin Rotate the hinge lever clockwise.
  • Page 16 16 INSTALLATION Push the water supply lines into the hole on NOTE the top case and pull them through the backplate. • The number of wire harnesses may vary depending on the model. • Ground wire is only present on some models. Assembling the Freezer Door Install the freezer door onto the bottom hinge NOTE...

  • Page 17: Connecting Refrigerator To Water Supply

    INSTALLATION Water Pressure • Gently press the collet and insert the tube until only one line shows on the tube. • Models with water filter: - 20 - 120 psi (138 - 827 kPa) • Where reverse osmosis water filtration system is connected to a cold water supply: - 40 - 60 psi minimum to reverse osmosis system (2.8 kgf/cm...
  • Page 18 18 INSTALLATION fitting with a tube cutter and use a compression fitting. NOTE • The hookup line cannot be white, plastic tubing. Licensed plumbers must use only copper tubing NOTE (NDA tubing #49595 or #49599) or Cross Link • Before making the connection to the Polyethylene (PEX) tubing.

  • Page 19: Leveling And Door Alignment

    INSTALLATION • Make sure the house water valve is fully open. If Use the wrench (included with the owner's it is not open completely, the icemaker and manual) to turn the nut in the door hinge to adjust dispenser may not work properly. the height.
  • Page 20 20 INSTALLATION CAUTION • Connect to a rated power outlet. • Have a certified electrician check the wall outlet and wiring for proper grounding. • Do not damage or cut off the ground terminal of the power plug. Position the Refrigerator •...

  • Page 21: Operation

    OPERATION OPERATION Before Use Checklist Clean the refrigerator. Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION • Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator.

  • Page 22: Control Panel

    22 OPERATION Control Panel Depending on the model, some of the following functions may not be available. The actual control panel may differ from model to model. Control Panel Features Refrigerator Control Panel † This feature is only available on some models. Type A Type B Refrigerator...
  • Page 23 † Wi-Fi The Wi-Fi button, when used with the LG ThinQ app, allows the refrigerator to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the application. The Wi-Fi indicator shows the status of the refrigerator's network connection. The indicator illuminates when the refrigerator is connected to the Wi-Fi network.

  • Page 24: Sabbath Mode

    24 OPERATION Ice On/Off Press and hold the Ice On/Off button for three seconds to turn the in-door icemaker on/off. Lock The lock function disables every other button on the display. • When power is initially connected to the refrigerator, the lock function is off. •...

  • Page 25: Ice And Water Dispenser

    60 seconds OFF. This is also necessary if the refrigerator has not been used for a long time. • If ice or water dispenses unexpectedly, turn off the water supply and contact an LG Electronics Customer Information Center. • Never use a glass that is exceptionally narrow or deep.

  • Page 26: In-Door Ice Bin

    Detaching/Assembling the In-Door spilled ice or water. Ice Bin CAUTION • Only qualified service personnel from an LG Electronics service center should disassemble or repair the icemaker. • When handling the ice bin, keep hands away from the icemaker tray area to avoid personal injury.

  • Page 27: Automatic Icemaker

    OPERATION In-Door Icemaker NOTE • Use both hands to remove the ice bin to avoid dropping it. To assemble, carefully insert the in-door ice bin, slanting the top slightly to fit it under the Auto Shutoff (feeler arm) icemaker. Before Using the Freezer Icemaker This feature is only available on some models.

  • Page 28: Storing Food

    28 OPERATION • You will hear the sound of ice dropping into the CAUTION bin and water running in the pipes as the icemaker refills. • Do not insert round ice into the in-door ice bin, as it can damage the ice and water dispenser. •...
  • Page 29 OPERATION could come into direct contact with the cold air CAUTION and freeze. • Do not overfill or pack items too tightly into door • Wash food before storing it in the refrigerator. bins. Doing so may cause damage to the bin or Vegetables should be washed, and food personal injury if items are removed with packaging should be wiped down to prevent...

  • Page 30: Drawers

    30 OPERATION • Specified freezer-grade self-sealing plastic bags tank or water leakage may occur. The water tank is not a removable part. Follow package or container instructions for proper freezing methods. Do not use • Bread wrappers • Non-polyethylene plastic containers •...

  • Page 31: Instaview

    OPERATION InstaView Door-in-Door Knock twice on the glass to turn the LED light inside the InstaView on or off. The LED light turns off automatically after 10 seconds. Make sure the door is open as far as possible before pulling the shelf forward to remove it. If needed, have an assistant to fully open the door while you pull out the shelf.
  • Page 32 32 OPERATION To remove the bin, simply lift the bin up and pull straight out. To assemble the bin, slide it in above the desired support and push down until it snaps into place. CAUTION • Regularly detach and wash the storage bins and shelves;...

  • Page 33: Smart Functions

    Internet service provider or refer to your wireless router manual. • Settings • LG ThinQ is not responsible for any network - Allows you to set various options on the connection problems or any faults, malfunctions, refrigerator and in the application.
  • Page 34 Connecting to Wi-Fi • Reorient or relocate the receiving antenna. • Increase the separation between the equipment The Wi-Fi button, when used with the LG ThinQ and the receiver. application, allows the appliance to connect to a home Wi-Fi network. The Wi-Fi indicator shows the •...

  • Page 35: Smart Grid Function

    SMART FUNCTIONS FCC RF Radiation Exposure LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost Statement of performing such distribution (such as the cost of This equipment complies with FCC radiation...

  • Page 36: Smart Diagnosis Tm Feature

    Demand Response signal is sent. You • Launch the LG ThinQ application and select the can also override the Smart Grid function using the Smart Diagnosis feature in the menu. Follow smart phone app.
  • Page 37 Using Audible Diagnosis to Diagnose Issues Follow the instructions below to use the audible diagnosis method. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

  • Page 38: Maintenance

    38 MAINTENANCE MAINTENANCE Cleaning To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 WARNING quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does •...

  • Page 39: Water Filter

    MAINTENANCE Water Filter Before Replacing the Water Filter WARNING • To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. • To reduce the risk associated with the ingestion Unscrew the screw at the air filter.
  • Page 40 - When the water dispenser output decreases. • To purchase a replacement water filter: - Visit your local dealer or distributor - Search using "water filter" on lg.com Replace with a new water filter. - Use replacement cartridge: LT1000P, • Take the new water filter out of its packing...
  • Page 41 After changing the filter, press and hold the Water Filter button for three seconds to reset the indicator light. CAUTION • LG strongly recommends that you use LG- authorized water filters to prevent water quality issues, water leakage and appliance malfunction.
  • Page 42 42 MAINTENANCE Performance Data Sheet Model: LT1000P, LT1000PC, LT1000PCS NSF System Trade Name Code: MDJ64844601 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ ANSI Standard 42, Standard 53 and Standard 401.
  • Page 43 NOTE • While the testing was performed under standard laboratory conditions, actual performance may vary. For replacement filters, visit your local dealer or distributor or search under "water filters" on the lg.com website. For further assistance, contact the LG Electronics Customer Information Center.

  • Page 44: Troubleshooting

    44 TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions What are the best temperature settings for my refrigerator and freezer? The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures.

  • Page 45: Before Calling For Service

    TROUBLESHOOTING Before Calling for Service Review this section before calling for service; doing so will save you both time and money. Cooling Problem Possible Cause & Solution Refrigerator is not A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is cooling or has no connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit power.
  • Page 46 46 TROUBLESHOOTING Problem Possible Cause & Solution Cooling system runs Condenser / back cover is clogged. too much. • Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area. Interior moisture Doors are opened often or for long periods of time.
  • Page 47 TROUBLESHOOTING Problem Possible Cause & Solution Refrigerator or The air vents are blocked. Cold air circulates from the freezer to the fresh food section Freezer section is too and back again through air vents in the wall dividing the two sections. warm.
  • Page 48 48 TROUBLESHOOTING Problem Possible Cause & Solution Icemaker is not Water filter has been exhausted. making enough ice. • Replacing the water filter is recommended: - Approximately every six months. - When the water filter indicator turns on. - When the water dispenser output decreases. - When the ice cubes are smaller than normal.
  • Page 49 TROUBLESHOOTING Problem Possible Cause & Solution Ice has bad taste or Water supply contains minerals such as sulfur. odor. • A water filter may need to be installed to eliminate taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals/odor/taste in all water supplies.
  • Page 50 50 TROUBLESHOOTING Water Problem Possible Cause & Solution Water is dispensing Water filter has been exhausted. slowly. • Replacing the water filter is recommended: - Approximately every six months. - When the water filter indicator turns on. - When the water dispenser output decreases. - When the ice cubes are smaller than normal.
  • Page 51 TROUBLESHOOTING Problem Possible Cause & Solution Dispensing warm Dispenser has not been used for several hours. water. • If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10oz. Refrigerator is connected to the hot water supply. •...
  • Page 52 52 TROUBLESHOOTING Problem Possible Cause & Solution Lights do not work. LED interior lighting failure. • The refrigerator compartment lamp is LED interior lighting, and service should be performed by a qualified technician. Refrigerator has an The Air Filter may need to be set to the MAX setting or replaced. unusual odor.
  • Page 53 TROUBLESHOOTING Problem Possible Cause & Solution Pulsating or high- Your refrigerator is designed to run more efficiently to keep your food items at the pitched sound desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models.
  • Page 54 Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S.
  • Page 55 Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION.
  • Page 56 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
  • Page 57 (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https:// www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”).
  • Page 58 ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase.
  • Page 59 (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.
  • Page 60 If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein.
  • Page 61 Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by...
  • Page 62 62 Memo...
  • Page 63 Memo...
  • Page 64 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
