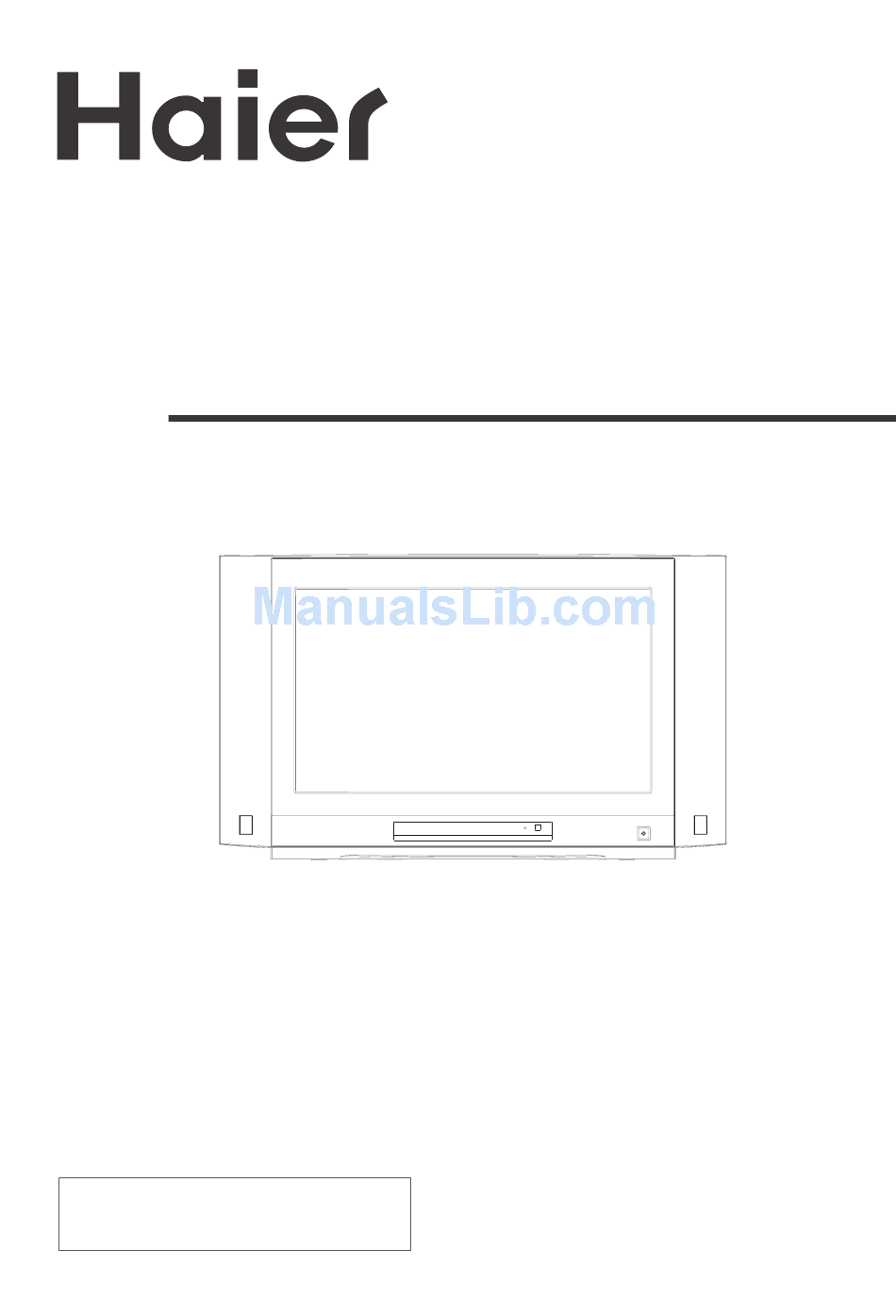

- Page 1 COLOR TV RECEIVER OWNER'S MANUAL Please READ this manual carefully before operating the unit, and keep it for future reference. TV/AV TV/AV V- V- MENU MENU The Owner`s Manual for the Follow Models: D29FA11-AM, D32FA11-AM...
-
Page 2: Table Of Contents
* For your enjoyment of this TV set, please read this manual carefully and keep it good for future reference. Before Operation ...2 Warning and cautions ...3 Installation ...3 Antenna connection Preparation for the remote control Position of Button and Plug-ins ...4... -
Page 3: Warning And Cautions
TV set. 6. If the TV set is not going to be used for a long time, or there is a severe thunder & Lighting storm, it is recommended that the TV set be disconnected from the AC power outlet and the aerial plug removed. -
Page 4: Installation
Installation Antenna connection General speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .In different places, the suitable antenna type and position are different. 300 twin-lead cable Antenna adapter (additional purchase) 75 coaxial cable Plug (additional purchase) -
Page 5: Position Of Button And Plug-Ins
AUDIO: L/MONO Track L/MONO ,R Track R AUDIO L/MONO Track L/MONO ,R Track R AUDIO L/MONO Track L/MONO ,R Track R Side AV terminal VIDEO AUDIO Power switch Note: The cabinet and buttons of TV is only for reference. L/MONO Track L/MONO ,R Track R... -
Page 6: Function Button Of The Remote Control
Function buttons of the remote control Mute button To eliminate the sound of the programs DC standby and power button TV and AV exchange button A changeover between TV and other input signals like AV I/II select button(No available) Picture still button Screen call/help button... -
Page 7: The Screen Display Menu
Timer Note: When the TV set is powered on, there might be different from what have been illustrated above. Please do some adjustment as follows to meet your needs. 1. Press the MENU button, and then press CH+/- buttons to select the menu in the main menu: PICTURE, SOUND, TUNE ,SETUP and TIMER. -
Page 8: Switch On/Off The Tv Set
2. If the TV is in the state of standby, press the POWER button or the CH+/- buttons on the remote control. Note: 1. -
Page 9: Watching Tv Programs
Press the VOL+/- buttons to adjust the volume to your need. If the colour or sound of a certain channel is abnormal If the TV set you bought is abnormal in colour or sound in a certain channel, it might be because the colour or sound system has been set improperly. -
Page 10: Program Swap And Auto Scan Functions
Watching TV Programs (continued) Swap function enables quick swap to the last watched program. Program swap and auto scan functions SWAP SCAN VOL- MENU VOL+ Program swap 1. Suppose the channel number you used just now is 8 and the channel number you are using is 18 (as shown in the figure). -
Page 11: Tune
Tune The TV set has three methods to set the channels, which are Auto search, Search, Quick Search and Fine tune. In this section, how to use the remote control to set the channel is explained. You can also use the buttons on the TV set to set channel. -
Page 12: Search
VOL+ button to enter the SEARCH menu. 4. Press the VOL+ or VOL- buttons, the TV set will begin to search up or down, when the TV set has searched a program, the TV set will stop searching. -
Page 13: Fine Tune And Program Lock Functions
VOL+ button to search upwards until it has searched the TV signal you need. Program Lock buttons If the program Lock and the program Lock of the Lock Set are ON, the screen is black and LOCK will shown. -
Page 14: Skip Unnecessary Channel
Tune (Continued) Skip unnecessary channel VOL- VOL+ MENU VOL- MENU VOL+ Skip unnecessary channel The Program skip feature enables you to skip/hide programs that you do not wish to be displayed when using the CH+/- buttons. These channels will still be displayed by directly using the channel number buttons on the remote control. -
Page 15: Exchange Programs
MENU VOL+ Exchange Programs This feature enables TV programmes that may be on a wrong program number to be moved to another number. This feature is very useful when Automatic Search Tuning has been used because programmes are stored in the order they are found, which is usually not the desired order. -
Page 16: Picture Adjusting
Picture Adjusting Select the picture modes and set the picture quality P.STD PICTURE VOL- MENU VOL+ How to select the picture modes You can quickly select the desired picture mode from four preset modes and one customized mode. Press the P.STD button to select the desired picture quality. MODE PICTURE QUALITY Medium color and brightness... -
Page 17: Filter Function
Picture Adjusting (Continued) Filter Function PICTURE VOL- MENU VOL+ Filter Function Press the PICTURE button, the Picture menu will appear on the screen. . Press the CH+/- buttons to move the indicator to "Filter". . Press the VOL+ button to the Filter sub-menu. -
Page 18: 3A Optimize And 3Dnr Functions
Picture Adjusting (Continued) 3A Optimize and 3DNR Functions PICTURE VOL- MENU VOL+ PICTURE VOL- MENU VOL+ 3A Optimize Function Press the PICTURE button, the Picture menu will appear on the screen. . Press the CH+/- buttons to move the indicator to "Advance", then press the VOL+ button to sub- menu. -
Page 19: Comb Filter And Layeren./ Color En. Functions
Picture Adjusting (Continued) Comb filter and Layer En./Color En. Functions PICTURE VOL- MENU VOL+ PICTURE VOL- MENU VOL+ Comb filter Function Press the PICTURE button, the Picture menu will appear on the screen. . Press the CH+/- buttons to move the indicator to "Advance", then press the VOL+ button to sub- menu. -
Page 20: Sound Adjusting
Sound Adjusting Select the sound modes and set the sound quality S.STD SOUND VOL- MENU VOL+ How to select the sound modes You can quickly select the desired sound mode from four preset modes and one customized mode. Press the S.STD button to select the desired picture quality. Four kinds of sound modes can be selected in turn. -
Page 21: Mute Function
Sound Adjusting (Continued) Mute function MUTE How to use the Mute function When you want to listen to the sound nearby, or when you are answering the telephone, or talking with your friends, you may use the mute function. 1. Press the MUTE button once, a sign of mute will appear on the screen, the sound will be eliminated completely . -
Page 22: Timer Set Up Function
After setting the Current time, press MENU button to confirm. On/Off Time function The TV set can be powered on/off at a preset time and it can start with a program you have preset. Here take On Time function for example. The Off Time function is same with it. -
Page 23: Remind Program Function
VOL- MENU VOL+ CALL/HELP Remind Program Function With Remind Program function, the TV set can automatically change a preset program in a preset time . 1. Press the TIME button, the Time menu will appear on the screen. . Press the CH+/- buttons to move the indicator to "... -
Page 24: Set Up Function
" Language ", then press the VOL+/- buttons to select the desired language, then the OSD language of the TV set turn to the OSD language selected. How to start screen saver function When the SCREEN SAVER is ON, If no signal has been received, and after five minutes, it will stand by automatically. -
Page 25: Select Switch On Mode And Hdm Scan Function
Set Up Function (Continued) Select Switch on mode and HDM scan function FUNCTION VOL- MENU VOL+ FUNCTION VOL- MENU VOL+ Select Switch on mode There are some kind of Switch on mode, such as , etc. You can choose one you need. 1. -
Page 26: Tilt Function And Setting Transparency Menu
FUNCTION VOL- MENU VOL+ Tilt function When the TV set is affected by the geomagnetism so that the whole picture turn tilt, you can use the function. 1. Press the FUNCTION button, the Function menu will appear on the screen. -
Page 27: Setting The Lock
Setting the Lock This TV set provides you with the LOCK function, you can choose it due to your need to protect your TV set. Change your password H.LOCK VOL- MENU VOL+ Change your password This TV set can set a four digit password, the original one is 0000, if you want to reset it, please follow the instructions below. -
Page 28: Setting The Lock
"On" or "Off". Description of each lock function 1.When the LOCK is set ON, if the buttons on the TV are pressed, the screen will indicate that the TV set is in the status of Lock, and the buttons won't work. -
Page 29: Others Functions
CH+- buttons to adjust the year and the month, to demand the desired date. Picture Still function When you watching TV, press the STILL button to still the picture. Press the STILL button or any others to resume the playing. -
Page 30: Setting And Using Favorite Programs, Setting Sleep Timer
Others Functions (Continued) Setting and Using Favorite programs, Setting Sleep Timer FAVORITE VOL- MENU VOL+ FAVORITE TIME VOL- MENU VOL+ Setting Favorite programs After setting the Favorite function, you can select the programs that you favorite. 1. Press the FAVORITE button twice, then the screen displays the Favorite menu. -
Page 31: Vga Input Adjustment
5.Click the Advanced button and click the Monitor tab on the dialog-box. Set the vertical-frequency to 60Hz and then click the OK button. 6. Connect the PC to the TV set by the VGA terminal. VGA input adjustment 1. Press the TV/AV button, then press CH+/-buttons to select the PC input mode. -
Page 32: External Connections
External connections In the following, the methods of connecting the video/audio system and PC for the TV set will be explained. Video/Audio Output Connection, VGA Input VCR Etc. AVOUT VIDEO AUDIO To Audio/Video input VGA IN To VGA input To Video input... -
Page 33: Video/Audio Input Connection
External connections (Continued) In the following, the methods of connecting the video/audio system and other sets for the TV set will be explained. Video/Audio Input Connection To Audio/Video Input VIDEO AUDIO To Video T erminal To Audio-L T erminal To Audio-R Terminal... -
Page 34: Trouble Shooting
TV set, placing magnets near the TV screen or turning on/off house hold appliances such as vacuum cleaners near the TV set. Turn the TV off with the mains power switch for 15 minutes. When the power is turn on again Normal volume the TV set will automatically degauss the picture. -
Page 35: Specifications
Indonisia Philippine New Zealand, Australia,Malaysia Hong Kong, Algeria, Nepal, Turkey The actual voltage and frenquency of the TV set is Dimensions (mm) 817 W x 616 H x390 D 941 W x 572 H x 418 D PAL,SECAM, AV NTSC 3.58, 4.43... - Page 36 0090506995C...
