Sony CDX-4507 Installation/Connections

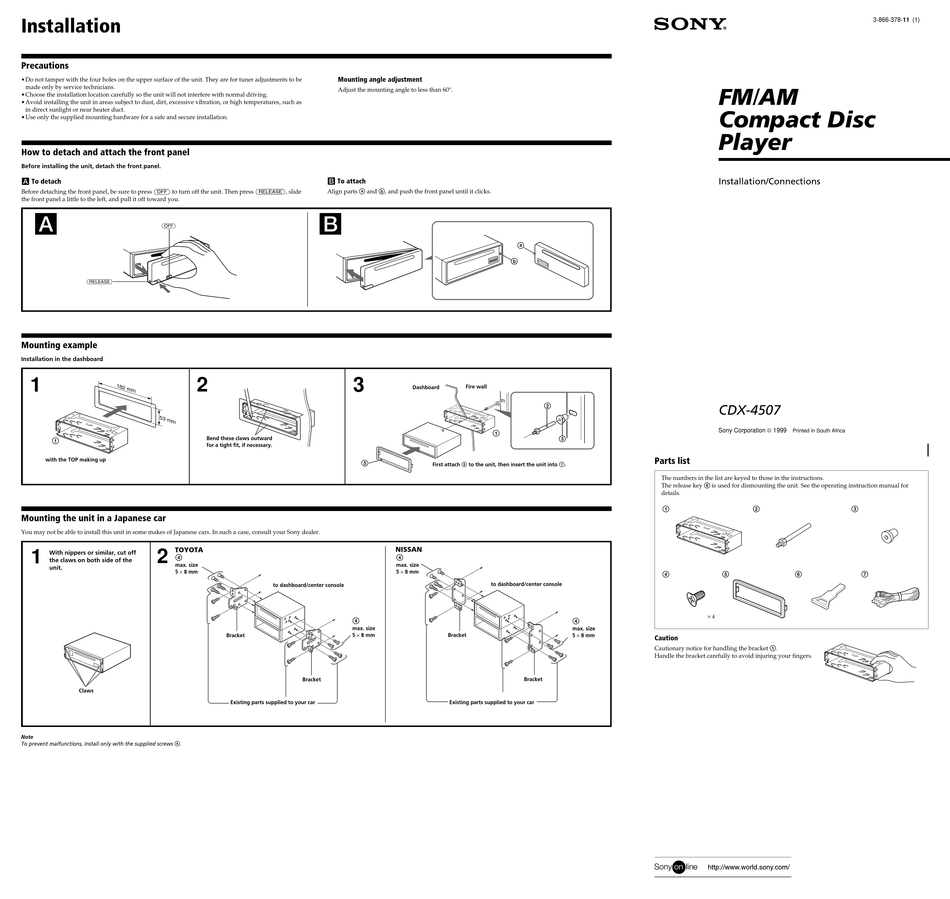

Installation
Precautions
•Do not tamper with the four holes on the upper surface of the unit. They are for tuner adjustments to be
made only by service technicians.
•Choose the installation location carefully so the unit will not interfere with normal driving.
•Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperatures, such as
in direct sunlight or near heater duct.
•Use only the supplied mounting hardware for a safe and secure installation.
How to detach and attach the front panel
Before installing the unit, detach the front panel.
A To detach
Before detaching the front panel, be sure to press (OFF) to turn off the unit. Then press (RELEASE), slide
the front panel a little to the left, and pull it off toward you.
A
(OFF)
(RELEASE)
Mounting example
Installation in the dashboard
1 2
1 8 2
m m
5 3 m
m
1
with the TOP making up
Mounting the unit in a Japanese car
You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.
TOYOTA
1 2
With nippers or similar, cut off
4
the claws on both side of the
max. size
unit.
5 × 8 mm
Claws
Note
To prevent malfunctions, install only with the supplied screws 4.
Mounting angle adjustment
Adjust the mounting angle to less than 60°.
B To attach
Align parts a and b, and push the front panel until it clicks.
B
3
Bend these claws outward
for a tight fit, if necessary.
5
to dashboard/center console
4
max. size
5 × 8 mm
Bracket
Bracket
Existing parts supplied to your car
a
b
Fire wall
Dashboard
2
1
3
First attach 5 to the unit, then insert the unit into 1.
NISSAN
4
max. size
5 × 8 mm
to dashboard/center console
4
max. size
5 × 8 mm
Bracket
Bracket
Existing parts supplied to your car
FM/AM
Compact Disc
Player
Installation/Connections
CDX-4507
Sony Corporation © 1999
Printed in South Africa
Parts list
The numbers in the list are keyed to those in the instructions.
The release key 6 is used for dismounting the unit. See the operating instruction manual for
details.
1 2
4 5 6
× 4
Caution
Cautionary notice for handling the bracket 1.
Handle the bracket carefully to avoid injuring your fingers.
3-866-378-11 (1)
3
7
