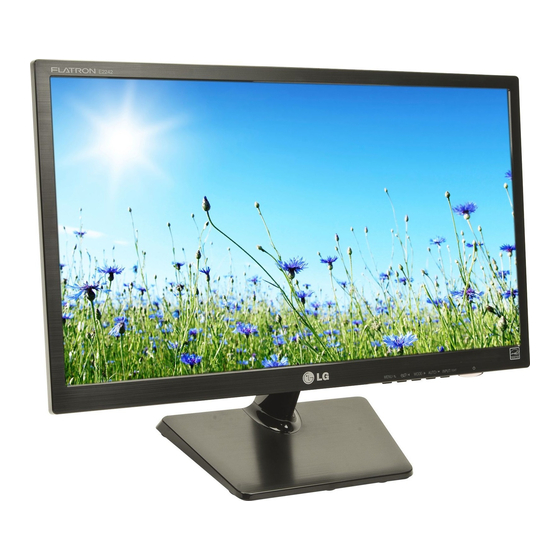

LG E2242C Owner's Manual
Led lcd monitor
Hide thumbs
Also See for E2242C:
- Owner's manual (30 pages) ,
- Owner's manual (29 pages) ,
- Owner's manual (29 pages)
Related Manuals for LG E2242C
Summary of Contents for LG E2242C
- Page 1 OWNER'S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODEL E1642C E1942C E2042C E2242C www.lg.com...
-
Page 2: Table Of Contents
Parts and buttons E1642C Setting up the Monitor set E1942C - Attaching the Stand E2042C - Detaching the Stand E2242C - Mounting on a table Preset Modes (Resolution) - Mounting on a wall Indicator USING THE MONITOR SET Connecting to a PC... -
Page 3: Assembling And Preparing
ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories. -
Page 4: Parts And Buttons
ASSEMBLING AND PREPARING Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off (Power Button) MENU / MODE / AUTO / INPUT / EXIT Button (See p.11) D-SUB DC-IN / Connection panel (See p.9) -
Page 5: Setting Up The Monitor Set
ASSEMBLING AND PREPARING Detaching the Stand Setting up the Monitor set Attaching the Stand Place the Monitor set with the screen side down on a flat and cushioned surface. Place the Monitor set with the screen side down on a flat and cushioned surface. Turn the screw to the left with a Coin, and then pull out the Stand Base from the Stand Body, CAUTION... -
Page 6: Mounting On A Table
ASSEMBLING AND PREPARING Mounting on a table Press (Power) button on the bottom switch panel to turn the power on. Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm (minimum) space from the wall for proper ventilation. - Page 7 ASSEMBLING AND PREPARING WARNING Using the Kensington security system When you adjust the angle, do not hold the The Kensington security system connector is bottom of the Monitor set frame as shown on the following illustration, as may injure your located at the back of the Monitor set.
-
Page 8: Mounting On A Wall
If you use improper screw, the product might be damaged and drop from mounted position. In dealer. The length of screws may differ depending this case, LG Electronics is not responsible for on the wall mount. Be sure to use the proper length. VESA compatible. -
Page 9: Using The Monitor Set
ASSEMBLING AND PREPARING USING THE MONITOR SET Connecting to a PC Your Monitor set supports Plug & Play*. *Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention. - Page 10 USING THE MONITOR SET Self Image Setting Function CAUTION Press the power button on the bottom panel to turn the power on. When monitor power is turned Connect the signal on, the "Self Image Setting" Function is executed input cable and tighten automatically.
-
Page 11: Customizing Settings
AUTO / SETUP OSD. (Only supported in Analog Mode) The best display mode E1642C /E1942C：1366 x 768 E2042C：1600 x 900 E2242C：1920 x 1080 INPUT / INPUT EXIT You can choose the input signal. • When two input signals are connected, you can select the input signal (D-SUB/DVI/ HDMI) you want. -
Page 12: Customizing Settings
USING THE MONITOR SET Customizing Settings MENU BRIGHTNESS Menu Settings CONTRAST WIDE / ORIGINAL 1 / 2 Press MENU button on the bottom of the Monitor set to WIDE RESET 1 / 2 display the MENU OSD. Set the options by pressing the ◄ or ► or ▼ buttons. NEXT MENU Select the "... -
Page 13: Picture
CUSTOMIZING SETTINGS PICTURE Press MENU button on the bottom of the Monitor set to display the MENU OSD. ＞ ＞ NEXT MENU PICTURE MENU Select the " " button to enter the more option NEXT MENU SHARPNESS settings. Enter to PICTURE by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼ buttons. -
Page 14: Color
CUSTOMIZING SETTINGS COLOR Press MENU button on the bottom of the Monitor set to display the MENU OSD. ＞ ＞ MENU NEXT MENU COLOR Select the " NEXT MENU " button to enter the more option GAMMA 2 / 3 GAMMA 1 settings. -
Page 15: Display
CUSTOMIZING SETTINGS DISPLAY Press MENU button on the bottom of the Monitor set to ＞ ＞ display the MENU OSD. MENU NEXT MENU DISPLAY Select the " " button to enter the more option NEXT MENU HORIZONTAL settings. VERTICAL Select DISPLAY by pressing the ► button. CLOCK PHASE Enter to DISPLAY by pressing the ▼... -
Page 16: Others
CUSTOMIZING SETTINGS OTHERS Press MENU button on the bottom of the Monitor set to display the MENU OSD. ＞ ＞ NEXT MENU OTHERS MENU Select the " " button to enter the more option NEXT MENU 1 / 15 ENGLISH LANGUAGE settings. -
Page 17: Super Energy Saving
558 mm 507 mm (16 inch) (19 inch) (22 inch) (20 inch) SUPER SAVING 4 W/h 6 W/h 4 W/h 5 W/h LED SAVING 10 W/h 17 W/h 20 W/h 4 W/h Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor. LG calculated these values by using “broadcast video signal”. LED Saving refers to how much power can be saved using a WLED Panel instead of CCFL panel. SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING function. -
Page 18: Mode Setting
TROUBLESHOOTING PICTURE MODE Setting Press button on the bottom of the Monitor set to display the PICTURE MODE OSD . MODE Set the options by pressing ◄ or ► buttons. Select EXIT to leave the OSD menu. PICTURE MODE TEXT PHOTO CINEMA GAME CUSTOM Each option is explained below. Description PICTURE MODE CUSTOM... -
Page 19: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Check the following before calling for service. No image appears Is the power cord of the display y Check and see if the power cord is connected properly to the power connected? outlet. Is the power indicator light on? y Press the Power button. - Page 20 Be sure to install the display driver from the display driver CD (or Have you installed the display driver? diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com. y Make sure to check if the video card supports Plug&Play function.
-
Page 21: Specifications
SPECIFICATIONS SPECIFICATIONS E1642C Display Screen Type 39.5 cm (15.6 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 39.5 cm Pixel Pitch 0.3 mm x 0.3 mm (Pixel Pitch) Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic) Vertical Frequency 56Hz to 75Hz (D-SUB) Input Form... -
Page 22: E1942C
TROUBLESHOOTING SPECIFICATIONS E1942C Display Screen Type 46.9 cm (18.5 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 46.9 cm Pixel Pitch 0.3 mm x 0.3 mm (Pixel Pitch) Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic) Vertical Frequency 56Hz to 75Hz (D-SUB) Input Form... -
Page 23: E2042C
SPECIFICATIONS SPECIFICATIONS E2042C Display Screen Type 50.7 cm (20 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 50.7 cm Pixel Pitch 0.276 mm x 0.276 mm (Pixel Pitch) Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic) Vertical Frequency 56Hz to 75Hz (D-SUB) Input Form... -
Page 24: E2242C
TROUBLESHOOTING SPECIFICATIONS E2242C Display Screen Type 54.5 cm (21.5 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 54.5 cm Pixel Pitch 0.248 mm x 0.248 mm (Pixel Pitch) Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic) -
Page 25: Preset Modes (Resolution)
TROUBLESHOOTING Preset Modes (Resolution) E1642C/E1972C Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(kHz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 800 x 600 37.879 800 x 600 46.875 832 x 624 49.725 1024 x 768 48.363 1024 x 768 60.123... -
Page 26: Indicator
SPECIFICATIONS Preset Modes (Resolution) E2242C Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(kHz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 800 x 600 37.879 800 x 600 46.875 1024 x 768 48.363 1024 x 768 60.123... - Page 27 SPECIFICATIONS PROPER POSTURE Proper posture for using the Monitor set. Adjust the Adjust the location of the Monitor set and Monitor set to avoid it your posture to reflecting light. allow you to view images at the optimal viewing angle. Place your hands gently on the keyboard, keeping your arms bent at the elbows and horizontally outright.
- Page 28 Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible ENERGY STAR is a set of power-saving place for future reference. guidelines issued by the U.S.Environmental The model and serial number of the SET is Protection Agency(EPA).
