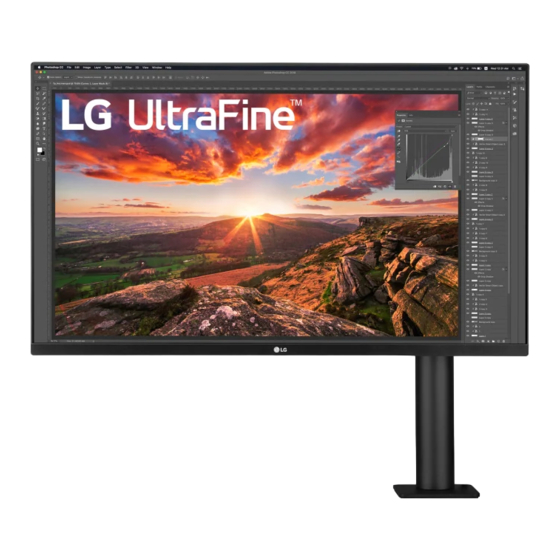

LG 32UN880-B.AAU Owner's Manual

Led computer monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual
LED COMPUTER MONITOR
(LED COMPUTERMONITOR*)
* Disclaimer: LG LED Monitor applies LCD screen with LED backlights.
This product is a computer monitor and not for television purpose.
Please read this manual carefully before operating your set and retain it for future reference.
32UN880
32BN88U
32UN88A
www.lg.com
Copyright
2020 LG Electronics Inc. All Rights Reserved.

Advertisement

loading

Related Manuals for LG 32UN880-B.AAU

Summary of Contents for LG 32UN880-B.AAU

  • Page 1 LED COMPUTER MONITOR (LED COMPUTERMONITOR*) * Disclaimer: LG LED Monitor applies LCD screen with LED backlights. This product is a computer monitor and not for television purpose. Please read this manual carefully before operating your set and retain it for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI OPEN SOURCE SOFTWARE NOTICE Licensing Administrator, Inc.

  • Page 3: Open Source Software Notice

    Illustrations in this document represent typical procedures, so they may look different from the actual product. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.
  • Page 4 • The power cord provided may differ depending upon the region. Supported Drivers and Software You can download and install the latest version from the LGE website (www.lg.com). • Drivers and Software: Monitor Driver / - Monitor Driver: Recommended...
  • Page 5 Moving and Lifting the Monitor How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or down with your finger.
  • Page 6 Installing on a Table CAUTION • • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from Avoid touching the monitor screen as much as possible. the wall to ensure sufficient ventilation. - This may result in damage to the screen or some of the pixels used to create images.
  • Page 7 How to fix a clamp CAUTION • Unplug the power cord before moving or installing the monitor. There is risk of electric shock. After positioning the stand on the table, secure it by turning the handle. • Make sure to use the power cord that is provided in the product package and connect it to a grounded power •...
  • Page 8 How to install on tables with different thickness levels 55 ~ 90 mm ≤ 40 mm 30 ~ 65 mm...
  • Page 9 CAUTION • Stands that are not fully engaged to the table may allow the monitor to wobble or fall over. • Make sure the table is solid and stable enough to fully support installation of the monitor. Tables made of fragile materials such as glass may break.
  • Page 10 Swivel stand Pivot Feature Swivel 280 ° and adjust the angle of the Monitor set to suit your view. The pivot feature allows the monitor to rotate 90 ° counter-clockwise. Monitor’s head Table WARNING • When using the Pivot function, do not rotate the monitor too fast or with excessive force. The table may be scratched by contact with the monitor’...
  • Page 11 Raise the monitor up to the maximum height. Rotate the monitor counter-clockwise as shown in the figure. Adjust the angle of the monitor in the direction of the arrow as shown in the figure. Complete the installation by rotating the monitor 90 ° as shown in the figure.
  • Page 12 Adjusting the Stand Height Adjusting the Angle Make sure to hold and move the monitor with both hands. Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -25 ° to 25 ° for a comfortable viewing experience. Max.
  • Page 13 Using the Kensington Lock Installing on the Wall For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website This monitor meets the specifications for the wall mount plate or other compatible devices. at http://www.kensington.com.
  • Page 14 Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable misuse of inappropriate components will not be covered by the product warranty.

  • Page 15: Using The Monitor

    [Input], and then select the input option. CAUTION • If you use generic cables not certified by LG, the screen may not display or there may be image noises. • Do not press the screen for a prolonged time. This may cause image distortion.
  • Page 16 Connecting to a PC DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • This monitor supports the feature. NOTE : A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.
  • Page 17 Connecting Peripherals CAUTION • Cautions when using a USB device. USB Device connection - A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized. The USB port on the product functions as a USB hub. - Some USB devices may not be supported or may not work properly.

  • Page 18: User Settings

    USER SETTINGS Headphones Connection Connect peripherals to the monitor via the headphones port. NOTE NOTE • Peripheral devices are sold separately. • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. • Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.
  • Page 19 Main Menu Features • Main menu disabled: Enables the main menu. • Main menu enabled: Exits the main menu. (Holding down the button more than 3 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.) •...
  • Page 20 Menu Settings [Quick Settings] [Settings] [Quick Settings] To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the [Settings]. • [Brightness]: Adjusts the brightness of the screen. • Move the joystick up/down and left/right to set the options. [Contrast]: Adjusts the contrast of the screen.
  • Page 21 [Input] [Picture] [Settings] [Input] [Settings] [Picture] [Picture Mode] • [Input List]: Selects the input mode. • [Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide], [Just [Picture Mode] on SDR (Non HDR) signal Scan] and [Original] options at the recommended resolution (3840 x 2160).
  • Page 22 [Settings] [Picture] [Picture Adjust] [Picture Mode] on HDR signal • [Brightness]: Adjusts the brightness of the screen. • [Custom]: Allows the user to adjust each element. • [Contrast]: Adjusts the contrast of the screen. • [Vivid]: Optimized the screen for HDR vivid colors. •...
  • Page 23 [Settings] [Picture] [Game Adjust] [Settings] [Picture] [Color Adjust] • • [Response Time]: Sets a response time for displayed pictures based on the movement of the picture on the [Gamma]: screen. For a normal environment, it is recommended that you use [Fast]. When there is a lot of motion, it is - [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes.
  • Page 24 [General] [Settings] [Picture] [Picture Reset] • [Do you want to reset your picture settings?] [Settings] [General] - [Yes]: Returns to the default settings. • [Language]: Sets the menu screen to the desired language. - [No]: Cancel the select. • [SMART ENERGY SAVING]: Conserve energy by using luminance compensation algorithm. - [High]: Saves energy using the high-efficiency [SMART ENERGY SAVING] feature.
  • Page 25 • [DisplayPort Version]: Set DisplayPort Version to the same version as the connected external device. ([1.4], [1.2], and [1.1]) To use the HDR function, set to [1.4]. • [HDMI ULTRA HD Deep Color]:Provides sharper images when connected to a device supporting ULTRA HD Deep Color.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? - Check if the power cord is correctly plugged into the power outlet. • Is the power LED on? - Check the power cable connection and press the power button. •...
  • Page 27 • Have you installed the display driver? - Be sure to install the display driver from our web site: http://www.lg.com. - Make sure to check if the graphics card supports Plug and Play function. No sound from the headphone port.

  • Page 28: Product Specification

    PRODUCT SPECIFICATION Dimensions: Monitor Size (Width x Depth x Height) • With Stand (mm): 714.3 x 641.1 x 406.8 • Without Stand (mm): 714.3 x 420.1 x 45.7 Specifications are subject to change without notice. Weight (Without Packaging) 32UN880 32UN88A •...
  • Page 29 PRODUCT SPECIFICATION Dimensions: Monitor Size (Width x Depth x Height) • With Stand (mm): 714.3 x 641.1 x 406.8 • Without Stand (mm): 714.3 x 420.1 x 45.7 Specifications are subject to change without notice. Weight (Without Packaging) 32BN88U • With Stand (kg): 10.3 Color Depth: 8-bit / 10-bit color is supported.
  • Page 30 Support Mode (Preset Mode, DisplayPort / USB-C) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 67.5 2560 x 1440 88.79 59.95 3840 x 2160 66.66 3840 x 2160...
  • Page 31 (Preset Mode, HDMI) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 67.5 2560 x 1440 88.79 59.95 3840 x 2160 66.66 HDMI Preferred timing, [HDMI ULTRA HD Deep Color] : [Off] 3840 x 2160 HDMI Preferred timing, [HDMI ULTRA HD Deep Color] : [On]...
  • Page 32 (for 32BN88U) The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. This Product qualifies for ENERGY STAR® Changing the factory default configuration and settings or enabling certain optional features and functionalities may Model Model increase energy consumption beyond the limits required for ENERGY STAR®...
