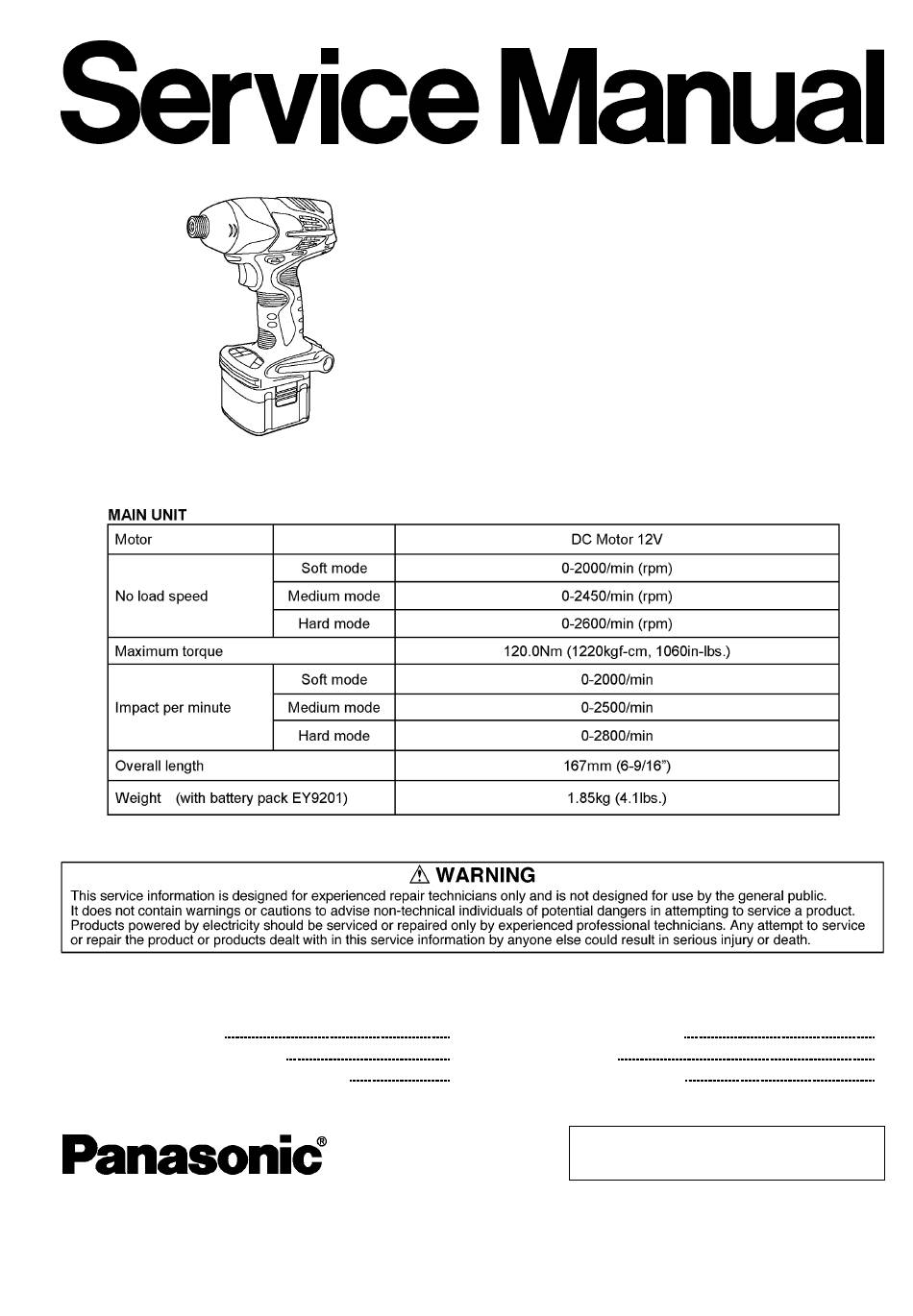

EY7202-U1 3 DISASSEMBLY/ASSEMBLY INSTRUCTIONS Ref. No. 1A Procedure 1A Removal of the Housing and the Fixation cover assembly. 1. Loosen the screw turning it counterclockwise, using a coin or a flat blade screwdriver. 2. Take out the belt hook. 3. Remove nine housing screws.
Page 4
EY7202-U1 Procedure 1A → → → → 1B → → → → 1C Ref. No. 1C Removal of the Driving Block. 1. Remove the thrust plate. 2. Take out the planet gears and pins slightly tapping the driving block on the table.
EY7202-U1 6 REPLACEMENT PARTS LIST NOTE: *B=only available as set *C=available individually Ref.No. Part No. Part Name & Description Remarks Per Unit WEY7202K3078 HOUSING AB SET EY6481L0177 CLICK SPRING WEY7201L0327 CUSHION 4*10*2 WEY7201H4058 FIXATION COVER ASSEMBLY WEY7201K3107 NOSE PROTECTOR WEY7201H3207...
