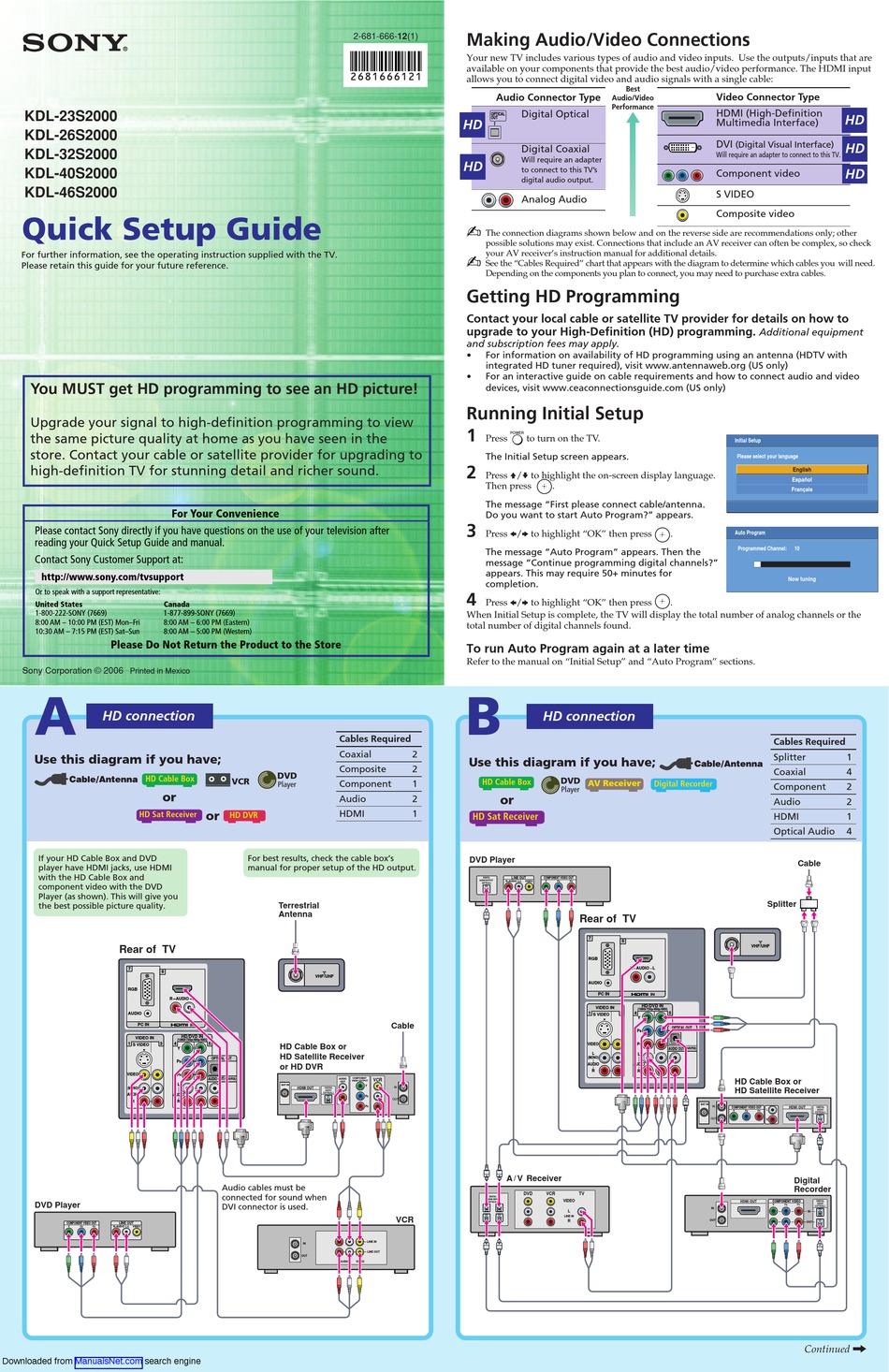

Sony KDL-23S2000 Quick Setup Manual

KDL-23S2000
KDL-26S2000
KDL-32S2000
KDL-40S2000
KDL-46S2000
Quick Setup Guide
For further information, see the operating instruction supplied with the TV.
Please retain this guide for your future reference.
You MUST get HD programming to see an HD picture!
Upgrade your signal to high-definition programming to view
the same picture quality at home as you have seen in the
store. Contact your cable or satellite provider for upgrading to
high-definition TV for stunning detail and richer sound.
Please contact Sony directly if you have questions on the use of your television after
reading your Quick Setup Guide and manual.
Contact Sony Customer Support at:
http://www.sony.com/tvsupport
Or to speak with a support representative:
United States Canada
1-800-222-SONY (7669) 1-877-899-SONY (7669)
8:00 AM – 10:00 PM (EST) Mon–Fri 8:00 AM – 6:00 PM (Eastern)
10:30 AM – 7:15 PM (EST) Sat–Sun 8:00 AM – 5:00 PM (Western)
Please Do Not Return the Product to the Store
Sony Corporation © 2006
Printed in Mexico
A
HD connection
Use this diagram if you have;
HD Cable Box
or
HD Sat Receiver
If your HD Cable Box and DVD
player have HDMI jacks, use HDMI
with the HD Cable Box and
component video with the DVD
Player (as shown). This will give you
the best possible picture quality.
Rear of TV
7
6
RGB
R AUDIO L
AUDIO
PC IN
VIDEO IN
1 3
S VIDEO
VIDEO
L
(MONO)
AUDIO
R
DVD Player
Downloaded from ManualsNet.com search engine
For Your Convenience
Cables Required
Coaxial
Composite
DVD
VCR
Component
Player
Audio
HDMI
or
HD DVR
For best results, check the cable box's
manual for proper setup of the HD output.
Terrestrial
Antenna
VHF/UHF
HD/DVD IN
(1080i/720p/480p/480i)
4 5
HD Cable Box or
Y
HD Satellite Receiver
OPTICAL OUT
P
B
or HD DVR
P
R
AUDIO OUT (VAR/FIX) AUDIO
L
SAT IN
AUDIO
R
Audio cables must be
connected for sound when
DVI connector is used.
IN
OUT
R
Making Audio/Video Connections
2-681-666-12(1)
Your new TV includes various types of audio and video inputs. Use the outputs/inputs that are
available on your components that provide the best audio/video performance. The HDMI input
allows you to connect digital video and audio signals with a single cable:
Audio Connector Type
OPTICAL
OUT
HD
HD
The connection diagrams shown below and on the reverse side are recommendations only; other
possible solutions may exist. Connections that include an AV receiver can often be complex, so check
your AV receiver's instruction manual for additional details.
See the "Cables Required" chart that appears with the diagram to determine which cables you will need.
Depending on the components you plan to connect, you may need to purchase extra cables.
Getting HD Programming
Contact your local cable or satellite TV provider for details on how to
upgrade to your High-Definition (HD) programming.
and subscription fees may apply.
• For information on availability of HD programming using an antenna (HDTV with
integrated HD tuner required), visit www.antennaweb.org (US only)
• For an interactive guide on cable requirements and how to connect audio and video
devices, visit www.ceaconnectionsguide.com (US only)
Running Initial Setup
1
Press
The Initial Setup screen appears.
2
Press V/v to highlight the on-screen display language.
Then press
The message "First please connect cable/antenna.
Do you want to start Auto Program?" appears.
3
Press B/b to highlight "OK" then press
The message "Auto Program" appears. Then the
message "Continue programming digital channels?"
appears. This may require 50+ minutes for
completion.
4
Press B/b to highlight "OK" then press
When Initial Setup is complete, the TV will display the total number of analog channels or the
total number of digital channels found.
To run Auto Program again at a later time
Refer to the manual on "Initial Setup" and "Auto Program" sections.
B
2
Use this diagram if you have;
2
HD Cable Box
1
2 or
1
HD Sat Receiver
DVD Player
Cable
COMPONENT
VCR
VIDEO OUTPUT
OUT
Y
IN
P B
OUT
P
R
A / V Receiver
VCR
LINE IN
LINE OUT
L
AUDIO VIDEO
Best
Audio/Video
Performance
Digital Optical
Digital Coaxial
Will require an adapter
to connect to this TV's
digital audio output.
Analog Audio
POWER
to turn on the TV.
.
.
.
HD connection
DVD
AV Receiver Digital Recorder
Player
Rear of TV
7
6
RGB
R AUDIO L
AUDIO
PC IN
HD/DVD IN
VIDEO IN
(1080i/720p/480p/480i)
1 3 4 5
S VIDEO
Y
OPTICAL OUT
P
B
VIDEO P
R
AUDIO OUT
L L
(MONO)
AUDIO AUDIO
R R
DVD VCR TV
VIDEO
L
LINE IN
R
Video Connector Type
HDMI (High-Definition
HD
Multimedia Interface)
DVI
(Digital Visual Interface)
HD
Will require an adapter to connect to this TV.
HD
Component video
S VIDEO
Composite video
Additional equipment
Initial Setup
Please select your language
English
Español
Français
Auto Program
Programmed Channel: 10
Now tuning
Cables Required
Splitter 1
Coaxial 4
Component 2
Audio 2
HDMI 1
Optical Audio 4
Cable
Splitter
VHF/UHF
(VAR/FIX)
HD Cable Box or
HD Satellite Receiver
SAT IN
IN
L
OUT
R
Digital
Recorder
IN
IN
OUT
OUT
Continued ,
