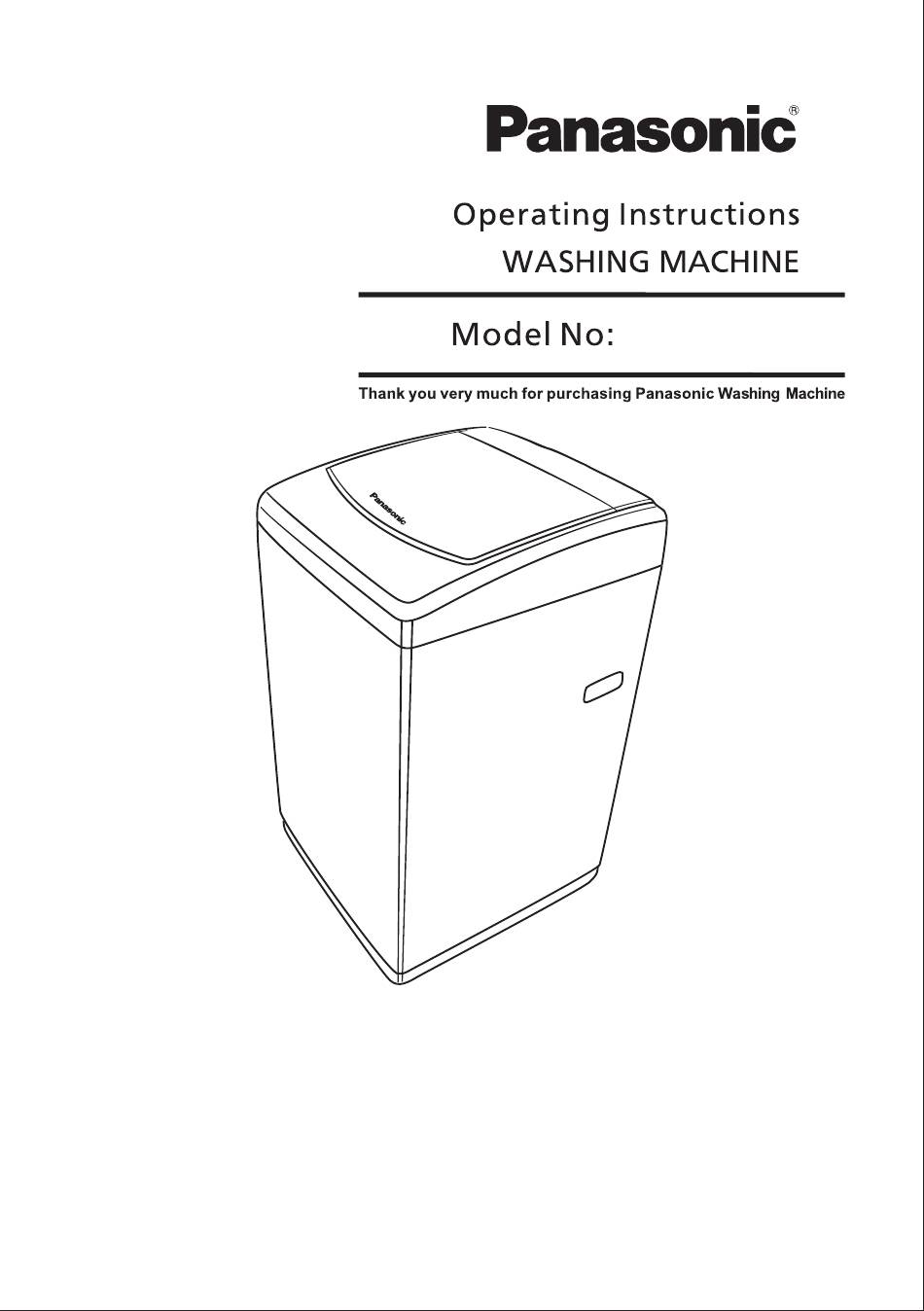

- Page 1 NA-F10MB1 *Picture is only for illustration Safety Before operating this unit, please completely read these instructions especially the Warnings and Important Instructions .
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ............. INSTALLATION Product description ............Installation area ..............Unpacking the washing machine ........Base cover installation ........... Installation of drain hose ..........Levelling the washing machine ........Selection of tap ............... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. • This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of... - Page 5 SAFETY INSTRUCTIONS Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided. Caution! This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.
- Page 6 SAFETY INSTRUCTIONS Warning! The electric shock! • This appliance is for indoor use only. • Do not put washing machine at humid place. • Hands shall not be inserted into running the tub . • If the tub does not stop within 15 seconds after opening the cover , please stop using the machine and have it repaired.
- Page 7 SAFETY INSTRUCTIONS Risk to children! • The appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 8 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 9 SAFETY INSTRUCTIONS • Please do not close the door with excessive forces. • It is forbidden to wash carpets. • Care should be taken while opening or closing top glass lid as there is chance of getting finger pinched. Operating the appliance! •...
-
Page 10: Installation
INSTALLATION Product Description Water inlet valve Top lid Frame Power case and plug Control panel Handle Cabinet Adjustable foot knob Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Note! •... -
Page 11: Installation Area
INSTALLATION Installation area Warning! • Stability is important to prevent the product from moving! • Make sure that the product does not stand on W 20 mm the power cord. Before installing the machine, the location characterized as follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 12: Installation Of Drain Hose
INSTALLATION Installation of drain hose 1.Completely sleeve the drain hose over the sewer. 2.Fix and tighten it with a hoop.( As shown in the figure ) Warning! Warning! • Do not twist or extend the drain hose. • Position drain hose properly ,otherwise damage might result in water leakage. •... -
Page 13: Selection Of Tap
INSTALLATION Selection of tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4.Tighten clamp nut on tap and tighten... -
Page 14: Operations
OPERATIONS Preparation before washing Caution! • Before washing, please make sure machine is installed properly. • Run the machine once without laundry in order to clean the tub in Tub Clean program before using it for the first time. Before Washing Open tap Plug in Load clothes... -
Page 15: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃ • Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly. Take out the items out of Knot the long strips,zip or Check the label the pockets... -
Page 16: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause Press the button to start or pause the Product is switched on or off. washing cycle. Program Option Available according to the laundry type. Press the button to customize related Refer page no. - Page 17 OPERATIONS Option Water Level select water level according to clothing categories, degree of soiling and washing habits of customers Function washing time, rinsing times, spinning time and other settings can be selected. Preset Set the Preset function: 1. Select a program 2.Press the Preset button to choose the time(the presetting time is 0-24 H.) 3.Press [ Start/Pause...
-
Page 18: Personalized Setting Of Washing Program
OPERATIONS Personalized setting of washing program User can select washing program according to laundry type, and set washing time、rinsing time、spin time、water volume and appointment time Rinse Spin Wash Program Power Function Start Water Level Preset Operations of washing process User can use default program to start wash cycle or customize set washing time, rinsing time and spin time according to personal demand. -
Page 19: Washing Program Table
OPERATIONS Washing Program Table Program are available according to the laundry type. Program Suitable to wash heavy stained/wearable clothes. Speedy Suitable to wash light stained clothes and clothes in summer. Tub Hygiene Use this cycle to keep the drum dry. Mid/High/Low water level selection, the tempo is soft, slow washing Delicates and spinning speed, to make the lightest wear and deformation. -
Page 20: Maintenance
MAINTENANCE Cleaning and care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. -
Page 21: Troubleshooting
MAINTENANCE Troubleshooting If the machine does not work or it stops during operation then check and try to resolve without dismantling the machine. If the problem is not resolved contact authorized service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 22: Technical Information
