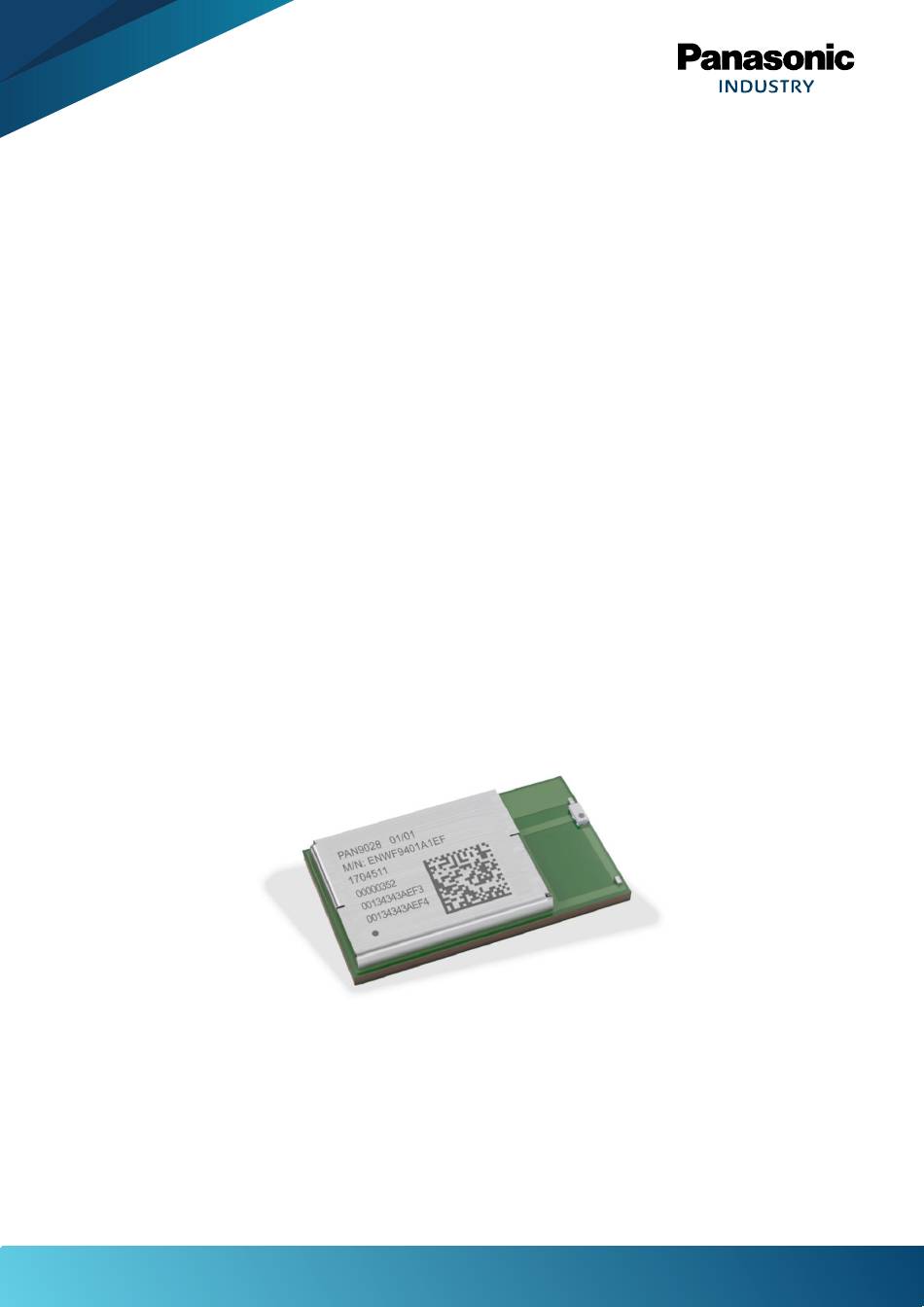

- Page 1 PAN9028 ® Wi-Fi Dual Band 2.4 GHz/5 GHz and Bluetooth Module Module Integration Guide Rev. 1.0 Wireless Connectivity...
- Page 2 1 About This Document • Overview Coexistence interface for arbitration of co-located WLAN, Bluetooth, or mobile wireless system The PAN9028 is a 2.4 GHz/5 GHz ISM band Wi-Fi ® (e.g. LTE or ZigBee • and Bluetooth radio module, which includes a Generic interfaces include SDIO 3.0 and high...
- Page 3 Panasonic Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time without notification. Please consult the most recently issued Module Integration Guide before initiating or completing a design.
- Page 4 To the maximum extent allowable by Law Panasonic assumes no liability whatsoever including without limitation, indirect, consequential, special, or incidental damages or loss, including without limitation loss of profits, loss of opportunities, business interruption, and loss of data.
-
Page 5: Table Of Contents
Purpose and Audience ......................6 Revision History ......................... 6 Use of Symbols ......................... 6 Related Documents ........................7 Overview .............................. 8 PAN9028 Module ..........................9 Block Diagram ........................... 9 Land Pattern ..........................10 Footprint ..........................11 Solder Mask ..........................12 Placement .......................... -
Page 6: About This Document
1 About This Document 1.1 Purpose and Audience This Module Integration Guide is intended to support the easy integration of the PAN9028 into a product and to ensure the compliance with regulatory requirements. This guide gives an overview about the hardware design requirements by providing a reference design, which is the evaluation board of the PAN9028. -
Page 7: Related Documents
$> cd ${TOP}/… $> … Indicates a key on the keyboard. Example: Press F10 . 1.4 Related Documents 9.2 Product For related documents please refer to the Panasonic website Information. Module Integration Guide Rev. 1.0 Page 7 of 34... -
Page 8: Overview

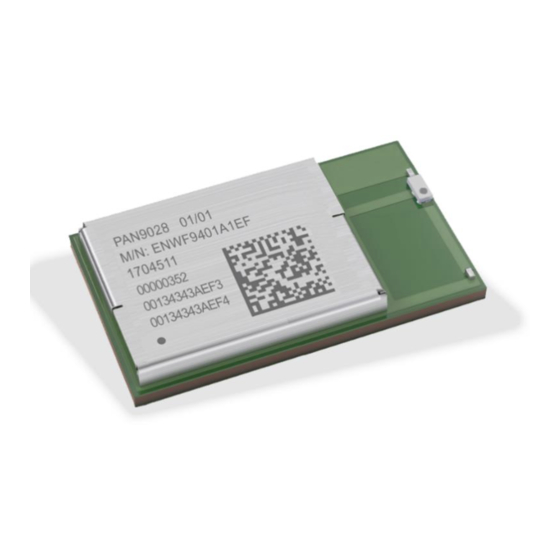

2 Overview 2 Overview The PAN9028 is a dual band 2.4 GHz and 5 GHz 802.11 a/b/g/n/ac Wi-Fi radio module with integrated Bluetooth BR/EDR/Low Energy (LE), specifically designed for highly integrated and cost-effective applications. The simultaneous and independent operation of the two standards enables very high data rates (802.11ac) and low-power operation (Bluetooth LE). -
Page 9: Pan9028 Module
PAN9028 Bluetooth/Wi-Fi Module 3 PAN9028 Module 3 PAN9028 Module 3.1 Block Diagram For Module Variant ENWF940[x]A1EF: PAN9028 â PMIC Wi-Fi and Bluetooth Radio Module â PM823 IEEE 802.11 a/b/g/n/ac (optional) Bluetooth 5.2 (BR, Low Energy, and EDR) +3.3 V... -
Page 10: Land Pattern
PAN9028 Bluetooth/Wi-Fi Module 3 PAN9028 Module 3.2 Land Pattern For Module Variant ENWF940[x]A1EF: Top View VOUT VOUT VOUT SD_CLK SD_CMD SD_DAT0 SD_DAT1 SD_DAT2 SD_DAT3 2.2V 2.2V 1.8V VDD 3.3V VDD 3.3V VIO_SD GPIO GPIO GPIO GPIO GPIO GPIO SLEEP... -
Page 11: Footprint
PAN9028 Bluetooth/Wi-Fi Module 3 PAN9028 Module 3.3 Footprint The outer dimensions have a tolerance of ±0.35 mm. Top View Module Integration Guide Rev. 1.0 Page 11 of 34... -
Page 12: Solder Mask
PAN9028 Bluetooth/Wi-Fi Module 3 PAN9028 Module 3.4 Solder Mask It is recommended to use the following layout for the soldering mask to reduce voids on the thermal pads. Use the dimensions: ✓ The Resist Mask should be 50 µm bigger than the pad size (... - Page 13 PAN9028 Bluetooth/Wi-Fi Module 3 PAN9028 Module The antenna requires a cutout area of 8 mm × 5 mm under the PAN9028 module. This “Keep out Area” shall be located in every layer under the module antenna. Note for example the “Keep out Area” in all four layers of the PAN9028 evaluation board.
-
Page 14: Power Supply
PAN9028 Bluetooth/Wi-Fi Module 4 Power Supply 4 Power Supply 4.1 General Guidances The following conditions must be met: ✓ The supply voltage must be free of AC ripple voltage (for example from a battery or a low noise regulator output). For noisy supply voltages, provide a decoupling circuit (for example a ferrite in series connection and a bypass capacitor to ground of at least 47 µF directly at... -
Page 15: Enwf940[X]A2Ef
“PAN9028 Product Specification” Information. Power Configuration Example with 3.3 V Host Operation (PMIC) Using the PAN9028 with VIO = 3.3 V and VIO SD = 3.3 V voltage levels disable the high-speed interfaces, and only SDIO 2.0 and slow UART speed are available. - Page 16 4 Power Supply Power Configuration Example with 3.3 V Host Operation (Discrete) Using the PAN9028 with VIO = 3.3 V and VIO SD = 3.3 V voltage levels disable the high-speed interfaces, and only SDIO 2.0 and slow UART speed are available.
- Page 17 PAN9028 Bluetooth/Wi-Fi Module 4 Power Supply Power Configuration Example with 1.8 V Host Operation (Discrete) PAN9028 VDD 1.8 V 1.8 V VIO/VIO SD 1.8 V 3.3 V 3.3 V VIO RF Step-up 3.3 V 2.2 V 2.2 V VDD 2.2 V...
-
Page 18: Rf Path
FCC Section 15.203 for unique antenna connectors and with Section 15.247 for emissions. The PAN9028 module has a 50 ohm RF pin (SMD pad). Connect an external antenna directly or via a connector (e.g. U.FL) with RF trace to this RF pin. This RF trace shall be matched to ... - Page 19 PAN9028 Bluetooth/Wi-Fi Module 5 RF Path Example 1: 50 ohm Coplanar Waveguide with Ground on mSDIO Adapter W = 180 µm Trace width S = 150 µm Trace distance to ground H = 80 µm Substrate thickness = 3.9 �� Effective permittivity ��...
- Page 20 PAN9028 Bluetooth/Wi-Fi Module 5 RF Path Example 2: 50 ohm Coplanar Waveguide with Ground and Micro Vias W = 300 µm Trace width S = 300 µm Trace distance to ground H = 160 µm Substrate thickness = 4.2 �� Effective permittivity ��...
-
Page 21: Msdio Adapter
PAN9028 Bluetooth/Wi-Fi Module 6 mSDIO Adapter 6 mSDIO Adapter 6.1 Functional Blocks Functional Block Description Interface On-board antenna or bottom pad selection Bluetooth data over UART or SDIO Bluetooth Interface External supply voltage can be connected SDIO interface PAN9028 module U.FL connector... -
Page 22: Part Placement
PAN9028 Bluetooth/Wi-Fi Module 6 mSDIO Adapter 6.3 Part Placement Module Integration Guide Rev. 1.0 Page 22 of 34... -
Page 23: Reference Design
7.1 Schematic 7.2 PCB Layout Keep traces at configuration pins (e.g. VCTL1/2, HOST_CONF[0]) as short as possible. Place components if needed as close as possible to the PAN9028 module to ensure optimal regulatory compliance performance! Module Integration Guide Rev. 1.0... - Page 24 PAN9028 Bluetooth/Wi-Fi Module 7 Reference Design 7.2.1 Top Layer 7.2.2 Second Layer Third Layer (3.3 V Power Plane) 7.2.3 Module Integration Guide Rev. 1.0 Page 24 of 34...
- Page 25 PAN9028 Bluetooth/Wi-Fi Module 7 Reference Design 7.2.4 Bottom Layer Module Integration Guide Rev. 1.0 Page 25 of 34...
-
Page 26: Regulatory And Certification Information
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Panasonic Industrial Devices Europe GmbH may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 27 The end product must in any case be labelled on the exterior with: "Contains FCC ID: T7V9028". Due to the PAN9028 model size, the FCC identifier is displayed in the installation instruction only and it cannot be displayed readable on the module’s label due to the limited size.
- Page 28 (FCC ID: T7V9028 for model ENWF9408A1EF and model ENWF9408A2EF) are fulfilled for mobile configuration. The installation of the module is restricted to mobile host devices. The PAN9028 shall be used in such a manner that the potential for human contact during normal operation is minimized.
-
Page 29: Innovation, Science, And Economic Development (Ised) For Canada
8.2 Innovation, Science, and Economic Development (ISED) for Canada The following IC rules have to be followed by end product OEM’s: English The PAN9028 and versions are licensed to meet the regulatory requirements of ISED. License ID: IC: 216Q-9028 HVIN:... - Page 30 Le client final doit s'assurer que l'appareil se trouve en toutes circonstances à une distance de plus de 20 cm du corps humain. Si le client final envisage une application nécessitant d'utiliser le PAN9028 à une distance inférieure à 20 cm du corps humain, alors le FEO doit répéter l'évaluation DAS.
- Page 31 The following IC notice has to be printed in English and French in the OEM end product user information: English The device PAN9028 and versions, including the integrated antenna 8.1.5 Approved Antenna mentioned in List, comply with Canada RSS-GEN Rules.
- Page 32 The OEM must ensure that IC labelling requirements are met. This includes a clearly visible label on the outside of the OEM enclosure specifying the appropriate Panasonic IC identifier for this product as well as the IC Notice above. The IC identifier is: IC: 216Q-9028.
-
Page 33: European Conformity According To Red (2014/53/Eu)
The end customer equipment must meet the actual Safety/Health requirements according to RED. PAN9028 and its model versions in the specified reference design can be used in all countries of the European Economic Area (Member States of the EU, European Free Trade Association States [Iceland, Liechtenstein, Norway]), Monaco, San Marino, Andorra, and Turkey. -
Page 34: Contact Details
PAN9028 Bluetooth/Wi-Fi Module 9 Contact Details 9 Contact Details 9.1 Contact Us Please contact your local Panasonic Sales office for details on additional product options and services: For Panasonic Sales assistance in the EU, visit https://eu.industrial.panasonic.com/about-us/contact-us Email: wireless@eu.panasonic.com For Panasonic Sales assistance in North America, visit the Panasonic website “Sales &...
