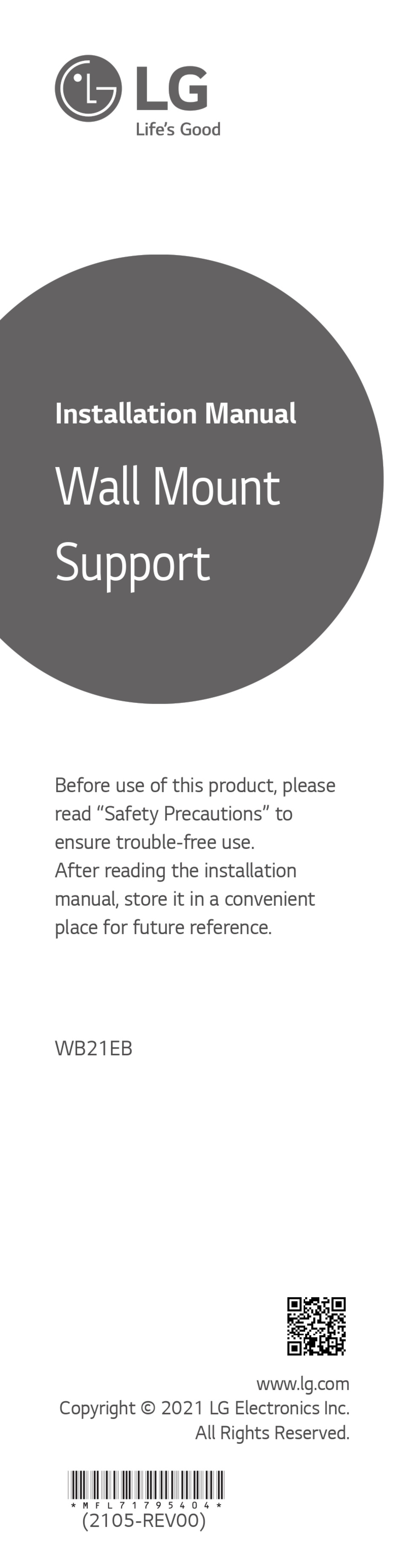

Installation Manual
Wall Mount
Support
Before use of this product, please
read "Safety Precautions" to
ensure trouble-free use.
After reading the installation
manual, store it in a convenient
place for future reference.
WB21EB
www.lg.com
Copyright © 2021 LG Electronics Inc.
All Rights Reserved.
*MFL71795404*
(2105-REV00)
Advertisement
Related Manuals for LG WB21EB
Summary of Contents for LG WB21EB
- Page 1 Before use of this product, please read “Safety Precautions” to ensure trouble-free use. After reading the installation manual, store it in a convenient place for future reference. WB21EB www.lg.com Copyright © 2021 LG Electronics Inc. All Rights Reserved. *MFL71795404* (2105-REV00)
- Page 2 Accessories Wall mount fixing Wall mount anchors 8 pcs fixing screws 8 pcs Installation Manual Paper BOX...
-
Page 3: Safety Precautions
Safety Precautions - Professional installers should read this manual carefully to ensure proper installation. - Professional installers should forward this manual to customers after installation and encourage them to read and store it in a convenient place for future reference. After reading the installation manual, keep it in a convenient place for future reference. - Page 4 Warning Install the product according to the instructions in the installation manual. Failure to install the product according to the instructions in the installation manual can result in serious personal injury or product damage. Make sure a wall is available prior to proceeding with installation.
- Page 5 Do not install the product near a fire sprinkler or detector, a place where vibration or shock may occur or near a high-voltage wire or power source. Do not install the product with bare hands. Be sure to wear work gloves. Attempting installation without work gloves may cause personal injury.
-
Page 6: Before Installation
Do not install on a tilted wall that exceeds building standards or on the heavily titled wall or ceiling. LG is not responsible for problems caused by improper installation of the product, e.g., heavily tilted walls and ceilings. * Check the enclosed accessories before installation. - Page 7 * Avoid installing a TV that exceeds the specified tensile load, and do not allow any external force to be applied to the product. * Avoid accidents by using work tools with care during installation. * After installing the product, ensure its use in close contact with a wall.
-
Page 8: How To Install
How to install -The appearance of tools may differ from the enclosed images. -Always consult a professional when installing a wall mount. Wearing gloves How to fix anchors and screws Please make sure that: -Check that the material and thickness of the wall and finishing material comply with the installation manual. - Page 9 -Other unspecified walls must be capable of supporting pullout loads of over 70 kgf (686 N) and shear loads of over 100 kgf (980 N) per fastener. -Use an Ø 8 mm drill bit for concrete and a hammer (impact) drill or Ø...
- Page 10 (For installation on wood stud) Use the Ø 4 mm drill bit for wood to drill holes with the depth of 76 mm. (Clean the drilled hole.) Drywall 76 mm Wood stud Without using the wall mounting anchor, fasten the wall mounting screw directly to the wood stud.
- Page 11 How to install the wall mount support -It is recommended that this product be installed only on concrete walls. Installing it elsewhere (e.g. walls made of wood, plywood, bricks, etc.) is not recommended and may result in the product falling. →...
- Page 12 How to combine the wall mount support and TV 1. Pull the wall mount bracket installed on the wall forward as much as possible. - Use tools if necessary. 2. Fold the anti-push paper into a box. - Take out the anti-push paper, and fold it into a box along the folding lines.
- Page 13 4. Push the two safety pins on the left and right sides of the bracket to open them. 5. Lay the TV down, insert the power cord into the slot on the back of the TV, and fix it. 6. Align the power cord and other cables using the cable holder.
- Page 14 7. With the TV lying down, remove the upper cover. 8. Mount the TV to the wall mount bracket. - Insert the spacer screws on the TV into the holes on the bracket attached to the wall. - With the spacer screws inserted into the hole, lower the TV to secure them.
- Page 15 9. Remove the anti-push paper box. - Pull the TV forward as much as possible to make it easier to remove the box. 10. Pull the two safety pins on the left and right sides of the bracket to close them. Caution: Ensure the safety pins are closed and secured.
- Page 16 11. Push the TV until it makes close contact with the wall. - Gently push the top and bottom of the TV without excessive force. - Push the center of the TV gently once more to mount it tight to the wall.
- Page 17 How to connect additional cables while watching TV 1. Pull the TV forward. - Gently pull the top and bottom sides of the TV, and pull from the left side to check where the cables connect. 2. Once the TV has been pulled out, you can now begin connecting the cables.
- Page 18 3. Push the TV until it makes close contact with the wall. - Gently push the top and bottom of the TV without excessive force. - Push the centre of the TV gently once more to mount it tight to the wall.
-
Page 19: Product Specifications
Product Specifications (mm) Model name WB21EB Width (mm) Height (mm) Depth (mm) Weight (kg) Maximum tensile load (kg) Screws Distance (mm) 180 x 55...
