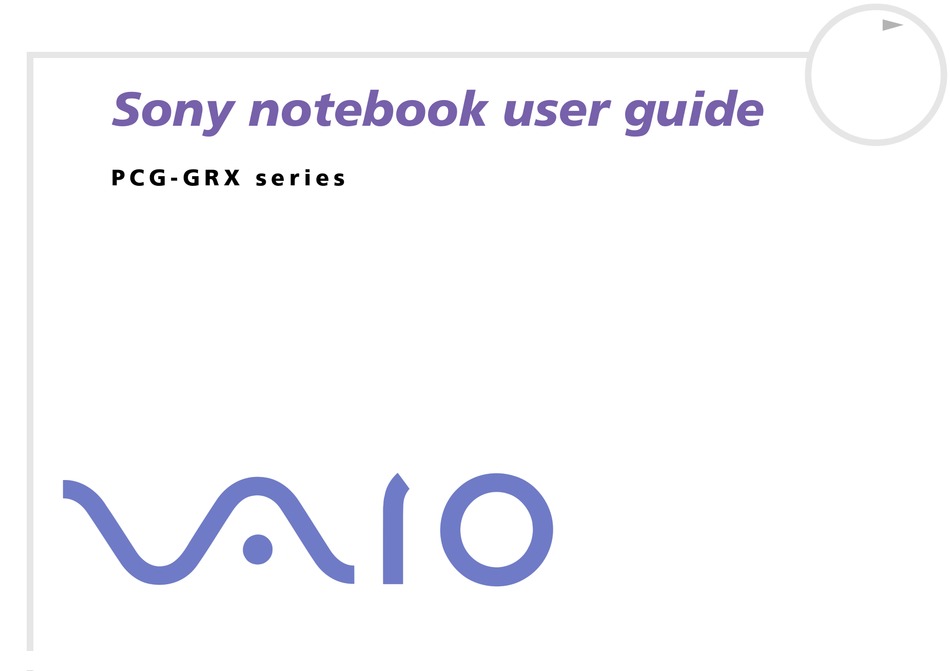

Page 1 Sony notebook user guide P C G - G R X s e r i e s...
Page 2: Read This First
Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user licence agreement.
Page 3 Sony, DVgate, Hotkey Utility, Memory Stick Formatter, MovieShaker, Network Smart Capture, PictureGear Studio, SonicStage, Sony Notebook Setup, Sony Style Imaging, UI Design Selector, VAIO Edit Components, VAIO Web Phone, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.
Page 4 Read this first ® NERGY ® ® As an E Partner, Sony has determined that this product meets the E guidelines for energy efficiency. NERGY NERGY ® The International E Office Equipment Program is an international program that promotes energy saving through the use NERGY of computers and their office equipment.
Page 5: Safety Information
Read this first Safety information Owner's record The serial number and model number are located on the bottom of your Sony notebook. Record the serial number and the model number and refer to them if you call VAIO-Link. Warnings General Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
Page 6 Read this first Audio/video Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation. Connectivity Never install modem or telephone wiring during a severe lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Be cautious when installing or modifying telephone lines.
Page 7: Regulatory Information
Read this first Regulatory information Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive). Declaration of Conformity The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This effort has resulted in several EU Directives asking that manufacturers make their products comply with essential standards.
Page 8 Read this first Before activating the built-in modem, please read the Modem Regulations leaflet. Depending on the country, usage of the Wireless LAN functionality may be restricted. For country-specific details, please refer to the Wireless LAN Regulations leaflet. The Wireless LAN functionality of the PCWA-C150S PC card which is bundled with this unit has passed Wi-Fi certification, and complies with the interoperability specifications established by WECA (Wireless Ethernet Compatibility Alliance).
Page 9 Read this first Disposing of lithium ion batteries Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly. Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. The battery pack used in this device may present a fire or chemical burn hazard if mistreated.
Page 10 Portability - The rechargeable battery pack provides hours of use without AC power. Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software. Multimedia features – Enjoy audio and video CDs.
Page 11: Documentation Pack
VAIO-Link information; An Application CD Guide, which explains the purpose and use of the final system recovery disc. Use this when (re)installing bundled software. Your Sony Guarantee conditions; A Safety Regulations leaflet; A Wireless LAN Regulations leaflet;...
Page 12: Online Documentation
Precautions provides facts and advice about using your notebook. Glossary refers to terms used in this manual. Refer to your Software Guide for information on the bundled software and the Sony applications. About the Software is a short description of the features of the software delivered with your system.
Page 13 Consult the Online Help files of the software you are using for detailed information on features and troubleshooting. Refer to the Microsoft Quick Start manual for more information on Windows Go to http://www.club-vaio.sony-europe.com software. ® to find online tutorials about your favourite VAIO...
Page 14 Welcome Your notebook and its accessories The following hardware items are in the box: Main unit Product recovery CD-ROMs Documentation pack AC adapter Rechargeable battery pack Weight saver Phone plug (country-specific) Phone cable Power cord CD-RW/DVD-ROM drive (internal) Wireless LAN PC Card...
Page 15: Ergonomic Considerations
Welcome Ergonomic considerations You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse.
Page 16 Welcome Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position. You can reduce eyestrain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. Lighting –...
Page 17: Table Of Contents
Using your notebook Using your notebook This section describes how to start using your computer and how to use your computer’s internal and external devices. Locating controls and connectors Connecting a power source Starting your notebook Shutting down your notebook Using the keyboard Using the touchpad Using the CD-RW/DVD-ROM drive...
Page 18: Locating Controls And Connectors
Using your notebook Locating controls and connectors Right Battery bay (page 23) Hard disk drive (page 35) Ventilation slot (page 14) Headphone connector (page 79) Microphone connector (page 80) USB port (page 82) Do not cover the ventilation slot when the computer is on.
Page 19 Using your notebook Left MagicGate Memory Stick™ slot (page 55) USB port (page 82) i.LINK™ (IEEE1394) S400 port (page 88) PC Card slots (page 42) Multipurpose bay (for weight (page 41) saver or second battery with (page 27) weight saver or removable (page 38) CD-RW/DVD-ROM drive)
Page 20 Using your notebook Front Memory Stick™ indicator (page 35) Num Lock indicator (page 35) Caps Lock indicator (page 35) Scroll Lock indicator (page 35) Power indicator (page 35) Battery 1 indicator (page 35) Battery 2 indicator (page 35) Hard disk drive indicator (page 35) LCD screen (page 117)
Page 21 Using your notebook Back Ventilation slot DC In Ethernet connector (network) Monitor (VGA) connector There is a ventilation slot located on the left side of the back panel. Do not cover the ventilation slot when the computer is on. (page 14) Printer connector (page 22) USB port...
Page 22 Using your notebook Bottom Port replicator connector cover Memory module cover Multipurpose bay release lever (page 70) (page 110) (page 41)
Page 23: Connecting A Power Source
Using your notebook Connecting a power source You can use either an AC adapter or a rechargeable battery pack as a power source. Using the AC adapter To use the AC adapter, proceed as follows: Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer. Plug one end of the power cord (3) into the AC adapter.
Page 24: Battery Bay
Using your notebook Using the battery pack You can use one or two batteries as a source of power. You can insert the second battery pack into the multipurpose bay on the left side of the computer. Additional battery packs are available as a separate option.
Page 25 Using your notebook Charging the battery pack To charge the battery pack, proceed as follows: Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (1) (the battery indicator (2) light flashes in a double blink pattern as the battery charges).
Page 26 Using your notebook The battery indicator light is on while you use the battery pack as a power source. When the battery is running out of power, both the battery and power indicators blink. Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.
Page 27 Using your notebook Removing the battery pack To remove the battery pack, proceed as follows: Turn off the computer. Open the cover of the battery bay. Pull out the battery pack. Close the cover of the battery bay. You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in Standby mode.
Page 28 Using your notebook Using the second battery pack You can purchase a second rechargeable battery pack. With two battery packs, you can extend the time you use your computer with battery power. When using two battery packs, the battery pack you insert first, charges first.
Page 29 Using your notebook Charging the second battery pack To charge the second battery pack, proceed as follows: Keep the battery pack (1-3) in the computer while it is connected to AC power. The battery indicator (2) flashes while the battery is charging. When the battery indicator stops flashing, the battery is 85% charged.
Page 30 Using your notebook Removing the second battery pack To remove the second battery pack, proceed as follows: Slide the multipurpose bay release lever on the bottom of the computer in the direction of the arrow. Remove the weight saver. Pull out the battery pack. Reinsert the weight saver.
Page 31: Starting Your Notebook
Using your notebook Starting your notebook To start your computer, proceed as follows: Slide the LCD lock lever (1) in the direction of the arrow, and lift the cover. Press the power button (2) of the computer until the green power indicator (3) light turns on. If necessary, press <Fn>+<F5>...
Page 32: Shutting Down Your Notebook
Using your notebook Shutting down your notebook It is important that you shut down your computer properly so you do not lose unsaved data. To shut down your computer, proceed as follows: Click the Start button on the Windows Click Shut Down. The Shut Down Windows dialog box appears.
Page 33: Using The Keyboard
Using your notebook Using the keyboard Your keyboard is very similar to a desktop computer’s, but has additional keys that perform specific notebook-related tasks.
Page 34 Using your notebook Keys Escape key (1) Function keys (2) Print Screen key (3) Correction keys (4) Navigation keys (5) Application key (6) Numeric keypad area (7) Operator keys (8-11-12) ® Windows key (9) <Fn> key (10) Descriptions The <Esc> (Escape) key is used to cancel commands. The twelve function keys along the top of the keyboard are used to perform designated tasks.
Page 35 Using your notebook Combinations and functions with the <Windows> key Combinations + <F1> + <Tab> + <E> + <F> + <Ctrl> + <F> + <M> <Shift> + + <M> + <R> <Fn> + + <Insert> Functions Displays Windows 2000 Help. Switches the selected button on the taskbar.
Page 36 Using your notebook Indicators Indicator Power Battery 1 Battery 2 MagicGate Memory Stick™ Light Hard disk Num Lock Caps Lock Scroll Lock Functions Power on: lights green. Standby mode: flashes umber. Hibernate mode: turns off. Indicates the status of the battery inserted in the battery bay on the right side of the computer. Indicates the status of the battery inserted in the battery bay on the left side of the computer.
Page 37 Using your notebook Combinations and functions with the <Fn> key Combinations/Feature <Fn> + <E> <Fn> + (F3): speaker switch <Fn> + (F4): speaker volume <Fn> + (F5): brightness control <Fn> + (F7): switch to the external display <Fn> + (F8) <Fn>...
Page 38: Using The Touchpad
Using your notebook Using the touchpad The keyboard contains a cursor-pointing device, your touchpad (1). You can point to, select, drag, and scroll objects on the screen using the built-in touchpad. Action Description Point Slide one finger on the touchpad to place the pointer (2) on an item or object.
Page 39: Using The Cd-Rw/Dvd-Rom Drive
Using your notebook Using the CD-RW/DVD-ROM drive Your computer is equipped with a CD-RW/DVD-ROM drive. To insert a disc, proceed as follows: Turn on the computer. Press the eject button (1) to open the drive. The tray slides out. Place a disc in the middle of the tray with the label side facing up until the disc clicks into place.
Page 40 Using your notebook Using the DVD function To achieve optimum performance when playing DVD-ROM discs, you should follow these recommendations. You can play DVDs using the CD-RW/DVD-ROM drive and the WinDVD for VAIO software. See the help files within the WinDVD for VAIO software for details. Your computer should not be connected to the port replicator while playing DVD movies or using DVD applications.
Page 41 Using your notebook Using the CD-RW function To burn CDs, you can use CD-RW and CD-R discs: The CD-RW (CD-ReWritable) disc is a data memory medium that can be used to write, erase and rewrite a program or other data. The CD-R (CD-Recordable) disc is a data memory medium that can be used to write a program or other data, but once only.
Page 42: Using The Weight Saver
Using your notebook Using the weight saver The weight saver protects the multipurpose bay when it is empty, and secures the second battery when it is installed in the multipurpose bay. To attach the weight saver, proceed as follows: If another device is in the multipurpose bay, remove the device. Slide the weight saver in the direction of the arrow until it clicks into place.
Page 43: Using Pc Cards
Use the lower slot for PC Type III cards. Some PC Cards may require you to disable idle devices when using the PC Card. You can use Sony Notebook Setup to disable devices. Be sure to use the most recent software driver provided by the PC Card manufacturer.
Page 44: Removing A Pc Card
Using your notebook If an “!” mark appears on the Device Manager tab in the System Properties dialog box, remove the software driver and then reinstall it. You do not need to shut down the computer before inserting or removing a PC Card. Do not force a PC Card into the slot.
Page 45 Using your notebook If you unplug the PC Card from the computer when it is still turned on, your system might crash and you might lose data that you did not save before. Before you remove the PC Card, click the PC Card icon in the taskbar and close the card. Close any applications that use the PC Card before removing the card.
Page 46: Using The Wireless Lan Pc Card
Using the Wireless LAN PC Card The Sony PCWA-C150S Wireless LAN PC Card delivered with your computer requires the Access Point Setup Utility software to set up the PCWA-A220 Access Point. This software is preinstalled on your hard disk, but if you need to reinstall it later, you can find it on the application CD.
Page 47 Using your notebook Inserting the Wireless LAN PC Card You do not need to turn off your computer when inserting the Wireless LAN PC Card. To insert your Wireless LAN PC Card, proceed as follows: Push the Wireless LAN PC Card into the upper slot until it is firmly seated. When inserting the Wireless LAN PC Card, grasp it at the antenna base or both sides.
Page 48 (LAN) through a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 49 (page 46)). Click the network icon The Sony Wireless LAN Client Manager dialog box appears. Click the Actions menu and choose Add/Edit Configuration Profile. The Add/Edit Configuration Profile dialog box appears. Note that you can also access this dialog box by clicking Start, point to Settings, Control Panel and select Wireless Network.
Page 50 Using your notebook Enter a name in the Profile Name field and choose Peer-to-Peer Group in the Network Type drop- down list. Click Next. Enter your network name in the Network Name text box and choose the channel you want to use for wireless communications in the Channel Number drop-down list.
Page 51 Using your notebook If you want to set up an encryption key so only those who know the key can access the network, then select the Enable Data Security check box in the Set Security area, select either alphanumeric characters or hexadecimal (depending on your encryption key), and type a five digit key. Click Next.
Page 52 An Access Point network is a network that extends an existing wired local network to wireless devices by providing an Access Point, for example the Sony PCWA-A220 Access Point. The Access Point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices within a specific range.
Page 53 Using your notebook Enter a name in the Profile Name field and choose Access Point in the Network Type drop-down box. Click Next. Enter your network name in the Network Name text box if you know it or click Scan to find an available access point.
Page 54 Using your notebook Wireless LAN channel selection When using Wireless LAN, radio frequencies are used to transmit data from one computer to another. Radio frequencies are divided into several channels (1 to 14). But in France, you have to use channels 10 or 11 (indoors and outdoors).
Page 55 When you change the channel number on one computer, you need to change the channel number manually on all other devices intended for wireless connection. If you use a non-Sony Access Point, read the manual of the Access Point to be sure which channel to use. For more information on Wireless LAN, read the Wireless LAN Regulations leaflet.
Page 56: Using The Memory Stick
Mobile phones. There are currently two different types of Memory Stick™: The generic Memory Stick™, coloured blue. The MagicGate Memory Stick™, coloured white. You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer.
Page 57 Using your notebook Why Memory Stick™? Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it, you can download data from any compatible device, then transfer it to another in a single and instant transfer.
Page 58 Using your notebook Generic Memory Stick™ The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at any given time.
Page 59 MagicGate is a copyright protection technology that complies with the standards set by SDMI (Secure Digital Music Initiative, an organization working to draw up industry standard specifications in order to protect copyrights of digital music). logo printed on it logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.
Page 60 Using your notebook MagicGate MagicGate refers to the copyright protection technology used by the MagicGate Memory Stick™ and other MagicGate Memory Stick™ compatible devices. The Memory Stick™ Walkman and MagicGate Memory Stick™ work together to check the data and ensure it complies with copyright protection.
Page 61 Using your notebook Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.
Page 62 Using your notebook Digital printers AIBO the Sony Entertainment Robot To find out more about the products available in your country, go to: http://www.sonystyle-europe.com...
Page 63 Using your notebook Write-protecting a Memory Stick™ Memory Sticks™ are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting. Move the tab to the right or left* to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick™.
Page 64: Inserting A Memory Stick
Using your notebook Inserting a Memory Stick™ To insert a Memory Stick™ using the Memory Stick™ slot, proceed as follows: Once you have stored your data from your digital device, insert the Memory Stick™ with the arrow facing up and toward the Memory Stick™ slot. Carefully slide the Memory Stick™...
Page 65: Removing A Memory Stick
Using your notebook Removing a Memory Stick™ To remove a Memory Stick™ using the Memory Stick™ slot, proceed as follows: Check that the access light is off. Push the Memory Stick™ in towards the notebook. The Memory Stick™ ejects. Pull the Memory Stick™ out of the slot. Always remove the Memory Stick™...
Page 66: Using The Modem
Using your notebook Using the modem Your notebook is equipped with an internal modem. You need to connect to a phone line to take advantage of online services and the Internet, as well as to register your computer and software online, and to contact VAIO-Link. To connect a phone line, proceed as follows: Plug one end of the phone cable (1) into the phone line jack on the computer.
Page 67: Using The Correct Phone Plug
Using your notebook Using the correct phone plug If there are two phone plugs in the box, make sure you use the correct one for the country you are in, as follows: UK: The connector can be identified by its cuboid shape and flat pins.
Page 68: Using Power Saving Modes
Using your notebook Using power saving modes When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
Page 69: Using Hibernate Mode
Using your notebook Using Hibernate mode The state of the system is saved on the hard disk and power is turned off. The power indicator light is off in this mode. To activate Hibernate mode, proceed as follows: Go to the Start menu, click Shut Down... , and then choose Hibernate from the drop-down menu or press <Fn>+<F12>...
Page 70: Connecting Peripheral Devices
Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting or using any of these peripherals. Before you connect peripherals, turn off the computer and all peripherals. Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.
Page 71: Connecting A Port Replicator
Connecting peripheral devices Connecting a port replicator Your notebook supports the use of an optional port replicator. Attaching a port replicator enables you to connect additional peripherals to your computer, such as a printer or an external display. DC In port USB port Serial port Right line-in and left line-in...
Page 72: Attaching Your Computer To The Port Replicator
When attaching your computer to the port replicator, do not attempt to insert or remove the battery pack. Lifting and turning the computer with the attached port replicator may cause a temporary loss of power. Use the AC adapter that comes with your notebook or the optional Sony adapter.
Page 73: Disconnecting Your Computer From The Port Replicator
Connecting peripheral devices Disconnecting your computer from the port replicator To disconnect your computer from the port replicator, proceed as follows: Stop the connected peripherals using the Unplug or Eject Handware icon in the taskbar. Close the cover and pull the levers on each side of the port replicator to disconnect the computer from the port replicator.
Page 74: Connecting An External Display
Connecting peripheral devices Connecting an external display You can connect an external display to your notebook. For example, you can use your notebook with the following devices: Computer display (monitor); Multimedia computer display; Projector. Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display. Connect the power cord after connecting all other cables.
Page 75 Connecting peripheral devices Connecting a computer display You can connect a computer display (monitor) either directly to your notebook or via the (optional) port replicator. To connect a computer display, proceed as follows: Plug the display cable (1) (not supplied) into the monitor (VGA) connector (2) port replicator.
Page 76 Connecting peripheral devices Connecting a multimedia computer display You can connect the notebook to a multimedia computer display that includes built-in speakers and a microphone. To connect a multimedia computer display, proceed as follows: Plug the display cable (1) into the monitor (VGA) connector (2) replicator.
Page 77: Av Out Connector
Connecting peripheral devices Connecting a TV You can connect a TV to the notebook or to the optional port replicator. To connect a TV to the notebook, proceed as follows: Plug one end of the audio/video cable (1) (optional) into the AV Out connector (2) (yellow) and the other end into the TV.
Page 78 Connecting peripheral devices To connect a TV to the port replicator, proceed as follows: Attach the port replicator to your notebook. Plug one end of the audio/video cable (1) (optional) into the right and left line-out and the Video out connector (2) and the other end into the Audio Left and Audio Right connectors and the Video connector on your TV.
Page 79: Connecting A Projector
Connecting peripheral devices Connecting a projector You can connect a projector (such as the Sony LCD projector) directly to your notebook or via the port replicator. To connect a projector, proceed as follows: Plug the RGB signal cable (1) into the monitor/...
Page 80: Headphone Connector
Connecting peripheral devices Connecting external speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers, proceed as follows: Plug the speaker cable (1) into the headphone connector (2). Plug the other end of the speaker cable into the external speaker. Turn down the volume of the speakers before you turn them on.
Page 81: Microphone Connector
Connecting peripheral devices Connecting an external microphone Your VAIO notebook does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone. To connect an external microphone, proceed as follows: Plug the microphone cable (1) into the microphone connector (2) identified by the symbol.
Page 82: Connecting An External Mouse Or Keyboard
Connecting peripheral devices Connecting an external mouse or keyboard You can connect an external mouse or keyboard to the optional port replicator using the PS/2 mouse/ keyboard connector. There is only one PS/2 connector, so you can only connect one external device at the same time.
Page 83: Usb Port
Connecting peripheral devices Connecting a Universal Serial Bus (USB) device You can connect a USB device (for example, a mouse, floppy disk drive, keyboard, printer) to your computer. Before connecting or disconnecting a USB peripheral, you do not need to shut down the computer. You may need to install software (device drivers) supplied with your USB device before using the USB device.
Page 84 Connecting peripheral devices Connecting a USB floppy disk drive As an optional extra, you can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive, proceed as follows: Choose the USB connector you prefer to use. Plug the USB floppy disk drive cable (1) into the USB connector (2).
Page 85 Connecting peripheral devices To remove a USB floppy disk drive, proceed as follows: If your computer is on, double-click the Unplug or Eject Hardware icon and stop the device before reoving the cable. If the floppy disk drive is not removed properly, your system may crash and you may lose any unsaved data.
Page 86 Connecting peripheral devices Removing a floppy disk To remove a floppy disk, proceed as follows: When you have finished using the floppy disk, wait until the LED indicator (1) turns off and then press the eject button (2) to remove the disk. Before pressing the eject button, make sure that the LED indicator is turned off.
Page 87: Connecting A Printer
Plug the printer power cord into an AC outlet. Before using the printer, you may need to change the Printer settings in the Sony Notebook Setup software. Turn off the printer, unplug the AC adapter and the power cord before connecting the printer.
Page 88: Printer Connector
Plug the printer cable (1) supplied with the printer into the printer connector (2) identified by the symbol. Plug the printer power cord (3) into an AC outlet. Before using the printer, you may need to change the Printer settings in the Sony Notebook Setup software.
Page 89: Connecting An I.link™ Device
Connecting peripheral devices Connecting an i.LINK™ device Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit files.
Page 90: Connecting A Digital Video Camera Recorder
On Sony digital video cameras, connectors labelled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™ slot, you can copy images from it to your computer via a Memory Stick™. To do so,...
Page 91: Connecting To A Network (Lan)
Connecting peripheral devices Connecting two VAIO notebooks You can copy, edit or delete files on another VAIO computer to your computer with an optional i.LINK™ cable. You can also print a document on a printer connected to another VAIO computer. Connecting to a network (LAN) You can connect your computer or port replicator to 10BASE-T/100BASE-TX-type networks via an Ethernet network cable.
Page 92: Getting Help
Getting help Getting help This section describes how to get help and support from Sony, and provides troubleshooting tips for your computer. Sony support options Sony provides several support options for your computer. Documentation Please see the section Documentation pack documentation delivered with your computer.
Page 93: Troubleshooting
Getting help Troubleshooting This section describes how to solve common problems you might encounter when using your notebook. Many problems have simple solutions. Please try these suggestions before contacting VAIO-Link. About the computer and software About the display About discs and floppy disks About sound (page 102) About the modem...
Page 94: About The Computer And Software
If the floppy disk drive is empty, proceed as follows to initialise the BIOS: Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Set the date (month/day/year).
Page 95 Getting help Press Enter. Press the arrow keys to select System Time. Set the time (hour:minute:second). Press Enter. Press the arrow keys to select the Exit menu. Press the arrow keys to select Get Default Values and then press <Enter>. The message Load default configuration now? appears.
Page 96 Getting help My computer locks up If you suspect one application is locking your system, you can try to stop it. To do this, press <Ctrl>+<Alt>+<Delete> simultaneously and select the application or the process that is locking your system, and then click Shut Down on the Windows Security screen. If the above method does not work or you do not know which application is locking your system, restart the computer.
Page 97 If you are using an external serial PS/2 mouse, check that the mouse is plugged into the mouse connector of your optional port replicator. If you are using an optional Sony USB mouse, check that the appropriate driver and software are properly installed.
Page 98: About The Display
Getting help About the display My LCD does not display anything Check that the computer and display are both plugged into a power source and that they are turned on. Check that the power indicator on the front panel of the computer is on. Check that the battery packs are inserted properly and that they are charged.
Page 99: About Discs And Floppy Disks
Getting help About discs and floppy disks My CD-RW/DVD-ROM drive tray does not open Make sure the computer is turned on. Press the eject button on the disc drive. If the disc does not come out when you press the eject button, go to Windows Explorer or My Computer.
Page 100 Getting help If you hear sound but cannot see a picture, your computer's video resolution may be set too high. Change the resolution in the Windows If you see a picture but cannot hear any sound, check all of the following: Make sure the mute setting is off on your DVD player.
Page 101 Getting help The disc tray does not eject even when the eject button is pressed Check that the notebook is turned on. The CD-writing application software may be stopping the disc from being ejected. The disc tray ejects even when it has been locked into place Ensure that the disc is placed with the label side facing up.
Page 102 Getting help Keep clicking OK until the Confirmation of deletion of device message appears. Select Scan for hardware changes from the Action menu. The UFD5 is recognised as drive A.
Page 103: About Sound
Getting help About sound My speakers are not producing sound The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers. The speaker volume may be turned to the minimum. Press <Fn>+<F4>, and then press the volume. If your computer is powered by battery, check that the battery is inserted properly and that it is charged.
Page 104: About The Modem
Getting help About the modem My internal modem does not work Check that the phone line is plugged into your computer. Check that the phone line is working. You can check the line by plugging in an ordinary phone and listening for a dial tone.
Page 105: About Peripherals
Make sure the PC Card is compatible with your version of Windows Use the Sony Notebook Setup utility to disable devices you are not currently using. If you are using two PC Cards, use the Sony Notebook Setup utility to disable the devices you are not currently using.
Page 106 Getting help Check the cable to see if you do not have missing or bent pins. Try a printer self test (if available) to see if the printer itself is still functioning properly. For more information, please consult the manual supplied with your printer. Some printers have a specific installation procedure.
Page 107: About Digital Video Captures And Dvgate
Getting help About digital video captures and DVgate While I am recording images to a digital video device using DVgate, my system displays the message 'Recording to DV device failed. Check the power and cable connections to the DV device and try the operation again...' Close all open applications and restart your computer.
Page 108: About Power Management
Getting help About power management The power management setting is not responding Your notebook’s operating system may become unstable if a lower power state, such as Hibernate is initiated, and then changed before the notebook completely enters the lower power state. To restore the notebook to its normal operating stability, proceed as follows: Close all open applications.
Page 109: About I.link™ Devices
Getting help About i.LINK™ devices I cannot establish an i.LINK™ connection between two VAIO computers Disconnect then reconnect the i.LINK™ cable. If you still have no connection after waiting for a while, restart both computers. If either computer has just returned from a power saving mode, the connection may be affected. In this case, make sure you perform a full restart before connecting them.
Page 110: About Wireless Lan Pc Card Connectivity
The actual communication distance depends on various factors such as installation site conditions and obstacles. Try moving your computer closer to the Access Point. Latest information about Wireless LAN PC Card The Sony Wireless LAN PC Card support website: the latest information on your Wireless LAN PC Card. http://www.vaio-link.com/uk/info/wlan/shtm...
Page 111: Adding And Removing Memory
Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your dealer to install a new memory module.
Page 112 Precautions Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory module only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.
Page 113 Precautions Removing a memory module To remove a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Turn your computer upside down. Open the cover on the bottom by unscrewing the screw (turn counter clockwise).
Page 114 Precautions Adding a memory module To install a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery packs. Wait until the computer cools down. Turn your computer upside down. Open the cover on the bottom by unscrewing the screw (turn counter clockwise).
Page 115 Precautions Close the computer cover. Tighten the screw on the bottom of the notebook. Turn on the computer.
Page 116 To view the amount of memory, proceed as follows: Turn on the computer. Go to Sony Notebook Setup via the Start menu. The Sony Notebook Setup dialog box appears. In the About this Computer tab you can view the amount of system memory. If the additional memory...
Page 117: Other Precautions
Precautions Other precautions On handling the hard disk (page 117) On handling the LCD screen (page 117) On using power source (page 118) On handling your notebook (page 118) On handling diskettes (page 120) On handling discs (page 120) On using the battery pack (page 121) On using earphones (page 122)
Page 118: Lcd Screen
Precautions On handling the hard disk The hard disk has a high storage density and reads or writes data in a short time. On the other hand, it may be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the safety device in itself to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.
Page 119: On Using Power Source
Precautions The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/ or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction. Avoid rubbing the LCD screen, as this can damage the screen.
Page 120: Ventilation Slot
Precautions Direct sunlight, Excessive dust, Moisture or rain, Mechanical vibration or shock, Strong magnets or speakers that are not magnetically shielded, Ambient temperature of more than 35°C or less than 10°C, High humidity. Do not place electronic equipment near your computer. The electromagnetic field of your computer may cause a malfunction.
Page 121: On Handling Diskettes
Precautions On handling diskettes Do not open the shutter manually and touch the surface of the diskette. Keep diskettes away from magnets. Keep diskettes away from direct sunlight and other heat sources. On handling discs Do not touch the surface of the disc. Do not drop or bend the disc.
Page 122: On Using The Battery Pack
Precautions On using the battery pack Never leave the battery pack in temperatures above 60°C, such as in a car parked in the sun or under direct sunlight. Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.
Page 123: On Using Earphones
Precautions On using earphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 124 Glossary Glossary This section refers to terms used in this manual. These terms and definitions have been compiled to provide you with a better understanding of your VAIO computer. Term <F1> key 10BASE-T/100BASE-TX ACPI Application recovery Application CD BIOS CardBus Definition The <F1>...
Page 125 Glossary Term CD-ROM CD-RW DC In Docking station Driver DVD-ROM DVD-RW Ethernet Definition Abbreviation for Compact Disc Read-Only Memory. A high-capacity optical disc, usually 650 MB in size, capable of being read from but not written to. Short for Compact Disc-ReWriteable. Compact Disc that can be used to write or rewrite data to it.
Page 126 The EULA can be found in the Read this first section at the beginning of the software guide or directly on the VAIO desktop. i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface. The standard is regarded in the audio/video and IT industries as the most suitable interface for connecting computers and digital audio/video devices (such as digital cameras etc.).
Page 127 Glossary Term MAPI maximum RAM Motherboard MPEG Operating system Partition Definition Short for Messaging Application Program Interface. A Microsoft Windows interface enabling you to send e-mail messages. It allows e-mail access and distribution among applications. MAPI-compatible applications include a Send Mail or Send in the File menu of the application.
Page 128 Glossary Term PC Card PCMCIA Pixel Port replicator Processor Product recovery Disc PS/2 PSTN Definition A PCMCIA card. The term PC Card is more widely used than PCMCIA. See PCMCIA. PCMCIA (Personal Computer Memory Card International Association) is the name of the group that produced the specification for the credit card-sized plug-in boards for laptop computers.
Page 129 Glossary Term Resolution RGB signal cable SDRAM Standard RAM System recovery System recovery Disc Definition Short for Random Access Memory, the memory used to run programs and store data in current use. RAM is the fastest kind of memory to read from and write to. Information stored in RAM is lost when you turn off the computer.
Page 130 You can connect up to 127 devices to a USB port. The USB standard is Hot Plug and Play. Short for Video Audio Integrated Operation. Brand name covering Sony's PC products, peripherals, accessories and software. VAIO-branded items are all designed to make the best use of Sony's Audio-Video (AV) and Information Technology (IT) skills.

This manual is also suitable for:

Vaio pcg-grx series

Sony PCG-GRX616MK User Manual

Quick Links

Related Manuals for Sony PCG-GRX616MK

Summary of Contents for Sony PCG-GRX616MK

This manual is also suitable for:

Table of Contents
