HP ProLiant DL180se G6 Server

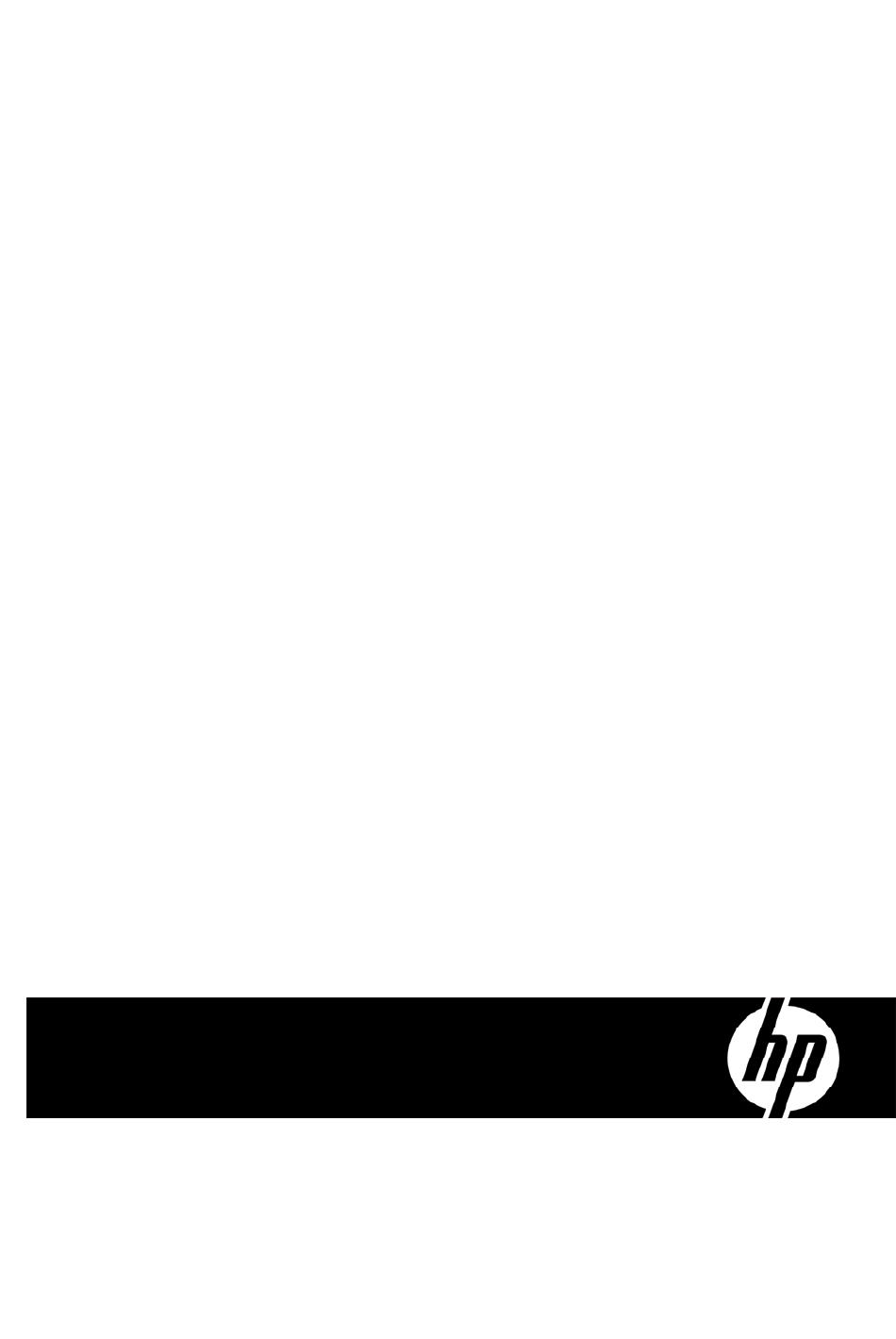

Maintenance and Service Guide
Part number 516743-002
Second edition June 2009

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant DL180se G6

Summary of Contents for HP ProLiant DL180se G6

  • Page 1 HP ProLiant DL180se G6 Server Maintenance and Service Guide Part number 516743-002 Second edition June 2009...
  • Page 2 © Copyright 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3: Table Of Contents

    System components / 12 3.5” HDD model ....................31 System components / 25 2.5” HDD model ....................34 HP contact information ........................... 37 Before you contact HP ..........................37 Removal and replacement procedures ....................39 Hardware configuration tools ........................39 Hardware configuration information......................
  • Page 4 Connectors, switches, and LEDs ......................113 Connectors and components ......................... 113 Front panel components ........................113 Rear panel components ........................118 System board components........................ 121 Jumpers ............................122 LED indicators ............................. 123 Front panel LED indicators ........................ 123 Optical disk drive activity LED indicator ..................... 125 Hard drive LED indicators.........................

  • Page 5: Customer Self Repair

    If during the diagnosis period HP (or HP service providers or service partners) identifies that the repair can be accomplished by the use of a CSR part, HP will ship that part directly to you for replacement. There are two categories of CSR parts: •...
  • Page 6 Centre d'assistance technique HP. Dans les documents envoyés avec la pièce de rechange CSR, HP précise s'il est nécessaire de lui retourner la pièce défectueuse. Si c'est le cas, vous devez le faire dans le délai indiqué, généralement cinq (5) jours ouvrés. La pièce et sa documentation doivent être retournées dans l'emballage fourni.
  • Page 7 In caso di necessità si può richiedere l'assistenza telefonica di un addetto del centro di supporto tecnico HP. Nel materiale fornito con una parte di ricambio CSR, HP specifica se il cliente deve restituire dei componenti. Qualora sia richiesta la resa ad HP del componente difettoso, lo si deve spedire ad HP entro un determinato periodo di tempo, generalmente cinque (5) giorni lavorativi.
  • Page 8 Flexibilität beim Austausch defekter Bauteile zu ermöglichen. Wenn HP (oder ein HP Servicepartner) bei der Diagnose feststellt, dass das Produkt mithilfe eines CSR-Teils repariert werden kann, sendet Ihnen HP dieses Bauteil zum Austausch direkt zu. CSR-Teile werden in zwei Kategorien unterteilt: •...
  • Page 9 HP podrá cobrarle por el de sustitución. En el caso de todas sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.
  • Page 10 Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.
  • Page 11 CSR de reposição se a peça com defeito deve ser devolvida à HP. Nos casos em que isso for necessário, é preciso enviar a peça com defeito à HP dentro do período determinado, normalmente cinco (5) dias úteis. A peça com defeito deve ser enviada com a documentação correspondente no material de transporte fornecido.
  • Page 12 Customer self repair 12...
  • Page 13 Customer self repair 13...
  • Page 14 Customer self repair 14...
  • Page 15 Customer self repair 15...

  • Page 16: Illustrated Parts Catalog

    Illustrated parts catalog Mechanical components / 4 3.5” HDD model Table 1 Mechanical Components Spare Parts List / 4 3.5” HDD Model Item Description Spare Part Customer Self Number Repair Air baffle 533713-001 Mandatory Rail kit 573091-001 Mandatory Hard drive cage for 4 3.5” HDDs 507305-001 Mandatory Hardware/Plastics Kit...

  • Page 17: Mechanical Components / 8 3.5" Hdd Model

    Mechanical components / 8 3.5” HDD model Table 2 Mechanical Components Spare Parts List / 8 3.5” HDD Model Item Description Spare Part Customer Self Number Repair Air baffle 533713-001 Mandatory Rail kit 573091-001 Mandatory Hard drive cage for 8 3.5” HDDs 507305-001 Mandatory Hardware/Plastics Kit...

  • Page 18: Mechanical Components / 8 2.5" Hdd Model

    Mechanical components / 8 2.5” HDD model Table 3 Mechanical Components Spare Parts List / 8 2.5” HDD Model Item Description Spare Part Customer Self Number Repair Air baffle 533713-001 Mandatory Rail kit 573091-001 Mandatory Hard drive cage for 8 2.5” HDDs 507253-001 Mandatory Hardware/Plastics Kit...

  • Page 19: Mechanical Components / 12 3.5" Hdd Model

    Mechanical components / 12 3.5” HDD model Table 4 Mechanical Components Spare Parts List / 12 3.5” HDD Model Item Description Spare Part Customer Self Number Repair Air baffle 533713-001 Mandatory Rail kit 573091-001 Mandatory Hard drive cage for 12 3.5” HDDs 507254-001 Mandatory Hardware/Plastics Kit...

  • Page 20: Mechanical Components / 25 2.5" Hdd Model

    Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.
  • Page 21 Mandatory: Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés. Optional: Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également conçues pour permettre au client d'effectuer lui-même la réparation.
  • Page 22 Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
  • Page 23 Illustrated parts catalog 23...

  • Page 24: System Components / 4 3.5" Hdd Model

    The system supports five kinds of HDD configurations, three types of PCI cage and two types of power supply unit. Table 6 lists the detailed system configurations. Table 6 System Configurations System model PCI cage Power supply unit 4 3.5” HDD model •...
  • Page 25 Table 7 System Components Spare Parts List /4 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair System board 511805-001 Optional 460 W power supply 511804-001 Mandatory DC Converter Power Backplane Assy. 519200-001 Mandatory System fans 519199-001 Mandatory Memory modules Registered DIMMs (RDIMMs) •DIMM, 2GB 2Rx8 PC3-10600R-9...
  • Page 26 Table 7 System Components Spare Parts List /4 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair •1 TB 7,200 rpm 461289-001 Mandatory 3.5” hot-plug SATA hard drives with carriers •160 GB 7,200 rpm, 1.5Gbps 353043-001 Mandatory •160 GB 7,200 rpm, 3.0Gbps 483095-001 Mandatory •250 GB 7,200 rpm, 1.5Gbps...

  • Page 27: System Components / 8 3.5" Hdd Model

    System components / 8 3.5” HDD model Table 8 System Components Spare Parts List / 8 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair System board 511805-001 Optional 460 W power supply 511804-001 Mandatory DC Converter Power Backplane Assy. 519200-001 Mandatory System fans...
  • Page 28 Table 8 System Components Spare Parts List / 8 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair PROC,Xeon EP 2.0 GHz, 4M, 80W QC 490074-001 Optional PROC,Xeon EP 2.53 GHz, 8M, 80W 490071-001 Optional PROC,Xeon EP 2.26 GHz, 8M, 60W 508567-001 Optional Processor heat sinks...

  • Page 29: System Components / 8 2.5" Hdd Model

    Table 8 System Components Spare Parts List / 8 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair FH/FL PCIe riser card 2PCIX+EX 16 507306-001 Mandatory 2PCIEX8 516803-001 Mandatory PCIEX16 534238-001 Mandatory LP PCIe riser card PCIEX16 534236-001 Mandatory System components / 8 2.5”...
  • Page 30 Table 9 System Components Spare Parts List / 8 2.5” HDD Mode Item Description Spare Part Customer Self Number Repair •DIMM, 4GB 4Rx8 PC3-8500R-7 LP 501535-001 Mandatory •DIMM, 8GB 2Rx4 PC3-8500R-7 519201-001 Mandatory Unregistered DIMMs (UDIMMs) •DIMM, 1GB 1Rx8 PC3-10600E-9 501539-001 Mandatory •DIMM, 2GB 2Rx8 PC3-10600E-9...

  • Page 31: System Components / 12 3.5" Hdd Model

    Table 9 System Components Spare Parts List / 8 2.5” HDD Mode Item Description Spare Part Customer Self Number Repair 2PCIX+EX 16 507306-001 Mandatory 2PCIEX8 516803-001 Mandatory PCIEX16 534238-001 Mandatory LP PCIe riser card PCIEX16 534236-001 Mandatory System components / 12 3.5” HDD model Table 10 System Components Spare Parts List / 12 3.5”...
  • Page 32 Table 10 System Components Spare Parts List / 12 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair DIMM, 8GB 2Rx4 PC3-8500R-7 519201-001 Mandatory • Unregistered DIMMs (UDIMMs) DIMM, 1GB 1Rx8 PC3-10600E-9 501539-001 Mandatory • DIMM, 2GB 2Rx8 PC3-10600E-9 501540-001 Mandatory •...
  • Page 33 Table 10 System Components Spare Parts List / 12 3.5” HDD Mode Item Description Spare Part Customer Self Number Repair 250 GB 7,200 rpm 373313-001 Mandatory • 500 GB 7,200 rpm 404654-001 Mandatory • 750 GB 7,200 rpm 463047-001 Mandatory •...

  • Page 34: System Components / 25 2.5" Hdd Model

    System components / 25 2.5” HDD model Table 11 System Components Spare Parts List / 25 2.5” HDD Mode Item Description Spare Part Customer Self Number Repair System board 511805-001 Optional 750 W power supply 511778-001 Mandatory DC Converter Power Backplane Assy. 519200-001 Mandatory System fans...
  • Page 35 Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.
  • Page 36 Mandatory: Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés. Optional: Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également conçues pour permettre au client d'effectuer lui-même la réparation.

  • Page 37: Hp Contact Information

    Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
  • Page 38 • Add-on boards or hardware model number and serial number • Third-party hardware or software model number • Operating system type and revision level Illustrated parts catalog 38...

  • Page 39: Removal And Replacement Procedures

    Removal and replacement procedures This chapter provides subassembly/module-level removal and replacement procedures for the HP ProLiant DL180se G6 server. Review the specifications of a new component before installing it to make sure it is compatible with the server. When you integrate new components into the system, record its model and serial number, and any other pertinent information for future reference.

  • Page 40: Pre-Installation Procedure

    Pre-installation procedure Perform the steps below before you open the server or before you remove or replace any component. WARNING: Failure to properly turn off the server before you open the server or before your start installing and removing components may cause serious damage as well as bodily harm. Turn off the server and all the peripherals connected to it.

  • Page 41: Server Warnings And Cautions

    IMPORTANT: If you suspect a TPM board failure, leave the TPM installed and remove the system. Contact an HP authorized service provider for a replacement system board and TPM board. Symbols on equipment The following symbols may be placed on equipment to indicate the presence of potentially hazardous conditions.

  • Page 42: Powering Down The Server

    This symbol on an RJ-45 receptacle indicates a network interface connection. WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not plug telephone or telecommunications connectors into this receptacle. This symbol indicates the presence of a hot surface or hot component. If this surface is contacted, the potential for injury exists.

  • Page 43: System Cover

    System cover You need to remove the top cover before you can remove or replace a server component. The top cover needs to be removed to service the SAS/SATA backplane. Top cover To remove the top cover: Loosen the screw on the top cover with a T-10 wrench. Press the latch on the top cover.

  • Page 44: Drives

    To reinstall the top cover: Align the top cover to the chassis and then slide it towards the front panel to position it into place. Once the cover is attached to the chassis, tighten the screw on the top cover with a T-10 wrench. Figure 2 Reinstalling the Top Cover Drives The server supports the following configurations:...

  • Page 45: Cable Connections

    The next steps illustrate the removal of power cable from connector J60, 51, 64 and 82. Squeeze on the top of the retaining latch attached to the cable end of the connector. Grasp the cable end of the connector and pull it straight up. CAUTION: Always pull the connector—NEVER pull on the cable.
  • Page 46 Table 13 Cable Connections from the 750 W Power Supply Cable Cable designator Switching power supply System board 24-pin power connector Switching power supply System board 8-pin power connector Switching power supply System board 4-pin power connector Switching power supply 4/8 HDD backplane Switching power supply 12/25 HDD backplane...
  • Page 47 Table 14 Cable Connections from the System Board Cable System board designator 6-pin system fan connector 5 System fan 4 (four system fans) or system fan 7/8 (eight system fans) Table 15 Drive Cable Connections / 4 3.5” HDD Model Cable SAS&SATA connector designator...
  • Page 48 Table 18 Drive Cable Connections / 12 3.5” HDD Model with optical disk drive PCI Cage Cable SATA&SAS connector designator SATA 5/6 connector Rear optical disk drive on the J57/J58 ODD PCI cage Table 19 Drive Cable Connections / 12 3.5” HDD Model with HDD PCI Cage Cable SATA&SAS connector designator...

  • Page 49: Drive Bay Configuration

    Drive bay configuration The server supports a maximum of twenty-five 2.5 in. hard disk drive bays. Figure 4 System Drive Bays / 4 3.5” HDD Model Item Description Optical disk drive bay (one) 3.5 in. hard disk drive bays (four) Removal and replacement procedures 49...
  • Page 50 Figure 5 System Drive Bays / 8 3.5” HDD Model Item Description Optical disk drive bay (one) 3.5 in. hard disk drive bays (eight) Figure 6 System Drive Bays / 8 2.5” HDD Model Item Description Optical disk drive bay (one) 3.5 in.
  • Page 51 Figure 7 System Drive Bays / 12 3.5” HDD Model Item Description 3.5 in. hard disk drive bays (twelve) Figure 8 System Drive Bays / 25 2.5” HDD Model Item Description 3.5 in. hard disk drive bays (twelve) Removal and replacement procedures 51...

  • Page 52: Optical Disk Drive Bay

    Optical disk drive bay The Optical disk drive bay of servers with 4 3.5-inch HDDs, 8 3.5-inch HDDs and 8 2.5-inch HDDs both support the optional installation of a 12.7 mm (0.5 in.) DVD/CD R/RW ROM optical disk drive, so the following procedure is an example using the server with 8 3.5-inch HDDs. To remove the optical disk drive: Remove the top cover.
  • Page 53 IMPORTANT: If you remove an optical disk drive without plans of installing a new one, you must reinstall the blank to maintain proper system airflow. To remove the bezel blank: Poke the tab in with the T15 wrench. Pull the bezel blank out of the bezel. Figure 11 Removing the Bezel Blank CAUTION: Do not discard the bezel blank.

  • Page 54: Hard Drives

    To install the optical disk drive: Slide the optical disk drive into the chassis. Secure the optical disk drive to the chassis with the two screws. Connect the SATA and power cables to their corresponding connectors on the optical disk drive. Figure 12 Installing the Optical disk drive Hard drives The drive bays on the front panel can accommodate up to twenty-five 2.5 in.
  • Page 55 For servers with 8 3.5-inch HDDs, the hard drives installed in the server are labeled from Device 1 to Device 8, from top to bottom, left to right, when viewed from the front of the server. Figure 14 Hard Drive Configuration / 8 3.5” HDD Model Item Description SAS/SATA hard drives 1-8...
  • Page 56 For servers with 8 2.5-inch HDDs, the hard drives installed in the server are labeled from Device 1 to Device 8, from top to bottom, left to right, when viewed from the front of the server. Figure 15 Hard Drive Configuration / 8 2.5” HDD Model Item Description SAS/SATA hard drives 1-8...
  • Page 57 For servers with 25 2.5-inch HDDs, the hard drives installed in the server are labeled from Device 1 to Device 25, from top to bottom, left to right, when viewed from the front of the server. Figure 17 Hard Drive Configuration / 25 2.5” HDD Model Item Description 1-25...
  • Page 58 To remove the hard drive: Press the hard disk carrier button to release the ejector lever. Use the hard drive carrier latch to pull the drive out of the cage. Make sure to support the drive when pulling it out of the cage. Pull the hard drive assembly out of the drive bay.

  • Page 59: Sas/Sata Hdd Backplane

    Figure 20 Installing the Hard Drive SAS/SATA HDD backplane The following figures show the front and back side of the backplane. Figure 21 Backplane Connectors / 4 3.5” HDD Model (component side) Item Description Screw holes LED indicators Headers for hard drive Removal and replacement procedures 59...
  • Page 60 Figure 22 Backplane Connectors / 8 3.5” HDD Model (component side) Item Description Screw holes LED indicators Headers for hard drive Figure 23 Backplane Connectors / 8 2.5” HDD Model (component side) Item Description LED indicators Screw holes Headers for hard drive Removal and replacement procedures 60...
  • Page 61 Figure 24 Backplane Connectors / 12 3.5” HDD Model (component side) Item Description Screw holes LED indicators Headers for hard drive Figure 25 Backplane Connectors / 25 2.5” HDD Model (component side) Item Description Screw holes LED indicators Headers for hard drive Removal and replacement procedures 61...
  • Page 62 Figure 26 Backplane Connectors / 4 3.5” HDD Model (solder side) Item Description Power connector Mini SAS connector PROG connector C connector Figure 27 Backplane Connectors / 8 3.5” HDD Model (solder side) Item Description Power connector PIC 2 PROG connector PIC 1 PROG connector C connector Removal and replacement procedures 62...
  • Page 63 Item Description Mini SAS connector 1 Mini SAS connector 2 Figure 28 Backplane Connectors / 8 2.5” HDD Model (solder side) Item Description PIC 2 PROG connector Power connector C connector PIC 1 PROG connector Mini SAS connectors Removal and replacement procedures 63...
  • Page 64 Figure 29 Backplane Connectors / 12 3.5” HDD Model (solder side) Item Description Power connector 1 PROG connector SAS/SATA expander chip with heat sink covered Mini SAS connector HDD LED connector C connector HDD 14 connector HDD 13 connector Power connector 2 Removal and replacement procedures 64...
  • Page 65 Figure 30 Backplane Connectors / 25 2.5” HDD Model (solder side) Item Description Power connector 1 Power connector 2 SAS/SATA expander chip with heat sink covered CPLD PROG connector C connector Mini SAS connector 1 Mini SAS connector 2 WARNING: Ensure that the system is powered off and all power sources have been disconnected from the server.
  • Page 66 To remove the backplane: Remove all drives out of the drive bays. Refer to the “Optical disk drive bay” and “Hard drives” sections in this chapter for detailed procedures. Remove the top cover. Remove all cables connected to the backplane. Remove the backplane.
  • Page 67 Figure 32 Reinstalling the Backplane Install all necessary cables. Removal and replacement procedures 67...

  • Page 68: System Board Configuration

    System board configuration Processor HP ProLiant DL180se G6 Server supports quad core processors. If a single processor is installed, then use socket 1. When two processors are used, the server supports boot functions through the processor installed in socket 1. However, if processor 1 fails, the system cannot boot up, and if processor 2 fails, the system will be automatically booted from processor 1 and provide a processor failure message.
  • Page 69 To remove the air baffle: Gently rock the air baffle up. Take the air baffle out from the system board. Figure 34 Removing the Air Baffle To remove the heat sink: Loosen the two spring-loaded screws. Lift the heat sink away from the system board. CAUTION: Place the heat sink down in an upright position with the thermal patch facing upward.
  • Page 70 CAUTION: Do not over-tighten the spring-loaded screws to prevent them from breaking off. A maximum torque of 6 inch-lb is set for each screw. Rotate the heat sink a few degrees to the left and right to break the bonding of the thermal grease compound before removing the heat sink from the processor.
  • Page 71 Apply the thermal grease compound to the CPU contact surface. CAUTION: HP recommends using Shin-Etsu X-23-7783D thermal grease compound for your ProLiant server. Apply all the grease to the top of the processor in one of the following patterns to insure even distribution.
  • Page 72 Close the retention plate. Lock the load lever. Figure 38 Installing the Processor CAUTION: To prevent overheating or a possible system crash, use only a heat sink model specified for the HP ProLiant DL180se G6 server. Removal and replacement procedures 72...
  • Page 73 To install the heat sink: Properly align the heat sink spring-loaded screws to the system board mounting holes. Tighten the spring-loaded screws clockwise to secure the heat sink connection to the system board. Figure 39 Installing the Heat Sink Assembly NOTE: When installing two heat sinks, it is recommended to put the heat sinks with the 14-fin side facing the DIMMs.

  • Page 74: Memory

    Memory The system board has eighteen DIMM slots that support up to 144 GB maximum system memory (8 GB in each of the eighteen DIMM slots). You must adhere to the following guidelines when adding or replacing memory modules: • For 2P system, both physical processors must be of the same type and speed.
  • Page 75 Figure 42 DIMM Slots NOTE: Before installing the memory, remove the air baffle first. For a detailed procedure, see the “Processor” section in this chapter. To remove the memory module: Completely open the holding clips securing the memory module. Gently pull the memory module upward to remove it from the slot. Figure 43 Removing the Memory Module CAUTION: Place the memory module on a static-dissipating work surface or inside of an anti-static bag.
  • Page 76 To install the memory module: Align the notch on the bottom edge of the memory module with the keyed surface of the DIMM slot and then fully press the memory module into the slot until the holding clips snap back in place.

  • Page 77: Dimm Identification

    DIMM identification IMPORTANT: This server does not support mixing RDIMMs and UDIMMs. Attempting to mix these two types causes the server to halt during BIOS initialization. The memory subsystem may be populated with either RDIMMs or UDIMMs, but mixing the two types is not supported. To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and table.

  • Page 78: Pci Expansion Card

    PCI expansion card System board PCI expansion slots There are four PCI expansion slots on the system board. Figure 46 System Board PCI Expansion Slots Item Component Component Function Designator PCIe x4 (LP) slot 2 Support a PCIe riser card PCIe x16 (FH/FL) slot 1a Supports a PCIe riser card, PCI-X riser card or PCIe &...
  • Page 79 PCI riser card expansion slot The PCIe riser card attached to the PCI cage converts the functionality of the system board expansion slot to the slot positioned at a 90° angle from the system board. NOTE: Users have the option to replace the standard riser card in slot 1a&1b with other four models using the dual PCIe x8 riser card, single PCIe x16 riser card, dual PCI-X riser card, or PCIe x16 &...
  • Page 80 PCI cage The server supports three types of PCI cages. They are the standard PCI cage, the HDD PCI cage, and the ODD PCI cage. The table below identifies the PCI cages by their function and shows their corresponding server type and supported riser cards.
  • Page 81 Lift the PCI cage away from the system board. Figure 49 Removing the PCI Cage Installing PCIe riser card The system supports up to two riser cards at a time. Use only HP supported expansion boards that meet the following specifications: •...
  • Page 82 To remove the PCIe riser card: Loosen the screw securing the riser card to the PCI cage. Push the riser card back and then lift it out of the PCI cage. Figure 50 Removing the Two PCIe x8 Riser Card Loosen the screws securing the riser card to the PCI cage.
  • Page 83 To install the PCIe riser card: Align the three riser card locking-tab holes to the corresponding standoffs on the PCI cage, and then push the card rightwards. Tighten the screw that secures the riser card to the PCI cage. Figure 52 Installing the Two PCIe x8 Riser Card Align the four riser card locking-tab holes to the corresponding screw standoffs on the PCI cage.
  • Page 84 To install the PCI expansion board: Remove the screw near the slot cover on the PCI cage. Figure 54 Removing the Screw on the PCI Cage on the Full-height / Full-length Side Figure 55 Removing the Screw on the PCI Cage on the Low-profile Side Remove the slot cover from the PCI cage.
  • Page 85 Figure 56 Installing the PCIe x8 Expansion Board Figure 57 Installing the PCIe x16 Expansion Board Removal and replacement procedures 85...
  • Page 86 To install the standard PCI cage: Install the PCI expansion board into the PCI cage. Align the PCI expansion board with the open expansion slot. Press the PCI expansion board into the expansion slot on the riser card. Tighten the screw that secures the expansion board to the PCI cage. Align the PCI cage assembly to the system board expansion slot, and then press it down to ensure full connection to the system board.
  • Page 87 To install the HDD PCI cage: The following figures show the front and back side of the backplane. Figure 59 Backplane Connectors / 2 3.5” HDD Model (component side) Item Description Screw hole LED indicators Headers for hard drive Figure 60 Backplane Connectors / 2 3.5” HDD Model (solder side) Item Description C connector...
  • Page 88 Item Description HDD 13 connector Power connector HDD 14 connector HDD LED connector Loosen the thumbscrew that secures the HDD PCI cage assembly to the system board and release the screws on the rear panel and side of the chassis. Lift the HDD PCI cage assembly away from the system board.
  • Page 89 Figure 62 Installing the 2HDD Backplane Align the HDD PCI cage assembly to the system board expansion slot, and then press it down to ensure full connection to the system board. Tighten the thumbscrew that secures the HDD PCI cage assembly to the system board and secure the screws on the rear panel and side of the chassis.
  • Page 90 Pull the rear hard dive blank out of the HDD PCI cage assembly. Figure 64 Removing the Rear Hard Drive Blank Push the hard dive assembly into the drive bay until it stops. Press the hard drive carrier latch inward until it clicks. Figure 65 Installing the Rear Hard Drive Removal and replacement procedures 90...
  • Page 91 To install the Optical Disc Drive PCI cage: Loosen the thumbscrew that secures the optical disc drive PCI cage to the system board and release the screw on the rear panel of the chassis. Lift the optical disc drive PCI cage away from the system board. Figure 66 Removing the Optical Disc Drive PCI Cage Push the optical disc drive into the ODD PCI cage.
  • Page 92 Tighten the screw that secures the optical disc drive to the ODD PCI cage. Figure 68 Securing the Optical Disc Drive Align the ODD PCI cage assembly to the system board expansion slot, and then press it down to ensure full connection to the system board. Tighten the thumbscrew that secures the ODD PCI cage to the system board and secure the screw on the rear panel of the chassis.

  • Page 93: Dedicated Management Port (Optional)

    Dedicated management port (Optional) The system board can support a dedicated management port. The dedicated management port is optional for the shipment. The following figure shows the dedicated management port location. Figure 70 Dedicated Management Port Location To remove the dedicated management port: Remove the PCI cage.
  • Page 94 Loosen the screw on the dedicated management port. Remove the dedicated management port from the dedicated management port connector. Figure 72 Removing the Dedicated Management Port Remove the spacer from the system board. Figure 73 Removing the Spacer Removal and replacement procedures 94...
  • Page 95 To reinstall the Dedicated management port: Insert the spacer into the system board. Figure 74 Inserting the Spacer Insert the dedicated management port into the dedicated management port connector on the system board. Tighten the screw clockwise to secure the dedicated management port to the system board. Figure 75 Reinstalling the Dedicated Management Port Removal and replacement procedures 95...

  • Page 96: System Battery

    Figure 76 System Battery Location WARNING: Note the following reminders when replacing the system battery: • Replace the system battery with the same type as the system battery recommended by HP. Use of another system battery may present a risk of fire or explosion.
  • Page 97 To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery. Figure 77 Replacing the System Battery Removal and replacement procedures 97...

  • Page 98: Bbwc (Optional)

    BBWC (Optional) The system board can support up to two BBWC. The BBWC is optional for the shipment. Figure 78 BBWC Locations To remove the BBWC: Pull the BBWC retaining latch. Slide the BBWC back, up and out of the tray. Figure 79 Removing the BBWC Removal and replacement procedures 98...
  • Page 99 To reinstall the BBWC: Pull the BBWC retaining latch. At the same time, align the locking tabs on the BBWC to their holes on the tray. Press the BBWC into the tray, and then push it along the direction of the arrow to lock the locking tabs. Figure 80 Reinstalling the BBWC Removal and replacement procedures 99...

  • Page 100: System Board Removal And Replacement Procedure

    System board removal and replacement procedure To remove the system board: Remove the top cover. Loose the nine screws that secure the system board to the chassis. Slide the system board back, up and out of the chassis. Remove the system board from the chassis.
  • Page 101 To reinstall the system board: Align the system board I/O connectors to their openings and slide the system board into place. The nine screw holes on the chassis should align with the system board. Fasten the nine screws on the system board to secure the system board to the chassis. Figure 82 Reinstalling the System Board Removal and replacement procedures 101...

  • Page 102: Power Supply Unit (Psu)

    Power supply unit (PSU) Located on the rear panel of the server power supply is designed with two types of power supply units. They are 460 W and 750 W PSU with power factor correction (PFC) function. Table 21 lists how to configure the power supply with the different system models.
  • Page 103 Figure 84 Removing the Power Supply Removal and replacement procedures 103...
  • Page 104 To reinstall the power supply: Align the hot-plug power supply cage connector with the open power supply bay and slide the power supply into the chassis. Push it in until the locking tab is clicked. Figure 85 Removing the Power Supply Blank Figure 86 Reinstalling the Power Supply Removal and replacement procedures 104...

  • Page 105: System Fan Cage

    System fan cage The server supports below two kinds of fan cage. The system redundant fan cage is optional for the shipment. • System non-redundant fan cage • System redundant fan cage Figure 87 System Non-redundant Fan Cage Figure 88 System Redundant Fan Cage Removal and replacement procedures 105...
  • Page 106 To remove the system non-redundant fan cage Remove all screws on the system non-redundant fan cage. Lift the system non-redundant fan cage up and out of the chassis. Figure 89 Removing the System Non-redundant Fan Cage To remove the system redundant fan cage Loosen the screws that secure the system redundant fan cage.
  • Page 107 Figure 91 Reinstalling the System Non-redundant Fan Cage To install the system redundant fan cage Get eight screws from the existing system non-redundant fan cage. See figure “Figure 89”. Remove the foam on the system redundant fan cage. Figure 92 Removing the Foam The system redundant fan kit has 4 fans installed on the cage.
  • Page 108 Locate the system redundant fan cage on the chassis and vertical wall. Fasten the screws. Figure 94 Installing the System Redundant Fan Cage Install the foam on the system redundant fan cage. Paste the mylar on the fan bracket. Figure 95 Installing the Foam and Mylar Removal and replacement procedures 108...
  • Page 109 Removal and replacement procedures 109...

  • Page 110: System Fan

    System fan The server has four or eight system fans located on the center wall of the chassis. While the server is equipped with eight system fans, the redundant function is provided. The figures below identify the system fans by their device number and show their corresponding cable connections.
  • Page 111 Figure 97 Connection of the Eight System Fans Device number Connector System fan 1/2 J63 on the system board System fan 3/4 J71 on the system board System fan 5/6 J62 on the system board System fan 7/8 J68 on the system board System fans 1 to 6 are for the memory modules and processors, while system fans 7 to 8 is for the PCI slots and system chipsets.
  • Page 112 Figure 98 Removing the System Fan To reinstall the system fan: Hold the system fan and press it into the system fan bracket. Secure the cable using the cable clip located on the chassis partition wall. Connect the system fan cable to its corresponding board connector. Figure 99 Reinstalling the System Fan Removal and replacement procedures 112...

  • Page 113: Connectors, Switches, And Leds

    This chapter contains illustrations and tables identifying and describing the connectors, jumpers, buttons, and LED indicators located on the front panel, rear panel, system board and hard drives of the HP ProLiant DL180se G6 server. Connectors and components Front panel components Figure 100 Front Panel Components / 4 3.5”...
  • Page 114 Figure 101 Front Panel Components / 8 3.5” HDD Model Item Description Front panel USB 2.0 port 0/1 Optical disc drive Front UID LED/switch System health LED NIC 1 activity LED NIC 2 activity LED Hard drive activity LED Power LED/switch Thumbscrews for rack mounting Drive activity LED Drive online/error LED...
  • Page 115 Figure 102 Front Panel Components / 8 2.5” HDD Model Item Description Front panel USB 2.0 port 0/1 Optical disc drive Front UID LED/switch System health LED NIC 1 activity LED NIC 2 activity LED Hard drive activity LED Power LED/switch Thumbscrews for rack mounting Drive activity LED Drive online/error LED...
  • Page 116 Figure 103 Front Panel Components / 12 3.5” HDD Model Item Description Front panel USB 2.0 port 0/1 System health LED Front UID LED/switch NIC 1 activity LED NIC 2 activity LED Hard drive activity LED Power LED/switch Thumbscrews for rack mounting Drive online/error LED Drive activity LED Hard disk drive (HDD) bays...
  • Page 117 Figure 104 Front Panel Components / 25 2.5” HDD Model Item Description Front panel USB 2.0 port 0/1 System health LED Front UID LED/switch NIC 1 activity LED NIC 2 activity LED Hard drive activity LED Power LED/switch Thumbscrews for rack mounting Drive online/error LED Drive activity LED Hard disk drive (HDD) bays...

  • Page 118: Rear Panel Components

    Rear panel components Figure 105 Rear Panel Components for Standard PCI Cage Item Description Power supply 2 cable socket Serial port T-10/T-15 wrench GbE LAN port for NIC 2 Dedicated management port (optional) Low-profile PCI expansion card slot cover Full-height/full-length PCI expansion card slot covers Rear UID LED/switch GbE LAN port for NIC 1 Rear panel USB 2.0 port 2/3...
  • Page 119 Figure 106 Rear Panel Components for HDD PCI Cage Item Description Power supply 1 cable socket Serial port T-10/T-15 wrench GbE LAN port for NIC 2 Dedicated management port (optional) Low-profile PCI expansion card slot cover Hard disk drive (HDD) bay Rear UID LED/switch GbE LAN port for NIC 1 Rear panel USB 2.0 port 2/3...
  • Page 120 Figure 107 Rear Panel Components for ODD PCI Cage Item Description Power supply 1 cable socket Serial port T-10/T-15 wrench GbE LAN port for NIC 2 Dedicated management port (optional) Optical disk drive (ODD) bay Full-height/full-length PCI expansion card slot covers Rear panel USB 2.0 port 2/3 GbE LAN port for NIC 1 Rear UID LED/switch...

  • Page 121: System Board Components

    System board components Figure 108 System Board Components Item Designator Description PCIe slot PCIe slot PCIe slot Dedicated management port connector DIMM slot 9C for processor 2 DIMM slot 1G for processor 2 CPU 2 Processor 2 CPU 1 Processor 1 DIMM slot 1G for processor 1 4-pin power connector System power connector...

  • Page 122: Jumpers

    Item Designator Description 3 V CMOS battery (CR2032) Front panel USB 2.0 port 0/1 Mini SAS connector Internal USB 2.0 port 4 TPM connector System maintenance jumper Jumpers The system board contains a system maintenance jumper (J27). Table 22 describes the jumper settings.

  • Page 123: Led Indicators

    LED indicators This section contains illustration and descriptions of internal and external status LED indicators located on the: • Front panel • Optical disk drive • Hard drive • Rear panel • System board These LED indicators aid in problem diagnosis by indicating the status of system components and operations of the server.
  • Page 124 Table 23 Front Panel LED Indicator Status on the Right Ear Item LED indicator Status Description No hard drive activity. Power LED/switch Steady green The system has AC power and is turned on. Steady amber The system has AC power but in standby mode.

  • Page 125: Optical Disk Drive Activity Led Indicator

    Optical disk drive activity LED indicator The optical disk drive has an activity indicator that indicates when the drive is reading media. Figure 110 Optical disk drive activity LED indicator Table 24 Optical disk drive Activity LED Indicator Status Item Component Status Description...

  • Page 126: Hard Drive Led Indicators

    Hard drive LED indicators The status of hard drives installed in the server is indicated by the hard drive LED indicators located on the HDD. Figure 111 Hard Drive LED Indicators Table 25 Hard Drive LED Indicator Status Item LED indicator Status Description Drive online/error LED...

  • Page 127: Rear Panel Led Indicators

    Rear panel LED indicators The LAN port on the rear panel has two LED indicators that allow monitoring of network activity. Figure 112 LAN LED Indicators Location Table 26 LAN LED Indicator Status Item Component Status Description NIC activity LED indicator Flashing green Linked and activity on the network.

  • Page 128: System Board Led Indicator

    System board LED indicator The system board contains one LED indicator for use during troubleshooting operations. Figure 113 System Board LED Indicator Table 27 System Board LED Indicator Status Item Component Status Description BMC activity LED indicator Steady green BMC is power on and in initialization process. Flashing green BMC activity.

  • Page 129: Diagnostic Tools And Setup Utilities

    If the server is already turned on, save your data and exit from all open applications, and then restart the server. When the HP logo is displayed during POST, press F10 into BIOS Setup Utility. If you fail to press F10 before POST is completed, you will need to restart the server.

  • Page 130: Navigating Through The Setup Utility

    Navigating through the Setup Utility Use the keys listed in the legend bar on the right of the Setup screen to navigate through the various menu and submenu screens of the Setup Utility. Table 28 lists these legend keys and their respective functions.

  • Page 131: Setup Utility Menu Bar

    ROM-based Setup Utility <Main> Advanced Boot Security Exit System Overview Use [ENTER], [TAB] or [SHIFT- TAB] to select a field Product Name : Proliant DL180se G6 Use [+] or [-] to configure ProLiant BIOS : O33 system Time Build Date...
  • Page 132 Advanced menu Figure 115 Advanced Menu of the BIOS Setup Utility ROM-based Setup Utility Main <Advanced> Boot Security Exit Advanced Settings Custom: Allow to configure WARNING: Setting wrong values in below sections may cause system Efficiency/Performance to malfunction. related items individually. Efficiency/Performance: Power Efficiency Mode [Efficiency]...
  • Page 133 Figure 116 IPMI Submenu of the BIOS Setup Utility ROM-based Setup Utility Main <Advanced> Boot Security Exit IPMI 2.0 Configuration InPut for Set LAN Configuration command. Status Of BMC Working NOTE: - BMC Firmware Revision 04.00 Each question in BMC/IPMI FW Date: Jan/09/2009 This group may take BMC SDR Version: 2.19.0.26 considerable amount of...
  • Page 134 Boot menu Figure 117 Boot Menu of the BIOS Setup Utility ROM-based Setup Utility Main Advanced <Boot> Security Exit Boot Settings Configure Settings during System Boot. Boot Settings Configuration Standard Boot Order Hard Disk Drivers USB Device Boot Priority [High] Restore on AC Power Loss [Last State] ←→...
  • Page 135 Security menu Figure 118 Security Menu of the BIOS Setup Utility ROM-based Setup Utility Main Advanced Boot <Security> Exit Security Settings Install or Change the password. Admin Password :Not Installed User Password :Not Installed Change Admin Password Boot Sector Virus Protection [Disabled] ←→...
  • Page 136 Exit menu Figure 119 Exit Menu of the BIOS Setup Utility ROM-based Setup Utility Main Advanced Boot Security <Exit> Exit Options Exit system setup after saving the changes. Save Changes and Exit Discard Changes and Exit F10 key can be used for Discard Changes this operation.

  • Page 137: Bios Update

    POST. The number of tests displayed depends on the configuration of the server. During POST you can: • Press ESC to skip the HP logo and go to POST boot progress display system summary screen. • Press F10 to access the Setup Utility. •...

  • Page 138: Post Error Descriptions

    POST error descriptions When a non-fatal error occurs during POST, the screen will display an error message with the format “xxx-Error Identifier String” where “xxx” is a unique number code that matches ODM system specific error documentation and may be a hexadecimal or decimal value. All Error messages describe the problems as shown below: Table 29 POST Error Messages...

  • Page 139: Setsys Utility

    • The server and monitor are both turned on. The bicolour status LED indicator on the ear must be lit up green. • The monitor's contrast and brightness settings are correct. • All internal cables are properly connected and all boards firmly seated. •...

  • Page 140: Physical And Operating Specifications

    Physical and operating specifications This chapter provides physical and operating specifications for the HP ProLiant DL180se G6 server. Specifications include: System unit Table 30 Hardware Specifications Item Components Processor socket Intel FCLGA1366 socket Processor 2P Intel Xeon processor with integrated memory controller...
  • Page 141 Table 30 Hardware Specifications Item Components Status LED indicators • System health LED • NIC 1/2 activity LED Front panel • Power switch/LED • Hard drive activity LED indicator • Front UID LED/switch • Rear UID LED/switch Rear panel • NIC link LED •...
  • Page 142 Table 31 Physical Dimensions Item Description System board platform EATX (Extended Advanced Technology Extended) System board dimension 304.8 mm x 330.2 mm (12 in x 13 in) Server dimensions (H x W x D) 87.6 mm x 448.0 mm x 703.4 mm (3.45 in x 17.64 in x 27.69 in) Rack Server weight...
  • Page 143 Table 33 Power Supply Specifications / 460 W Item Description Dimensions (H x W x D) 38.5 mm x 86.4 mm x 190.5 mm (1.52 in x 3.4 in x 7.5 in) 1.36 kg Weight (approximate) Input requirements: Rated input voltage 90 VAC to 264 VAC Normal line voltage 100 VAC to 120 VAC/200 VAC to 240 VAC...
  • Page 144 Table 34 Power Supply Specifications / 750 W Item Description Dimensions (H x W x D) 38.5 mm x 86.4 mm x 190.5 mm (1.52 in x 3.4 in x 7.5 in) 1.36 kg Weight (approximate) Input requirements: Rated input voltage 90 VAC to 264 VAC Normal line voltage 100 VAC to 120 VAC/200 VAC to 240 VAC...

  • Page 145: Index

    Index clear CMOS, 137 drive bay configuration, 49 AC power drives power-down procedures, 42 backplane, 59 air baffle cable connections, 45 installing, 73 cable management, 44 removing, 69 drive bay configuration, 49 hard drives, 54 backplane, 59 optical media drive, 52 reinstalling, 66 removing, 66 electric shock...
  • Page 146 dedicated management port, 93 LED indicator hard drives, 54 optical disk drive activity, 125 memory, 74 system board LED, 128 optical media drive, 52 LED indicators PCI expansion card, 78 LAN, 127 power supply unit, 102 processor, 68 mechanical components / 12 3.5, 19 references, 39 mechanical components / 25 2.5, 20 system battery, 96...
  • Page 147 applying thermal grease compound, 71 removing, 100 installing, 72 spare part number, 25, 27, 29, 31, 34 removing, 70 system components / 12 3.5, 31 processor socket system components / 25 2.5, 34 specification, 140 system components / 4 3.5, 24 processors system components / 8 2.5, 29 spare part number, 25, 27, 30, 32, 34...

Table of Contents
