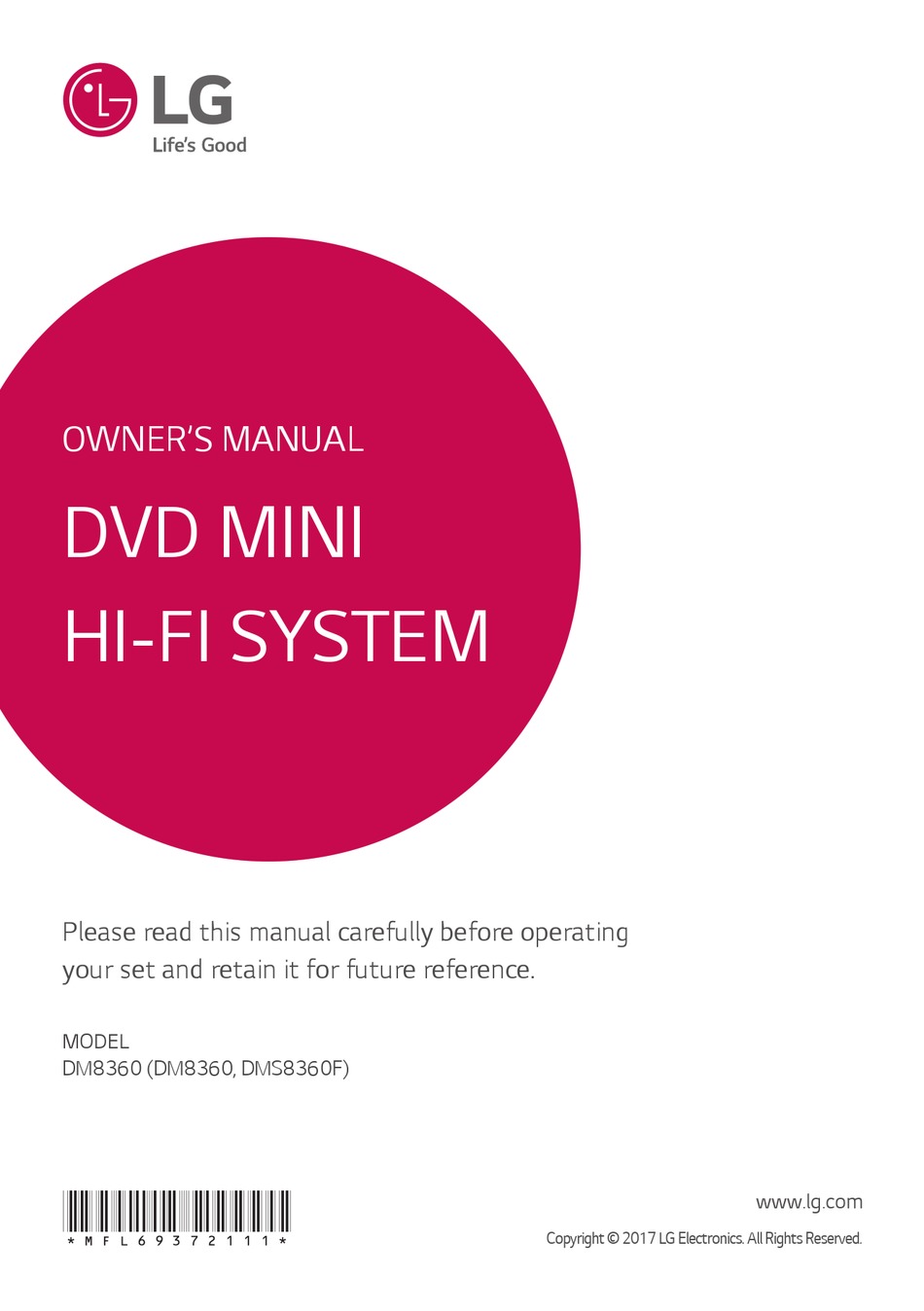

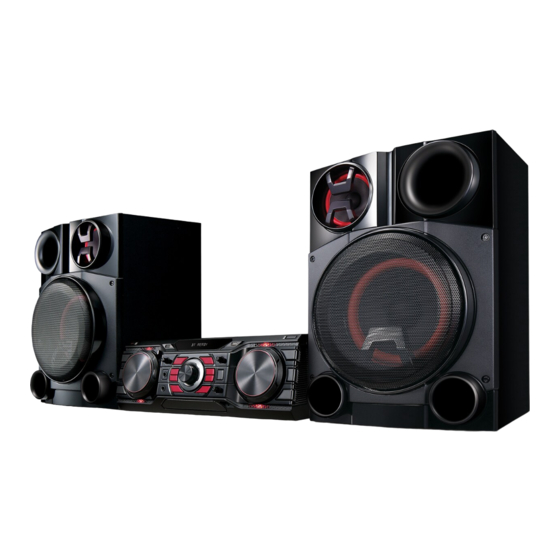

- Page 1 OWNER’S MANUAL DVD MINI HI-FI SYSTEM Please read this manual carefully before operating your set and retain it for future reference. MODEL DM8360 (DM8360, DMS8360F) www.lg.com *MFL69372111* Copyright © 2017 LG Electronics. All Rights Reserved .
-
Page 2: Getting Started
Getting Started Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: This product employs a Laser System. CAUTION: TO REDUCE THE RISK OF ELECTRIC To ensure proper use of this product, please read SHOCK DO NOT REMOVE COVER (OR BACK) this owner’... - Page 3 Getting Started CAUTION concerning the Power Cord This device is equipped with a portable battery or accumulator. Most appliances recommend they be placed upon a dedicated circuit; Safety way to remove the battery or the battery from the equipment: Remove the old battery or That is, a single outlet circuit which powers only battery pack, follow the steps in reverse order than that appliance and has no additional outlets or...
-
Page 4: Table Of Contents
Table of Contents Table of Contents Getting Started Connecting Safety Information Connecting to speakers Unique Features Connections to Your TV Introduction – HDMI Out Connection – Playable Discs – Resolution Setting – About the “7” Symbol Display Optional Equipment Connection –... - Page 5 – Setting the sound mode – AUTO POWER On – Setting the USER EQ – Auto function change Advanced Operations LG Sound Sync – Displaying Disc Information on-screen – To display the DVD Menu Troubleshooting – To display the DVD title –...
-
Page 6: Unique Features
DVD-RW (8 cm/12 cm disc) Video mode and finalized only. Controls volume level of this unit by the remote control of your LG TV that is compatible with LG DVD+R: Video mode only Sound Sync. Supports the double layer disc also. -
Page 7: Symbols Used In This Manual
Regional Codes You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG This unit has a regional code printed on the rear of players when formatting rewritable discs. When the unit. -
Page 8: Video File Requirement
Getting Started Video file requirement Compatible USB Devices y MP3 Player : Flash type MP3 player. Video file compatibility with this unit is limited as follows: y USB Flash Drive : Devices that support USB2.0 or USB1.1. y Available resolution: within 720 x 576 (W x H) pixels. -
Page 9: Remote Control
Getting Started Remote control B (Open/Close) : Opens and closes • • • • • • • • • d • • • • • • • the disc tray. REGION EQ : Chooses sound SLEEP : Sets the System to turn impressions. -
Page 10: Front Panel
Getting Started Front panel a 1/!(Standby/On) l MIC VOL (Microphone Volume) Turn the power on or off. Adjusts Mic volume. b CLOCK m USB Port Sets a clock and checks a time. You can play or record sound files by connecting the USB device. -
Page 11: Rear Panel
Getting Started q Disc tray r USER EQ LEVEL Controls sound register. s PORT. (Portable) IN jack Connect a portable device. t F (Function) Selects the function and input source. u SOUND EFFECT Selects a sound effect mode. Rear panel a Power cord b SPEAKERS connector >... -
Page 12: Connecting
Connecting > Caution Connecting to speakers y Do not try to lift the speaker alone. It needs two persons to lift the speaker. Otherwise Connect the speaker cable plugs to the SPEAKERS it may result in the speaker malfunction connector. Make sure to connect the speaker’ s plug and cause personal injury and/or property to the corresponding colored speaker connector damage. -
Page 13: Connections To Your Tv
Connecting > Caution Connections to Your TV y Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off HDMI Out Connection the unit and then turn it on again. y When the HDMI connection with HDCP is If you have a HDMI TV or monitor, you can connect it not verified, TV screen is changed to black or to this unit using a HDMI cable (Type A, High Speed... -
Page 14: Resolution Setting
High Speed HDMI™ Cable. have set on the player, you can set resolution to y If you use LG TV or Bluetooth Function of the 480p (or 576p) as follows: unit, the audio is not output to HDMI. -
Page 15: Optional Equipment Connection
Connecting Optional Equipment AUX OUT Connection Connection Connect an input of auxiliary device to the AUX OUT (L/R) connector. If your device has only one input for audio(mono), connect it to the left audio jack on the unit. AUX IN Connection Connect an output of auxiliary device (Camcorder, TV, Player, etc) to the AUX IN (L/R) connector. -
Page 16: Port. In Connection
Connecting PORT. IN Connection USB Connection Connect an output (earphone or line out) of portable Connect a USB device (or MP3 player, etc.) to the device (MP3 or PMP etc) to the PORT. IN connector. USB ports on the unit. USB device Portable cable Note... -
Page 17: Antenna Connection
Connecting Antenna Connection Connect the supplied FM antenna for listening to the radio. Connect the FM wire antenna to the FM antenna connector. FM antenna Note Be sure to fully extend the FM wire antenna. -
Page 18: System Setting
System Setting Adjust the setup To display and exit the Setup menu settings 1. Press HOME on the unit or n on the remote control. By using the Setup menu, you can make various Displays the [Home Menu]. adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. -
Page 19: Language
System Setting Language Resolution Sets the output resolution of HDMI video signal. Menu Language Refer to “Resolution Setting” for details about the resolution (page 14). Select a language for the Setup menu and on screen display. [Auto] If the HDMI OUT jack is connected to Disc Audio / Disc Subtitle / Disc Menu TVs providing display information (EDID), Select the language you prefer for the audio track... -
Page 20: Audio
System Setting Audio Lock (Parental Control) DRC (Dynamic Range Control) Initial Setting the Area Code: Make the sound clear when the volume is turned When you use this unit for the first time, you have to down (Dolby Digital only). Set to [On] for this effect. set the Area Code. - Page 21 System Setting Password You can enter or change password. 1. Select [Password] on the [Lock] menu and then press D . 2. Press OK / SET on the unit or b OK on the remote control. 3. Input a password and press OK / SET on the unit or b OK on the remote control.
-
Page 22: Operating
Operating Using the Home Menu Basic Operations 1. Press HOME on the unit or n on the remote 1. Insert the disc by pressing B on the remote control. control or R on the unit Displays the [Home Menu]. Or connect the USB device to the USB port. 2. - Page 23 Operating Do this Do this Press Z STOP on the remote In the pause mode, press Stop control or I on the unit. Y / U on the unit or C / V on the remote Press d on the remote control Playback control to select the required or T on the unit.
-
Page 24: Playback Effect
Operating Playback Effect AUTO DJ Auto DJ blends the end of one song into the beginning of another for seamless playback. It equalizes volume across tracks/files for uninterrupted playback. Press AUTO DJ on the unit or remote control repeatedly, the display changes as followings. AUTO DJ RANDOM ->... -
Page 25: Using Bluetooth® Wireless Technology
In order to use Bluetooth wireless technology, For example, if your unit has a BT address devices must be able to interpret certain profiles. T his such as 9C:02:98:4A:F7:08, you will see “LG unit is compatible with following profile. MINI(F7:08)” on your Bluetooth device. - Page 26 Bluetooth and the unit gets out of the operating range of Bluetooth. y If the function is changed to Bluetooth again from other function, Bluetooth device is paired automatically. y Bluetooth and LG Sound Sync connection are unavailable during recording.
-
Page 27: Radio Operations
Operating Radio Operations Presetting the Radio Stations You can preset 50 stations for FM Be sure that FM antenna is connected. Before tuning, make sure to turn down the volume. (Refer to page 17) 1. Press F until FM appears in the display window. 2. -
Page 28: Sound Adjustment
Operating Note Sound adjustment y This function is not operated when the microphone is connected to the unit. y By pressing BASS BLAST on the unit you can Setting the sound mode directly select BASS (BASS BLAST) effect. This system has a number of pre-set surround sound fields. -
Page 29: Advanced Operations
Operating Advanced Operations 1.5 times speed playback The 1.5 speed allows you to watch the pictures and Displaying Disc Information on- listen to the sound quicker than playing at a normal screen speed. 1. During playback, press d to play at 1.5 times You can display various information about the disc speed. -
Page 30: Changing Subtitle Code Page
Operating Changing subtitle code page [Mark Play] - Optional Marked playback. [Current Play] If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle file Normal playback. properly. Note 1. During playback, press m INFO/DISPLAY to display the On-Screen display. -
Page 31: Viewing A Photo File
Operating Viewing a PHOTO file About help menu in the full screen Menu Buttons Operation This unit can play discs with photo files. Displaying the Option Menu INFO/ 1. Select [Photo] on the [Home Menu] and press menu. DISPLAY b OK. Moving to another Moving to the previous or next Prev./ Next... -
Page 32: Recording To Usb
Operating Note Recording to USB y You can check the recording percentage rate You can record music or sound souce to USB device for the USB record on the screen during the by connecting in to the port on the unit. recording. -
Page 33: Other Operations
Operating Other Operations System Select - Optional You must select the appropriate system mode for your TV system. Press and hold M for more than five seconds to be able to select a system in the [Home Sleep Timer Setting Menu]. -
Page 34: Childsafe Mode
Note Note y This function is available to use only when a In case of DVD/CD, USB, BT function or LG TV microphone is connected. Function, CHILDSAFE mode does not work after y It is not available on the MONO source. -
Page 35: Using Microphone
Operating Setting the Clock Using Microphone 1. Connect your microphone to the MIC jack. 1. Turn the unit on. 2. Play the music you want. 2. Press and hold CLOCK. 3. Sing along with the accompaniment. Adjust the microphone volume by rotating MIC VOL 3. -
Page 36: Using Your Player As An Alarm Clock
Operating Auto power down Using your player as an alarm clock This unit will turn itself off to save electricity in the 1. Turn the unit on. case were the main unit is not connected to an 2. Press and hold ALARM. external device and is not used for 20 minutes. -
Page 37: Auto Power On
This unit does not respond to the bluetooth y If you turn on the unit using LG TV or connection signal while using the LG TV Bluetooth function, proper function of this function. -
Page 38: Lg Sound Sync
The amount of time to turn off this unit is different depending on your TV. 2. Press F on the unit or remote control until LG TV function is selected. y Details of TV setting menu vary depending on the manufacturers or models of your TV. -
Page 39: Troubleshooting
Troubleshooting Troubleshooting Problem Cause & Solution y Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn it on again. The unit does not work y Disconnect the power cord of this unit and the connected external device (TV, properly. -
Page 40: Appendix
The batteries in the remote control are exhausted. Replace the batteries with new ones. y Check whether your LG TV supports LG Sound Sync. LG Sound Sync does not y Check connection of LG Sound Sync. -
Page 41: Controlling A Tv With The Supplied Remote Control
Appendix Controlling a TV with Setting up the remote to control your TV the Supplied Remote You can operate your TV with the supplied remote Control control. If your TV is listed in the table below, set the appropriate manufacturer code. You can control your TV using the buttons below. -
Page 42: Area Code List
Appendix Area Code List Choose an area code from this list. Area Code Area Code Area Code Area Code Afghanistan Fiji Monaco Singapore Argentina Finland Mongolia Slovak Republic Australia France Morocco Slovenia Austria Germany Nepal South Africa Belgium Great Britain Netherlands South Korea Bhutan... -
Page 43: Language Code List
Appendix Language code List Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu]. Language Code Language Code Language Code Language Code Afar 6565 French 7082 Lithuanian 7684 Sindhi 8368 Afrikaans 6570 Frisian... -
Page 44: Trademarks And Licenses
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. -
Page 45: Maintenance
Appendix Maintenance Handling the Unit When shipping the unit Notes on Discs Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally Handling Discs packed at the factory. -
Page 46: General Specifications
Appendix General specifications General Power requirements Refer to the main label on the unit. Refer to the main label on the unit. Power consumption Networked standby : 0.5 W (If all network ports are activated.) Dimensions (W x H x D) 450 mm x 160 mm x 355 mm Net Weight (Approx.) 5.6 kg... -
Page 47: Speakers Specifications
Appendix Speakers specifications Front speaker Type 3 Way 3 Speaker Impedance 6 Ω Rated Input power 550W Max. Input power 1110W Net Dimensions (W x H x D) 321 mm x 454 mm x 301 mm Net Weight 9,6 kg y Design and specifications are subject to change without notice.
