LG KR-W1080HTS Manual

Wireless dvd receiver system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LH-W9656IA_JA7IDLA_ENG_140M
WIRELESS DVD
RECEIVER SYSTEM
MODEL: KR-W1080HTS
(Main Unit: KR-W1080HTS
Speakers: KR-W1080HTS)
R
USB
Before connecting up, operating or repairing this product,
please read this instruction booklet carefully and
completely.

Advertisement

Table of Contents
loading

Related Manuals for LG KR-W1080HTS

Summary of Contents for LG KR-W1080HTS

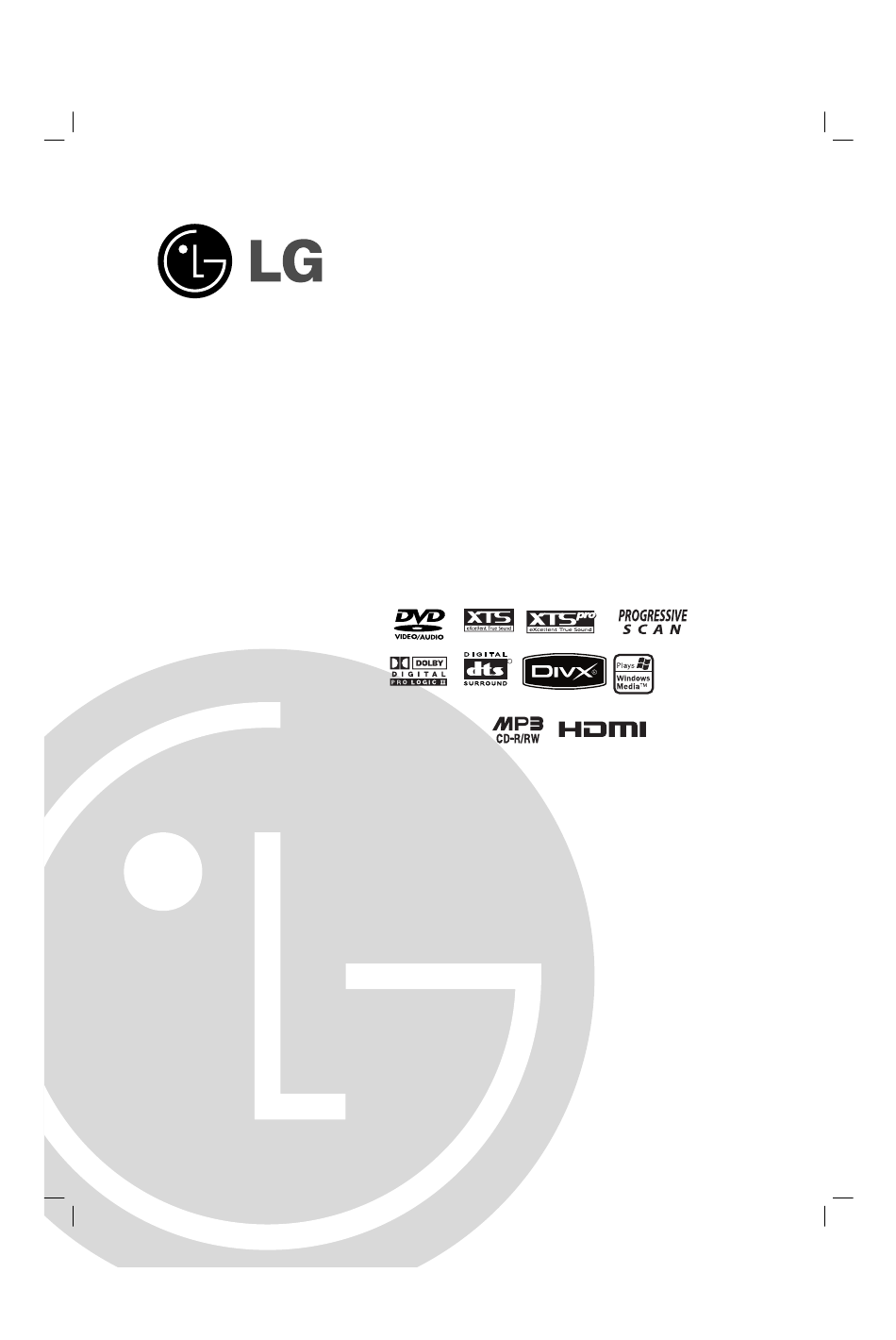

  • Page 1 LH-W9656IA_JA7IDLA_ENG_140M WIRELESS DVD RECEIVER SYSTEM MODEL: KR-W1080HTS (Main Unit: KR-W1080HTS Speakers: KR-W1080HTS) Before connecting up, operating or repairing this product, please read this instruction booklet carefully and completely.
  • Page 2 CAUTION: The apparatus should not be exposed to water CAUTION (dripping or splashing) and no objects filled with liquids, such RISK OF ELECTRIC SHOCK as vases, should be placed on the apparatus. DO NOT OPEN CAUTION concerning the Power Cord Most appliances recommend they be placed upon CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK...

  • Page 3: Table Of Contents

    Introduction Maintenance and Service Maintenance and Service ....3 Before use ......4 Refer to the information in this chapter before Front Panel/Rear Panel .

  • Page 4: Before Use

    Introduction Before use Types of Playable Discs To ensure proper use of this product, please read this (8 cm / 12 cm disc) owner’s manual carefully and retain for future reference. Video CD (VCD) (8 cm / 12 cm disc) This manual provides information on the operation Audio CD and maintenance of your DVD/CD Receiver.

  • Page 5: Front Panel/Rear Panel

    Front Panel/Rear Panel MIC 1/MIC 2 Connect a microphone to MIC 1 or PHONES connector MIC 2 or to both sockets. STANDBY/ON DISC Tray FUNC./PLAY STANDBY indicator Press and hold down this button about 3 OPEN/CLOSE button seconds, then press repeatedly to select Lights red when the other function.

  • Page 6: Remote Control

    DIMMER Press to change brightness of the display window on the front panel during in power-on status. To control the TV. (LG TV only) (See page18) Remote Control Operation Range Remote control battery installation Point the remote control at the remote sensor and press the Remove the battery cover on the rear of buttons.

  • Page 7: Installation And Setup

    Installation and Setup TV Connections Make one of the following connections, depending on S-Video connection the capabilities of your existing equipment. Connect the S-VIDEO OUT jack on the DVD/CD Receiver to the S-VIDEO IN jack on the TV using the Tips: S-Video cable (S).

  • Page 8: Optional Equipment Connections

    Optional Equipment Antenna Connections Connections Connect the supplied FM/AM antenna for listening to the radio. 1. Connect a VCR to the AV IN connectors. Connect the AM Loop antenna to the AM antenna 2. Connect an optical output of DVD Player (or Digital connector.

  • Page 9: Speaker System Connection

    Speaker System Connection Notes: Optimum performance can be implemented only when the Speaker Connections transmitter and the wireless speakers within distance of 2m through 10m is used since communication failure may Connect the speakers to the front (right, left) or occur if closely approaching distance between them.

  • Page 10: Setting A Channel Or Id Of Transmitter And Wireless Speaker

    Setting a channel or ID of Initial setting an ID of Transmitter transmitter and wireless speaker 1. Connect the SOUND SIGNAL connector of transmitter and the rear (right, left) speaker terminals of main unit with the SOUND SIGNAL cable. Note: 2.

  • Page 11: Assembling And Connecting To The Speakers

    Assembling and Connecting to the Speakers The front and rear speakers are detached from the speaker stands. Connect the speaker cords and assemble the front and rear speakers from speaker stands as illustrated. 1. Connect the speaker cords to the appropriate terminals on the bottom of each front and rear speaker.

  • Page 12: Hdmi Connection

    HDMI Connection HDMI compatible TV HDMI If you have a HDMI TV or monitor, you can connect it to this DVD/CD Receiver using a HDMI cable. 1. Connect the HDMI OUT jack on the DVD/CD Receiver to the HDMI jack on a HDMI compatible TV or monitor (H).

  • Page 13: Displaying Disc Information On-Screen

    Displaying Disc Information Initial Settings on-screen By using the Setup menu, you can make various adjustments to items such as picture and sound. You You can display various information about the disc can also set a language for the subtitles and the loaded on-screen.

  • Page 14: Display

    DISPLAY DISPLAY 16 : 9 TV Aspect Widescreen Display Mode Progressive Scan Move Select TV Aspect 4:3 – Select when a standard 4:3 TV is connected. 16:9 – Select when a 16:9 wide TV is connected. Display Mode Display Mode setting works only when the TV Aspect mode is set to “4:3”.

  • Page 15: Audio

    AUDIO 5.1 Speaker Setup Make the following settings for the built-in 5.1 channel Each DVD disc has a variety of audio output options. surround decoder. Set the receiver’s AUDIO options according to the type of audio system you use. 1. Press ENTER and 5.1 Speaker Setup menu appears.

  • Page 16: Lock (Parental Control)

    LOCK (Parental Control) Area Code Enter the code of the area whose standards were LOCK used to rate the DVD video disc, based on the list on Rating Unlock page 25. Password **** Area Code 1. Select “Area Code” on the LOCK menu then press B.

  • Page 17: Operation

    Operation General features Buttons Operations Discs Z (OPEN / CLOSE) Opens or closes the disc tray. X (PAUSE) During playback, press X to pause playback. Press X repeatedly to play Frame-by-Frame. DivX SKIP (. / >) During playback, press SKIP (. or >) to go to the next chapter/track or to return to the beginning of the current chapter/track.

  • Page 18: Additional Features

    Receiver as well as limited functions of LG TV. points. To enter a marker, press MARKER at the Follow the instructions below to operate for your LG TV. desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine Before using the remote control, press the TV to select markers.

  • Page 19: Playing An Audio Cd Or Mp3/Wma File

    Playing an Audio CD or MP3/WMA file Programmed Playback This unit can play Audio CDs or MP3/WMA files The program function enables you to store your recorded media. favorite tracks from any disc in the receiver memory. A program can contain 300 tracks. MP3/ WMA/ Audio CD Once you insert an MP3/WMA files recorded media or 1.

  • Page 20: Viewing A Jpeg File

    Viewing a JPEG file JPEG JPEG disc compatibility with this player is limited as follows: This unit can play discs with JPEG files. • Depending upon the size and number of JPEG Before playing JPEG recordings, read the notes on files, it could take a long time for the DVD/CD JPEG Recordings on right.

  • Page 21: Playing A Divx Movie File

    Playing a DivX Movie file DivX disc compatibility with this player is limited as follows: Using this DVD/CD Receiver you can play DivX disc. • Available resolution size of the DivX file is under 1. Insert a disc and close the tray. The MOVIE menu 800x600 (W x H) pixel.

  • Page 22: Dvd Audio Discs

    DVD Audio Discs Moving to another GROUP Some DVD Audio discs divide content into different DVD Audio is a new disc format building on the groups. Your player enables you to quickly access success of DVD to provide high quality, different groups during playback via the on-screen uncompressed, multi-channel audio for a new display.

  • Page 23: Presetting The Radio Stations

    Presetting the Radio Stations Listening to the Radio You can preset 50 stations for FM and AM (MW). Preset radio stations in the DVD/CD Receiver’s Before tuning, make sure that you have turned down memory first (see “Presetting radio stations” on the the volume.

  • Page 24: Sleep Timer Setting

    The SLEEP indicator and sleep time appears in the display window. XTS-P ON The unique sound quality of the LG Technology 2. Each time you press SLEEP the setting creates the optimum sound for you to play the changes in the following order.

  • Page 25: Language Codes

    Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian 7684...

  • Page 26: Troubleshooting

    Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Correction Symptom Cause • Plug the power cord securely into the • The power cord is disconnected. No power. wall outlet. • Insert a disc. (Check that the DVD or, •...
  • Page 27 Symptom Cause Correction • The antenna is positioned or connected • Connect the antenna securely. Radio stations cannot poorly. be tuned in. • Adjust the antennas and connect an external antenna if necessary. • The signal strength of the stations is too •...

  • Page 28: Specifications

    Specifications Power supply Refer to main label Power consumption Refer to main label Net Weight 3.9 kg External dimensions (W x H x D) 430 x 57 x 295 mm Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal Operating humidity 5% to 85% Laser Semiconductor laser, wavelength 650 nm...
