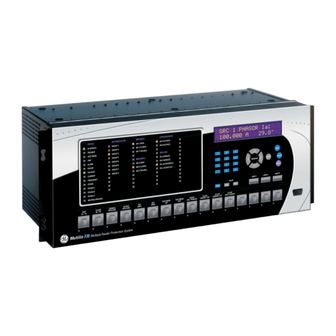

GE
Grid Solutions
UR Family
Version 5.8x
Release Notes
GE Publication Number: GER-4648D
Copyright © 2021 GE Multilin
Overview
This document contains the release notes for firmware and software version 5.80 to 5.84 of the GE Universal
Relay (UR) family of products.
Applicable to products: B30, B90, C30, C60, C70, C95, D30, D60, F35, F60, G30, G60, L30, L60, L90, M60, N60, T35,
T60
Date of release 5.80: 2010
Date of release 5.81: 2010
Date of release 5.83: 24 April 2014
Date of release 5.84: 20 October 2021
In the following descriptions, a category letter is placed to the left of the title. See the table at the end of this
document for descriptions of the categories.
Major firmware releases can introduce new protection and control elements that can affect the device's
Modbus memory map. Check the summary of released features to find out if it applies to a particular release.
When upgrading the firmware from versions 5.80 or 5.81 to version 5.84, the relay's settings may
be reset to factory defaults. The relay's settings should be saved before the upgrade and reloaded
to the relay after the firmware upgrade.
Firmware version 5.84 is not applicable to the L60 Line Phase Comparison System.
UR Family Version 5.8x - Release Notes
1

Advertisement

loading

Related Manuals for GE UR Series

Summary of Contents for GE UR Series

  • Page 1 Copyright © 2021 GE Multilin Overview This document contains the release notes for firmware and software version 5.80 to 5.84 of the GE Universal Relay (UR) family of products. Applicable to products: B30, B90, C30, C60, C70, C95, D30, D60, F35, F60, G30, G60, L30, L60, L90, M60, N60, T35, Date of release 5.80: 2010...
  • Page 2 This new functionality allows customers to monitor, trend, detect, and analyze Power Quality issues that can affect the generator performance. GE tracking number: 580-3 Bus Differential Systems B30, B90 Bus Differential System B30 has been enhanced to have individual phase instantaneous overcurrent...
  • Page 3 C70 to fit those applications where more than two voltage elements are required per a single voltage source, for example 59N alarm settings, 59N low-level trip, and 59N High-level setting. GE tracking number: 580-6 Thermal overcurrent curve “I2T type” has been enhanced with the addition of a new reset operand Products: C70 Corrected firmware: 5.80...
  • Page 4 So the Phase Comparison Element can interface with those devices (for example, L60 at one end of the line and another manufacturer’s legacy device installed at the opposite end of the line). GE tracking number: 580-10 L90 inter-relay communication for three-terminal schemes has been changed to ensure...
  • Page 5 With this firmware version, the Load Encroachment element is supported by all “five windings software options”. GE tracking number: 580-13 Common Protection Elements The Negative Sequence Directional Overcurrent element has been enhanced to deliver additional...
  • Page 6 UR relay and helps the DNP master to calculate the delay in the serial wire. Firmware versions not affected: 5.04, 5.54. GE tracking number: 504-5 PMU - Synchrophasors The N60 PMU recorder capabilities have been enhanced to have eight additional analog channels Products: N60 Corrected firmware: 5.80...
  • Page 7 (magnitude and angle values) of the neutral current. This implementation makes analysis of fault events easier. GE tracking number: 580-22 New self-test FlexLogic operand has been added to indicate a “Brick Trouble” condition Products: B30, C30, C60, C70, D30, D60, F35, F60, G30, G60, L30, L90, M60, N60, T35, T60 Corrected firmware: 5.80...
  • Page 8 HardFiber wiring when both line terminals had the same kind of wiring (both traditional or both HardFiber). GE tracking number: 581-1 Common Protection Elements Ground Time Overcurrent elements have been changed to use the correct signal input when set to “phasor”...
  • Page 9 Changes to the autoreclose element ensure that the element stays on “lockout” state when the described conditions are present. GE tracking number: 581-4 The “Non-Volatile Latches” elements have been changed to ensure they will maintain the output...
  • Page 10 The Autoset functionality of these elements does not change any of the coefficients as expected if the C70 has only voltage inputs, hence this is not an issue if the C70 has any CT bank inputs in its order code. GE tracking number: 720-04 Line differential protection systems – L30, L90...
  • Page 11 Affected users can either upgrade their UR device with the corrected firmware version or use the UR FlexLogic to implement the parallel supervision explained. GE tracking number: 601-2 The voltage memory for distance polarization in L90 relays has been changed to ensure only actual...
  • Page 12 87L element to misoperate during re-synchronizing attempt. This improves the 87L element security to prevent misoperation when, under the described conditions, the 50DD element is not supervising the 87L element. Customers who have followed GE recommendations for heavily noisy channels or having reliable inter-relay communication are not required to take action.
  • Page 13 Users for whom Time Overcurrent applications require pickup values higher than 0.1 per unit are not affected by this issue and a firmware update is not required. GE tracking number: 590-15 Potential Overfrequency misoperation at low RMS metered values Products: D60, F60, G30, G60, L90, M60, N60, T60;...
  • Page 14 “b” described above.. For additional details on the “Fault type” comparator, see the Instruction manual of any applicable UR device. GE tracking number: 710-8 Neutral directional overcurrent detection error Products: C70, D30, D60, F60, G30, G60, L30, L60, L90, M60, T60 Corrected firmware: 5.83, 7.20...
  • Page 15 GE tracking number: 601-8 Breaker and switch elements have been changed to ensure they show the right status when there is...
  • Page 16 Previous firmware versions may not display analog values properly when only one analog point is programmed. GE tracking number: 572-4 The “IEC104 Point Lists” element has been changed to ensure the entire list is retrieved when all analog points are being used.
  • Page 17 One key code can be used on all UR devices. To reset the password, users must now submit a key via the front panel (users can obtain their key by contacting GE technical support). This “password reset command” also clears all settings and event records, which is actually aligned to the NERC-CIP R7.1 and R7.2 requirement.
  • Page 18 Furthermore, the DST function setting is correctly applied to the timestamp that is shown on the fault report summary page when accessed through UR Setup Software or web browser. GE tracking number: 590-14 The timestamp routine has been changed to prevent timestamp discrepancies and a longer...
  • Page 19 GE tracking number: 720-44 Platform Transduced outputs have been modified to show the accurate values when used to represent fault location Products: B30, B90, C30, C60, C70, D30, D60, F35, F60, G30, G60, L30, L60, L90, M60, N60, T35, T60 Corrected firmware: 5.83, 6.01...
  • Page 20 This firmware release ensures that the firmware in the Brick is maintained when connecting a Brick to URs with earlier firmware versions. GE tracking number: 601-07 UR Family Firmware 5.83 - Release Notes...
  • Page 21 DSP module installed. Performance of protection elements is not compromised by this issue. For details on the B90 oscillography, see the B90 instruction manual. GE tracking number: 603-1 Improved accuracy of bus differential pickup in the region between Low and High breakpoints Products: B30, B90 Impacted firmware: All to 6.06, 7.00 to 7.28, 7.30 to 7.82...
  • Page 22 Failure 08. After powering up the relay, depending on the firmware version, the timestamps are the same as the Module Failure 08 timestamp or no events are recorded at all. The new releases fix the issue. GE tracking number: 726-21 Improved security in IOC elements Products: All except B90, C30, T35 Impacted firmware: All to 6.06, 7.00 to 7.27, 7.30 to 8.20...
  • Page 23 For example, a relay in “Not Programmed” state asserts the “ANY MAJOR ERROR” FlexLogic operand. Clearing a minor self-test de-asserts this operand, even though the relay is still not programmed. The new releases fix the issue. GE tracking number: 606-5 Changes to the DSP setting buffer prevents nuisance alarms Products: All Impacted firmware: 5.70 to 6.04...
  • Page 24 SELECT VOID. There is no impact on the protection performance unless PHASE SELECT 3P is used in logic, for example to inhibit reclosure for three-phase faults. The new releases fix the issue. GE tracking number: 726-3, Corrected echo logic in the 1P POTT pilot scheme Products: D60, L90 Impacted firmware: All to 6.05, 7.00 to 7.26, 7.30 to 7.32...
  • Page 25 Description: In previous versions, the Phase Distance element zone 2 operate operand drops out 20 msec after the pickup operand. In the new releases, the zone 2 operate drops out at the same time as the pickup operand. GE tracking number: 607-2 Communications Improved security of UR web pages Products: All Impacted firmware: All to 8.03...
  • Page 26 In UR versions 5.48, 5.49, 5.83, 5.92, 6.02 to 6.05, 7.00 to 7.25, and 7.31, the VxWorks debug port is password-protected with two factory-service passwords. GE tracking number: 606-10 C,B Corrected firmware to prevent an unexpected restart due to MMS frames with corrupted CLNP header Products: All with the IEC 61850 software option Impacted firmware: All to 6.05, 7.00 to 7.25...
  • Page 27 As a result of this change, new self-tests are added to the design. See the manual for more information. The new releases fix the issue. GE tracking number: 760-20 Transformer Protection Systems – G30, T35, T60 Corrected firmware to prevent latching of “XFMR PCNT DIFF PKP” and “XFMR PCNT DIFF 5TH"...
  • Page 28 This software tool reduces the number of steps required for IEC61850 GOOSE configuration and enables customers with limited communication experience to set their GOOSE messages. GE Tracking Number: 580-24 New “Backup / Restore” modes for UR Setup software environment file Applicable: UR Setup, UR Engineer Description: A new software tool named “Environment Backup”...
  • Page 29 One the language and front panel are changed by the user, the software tool updates the order code, which erases all the settings. Settings must be previously saved and uploaded to the relay after the changed is done GE Tracking Number: 580-27 UR Family Software 5.80 - Release Notes...
  • Page 30 IEC61850 Configurator 5.71 – previous release  Customers having UR devices with FW version 5.7x or 5.8x should use VP UR Engineer 5.80. GE Tracking Number: 580-28 Software exceptions Applicable: UR Engineer Description: The following software exceptions have been corrected with firmware release 5.80.
  • Page 31 Software 5.81 Software Exceptions Applicable: UR Setup, UR Engineer Description: The following software exceptions have been corrected with software release 5.81: Software Exceptions • Overcurrent elements were being inadvertently removed when the relay order code had software option # 12 or 13 and the process bus (HardFiber) module.
  • Page 32 Categories This document uses the following categories to classify changes. Revision categories Code Category Description This change may require hardware to be updated and/or Hardware change replaced New feature A separate feature added to the relay. Changes to existing features even if they significantly expand the functionality are not in this category.
