Sealey PCT2 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
WARNING! Ensure Health & Safety, and local authority regulations are adhered to when assembling and using the workbench.
‰
Locate workbench in a suitable area where it will not be an obstruction.
9
Keep the general area clean, uncluttered and ensure there is adequate lighting.
9
WARNING! Erect unit on a level and solid surface such as concrete.
‰
Keep children and unauthorised persons away from the work area.
9
DO NOT use the unit for any purpose other than that for which it is designed.
8
DO NOT clean the unit with any solvents which may damage the surfaces.
8
Ensure that the unit is properly and securely assembled before use.
9
2. NTRODUCTION

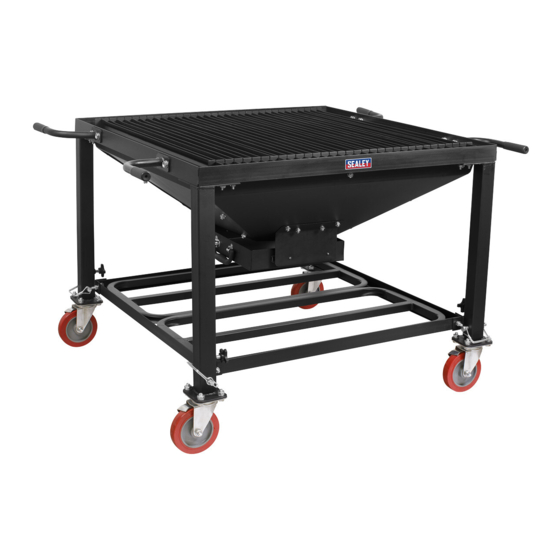

Mild steel plasma cutting table/workbench. 32 Replaceable cutting slats, order Model No. PCT2RS for a pack of 10 replacements.
Removable side handles/cable tidy hanging hooks. Adjustable working height 750mm to 1011mm. Lockable castor wheels for easy
movement. Funnel shaped base with slide out tray for safe removal of offcuts and slag. Supplied flat packed for easy self assembly
using hand tools (not provided). Supports weight capacity of 136kg.
3. SPECIFICATION
Model No.: .................................................................... PCT2
Max. weight capacity ................................................... 136 kg
Height range .................................................. 750 - 1011 mm
Assembled dimensions (W x D) .....................1200 x 910 mm
Bench dimensions ............................................915 x 910 mm
Replacement parts: Slats (pack of 10) ..................... PCT2RS
© Jack Sealey Limited
PLASMA CUTTING TABLE/WORKBENCH
- ADJUSTABLE HEIGHT WITH CASTOR
WHEELS
MODEL NO:
Wear safety
footwear
Original Language Version
PCT2
PCT2 Issue 1 15/09/20
