Page 1

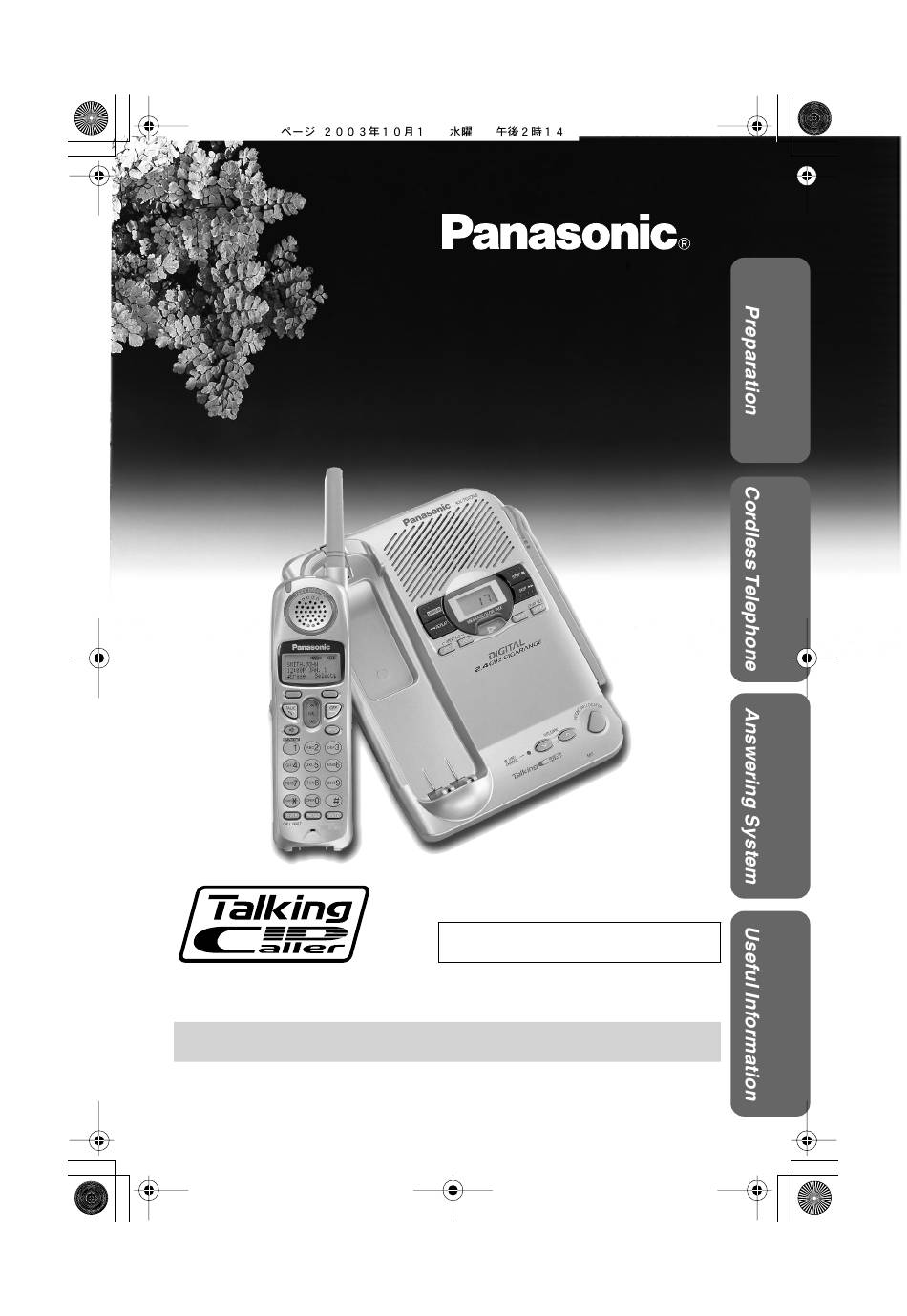

2.4 GHz Digital Cordless Answering System Operating Instructions KX-TG2248CS Model No. Pulse-or-tone dialing capability Call Display Compatible PLEASE READ BEFORE USE AND SAVE. Charge the battery for about 6 hours before initial use. For assistance, please call 1-800-561-5505 or visit us at www.panasonic.ca...
Page 2
✿✤✦✪✤✧Z✮_✤.❇m ✥ Thank you for purchasing your new Panasonic cordless Telephone. Call Display and Call Waiting Service, where available, are telephone company services. After subscribing to Call Display this phone will display a caller’s name and phone number. Visual Call Waiting/Call Waiting Deluxe, which displays a second caller’s name and phone number while the user is on another call,...
Page 3
✿✤✦✪✤✧Z✮_✤.❇m ✦ For Best Performance Battery Charge A rechargeable Nickel-Metal Hydride (Ni-MH) battery powers the handset. Charge the battery for about 6 hours before initial use (p. 9). Base Unit Location/Noise Calls are transmitted between the base unit and the handset using wireless radio waves.
Hook (AC 120 V, 60 Hz) AC Adaptor • USE ONLY WITH Panasonic AC ADAPTOR PQLV19. • The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) • If your unit is connected to a PBX which does not support Call Display services, you cannot access those services.
✿✤✦✪✤✧Z✮_✥.❇m ✬ Settings Selecting the Display and Voice Guidance Language After installing the battery in the handset, the handset display will prompt you to set the display and voice guidance language to English or French. If you do not set a display and voice guidance language, the following functions will not work properly: —...
Page 10
“ Recharge battery ” is displayed and/or “ ” continues to flash, the battery needs to be replaced. Please order a new Panasonic HHR-P513 battery. To replace the battery, see page 8. A nickel metal hydride battery that is recyclable powers the product you have purchased.
✿✤✦✪✤✧Z✮_✥.❇m ✤✤ Programmable Functions Programming Guidelines Handset This unit has programmable functions. They are selected from the function menu on the display (p. 12). Buttons/Keys [OFF] allows you to exit Soft keys : programming mode at any work as function keys when time.
✿✤✦✪✤✧Z✮_✥.❇m ✤✥ Programmable Functions Useful information: • If Select is pressed while “ ---(Go back)--- ” is displayed, the unit will go back to the previous menu mode. If you press the key in the main menu, the unit will exit programming mode. •...
✿✤✦✪✤✧Z✮_✥.❇m ✤✦ Programmable Functions Date and Time Handset “ ” flashes on the base unit display if the clock has not been set. Set the clock by following the steps below. Press [MENU] . Scroll to “ Date and time ” by pressing [ ] or Date and time [ ] , then press Select .
✿✤✦✪✤✧Z✮_✥.❇m ✤✧ Programmable Functions Dialing Mode Handset If you have touch tone service, set to “Tone”. If rotary or pulse service is used, set dialing mode to “Pulse”. The factory preset is “Tone”. Press [MENU] . Scroll to “ Initial setting ” by pressing [ ] Initial setting or [ ] , then press Select .
OFF at the factory. Under normal conditions, cordless phones are limited to a narrowed frequency bandwidth (300Hz to 3.5KHz). Panasonic’s new Voice Enhancer Technology cordless phones are able to simulate a band signal above and below the normal bandwidth limitations.
✿✤✦✪✤✧Z✮_✥.❇m ✤✩ Programmable Functions Talking Call Display Handset After subscribing to a Call Display service, the handset will display a caller’s name and phone number (p. 28). Name and telephone number Call Display service is required. This Talking Call Display feature allows the unit to announce a displayed caller’s name through the handset and base unit speakers while a call is being received (p.
✿✤✦✪✤✧Z✮_✥.❇m ✤✫ Programmable Functions Ringer Volume You can select the handset or base unit ringer volume HIGH, MEDIUM, LOW or OFF. The factory preset is HIGH. If set to OFF, the handset or base unit will not ring and a caller’s name will not be announced even if the Talking Call Display feature is ON (p.
✿✤✦✪✤✧Z✮_✥.❇m ✤✬ Programmable Functions Ringer Tone Handset You can select one of 6 ringer tones for external calls on the handset and the base unit. The factory preset is 1. Press [MENU] . Press Select at “ Ringer setting ”. Ringer setting Exit Select...
✿✤✦✪✤✧Z✮_✥.❇m ✥✣ Preparing the Answering System Greeting Message Base Unit You can record a personal greeting message of up to 2 minutes . If you do not record your own message, one of two pre-recorded greetings will be played for callers (p.
Page 21
✿✤✦✪✤✧Z✮_✥.❇m ✥✤ Preparing the Answering System To check the greeting Press [GREETING CHECK] . • The greeting will be played. To erase the greeting Press [GREETING CHECK] , then press [ERASE] while the recorded message is being played. • The unit will answer calls with a pre-recorded greeting (see below). Pre-recorded greeting If you do not record a greeting (p.
✿✤✦✪✤✧Z✮_✥.❇m ✥✥ Preparing the Answering System Caller’s Recording Time Handset You can select “1 minute”, “2 minutes”, “3 minutes” or “Greeting only” for the caller’s recording time. The factory preset is “3 minutes”. Press [MENU] . Scroll to “ Initial setting ” by pressing [ ] Initial setting or [ ] , then press Select .
✿✤✦✪✤✧Z✮_✥.❇m ✥✦ Preparing the Answering System Number of Rings Handset You can select the number of times the unit rings before the Answering System answers a call, from “2” to “7” or “Toll saver”*. The factory preset is “4”. Follow steps 1 to 3 of “Caller’s Recording Time”...
✿✤✦✪✤✧Z✮_✦.❇m ✥✧ Making Calls Handset Press [ • “ Talk ” is displayed. Dial a phone number. • The dialed number is displayed. Display • After a few seconds, the display Soft Keys [ ], [ ] will show the length of the call. To hang up, press [OFF] or [OFF] place the handset on the...
Page 25
✿✤✦✪✤✧Z✮_✦.❇m ✥5 Making Calls To dial after confirming the To redial using the redial entered number list (Memory Redial) The last 5 phone numbers dialed with Enter a phone number. the handset are stored in the redial list. 3334444 Press [REDIAL] . Clear Pause 333-4444...
Page 26
✿✤✦✪✤✧Z✮_✦.❇m ✥✩ Making Calls To adjust the receiver/speaker volume while talking 3 levels (HIGH, MEDIUM and LOW) are available for the receiver and 6 levels for the speaker. To increase volume, press e.g. Receiver volume:High Speaker volume: level 6 To decrease volume, press •...
✿✤✦✪✤✧Z✮_✦.❇m ✥✪ Answering Calls When a call is received, the unit rings and “ Incoming call ” is displayed, and the Ringer indicator on the handset and the IN USE/CHARGE indicator on the base unit flash rapidly. If you subscribe to a Call Display service, see page 28. Handset Press [ ] or [...
✿✤✦✪✤✧Z✮_✧.❇m ✥✫ Call Display Service This unit is compatible with Call Display services offered by your telephone company. If you subscribe to Call Display service, the caller’s name and phone number will be displayed and recorded in the Caller List. How caller information is displayed and a caller’s name is announced when a call is received When a call comes in, the unit will ring and the caller...
✿✤✦✪✤✧Z✮_✧.❇m ✥✬ Call Display Service Using the Talking Call Display feature: • To use this feature, you need to subscribe to Call Display service. For further information, please contact your telephone company. • If a caller dialed from an area which does not provide a name display service, the unit will announce “...
✿✤✦✪✤✧Z✮_✧.❇m ✦✣ Using the Caller List Viewing the Caller List Handset Press Rcvd calls to enter the Caller List. 2 missed calls Rcvd Phone • You can also enter by pressing [ ] or [ ] . calls book 2 missed calls =Scroll list To search from the most recent call, press [ ] .
✿✤✦✪✤✧Z✮_✧.❇m ✦✤ Using the Caller List Editing the Caller’s Phone Number Handset You can edit a phone number in the Caller List to call it back or store it in the phone book. Press Rcvd calls to enter the Caller List. 2 missed calls Rcvd Phone...
✿✤✦✪✤✧Z✮_✧.❇m ✦✥ Using the Caller List Storing Caller Information in the Phone Book Handset Callers’ names and phone numbers that are in the Caller List can be stored in the phone book. Press Rcvd calls to enter the Caller List. 2 missed calls Rcvd Phone...
✿✤✦✪✤✧Z✮_✧.❇m ✦✦ Using the Caller List Erasing Caller Information Handset To erase a specific caller Press Rcvd calls to enter the Caller List. 2 missed calls Rcvd Phone • You can also enter by pressing [ ] or [ ] . calls book 2 missed calls...
✿✤✦✪✤✧Z✮_✧.❇m ✦✧ Phone Book You can store up to 50 names and phone numbers in the handset phone book. All phone book items are sorted alphabetically. You can make a call by selecting a name on the handset display. Storing Names and Numbers Handset Press Phone book .
Page 35
✿✤✦✪✤✧Z✮_✧.❇m ✦5 Phone Book Selecting characters to enter names Enter names using the dialing buttons. Press each button until the desired character is displayed. • Pressing each button selects a character in the order shown below. Keys Characters Keys Characters # &...
✿✤✦✪✤✧Z✮_✧.❇m ✦✩ Phone Book Dialing from the Phone Book Handset Press Phone book to enter the phone book. Press Search . Phone book 7 items Search Scroll to the desired item. To scroll down, press 0-9=Name search . To scroll up, press =Scroll list Phone book items are sorted in the following order: Alphabet letters (Alphabetical)
✿✤✦✪✤✧Z✮_✧.❇m ✦✪ Phone Book Editing an Item in the Phone Book Handset Press Phone book to enter the phone book. Press Search . Scroll to the desired item by pressing [ ] or Jane [ ] , then press Select . 345-6789 Call Select...
✿✤✦✪✤✧Z✮_✧.❇m ✦✫ Intercom Handset Base Unit A 2-way intercom can be set up between the base unit and the handset. Paging the base unit from Paging the handset from the handset the base unit (Handset locator) Handset: Press [MENU] . Using this feature, you can also locate the misplaced handset.
✿✤✦✪✤✧Z✮_✧.❇m ✦✬ Special Features Automatic Security Code Setting Handset Each time you place the handset on the base unit, the unit automatically selects one of a million security codes. These codes help prevent the unauthorized use of your telephone line by another cordless telephone user. Temporary Tone Dialing (For Rotary or Pulse Service Users) Handset...
✿✤✦✪✤✧Z✮_✧.❇m ✧✣ Special Features Call Waiting Deluxe Service This unit is compatible with a Call Waiting Deluxe Service offered by your telephone company. After subscribing, Call Waiting Deluxe Service not only allows your handset to display the second caller’s information, but also offers you a variety of ways to deal with the second call (p.
Page 41
✿✤✦✪✤✧Z✮_✧.❇m ✧✤ Special Features To use Call Waiting Deluxe Service You can choose from the options on the display as shown below. Display Signification Ans (Answer) Answers the second call, while keeping the first call on hold. Plays the pre-recorded hold message from the telephone Hold company for the second caller and the second call is put on hold.
✿✤✦✪✤✧Z✮_✧.❇m ✧✥ Special Features After selecting “ Ans ” (Answer) or “ Hold ”: You can choose one of the following options: “ Return ”—to return to the waiting call. “ Drop ”—to hang up the current call and answer the waiting call. “...
✿✤✦✪✤✧Z✮_✧.❇m ✧✦ Special Features FLASH Button Handset Pressing [FLASH/CALL WAIT] allows you to use special features of your host PBX such as transferring an extension call, or access optional telephone services such as Call Waiting. • Pressing [FLASH/CALL WAIT] cancels the following operations: —...
✿✤✦✪✤✧Z✮_5.❇m ✧✧ Automatic Answering Operation When the unit answers a call, a greeting message is played and the caller’s message is recorded. When the handset is on the base unit, the Ringer indicator on the handset will flash to indicate that a message is being recorded. •...
✿✤✦✪✤✧Z✮_5.❇m ✧5 Listening to Messages You can see the total number of recorded messages on the base unit display. When new messages have been recorded, the NEW MESSAGE indicator flashes. Voice Day/Time Stamp: During playback, the unit will announce the day and time when each message was recorded (p.
✿✤✦✪✤✧Z✮_5.❇m ✧✩ Listening to Messages Using the Handset (Remote Operation) Handset To play back messages Press [MENU] . Scroll to “ Message play ” by pressing [ ] or Message play [ ] , then press Select . Exit Select •...
Page 47
✿✤✦✪✤✧Z✮_5.❇m ✧✪ Listening to Messages During playback To adjust the Base unit or Handset: speaker volume To increase volume, press [ ] . To decrease volume, press [ ] . • You can also adjust the receiver volume on the handset. To slow down the Base unit: Press [MESSAGE/SLOW TALK] .
✿✤✦✪✤✧Z✮_5.❇m ✧✫ Erasing Messages The unit will announce the remaining recording time after playback, if it is less than 3 minutes. New messages cannot be recorded when: —“ Memory full ” is heard. —“ ” is displayed on the base unit. FULL —the ANSWER ON indicator flashes rapidly (when the Answering System is on).
✿✤✦✪✤✧Z✮_5.❇m ✧✬ Recording a Memo Message Base Unit You can record your own voice memo message for up to 3 minutes in memory. NEW MESSAGE Indicator Press [MEMO/2WAY REC] . [STOP] After the long beep, speak clearly, 20 cm (8 inches) away from the MIC . •...
✿✤✦✪✤✧Z✮_5.❇m 5✣ Remote Operation from a Touch Tone Phone You can operate the Answering System from any touch tone phone. A synthesized voice menu will guide you through the Answering System (p. 51). • To skip the voice menu and operate the unit directly, see page 52. Summary of remote operation Call your unit from a touch tone phone.
✿✤✦✪✤✧Z✮_5.❇m 5✤ Remote Operation from a Touch Tone Phone Voice Menu The shaded boxes are voice prompts. Press [1] . All Message Playback. Press 1 to play back all messages. All recorded messages are Press 2 for other functions. played back. At the end of the Press [2] .
✿✤✦✪✤✧Z✮_5.❇m 5✥ Remote Operation from a Touch Tone Phone Direct Remote Operation Once you have entered the remote code, you can also control your unit by direct commands instead of using the voice menu. To end remote operation, hang up anytime.
✿✤✦✪✤✧Z✮_✩.❇m 5✦ Wall Mounting This unit can be mounted on a wall phone plate. Push the hook and turn it Connect the telephone line cord. around. Turn the hook until a Mount the unit, then slide down. click is heard. •...
To remove the belt clip Optional Headset Connecting an optional headset to the handset allows a hands-free phone conversation. Use only a Panasonic KX-TCA86, KX-TCA88C, KX-TCA91, or KX-TCA92 headset. Connecting an optional headset to the handset Open the headset jack cover, and insert the headset plug into the headset jack as shown below.
✿✤✦✪✤✧Z✮_✩.❇m 55 Direct Commands Handset After pressing [MENU] , you can also program menu items by direct commands ( [0] to [9] ) instead of using the soft keys. Initial setting Ringer setting p. 17 Ringer volume p. 18 LCD contrast [1] [5] [1]–...
✿✤✦✪✤✧Z✮_✩.❇m 5✩ Troubleshooting Cordless Telephone Problem Cause & Remedy “ No link to base. • You are too far from the base unit. Walk closer and try again. Place on cradle and try again. ” is displayed • Place the handset on the base unit and try and an alarm tone sounds.
Page 57
✿✤✦✪✤✧Z✮_✩.❇m 5✪ Troubleshooting Problem Cause & Remedy The unit does not display the • You need to subscribe to a Call Display caller’s name and/or phone service. number. • Other telephone equipment may be interfering with your phone. Disconnect it and try again. •...
Page 58
✿✤✦✪✤✧Z✮_✩.❇m 5✫ Troubleshooting Problem Cause & Remedy You cannot operate the • The handset user is operating the Answering Answering System with the System, or is on the phone. Wait until the base unit. IN USE/CHARGE indicator light goes out. You cannot operate the •...
Page 59
✿✤✦✪✤✧Z✮_✩.❇m 5✬ Troubleshooting Problem Cause & Remedy The unit does not announce • The handset and base unit ringer volumes are the displayed caller’s name. OFF (p. 18). • The Talking Call Display feature is OFF (p. 16). The unit does not announce •...
✿✤✦✪✤✧Z✮_✩.❇m ✩✣ Important Information NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, “IC:”, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met.
✿✤✦✪✤✧Z✮_✩.❇m ✩✤ Safety Instructions Take special care to follow the safety suggestions listed below. Safety 1) The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the unit. 2) When left unused for a long period of time, the base unit should be unplugged from the household AC outlet.
Page 62
• If there is any trouble, disconnect the unit from the telephone line and connect a known working phone. If the known working phone operates properly, have your unit repaired by one of the specified authorized Panasonic Factory Servicentres. If the known working phone does not operate properly, consult your telephone...
✿✤✦✪✤✧Z✮_✩.❇m ✩✦ Specifications I Base unit Power Supply: AC Adaptor (120 V AC, 60 Hz) Power Consumption: Standby: Approx. 2.6 W Maximum: Approx. 3.9 W Frequency: 2.402 GHz – 2.480 GHz Dimensions (H x W x D): Approx. 80 mm x 173 mm x 206 mm ⁄...
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT—LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.
