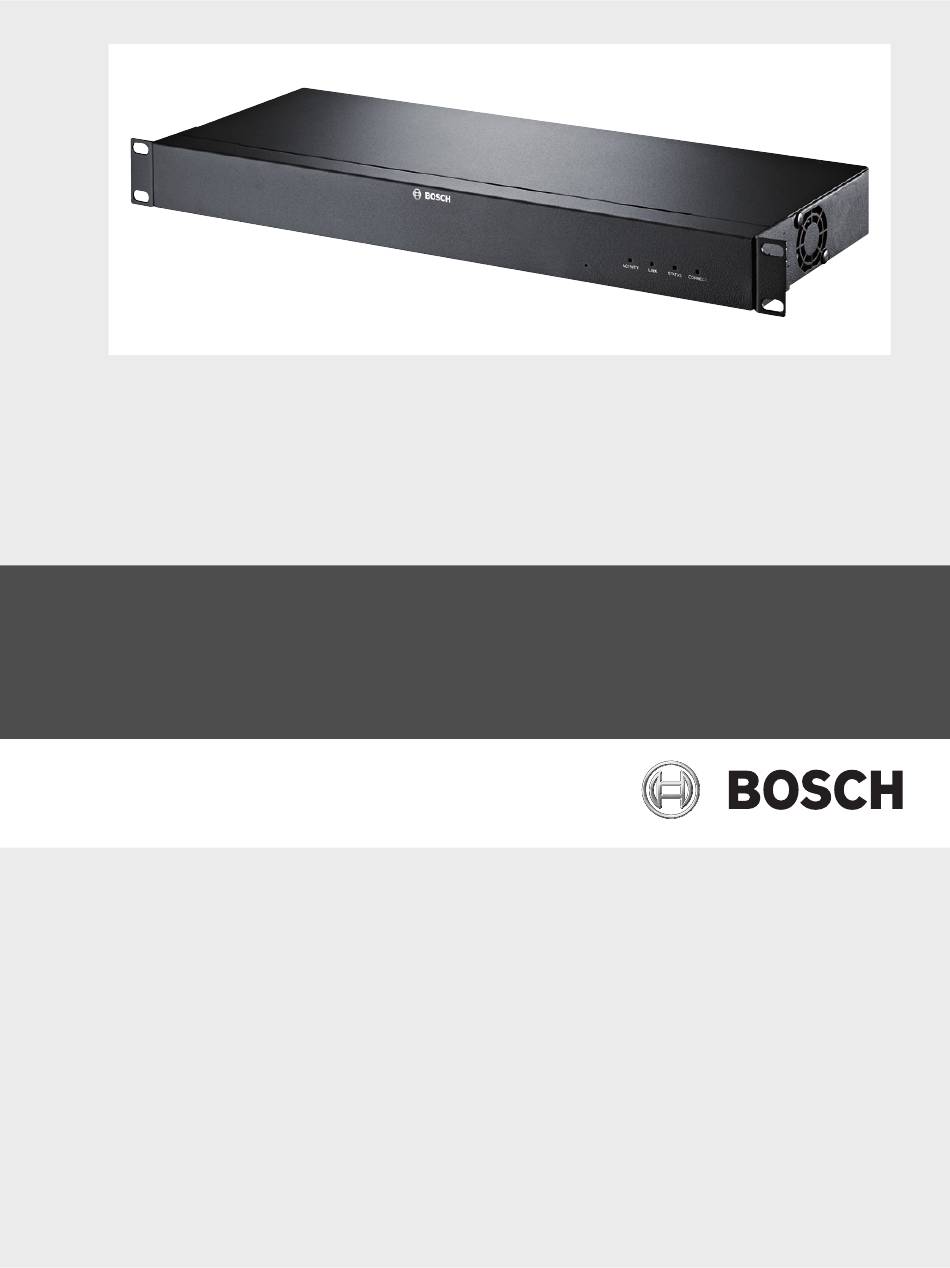

- Page 1 VIP X16 XF E VIP-X16XF-E Installation Manual...
-
Page 3: Table Of Contents
Connecting cameras Establishing the network connection Connecting audio Connecting alarm inputs and relay output Creating a serial connection Power on/power off Configuration Setup Setup using Bosch Video Client Troubleshooting Contact General malfunctions Malfunctions with iSCSI connections LEDs Processor load Network connection... - Page 4 VIP X16 XF E Copyrights Maintenance Updates Factory reset Repairs Setting out of order Transfer and disposal Technical data 10.1 Electrical 10.2 Mechanical 10.3 Environmental conditions 10.4 Certifications and approvals 10.5 Standards F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH...
-
Page 5: Safety
– If safe operation of the unit cannot be ensured, remove it from service and secure it to prevent unauthorized operation. In such cases, have the unit checked by Bosch Security Systems. Safe operation is no longer possible in the following cases: –... - Page 6 Ensure that all maintenance or repair work is carried out only by qualified personnel (electrical engineers or network technology specialists). In case of doubt, contact your dealer's technical service center. F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH...
-
Page 7: Short Information
Other applications are not permitted. In the event of questions concerning the use of the unit which are not answered in this manual, please contact your sales partner or: Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com... -
Page 8: System Overview
Releaseletter document for the respective firmware. For the latest version of the firmware, required programs and controls, and the current version of the Bosch Video Client (BVC) management software, access your Bosch product catalog on the Internet. Overview of functions Network video server The VIP X16 XF E encoder is a compact network video server for 16 connected video sources. - Page 9 Viewing View the VIP X16 XF E encoder video on a PC using a Web browser or Bosch Video Client, in the Bosch Video Management System, or integrate it into another video management system.
- Page 10 Flexible encryption of control and data channels – Authentication according to international standard 802.1x – Bidirectional audio (mono) for line connections – Audio encoding to international standards AAC, G.711, and L16 F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH...
-
Page 11: Connections, Controls And Displays
LED STATUS lights up during startup LED CONNECT lights up when supplied with power after startup Further topics: – Section 7.4 LEDs, page 23 Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... -
Page 12: Rear View
3.5 mm (1/8 in) stereo socket line-out for connecting one audio connection Power supply input for connecting the power cable Further topics: – Section 7.4 LEDs, page 23 – Section 7.7 Terminal block, page 24 F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 13: Installation
Lift the unit into the switch cabinet frame and insert the fastening screws together with the washers. Tighten the screws one after the other and then check once more that all the screws are tight. Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... - Page 14 | Installation VIP X16 XF E F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH...
-
Page 15: Connection
Connect each of the cameras or other video sources to BNC sockets Video In 1 to Video In 16 using a video cable (75 Ohm, BNC plug). Note that termination is always on. Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... -
Page 16: Establishing The Network Connection
UTP category 5 cable with RJ45 plugs. Connect the unit to the network via the ETH socket. Connecting audio The VIP X16 XF E encoder has two audio ports for audio line signals. F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 17: Connecting Alarm Inputs And Relay Output
With the appropriate configuration, an alarm sensor can automatically connect the VIP X16 XF E encoder to a remote location, for example. Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... -
Page 18: Creating A Serial Connection
The bidirectional data interface is used to control units connected to the VIP X16 XF E encoder, such as a dome camera with a motorized lens. The connection supports the RS-232, RS-422, and RS-485 transmission standards. A video connection is necessary to transmit transparent data. F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 19: Power On/Power Off
Plug the power cord into the mains. The unit is ready for use as soon as the CONNECT LED lights up. Provided the network connection has been correctly made, the LINK LED also lights up. The flashing LED ACTIVITY signals traffic on the network. Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... -
Page 20: Configuration
Setup using Bosch Video Client For the current version of the Bosch Video Client (BVC) management software, access your Bosch product catalog on the Internet. This program allows you to implement and set up the unit in the network quickly and conveniently. - Page 21 Additional parameters You can check and set additional parameters with the assistance of the Configuration Manager application in Bosch Video Client. You can find detailed information on this in the documentation for these applications. Note that the audio function is not activated by default. To use audio connections activate the corresponding setting when configuring the unit.
-
Page 22: Troubleshooting
Contact If you are unable to resolve a malfunction, please contact your supplier or systems integrator, or go directly to Bosch Security Systems Customer Service. The following tables are intended to help you identify the causes of malfunctions and correct them where possible. -
Page 23: Malfunctions With Iscsi Connections
/main.htm in your Web browser and repeat the upload. Placeholder with a red JVM not installed on your Install Sun JVM from the Bosch cross instead of the computer or not activated. product catalog on the Internet. ActiveX components. -
Page 24: Processor Load
Contact RS-232 mode RS-422 mode RS-485 mode — RxD- (receive data minus) — TxD (transmit data) TxD- (transmit data minus) Data- — TxD+ (transmit data plus) Data+ F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 25: Copyrights
Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Software This software is based in part on the work of the Independent JPEG Group. Audio AAC audio technology licensed by Fraunhofer IIS (http://www.iis.frauhofer.de/amm/). Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... -
Page 26: Maintenance
VIP X16 XF E Maintenance Updates Firmware updates are carried out via Bosch Video Client or other management systems in use. Please refer to the relevant documentation. Factory reset You can use the factory reset button to restore the unit to its original settings. Any changes to the settings are overwritten by the factory defaults. -
Page 27: Setting Out Of Order
Transfer and disposal The VIP X16 XF E encoder should only be passed on together with this installation manual. Your Bosch product is designed and manufactured with high-quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. -
Page 28: Technical Data
0 °C to +50 °C (+32 °F to +122 °F) Relative humidity 0 to 95% atmospheric humidity, non-condensing Thermal value 55 BTU/h max 10.4 Certifications and approvals Safety IEC 60950 System IEC 62676-2 EN50132-5-2 F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 29: Standards
Network protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, 802.1x, SMTP, iSCSI, UPnP (SSDP) Encryption TLS 1.0, SSL, AES (licensed option) Bosch Sicherheitssysteme GmbH Installation Manual F.01U.281.864 | V2 | 2012.12... - Page 30 | Technical data VIP X16 XF E F.01U.281.864 | V2 | 2012.12 Installation Manual Bosch Sicherheitssysteme GmbH...
