Universal Groomer Drive Kit
Reelmaster
Units with 5-inch or 7-inch Reel
Model No. 03763—Serial No. 321000000 and Up
Model No. 03768—Serial No. 321000000 and Up
Introduction
Important:
Before installing this kit, ensure that
you have a compatible cutting unit:
03763 is designed for use on Reelmaster DPA
Cutting Units with a 5 inch reel.
03768 is designed for use on Reelmaster DPA
Cutting Units with a 7 inch reel.
Refer to the following table for further detail:
Universal
Compatible Cutting
Groomer
Units
Drive Kit
03763
All aluminum side plate
cutting units, Model
Numbers: 03911/2,
03485/6, 03621/3/4,
and 03487/8/9
03768
All aluminum side
plate cutting units,
Model Numbers:
03636/7/8/9,
03641/43, and 03721/2
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
Visit www.Toro.com for product and accessory
information, help finding a dealer, or to register your
product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model
and serial numbers of your product ready.
identifies the location of the model and serial numbers
on the product. Write the numbers in the space
provided.
© 2020—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
18-inch, 22-inch, or 27-inch EdgeSeries
Incompatible Cutting
Units
Painted red side plate
DPA cutting units,
Model Numbers: 03661,
03694/5
Painted red side plate
DPA cutting units, Model
Numbers: 03681/2,
03696/7/8/9, 03693, and
03863/4

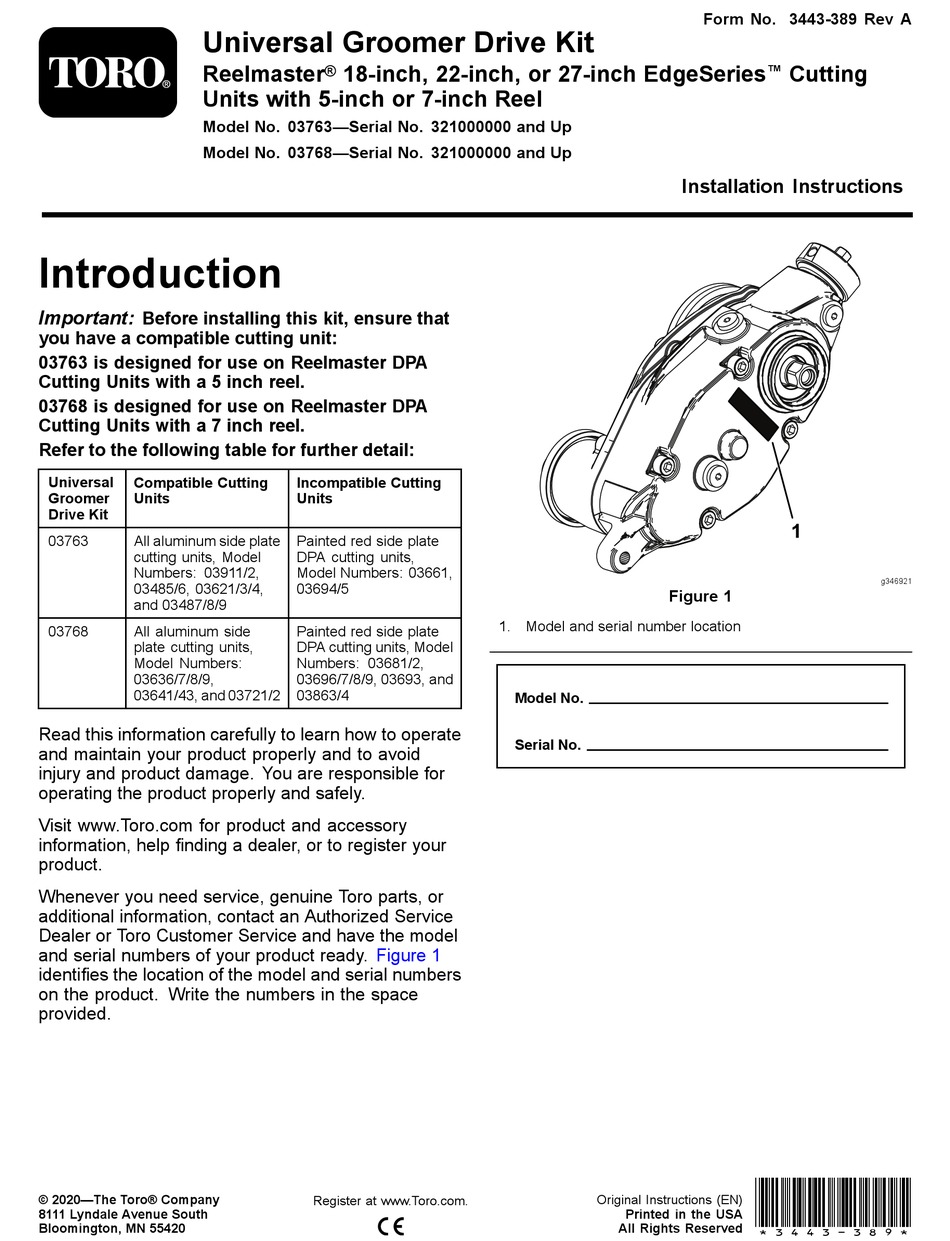

Figure 1
Register at www.Toro.com.
Figure 1
1. Model and serial number location
Model No.
Serial No.
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Form No. 3443-389 Rev A
™
Cutting
Installation Instructions
*3443-389*
g346921
