Brother MFC-7860DW User Manual
Brother mfc-7860dw: user guide
Hide thumbs
Also See for MFC-7860DW:
- User manual ,
- Quick setup manual (43 pages) ,
- Service manual (343 pages)
Related Manuals for Brother MFC-7860DW
Summary of Contents for Brother MFC-7860DW

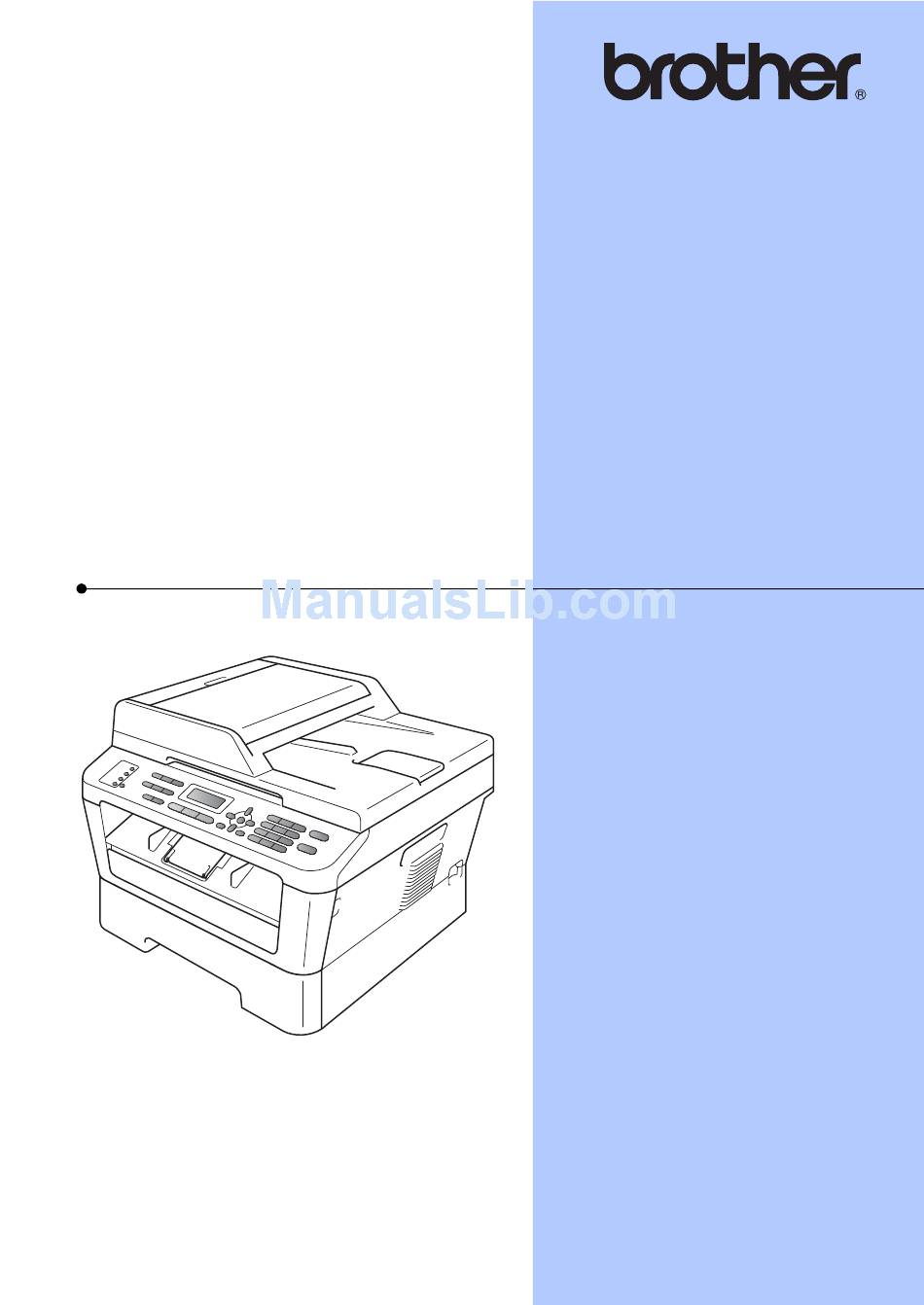

- Page 1 ADVANCED USER’S GUIDE Not all models are available in all countries. MFC-7360N MFC-7460DN MFC-7860DW Version 0 USA/CAN...
- Page 2 Copy, security features, printing reports and performing routine maintenance. Software User’s Guide Follow these instructions for Printing, Scanning, Network Scanning, Remote Setup, PC-Fax and using the Brother ControlCenter utility. Network Glossary This Guide provides basic information about advanced network features of...
-
Page 3: Table Of Contents
Changing the prefix number ... 6 Mode Timer... 6 Security features Security... 7 TX Lock (MFC-7360N and MFC-7460DN) ... 7 Secure Function Lock 2.0 (MFC-7860DW) ... 8 Setting Lock... 11 Restricting dialing ... 13 Sending a fax Additional sending options... 14 Sending faxes using multiple settings ... - Page 4 Remote fax commands...27 Additional receiving operations...28 Printing a reduced incoming fax ...28 Duplex (2-sided) printing for Fax mode (MFC-7460DN and MFC-7860DW) ...28 Setting the Fax Receive Stamp ...28 Receiving a fax at the end of a conversation...28 Setting the Print Density ...29 Printing a fax from the memory ...29...
- Page 5 Making N in 1 copies (page layout) ... 47 2 in 1 ID Copy... 49 Duplex Copying (1-sided to 2-sided) (MFC-7460DN and MFC-7860DW) ... 50 Duplex Copy (long edge flip) ... 50 Advanced Duplex Copy (short edge flip) ... 50 Routine maintenance Cleaning the machine ...
-
Page 7: General Setup
Temporary settings (for example, Contrast, Overseas Mode) will be lost. (For MFC-7860DW) During a power failure the machine will retain the date and time and programmed fax timer jobs (for example, Delayed Fax) for approximately 60 hours. -
Page 8: Speaker Volume
Chapter 1 Speaker volume You can choose a range of speaker volume levels, from High to Off. Press Menu, 1, 3, 3. Volume 3.Speaker Press a or b to choose Off, Low, Med or High. Press OK. Press Stop/Exit. You can also adjust the speaker volume with the control panel keys. -
Page 9: Ecology Features
(For MFC-7860DW) If a wireless network is enabled, the machine does not enter Deep Sleep mode. To disable the wireless network, see chapter 3 in the Network User’s Guide. -
Page 10: Toner Settings
Note • The MFC-7360N and MFC-7460DN can store up to 400 faxes in memory and the MFC-7860DW can store up to 500 faxes in memory. • (MFC-7360N and MFC-7460DN) If you turn off the power switch faxes in memory will be lost. -
Page 11: Lcd Contrast
LCD Contrast You can change the contrast to make the LCD look lighter or darker. Press Menu, 1, 5. General Setup 5.LCD Contrast Press c to make the LCD darker. Or, press d to make the LCD lighter. Press OK. Press Stop/Exit. -
Page 12: Changing The Prefix Number
Chapter 1 Changing the prefix number (USA) Press Menu, 0, 5. (Canada) Press Menu, 0, 6. Do one of the following: To change the prefix number, press 1. To remove the prefix number, press Clear to delete the digits. Go to step ... -
Page 13: Security Features
You can set up your machine with multiple levels of security using TX Lock (For MFC-7360N and MFC-7460DN) or Secure Function Lock 2.0 (For MFC-7860DW) and Setting Lock. You will not be able to continue to schedule Delayed Faxes or Polling jobs. -
Page 14: Secure Function Lock 2.0 (Mfc-7860Dw)
Make a careful note of your password. If you forget it, you will have to reset the password stored in the machine. For information about how to reset the password call Brother Customer Service. Note • Secure Function Lock can be set manually... - Page 15 Setting up the public user mode Public user mode restricts the functions that are available for Public users. Public users do not need to enter a password to access the features made available through this setting. You can set up one Public user. Press Menu, 1, 6, 1.
-
Page 16: Switching Users
Chapter 2 Turning Secure Function Lock off Press Menu, 1, 6, 1. Security 1.Function Lock Press a or b to choose Lock OniOff. Press OK. Enter your four-digit administrator password. Press OK. Switching Users This setting allows you to switch between registered restricted users or Public mode when Secure Function Lock is turned on. -
Page 17: Setting Lock
Make a careful note of your password. If you forget it, you will have to reset the passwords stored in the machine. Please call your administrator or Brother Customer Service. While Setting Lock is On, you cannot change the following settings without a password: ... -
Page 18: Restricting Dialing
Chapter 2 Changing your Setting Lock password Press Menu, 1, 6, 2. Security 2.Setting Lock Press a or b to choose Set Password. Press OK. Enter your four-digit password. Press OK. Enter a four-digit number for the new password. Press OK. Re-enter your new password when the LCD shows Verify:. - Page 19 Speed Dial restriction Press Menu, 2, 6, 3. Dial Restrict. 3.Speed Dial Press a or b to choose Off, Enter # twice or On. Press OK. Press Stop/Exit. Note • The Enter # twice setting will not work if you pick up the external handset or press Hook before entering the number.
-
Page 20: Sending A Fax
Sending a fax Additional sending options Sending faxes using multiple settings Before you send a fax, you can change any combination of these settings: contrast, resolution, overseas mode, delayed fax timer, polling transmission, real time transmission or cover page settings. Make sure you are in Fax mode After each setting is accepted, the LCD asks if you want to enter more settings:... -
Page 21: Changing Fax Resolution
Changing Fax Resolution The quality of a fax can be improved by changing the Fax Resolution. Resolution can be changed for the next fax or for all faxes. To change the Fax Resolution setting for the next fax Make sure you are in Fax mode Load your document. -
Page 22: Dual Access
Chapter 3 Press Start. If you are using the scanner glass, press 1 to send a fax. Replace the handset of an external telephone. Dual access You can dial a number and start scanning the fax into memory—even when the machine is sending from memory, receiving faxes or printing PC data. -
Page 23: Real Time Transmission
Canceling a Broadcast in progress While broadcasting you can cancel the fax currently being sent or the whole broadcast job. Press Menu, 2, 7. The LCD will display the Broadcast job number followed by the fax number being dialed (for example, #001 123456789) and the broadcast job number (for example, Broadcast#001). -
Page 24: Overseas Mode
Chapter 3 Overseas Mode If you are having difficulty sending a fax overseas due to a bad connection, then turning on Overseas Mode may help. This is a temporary setting, and will only be active for your next fax. Make sure you are in Fax mode Load your document. -
Page 25: Electronic Cover Page
Electronic cover page This feature will not work unless you have already programmed your Station ID. (See the Quick Setup Guide.) You can automatically send a cover page with every fax. Your cover page includes your Station ID, a comment, and the name (or number) stored in the One Touch or Speed Dial memory. -
Page 26: Polling Overview
Chapter 3 Press a or b to choose On (or Off). Press OK. Press a or b to choose a comment. Press OK. Using a printed cover page If you want to use a printed cover page that you can write on, you can print the sample page and attach it to your fax. - Page 27 Place the next page on the scanner glass, press OK. Repeat steps f and g for each additional page. The document will be stored in memory and wait to be polled. Note The document will be stored and can be retrieved from any other fax machine until you delete the fax from memory.
-
Page 28: Receiving A Fax
Internet Fax feature. (For details about Internet Fax, see the Network User’s Guide. For information about Fax Forward to E-mail, see the Brother Solutions Center at http://solutions.brother.com/.) Press a or b to choose On or Off. Press OK. -
Page 29: Paging
Paging When Paging is chosen, the machine dials the cell phone number you programmed. This activates your cell phone or pager so you will know that you have a fax message in the machine’s memory. Press Menu, 2, 5, 1. Remote Fax Opt 1.Fwd/Page/Store Press a or b to choose Paging. -
Page 30: Changing Remote Fax Options
Chapter 4 Press a or b to choose PC Fax Receive. Press OK. The LCD shows a reminder to start the PC-FAX Receive program on your computer. If you have started the PC-FAX Receive program, press OK. If you have not started the PC-FAX Receive program, see PC-FAX receiving in the Software User’s Guide. -
Page 31: Remote Retrieval
If you press 2, faxes in the memory will not be erased or transferred to your PC and the setting will be unchanged. The LCD will ask you the following message: Backup Print Press a or b to choose On or Off. Press OK. -
Page 32: Changing The Fax Forwarding Number
Chapter 4 The machine signals if it has received messages: No beeps No messages received. 1 long beep Fax message received. The machine gives two short beeps to tell you to enter a command (See Remote fax commands on page 27). The machine will hang up if you wait longer than 30 seconds before entering a command. -
Page 33: Remote Fax Commands
Remote fax commands Follow the commands below to access features when you are away from the machine. When you call the machine and enter your Remote Access Code (3 digits followed by l), the system will give two short beeps and you must enter a remote command. Remote commands Change the fax forwarding, paging or fax storage settings... -
Page 34: Additional Receiving Operations
Press OK. Press Stop/Exit. Duplex (2-sided) printing for Fax mode (MFC-7460DN and MFC-7860DW) Your machine can automatically print received faxes onto both sides of the paper when Duplex is set to On. You can use Letter, A4, Legal or Folio (8.5 in. -
Page 35: Setting The Print Density
Replace the external handset. Setting the Print Density You can adjust the Print Density setting to make your printed pages darker or lighter. Make sure you are in Fax mode Press Menu, 2, 1, 6. Setup Receive 6.Print Density Press c to make the print darker. Or, press d to make the print lighter. -
Page 36: Polling Overview
Chapter 4 Polling overview Polling lets you set up your machine so other people can receive faxes from you, but they pay for the call. It also lets you call somebody else’s fax machine and receive a fax from it, so you pay for the call. -
Page 37: Dialing And Storing Numbers
Dialing and storing numbers Telephone line services Tone or Pulse (Canada only) If you have a Pulse dialing service, but need to send Tone signals (for example, for telephone banking), follow the instructions below. If you have Touch Tone service, you will not need this feature to send tone signals. -
Page 38: Special Line Considerations
Chapter 5 Press a or b to scroll through the Caller ID memory to choose the Caller ID you want to view, and then press OK. The LCD will show the caller's number or name and the date and time of the call. - Page 39 Installing machine, external two-line TAD and two-line telephone When you are installing an external two-line telephone answering device (TAD) and a two-line telephone, your machine must be isolated on one line at both the wall jack and at the TAD. The most common connection is to put the machine on Line 2, which is explained in the following steps.
-
Page 40: Additional Dialing Operations
Chapter 5 Additional dialing operations Dialing access codes and credit card numbers You can combine more than one Quick Dial number when you dial. This feature may be useful if you need to dial an access code for a cheaper rate from another long distance carrier. - Page 41 For Speed Dial numbers, press (Address Book) and then enter the three-digit Speed Dial location. The LCD will display your chosen One Touch numbers with a l and Speed Dial numbers with a # (for example l006, #009). Press OK when you have finished adding numbers.
-
Page 42: Options For Setting Up Groups
Chapter 5 If you downloaded IFAX and E-mail options (MFC-7460DN and MFC-7860DW) Options for Setting Up Groups The following chart shows the additional selections for setting up Group numbers after you download the IFAX and E-mail options for MFC-7460DN and MFC-7860DW. - Page 43 Use the dial pad to enter a Group number (1 to 8). Press OK. Press a or b to select one of the following: Fax/IFAX Email Color PDF Email Color JPG Email Color XPS Email Gray PDF Email Gray JPG Email Gray XPS Email B&W PDF Email B&W TIFF...
-
Page 44: Changing Group Numbers
Chapter 5 Select the PDF type from PDF or SPDF (Secure PDF) that will be used to send to your PC. Press OK and then go to step n. Press Stop/Exit. Note • When you do a broadcast and you have saved a scan profile along with the number or E-mail address, the scan profile of the One-Touch, Speed-Dial or Group... - Page 45 Press OK. Press Stop/Exit. If you downloaded IFAX and E-mail options (MFC-7460DN and MFC-7860DW) If you try to change a Group number, the LCD will show the name or number already stored there. Press Menu, 2, 3, 3.
-
Page 46: Deleting Group Numbers
Chapter 5 If you want to change the fax resolution for the Group, press a or b to choose the resolution you want. Press OK. For details, follow the directions beginning with step h in Options for Setting Up Groups. (See Options for Setting Up Groups on page 36). -
Page 47: Printing Reports
Printing reports Fax reports Some fax reports (transmission verification and fax journal) can be printed automatically and manually. Transmission verification report You can use the Transmission Verification Report as proof that you sent a fax. (For details about how to set up the type of report you want, see Transmission Verification Report in Chapter 4 of the Basic User's Guide.) -
Page 48: Reports
Prints the result of wireless LAN connectivity diagnosis. How to print a report For MFC-7360N and MFC-7460DN, press Menu, 4. For MFC-7860DW, press Menu, 5. Do one of the following: Press a or b to choose the report you want. -
Page 49: Making Copies
To change a setting, press the temporary COPY keys. You can use Options, Enlarge/Reduce or Duplex When you are finished choosing settings, press Start. For MFC-7460DN and MFC-7860DW Stop copying To stop copying, press Stop/Exit. Enlarging or reducing the image copied... - Page 50 Chapter 7 Do one of the following: Press a or b to choose the enlargement or reduction ratio you want. Press OK. Press a or b to choose Custom(25- 400%). Press OK. Use the dial pad to enter an enlargement or reduction ratio from 25% to 400%.
-
Page 51: Using The Options Key
Using the Options key Make sure you are in Copy mode. Use the Options key to quickly set the following copy settings temporarily for the next copy. Press Menu selections Press a or b, then press OK Quality Stack/Sort (Appears when the document is in the ADF) Brightness Contrast... -
Page 52: Improving Copy Quality
Chapter 7 Improving copy quality You can choose from a range of quality settings. The default setting is Auto. Auto Auto is the recommended mode for ordinary printouts. Suitable for documents that contain both text and photographs. Text Suitable for documents containing only text. -
Page 53: Making N In 1 Copies
To change the default setting follow the steps below: Press Menu, 3, 3. Copy 3.Contrast Press d or c to increase or decrease the contrast. Press OK. Press Stop/Exit. Brightness Adjust the copy brightness to make copies darker or lighter. To temporarily change the copy brightness setting, follow the steps below: Make sure you are in Copy mode... - Page 54 Chapter 7 Place the next page on the scanner glass. Press OK. Repeat steps g and h for each page of the layout. After all the pages have been scanned, press 2 in step g to finish. If you are copying from the ADF: Insert your document face up in the direction shown below: ...
-
Page 55: In 1 Id Copy
2 in 1 ID Copy You can copy both sides of your identification card onto one page, keeping the original card size. Note You can copy an identification card to the extent permitted under applicable laws. See Legal limitations for copying in the Safety and Legal booklet. -
Page 56: Duplex Copying (1-Sided To 2-Sided) (Mfc-7460Dn And Mfc-7860Dw)
Chapter 7 Duplex Copying (1-sided to 2-sided) (MFC-7460DN and MFC-7860DW) If you want to use the duplex copy feature, load your document in the ADF. Duplex Copy (long edge flip) 1 sided i 2 sided L Portrait Landscape Make sure you are in Copy mode Load your document. -
Page 57: A Routine Maintenance
Routine maintenance Cleaning the machine Clean the outside and inside of the machine regularly with a dry, lint-free cloth. When you replace the toner cartridge or the drum unit, make sure that you clean the inside of the machine. WARNING DO NOT use cleaning materials that contain ammonia, alcohol, any type of spray, or any type of flammable substance... -
Page 58: Cleaning The Scanner
Wipe the outside of the machine with a dry, lint-free soft cloth to remove dust. Remove any paper that is in the paper tray. Wipe the inside and the outside of the paper tray with a dry, lint-free soft cloth to remove dust. -
Page 59: Cleaning The Corona Wire
In the ADF unit, clean the white bar (1) and the glass strip (2) underneath it with a soft lint-free cloth moistened with water. Note In addition to cleaning the scanner glass and glass strip with a soft lint-free cloth moistened with water, run your finger tip over the glass to see if you can feel anything on it. - Page 60 Slowly take out the drum unit and toner cartridge assembly. CAUTION We recommend that you place the drum unit and toner cartridge assembly on a clean, flat surface with a sheet of disposable paper or cloth underneath it in case you accidentally spill or scatter toner. Handle the toner cartridge carefully.
-
Page 61: Cleaning The Drum Unit
Cleaning the drum unit If you have print quality problems, the drum may have foreign material, such as glue from a label stuck on the drum surface. Follow the steps below to solve the problem. Prepare blank A4 or Letter size paper. Make sure the machine is in Ready mode. - Page 62 • DO NOT put more than one sheet of paper in the manual feed slot at any one time, as it may cause a jam. • If the paper in the manual feed slot is other than A4 or Letter size, the machine will stop the Drum Cleaning process and eject the paper.
- Page 63 Slowly take out the drum unit and toner cartridge assembly. CAUTION We recommend that you put the drum unit and toner cartridge assembly on a clean, flat surface with a sheet of disposable paper or cloth underneath it in case you accidentally spill or scatter toner.
- Page 64 • To prevent damage to the machine from static electricity, DO NOT touch the electrodes shown in the illustration. Put the print sample in front of the drum unit, and find the exact position of the poor print. Turn the drum unit gear by hand while looking at the surface of the OPC drum (1).
-
Page 65: Cleaning The Paper Pick-Up Rollers
Put the toner cartridge back into the drum unit until you hear it lock into place. If you put the cartridge in properly, the green lock lever will lift automatically. Routine maintenance Put the drum unit and toner cartridge assembly back in the machine. Close the front cover. - Page 66 Pull the paper tray completely out of the machine. Tightly wring out a lint-free cloth soaked in lukewarm water, and then wipe the separator pad (1) of the paper tray with it to remove dust. Wipe the two pick-up rollers (1) inside of the machine to remove dust.
-
Page 67: Checking The Machine
For MFC-7360N and MFC-7460DN, press Menu, 6, 2. For MFC-7860DW, press Menu, 7, 2. Machine Info. 2.Page Counter Press a or b to see Total, Fax/List, Copy or Print. - Page 68 Put the protective material (1) in the machine with the "REMOVE" text to the left, as shown in the illustration. Put the drum unit and toner cartridge assembly back into the machine. Put the elastic band over the handle of the drum unit, as shown in the illustration.
-
Page 69: B Glossary
Glossary This is a comprehensive list of features and terms that appear in Brother manuals. Availability of these features depends on the model you purchased. ADF (automatic document feeder) The document can be placed in the ADF and scanned one page at a time automatically. - Page 70 A telephone that is plugged into the EXT jack of your machine. F/T Ring Time The length of time that the Brother machine pseudo/double-rings (when the Receive Mode setting is Fax/Tel) to notify you to pick up a voice call that it answered.
- Page 71 Menu mode Programming mode for changing your machine’s settings. OCR (optical character recognition) ScanSoft™ PaperPort™ 12SE with OCR or Presto! PageManager software application converts an image of text to text you can edit. One Touch Keys on the machine’s control panel where you can store numbers for easy dialing.
- Page 72 Telephone Answer Code (Fax/Tel mode only) When the machine answers a voice call, it pseudo/double-rings. You can pick up at an extension telephone by pressing this code (#51). Tel Index List A listing of names and numbers stored in One Touch and Speed Dial memory, in numerical order.
-
Page 73: Index
Index Broadcasting ...16 canceling ...17 setting up Groups for ...34 Canceling broadcast in process ...17 fax jobs in memory ...18 fax storage ...23 jobs awaiting redial ...18 remote fax options ...25 Cleaning corona wire ...53 drum unit ...55 scanner ...52 Connecting two-line external TAD or telephone ...33 Copy... - Page 74 Groups for broadcasting ...34 HELP ...42 Help List ...42 Hook key ...31 Jacks convert to RJ11 jack triplex adapter ...32 LCD (liquid crystal display) contrast ...5 Help List ...42 Machine information checking remaining life of parts ...61 page counts ...61 Maintenance, routine ...51 checking the remaining life of parts ...61 Manual...
- Page 75 Security restricting dialing ...13 Secure function lock administrator password ...8 Public user mode ...9 restricted users ...9 Setting lock ...11 Setting up the password ...7 Sleep mode ...3 Sort ...46 TAD (telephone answering device), external ...33 with two-line jack ...33 Telephone line converting wall outlets ...32 roll over lines ...32...
- Page 76 Dollard-des-Ormeaux, QC, Canada H9B 3H6 Visit us on the World Wide Web http://www.brother.com/ These machines are approved for use in the country of purchase only. Local Brother companies or their dealers will only support machines purchased in their own countries.
