Bosch Evolution HGS5L53UC Installation Instructions Manual

30" GAS RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

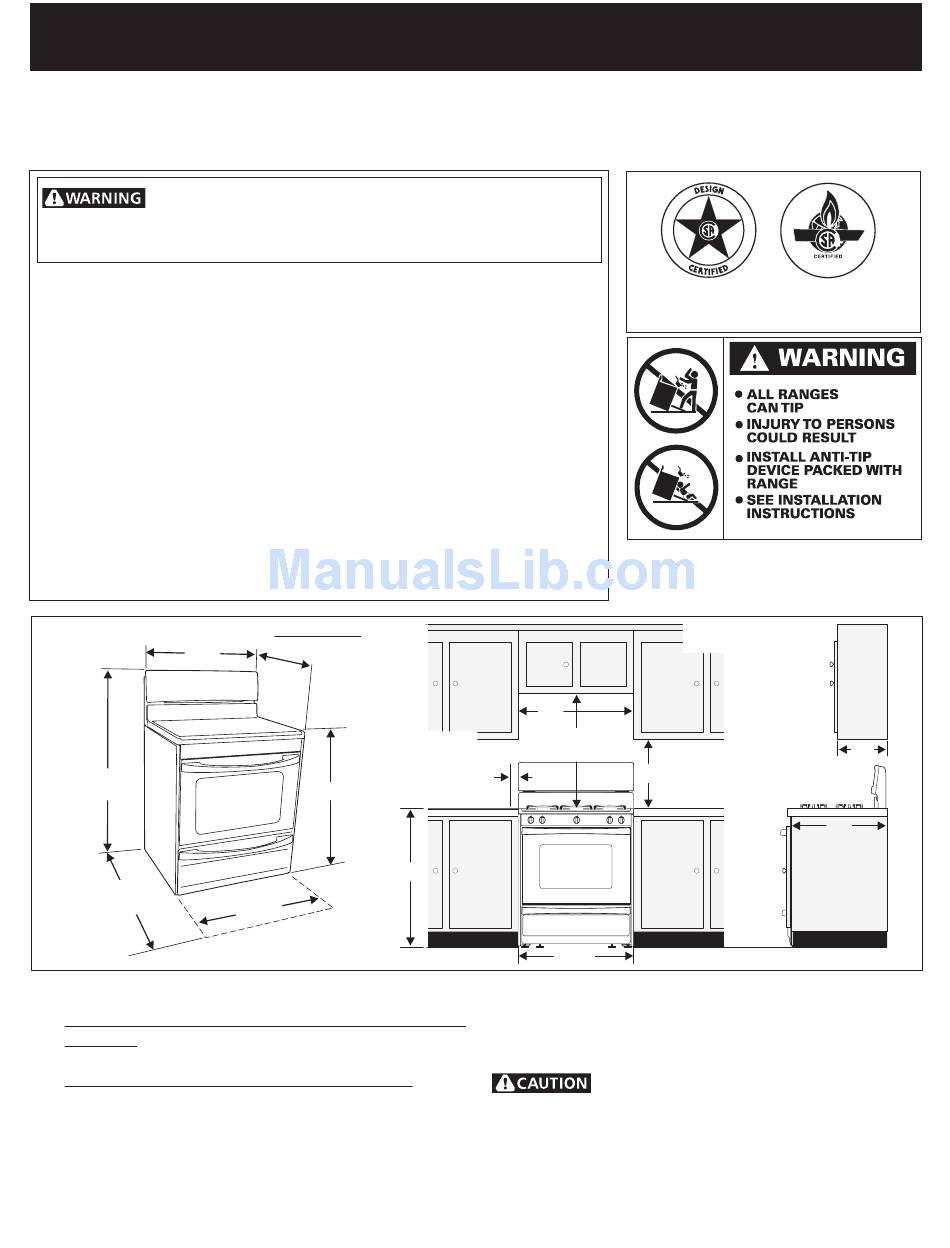

OVERALL
DIMENSIONS
30"
48"
Maximum
46 3/8"
door open
Clearances and Dimensions
1. Location—Check location where the range will be
installed. Check for proper electrical and gas supply,
and the stability of the floor.
2. Dimensions that are shown must be used. Given
dimensions provide minimum clearance. Contact
surface must be solid and level.
p/n 316902504 En (0904)
(For Models with Sealed Top Burners)
25 3/4"
29 1/4"
incl. door handle
*Minimum to
Side Wall
on Either
Side of
+
1/8"
36
-
Range 5"
36"
29 7/8"
Note: For appliances installed in the
State of Massachusetts see page 2.
30"
30"
Minimum
18"
*5"
30"
0" Clearance Below Cooking Top and at Rear of Range.
Provide Proper Fuel Type
Before Proceeding: Your range is preset to operate on
natural gas.
DO NOT attempt to convert this range to LP/
Propane settings without the proper LP/Propane conversion
kit provided with the range or obtained from your dealer. Follow
all instructions provided with the LP Conversion Kit.
1
Refer to your serial plate for
applicable agency certification
SIDE
FRONT
VIEW
VIEW
Minimum to
Cabinets on
Maximum Depth
Either Side
for Cabinets
of Range.
Above Range Top.
25"
Francais 9-16
Español 17-24
13"
