Page 1

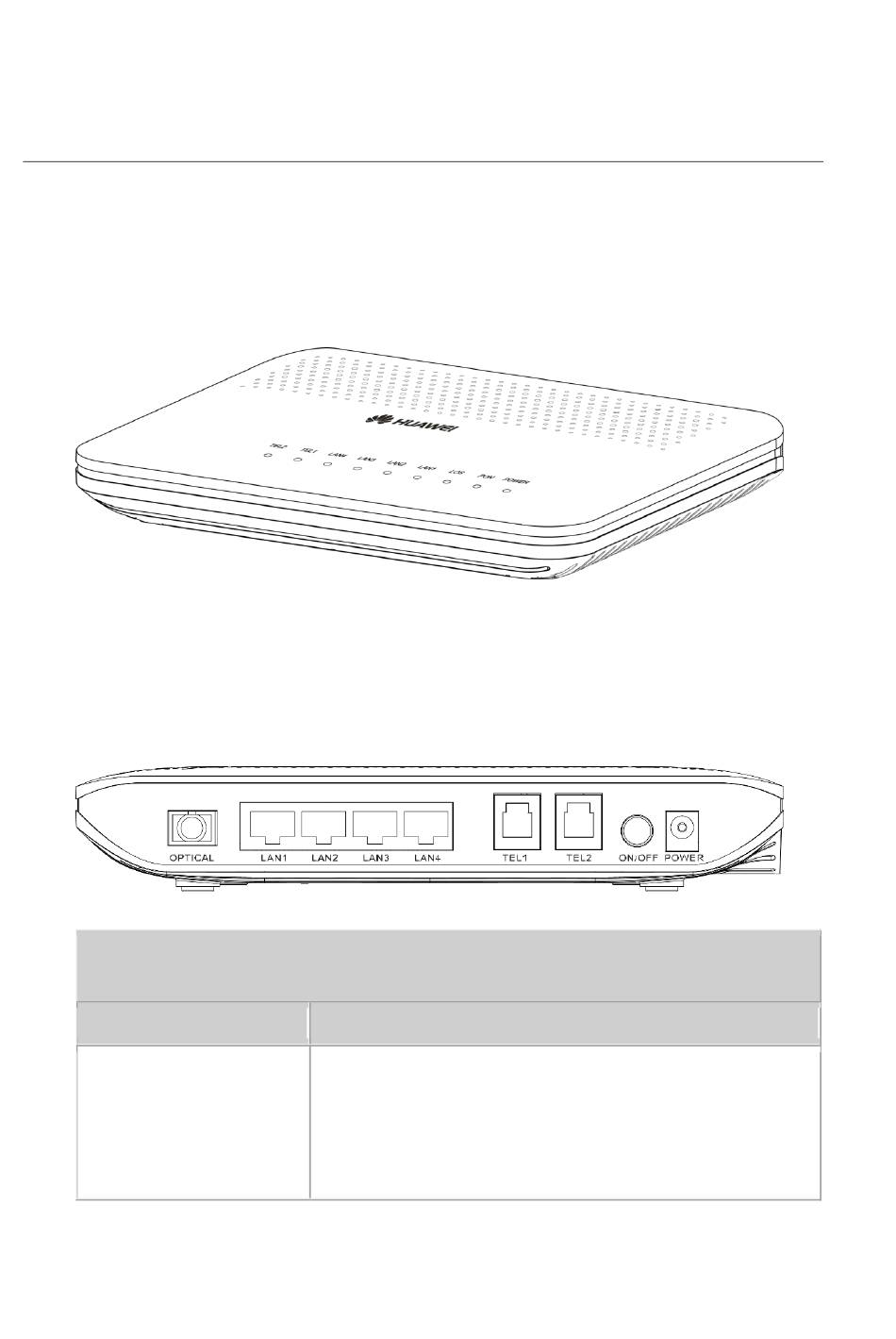

Figure 3 of the HG8240 respectively. Figure 2 Ports on the rear panel of the HG8240 Table 1 Descriptions of the ports on the rear panel of the HG8240 Port and Button Function Indicates the optical port. The optical port is equipped with a rubber plug and is connected to an optical fiber for upstream transmission.
Page 2
Table 1 Descriptions of the ports on the rear panel of the HG8240 Port and Button Function Indicate auto-sensing 10/100/1000M Base-T Ethernet LAN1-LAN4 ports (RJ-45), used for connecting to PCs or IP STBs. Indicate VoIP telephone ports (RJ-11), used for TEL1-TEL2 connecting to the ports on telephone sets.
Page 3
LEDs Figure 4 LEDs on the HG8240 Table 3 Indications of the LEDs on the HG8240 Silk Screen Name Status Indication Green: always The device is powered on. Power supply POWER Orange: always The device is powered by the backup battery.
Page 4
Table 3 Indications of the LEDs on the HG8240 Silk Screen Name Status Indication Data is being transmitted on Blinks the Ethernet port. The Ethernet connection is not set up. The connection to the voice Always on server is set up.
Page 5
Table 4 Indications of PON and LOS LEDs LED Status Indication Blinks quickly Blinks quickly The OLT detects that the ONT (twice per (twice per is a rogue ONT. second) second)
