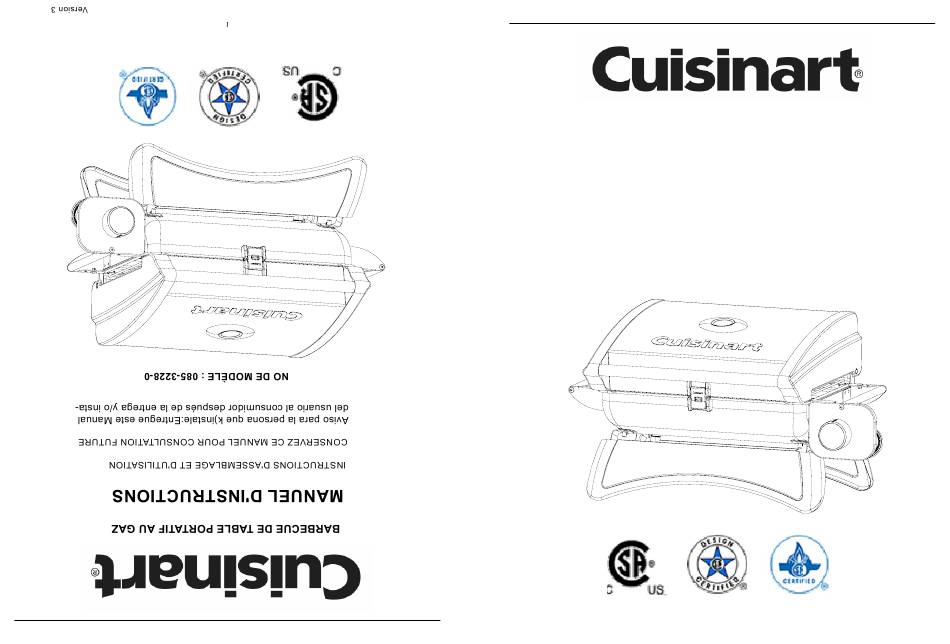

- Page 1 PORTABLE TABLETOP GAS GRILL INSTRUCTION′S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE Note to installer: Leave this Owner's Manual with the consumer after delivery and/or installation. PRODUCT NUMBER 085-3228-0 Version 3...
- Page 2 1 855 803-9312...
- Page 3 CUISINART PORTABLE LP GAS GRILL MODEL: BG036-G ASSEMBLY AND OPERATING INSTRUCTIONS WARNING: FOR OUTDOOR USE ONLY This instruction manual contains important information necessary for the proper assembly and safe use of the appliance Read and follow all warnings and instructions before assembling and using the...
-
Page 4: Table Of Contents
Content 1. Warnings and safety instructions………………………………………….1 2. Illustrated parts list …………………………………………………………2 3. Exploded diagram…………………………………………………………...3 4. Assembly instructions……………………………………………………..4 5. Operating your grill…………………………………………………………..6 ....…….…………………………..6 5.1 Select a proper location 5.2 Special instruction for the use of regulator and propane cylinder..6 5.3 Installing the gas cylinder ...………….……………………………… 7 5.4 Checking for gas leak ……..…………………………………………..7 5.5 Lighting instructions..…………………………………………..……..8 5.6 Match lighting………………………………………………………..….8... -
Page 5: Warnings And Safety Instructions
1. Warnings and Safety Instructions If these instructions are ignored, there is a possibility of a hazardous fire or explosion which could result in physical injury or property damage! It is your responsibility to assemble, operate and maintain your gas grill properly. Read all warnings and instructions prior to assembling and operating your grill WARNINGS:... -
Page 6: Illustrated Parts List
Heat reflector Grill 1 855 803-9312. -
Page 7: Exploded Diagram
Grill Heat reflector φ6,5... -
Page 8: Assembly Instructions
Attach washer with double side tape (black color) over the threaded hole on the leg assembly (the tape holds the washer in place for next steps) grill heat reflector heat reflector after the grill... - Page 9 Step 3 : Assemble the grill and leg assembly. Line up screws and screw holes of the leg assembly with holes on the fire box, and then drop the grill on the leg assembly. As per boxed diagram below, install the legs in the flat position with hinge folded up.
-
Page 10: Operating Your Grill
5.2 Special Instruction for the Use of Regulator and Propane Cylinder. A propane gas cylinder is required for operation. Use a 1lb (465g) propane cylinder. This Cuisinart grill is equipped with a regulator having a CGA No.600 cylinder connection. Propane cylinder size: D10cm×H20cm. Only cylinders marked “PROPANE” must be used. -
Page 11: Installing The Gas Cylinder
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. Always remove LP-gas cylinder from grill when transporting and when not in use. 5.3 Installing the gas cylinder (The propane gas cylinder is not provided with the appliance.) A gas cylinder complying with the requirements listed in section 5.2 must be obtained before the grill can operate. -
Page 12: Lighting Instructions
7. IMPORTANT INFORMATION IF USING 1 LB TANK If your portable BBQ using a 1 lb. propane tank is NOT heating up properly, the regulator may have inadvertently activated the safety device that limits the gas f low. If this is the case do the following: a. -
Page 14: Care And Maintenance
6. Care And Maintenance 6.1 Care Regular care of your grill will help keep it operating properly. All maintenance should be done only when the grill is cool and with the fuel supply turned off. Occasionally inspect and tighten hardware that may become loose. - Page 15 1 855 803-9312 .
-
Page 17: Warranty
Warranty This product has a 1-year replacement parts warranty on the main unit against defects in manufacturing workmanship and materials. All warranty claims must be accomplished by proof of purchase. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired (with same model, or one of equal value or specifications), at our option. - Page 18 1 855 803-9312...
