Sealey FPS6.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 WARNING! Before use, ensure that there is nothing attached
to the front forks or the fairing of the motorcycle, that will foul
on the chock.
Maintain the chock in good condition (use an authorised service

agent).
Replace or repair damaged parts. Use genuine parts only.

Unauthorised parts may be dangerous and will invalidate the
warranty.
Locate the chock in a suitable area. Keep area clean and tidy and

free from unrelated materials and ensure that there is adequate
lighting. Also ensure that the floor/ground is level and strong
enough (preferably concrete) to take the weight of the chock and
the motorcycle.
 DO NOT mount the stand on tarmacadam, as the surface may be
unstable.
Keep the chock clean for the best and safest performance.

Maintain correct balance and footing whilst positioning the

motorcycle in the chock.
Ensure that the floor is not slippery and wear non-slip shoes.

Ensure that the motorcycle is adequately secured to the chock if

to be used for transportation purposes.
Keep children and unauthorised persons away from the work area.

 DO NOT use the chock for a purpose it is not designed to perform.
 DO NOT operate the chock if it is damaged.
 DO NOT use the chock when you are tired or under the influence
of alcohol, drugs or intoxicating medication.
 DO NOT allow untrained persons to operate the chock.
DO NOT make any modifications to the chock.

Before removing a motorcycle from the chock, ensure that there

are no obstructions or persons in the path of the motorcycle.
© Jack Sealey Limited
INSTRUCTIONS FOR:

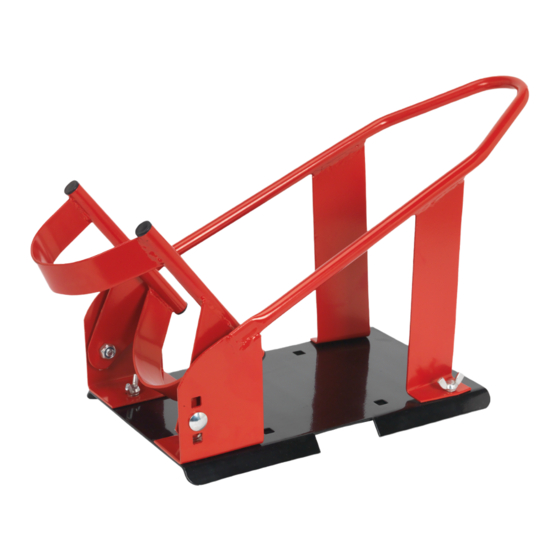

MOTORCYCLE FRONT WHEEL CHOCK
FPS6.V2
MODEL No:
2. INTRODUCTION & SPECIFICATION
Features adjustable pivoting wheel guide, which secures front wheel
within chock. Three adjustable heights depending on diameter of
wheel. Suitable for wheels with tyre widths 90-130mm and diameters
17"-21"(430-535mm). Base can be permanently bolted to the floor
(fixings not included), and features a detachable upper assembly that
can be easily stored and re-attached when required, stabilising
motorcycles without the need for side or centre stands. Base features
lashing strap gap for securing the bike in transport.
2.2. Specification:
Model No: .................................................................. FPS6.V2
Minimum/Maximum tyre width: ................................ 90-130mm
Minimum/Maximum tyre diameter: ........................ 430-535mm
fig.1
Original Language Version
fig.2
FPS6.V2 Issue:1 - 23/06/16
