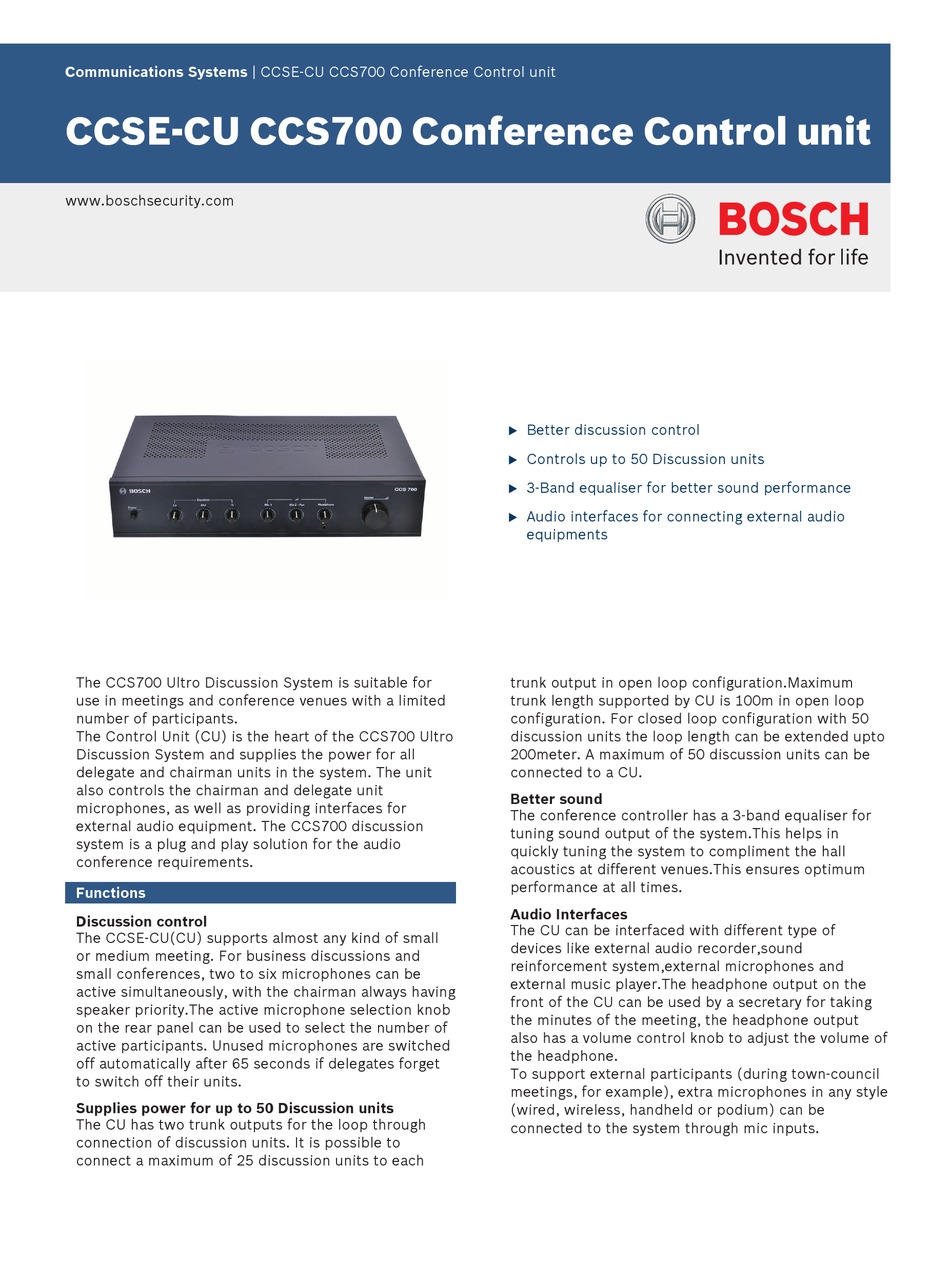

Communications Systems | CCSE-CU CCS700 Conference Control unit
CCSE-CU CCS700 Conference Control unit
www.boschsecurity.com
The CCS700 Ultro Discussion System is suitable for
use in meetings and conference venues with a limited
number of participants.
The Control Unit (CU) is the heart of the CCS700 Ultro
Discussion System and supplies the power for all
delegate and chairman units in the system. The unit
also controls the chairman and delegate unit
microphones, as well as providing interfaces for
external audio equipment. The CCS700 discussion
system is a plug and play solution for the audio
conference requirements.
Functions
Discussion control
The CCSE-CU(CU) supports almost any kind of small
or medium meeting. For business discussions and
small conferences, two to six microphones can be
active simultaneously, with the chairman always having
speaker priority.The active microphone selection knob
on the rear panel can be used to select the number of
active participants. Unused microphones are switched
off automatically after 65 seconds if delegates forget
to switch off their units.
Supplies power for up to 50 Discussion units
The CU has two trunk outputs for the loop through
connection of discussion units. It is possible to
connect a maximum of 25 discussion units to each
Better discussion control
u
Controls up to 50 Discussion units
u
3-Band equaliser for better sound performance
u
Audio interfaces for connecting external audio
u
equipments
trunk output in open loop configuration.Maximum
trunk length supported by CU is 100m in open loop
configuration. For closed loop configuration with 50
discussion units the loop length can be extended upto
200meter. A maximum of 50 discussion units can be
connected to a CU.
Better sound
The conference controller has a 3-band equaliser for
tuning sound output of the system.This helps in
quickly tuning the system to compliment the hall
acoustics at different venues.This ensures optimum
performance at all times.
Audio Interfaces
The CU can be interfaced with different type of
devices like external audio recorder,sound
reinforcement system,external microphones and
external music player.The headphone output on the
front of the CU can be used by a secretary for taking
the minutes of the meeting, the headphone output
also has a volume control knob to adjust the volume of
the headphone.
To support external participants (during town-council
meetings, for example), extra microphones in any style
(wired, wireless, handheld or podium) can be
connected to the system through mic inputs.
