УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru
Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304.

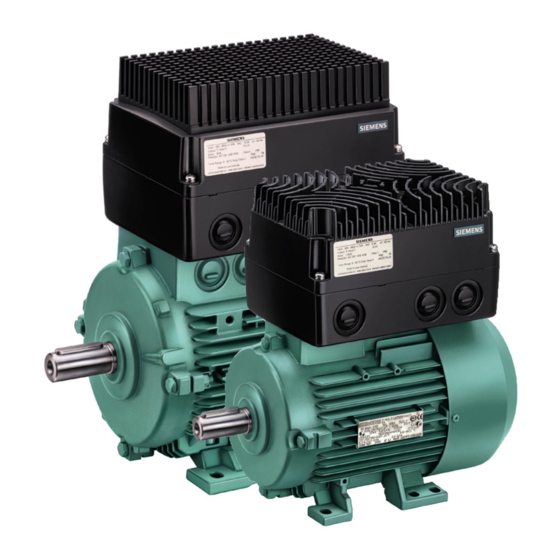

COMBIMASTER 411 &
MICROMASTER 411
Getting Started Guide
This Getting Started Guide allows for easy and efficient commissioning of the
Siemens COMBIMASTER 411 and MICROMASTER 411 Inverters. For further
technical information, please refer to the Operating Instructions and the
Parameter List on the CD-ROM supplied with COMBIMASTER 411 and
MICROMASTER 411.
Contents
1
2
3
4
5
Getting Started Guide - March 2002
A5E00157510A
Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554
English
3
3
6
8
8
8
9
14
14
15
15
15
15
15
16
1

Advertisement

Table of Contents
loading

Related Manuals for Siemens COMBIMASTER 411

Summary of Contents for Siemens COMBIMASTER 411

  • Page 1: Table Of Contents

    This Getting Started Guide allows for easy and efficient commissioning of the Siemens COMBIMASTER 411 and MICROMASTER 411 Inverters. For further technical information, please refer to the Operating Instructions and the Parameter List on the CD-ROM supplied with COMBIMASTER 411 and MICROMASTER 411. Contents Installation 1.1 Installation to Motor...
  • Page 2 Ø See Operating Instructions for recommended tightening torques. Ø If a Residual Current-operated protective Device (RCD) is to be used, it must be an RCD Type B. Ø COMBIMASTER 411 & MICROMASTER 411 cannot be used on unearthed power supplies (IT). Caution Ø...

  • Page 3: Installation

    Physical dimensions and characteristics for installation of MICROMASTER 411 are given in Section 2.3.7 and in Section 2.4.2 for COMBIMASTER 411 of the Operating Instructions. With the product items removed from their packaging carry out the following installation procedure (refer to Figure 3 for location of components): Separate the two halves (Inverter Cover and Terminal Housing).
  • Page 4 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Remove the cable gland blanking plates (knockouts) as required. See Figures 1 and 2. Fit cable glands to terminal housing, ensuring the O-rings are fitted to ensure the seal is maintained.
  • Page 5 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Inverter Cover (CSB) Terminal Housing (CSB) (Cable glands shown in preferred positions) Figure 3 lnternal Layout Getting Started Guide – March 2002 A5E00157510A...

  • Page 6: Electrical Installation

    УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Figure 4 MICROMASTER 411 General Layout Electrical Installation 1.2.1 Power Cable Connections If the Inverter cover (the top-half) has already been fitted unscrew the four M5 cross-head captive screws on the inverter cover.
  • Page 7 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Warning Ø It is essential that the Inverter be correctly grounded to the motor ground. Severe injury may result if the motor is not correctly grounded.

  • Page 8: Avoiding Electro-Magnetic Interference

    Avoiding Electro-Magnetic Interference Good installation practices will ensure safe and trouble-free operation. For further information see Operating Instructions. Commissioning COMBIMASTER 411/MICROMASTER 411. General Information For default operation no additional equipment is required. However, for more complex operation either the Basic Operator Panel (BOP), Advanced Operator Panel (AOP) or Fieldbus options can be used.

  • Page 9: Commissioning Procedure Overview

    Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Commissioning Procedure Overview COMBIMASTER 411 and MICROMASTER 411 can be commissioned in a variety of ways as explained in sections 3.2.1. to 3.2.6 below. Mechanical...
  • Page 10 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 3.2.1 Ramp Times Using Jumpers Inverter ramp times can be set using a series of 5 jumpers (fit the jumpers to enable the function).
  • Page 11 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Ramp Time Jumpers In the following table the behaviour of the Jumpers for ramp times are explained: Reaction(s) of the Status before action(s) Action(s)
  • Page 12 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Control Jumpers In the following table the behaviour of the Control Jumpers are explained: Reaction(s) of the Status before action(s) Action(s) inverter...
  • Page 13 Faults are acknowledged by using digital input DIN 3 (default setting). Switch off the inverter if the fault condition persists. For further fault code designations, please refer to the COMBIMASTER 411 and MICROMASTER 411 Operating Instructions on the CD included with the inverter.

  • Page 14: Quick Commissioning

    Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 Quick Commissioning Commissioning with BOP Motor parameters detailed below are already set for the respective Siemens motor at the factory. In order to change parameter settings, use either a BOP/AOP or a Commissioning Tool (e.g., Drive Monitor).

  • Page 15: Reset To Factory Defaults

    Reset to Factory Defaults For factory default settings set P0970 to 1 (with P0010 = 30). Where the inverter is integrated with a non-Siemens motor, setting P0970 = 1 restores the default parameter settings for the respective motor. Additional Control Applications...

  • Page 16: Combimaster 411 - Dimensions

    УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 COMBIMASTER 411 - Dimensions. Case Size B MOTOR FRAME SIZE Height 278.6 296.6 314.6 (11.0) (11.7) (12.4)
  • Page 17 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 NOTES Getting Started Guide – March 2002 A5E00157510A...
  • Page 18 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 NOTES Getting Started Guide – March 2002 A5E00157510A...
  • Page 19 УП "Спецпривод-С". http://www.privod.by/. Email: info@privod.by, msv125@mail.ru Адрес: Республика Беларусь, г.Полоцк, ул. Гагарина 8, комн. 304. Тел.: 8 (0214) 444395, 443688, 442155, (029) 6171554 NOTES Getting Started Guide – March 2002 A5E00157510A...
  • Page 20 ISO 9001 Siemens plc operates a quality management system, which complies with the requirements of ISO 9001. To submit any suggestions for improvements, please visit the Siemens Standard Drives Web Site at http://www.siemens.de/micromaster Siemens plc Automation & Drives...
