Contents Features ... 3 Dear SHARP customer ... 3 Introduction ... 3 Preparation ... 3 Important safety precautions ... 4 Safety Precautions ... 5 Connection to a Television Distribution System (Cable TV etc.) from Tuner ... 6 Package Contents ... 7 Environmental Information ...
Page 3
SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fi tted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked as above, which is also indicated on the pin face of the plug, must be used.

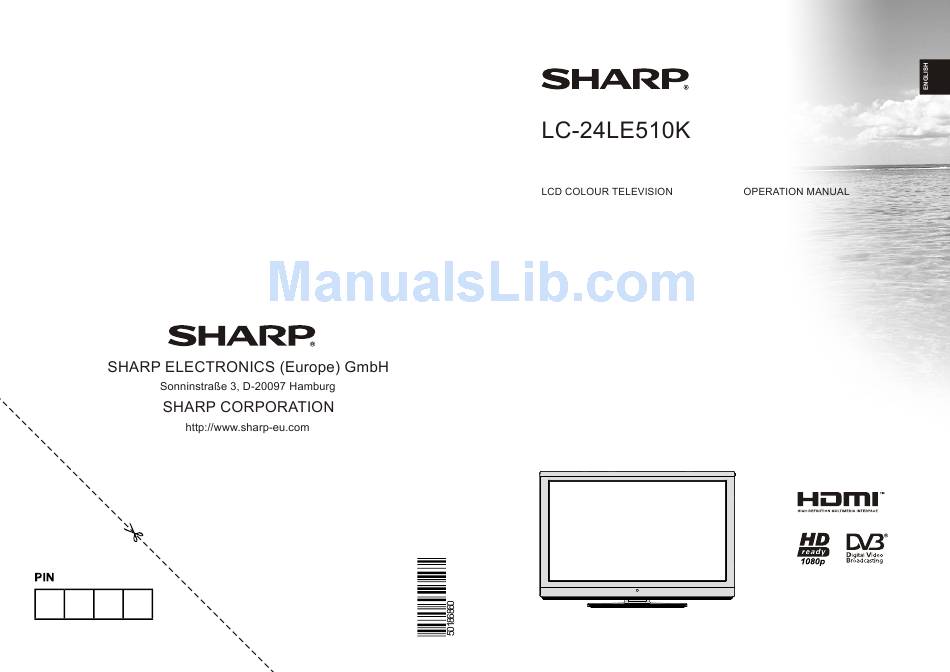

LC-24LE510K model. 00_MB60_[GB]_1910UK_IDTV_PVR_NICKEL16_24942LED_YPBPR_ROCKER_10072638_5018xxxx.indd 3 00_MB60_[GB]_1910UK_IDTV_PVR_NICKEL16_24942LED_YPBPR_ROCKER_10072638_5018xxxx.indd 3 Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read Important safety precautions carefully before using this product.
Important safety precautions • Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical cloth to clean it.
Safety Precautions Read the following recommended safety precautions carefully for your safety. Power Source The TV set should be operated only from a 220-240V AC, 50Hz outlet. Ensure that you select the correct voltage setting for your convenience. Power Cord Do not place the set, a piece of furniture, etc.
LCD Screen The LCD panel is a very high technology product with about a million thin fi lm transistors, giving you fi ne picture details. Occasionally, a few non-active pixels may appear on the screen as a fi xed blue, green or red point.
Package Contents Batteries: 2 X AAA Instruction Book Remote Control Quick Guide 1 X Component Video Connection Cable 1 X Video & Audio Connection Cable Note: You should check the accessories after purchasing. Make sure that each accessory is included. As the manufacturer ’s specification supports communication on cable lengths shall be smaller than 3m.
Remote Control Buttons Standby Image size / Zooms videos (in Media Browser video mode) Sleep Timer Mono / Stereo - Dual I-II / Currrent Language (*) (in DVB channels) Favourite Mode Selection (in DVB channels) Numeric buttons Electronic programme guide (in DVB channels) No function Media Browser Navigation buttons (Up/Down/Left/Right)
LCD TV and Operating Buttons FRONT and REAR VIEW Viewing the Connections - Back Connectors HDMI 2: HDMI Input HDMI 1: HDMI Input HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of displaying High Defi...
Viewing the Connections - Side Connectors CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see “Conditional Access” section. USB Inputs. Note that programme recording feature is available via these USB inputs. You can connect external hard disk drives to this input.
Using USB Inputs USB Connection • You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play fi les stored in a USB drive or record programmes. •...
• Do not plug out the USB/HDD during the recording. This may harm the connected USB/HDD. • Only two partitions on a HDD unit can be supported. • Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.
Connecting the LCD TV to a PC For displaying your computer’s screen image on your LCD TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LCD TV.
• If the TV will not be used for a long period i.e. holidays, then unplug the power cord from the mains socket. Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press “SOURCE”...
Yellow button: Display EPG data in accordane with timeline schedule Blue button (Filter): Views fi ltering options. (RECORD): the TV will start to record the selected progamme. You can press again to stop the recording. Up/Down/Left/Right: Navigate. Red button (Prev Time Slice): Displays the programmes of previous time slice.
• To cancel an already set recording, highlight that programme and press the OK button and select the option “Delete Rec. Timer”. The recording will be cancelled. Note: You cannot switch to any other channel or source while there is an active recording on the current channel.
After all the available stations have been stored a channel list will be shown based on the broadcaster LCN press OK to accept this channel order and start viewing or use the Edit functions to change the order or delete unwanted channels. •...
Manual Tuning HINT: This feature can be used for direct broadcast entry. • Select Manual Channel Scan from the Installation menu by using “ ”/“ ” and OK buttons. Manual Scan options screen will be displayed. • Select the desired Search Type using “...
Operating the Channel List • Press “ ” or “ ” button to select the channel that will be processed. Press “ ” or “ ” button to select a function on Channel List menu. • Use CH /CH buttons to move page up or down. •...
Managing Stations: Sorting Channel List You can select broadcasts to be listed in the channel list. To display specifi c types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “ ” or “ ” button. Press OK button to continue.
Play ( button): Starts the video playback. Stop ( button): Stops the video playback. Pause ( button): Pause the video playback. Rewind ( button): Goes backward. Forward ( button): Goes forward. Subtitle/Audio (LANG. button): Sets subtitle/Audio. Jump (GREEN button): Jumps to time. Use numeric buttons to type the desired time and press GREEN button again to proceed.
0..9 (Numeric buttons): The TV will jump to the fi le starting with the letter you input via the numeric buttons on your remote control. Play This (OK button): Plays the selected fi le. Previous/Next (Left/Right buttons): Jumps to previous or next fi le to play. YELLOW: Toggles viewing style.
Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting. Instant Recording IMPORTANT: To record a programme, you should fi rst connect a USB disk to your TV while the TV is switched off.
Page 25
The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device. Note: Auto mode only will be available in HDMI, YPbPr and DTV sources. 16:9 This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fi...
Confi guring Picture Settings You can use different picture settings in detail. Press “MENU” button and select the Picture icon by using “ ” or “ ” button. Press OK button to view Picture Settings menu. Operating Picture Settings Menu Items •...
Confi guring Sound Settings Sound settings can be confi gured according to your personal preferences. Press “MENU” button and select the fi rst icon by using “ ” or “ ” button. Press OK button to view Sound Settings menu. Operating Sound Settings Menu Items •...
Using a Conditional Access Module IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF. • In order to watch certain digital channels, a conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV. •...
Language Settings In the confi guration menu, highlight the Language Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen: Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “...
• Use “ ” or “ ” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes. Setting Programme Timers You can set programme timers for a particular programme using this feature. Press “...
Hard Disk Info To view the details about the USB disk, highlight Hard Disk Info by using “ ” or “ ” key and press OK. USB disk information will be displayed: Confi guring Date/Time Settings Select Date/Time in the Settings menu to confi gure Date/Time settings.
Menu Timeout: Changes timeout duration for menu screens. Scan Encrypted: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search. Backlight (optional): This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Medium.
Note: Most TV stations use code 100 for their index pages. Coloured Buttons (RED/GREEN/YELLOW/ BLUE) Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons.
Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1360 x 768. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below.
Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. 480i 480p 576i 576p 720p 1080i 1080p Appendix D: Supported File Formats for USB Mode Player Stream Audio...
Appendix E: Software Upgrade • Your TV is capable of fi nding and updating new software upgrades over broadcast channels. • For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels. 1) Software upgrade search via user interface •...
End of life disposal 00_MB60_[GB]_1910UK_IDTV_PVR_NICKEL16_24942LED_YPBPR_ROCKER_10072638_5018xxxx.indd 38 00_MB60_[GB]_1910UK_IDTV_PVR_NICKEL16_24942LED_YPBPR_ROCKER_10072638_5018xxxx.indd 38 English - 38 - 22.07.2011 16:56:55 22.07.2011 16:56:55...
Detachable Stand Uninstallation Method To install the TV on the wall, fi rst of all, foot assembly should be removed. Unscrew the 4 screws that attach the foot assembly to the panel and remove the foot assembly from the panel. 00_MB60_[GB]_1910UK_IDTV_PVR_NICKEL16_24942LED_YPBPR_ROCKER_10072638_5018xxxx.indd 39 00_MB60_[GB]_1910UK_IDTV_PVR_NICKEL16_24942LED_YPBPR_ROCKER_10072638_5018xxxx.indd 39 English - 39 -...
