5 Prepare the system for a run
5.1 Prepare the flow paths

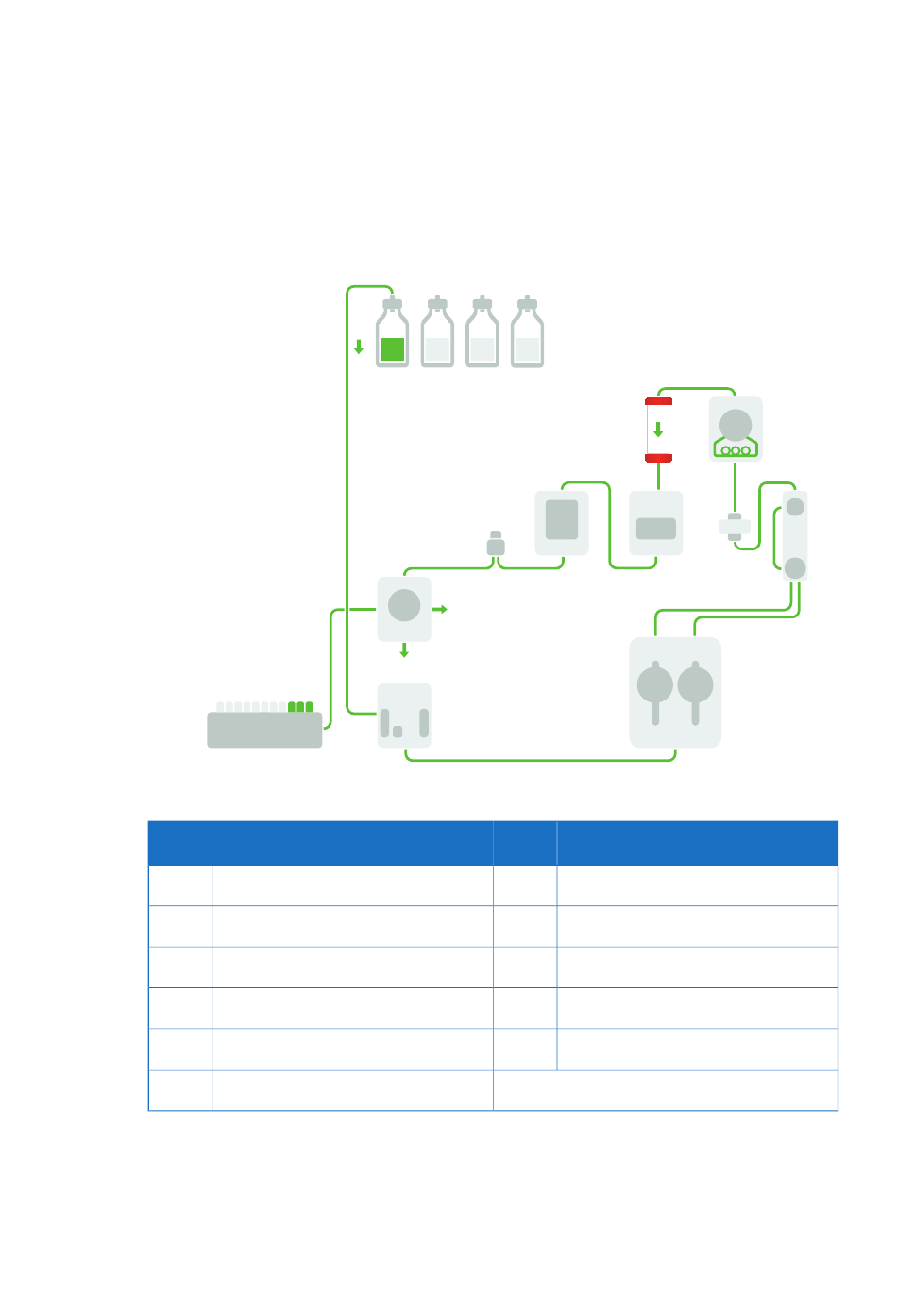

Illustration of the flow path
The illustration below shows the flow path for a standard configured ÄKTA go instrument
with an optional fraction collector connected. The individual instrument modules are
presented in the table below. The system configuration is defined by the user in the
UNICORN Administration module.
Part
1
2
3
4
5
6
62
11
Description
Inlet valve K9
Pump P9-S
Pressure monitor R9
Mixer
Injection valve V9-J
Column
A B C Sample
9 8
10
1
Part
7
8
9
10
11
6 5
4
7
2
Description
UV monitor U9-L
Conductivity monitor C9
Flow restrictor FR-902
Outlet valve V9-Os
Fraction collector F9-R
