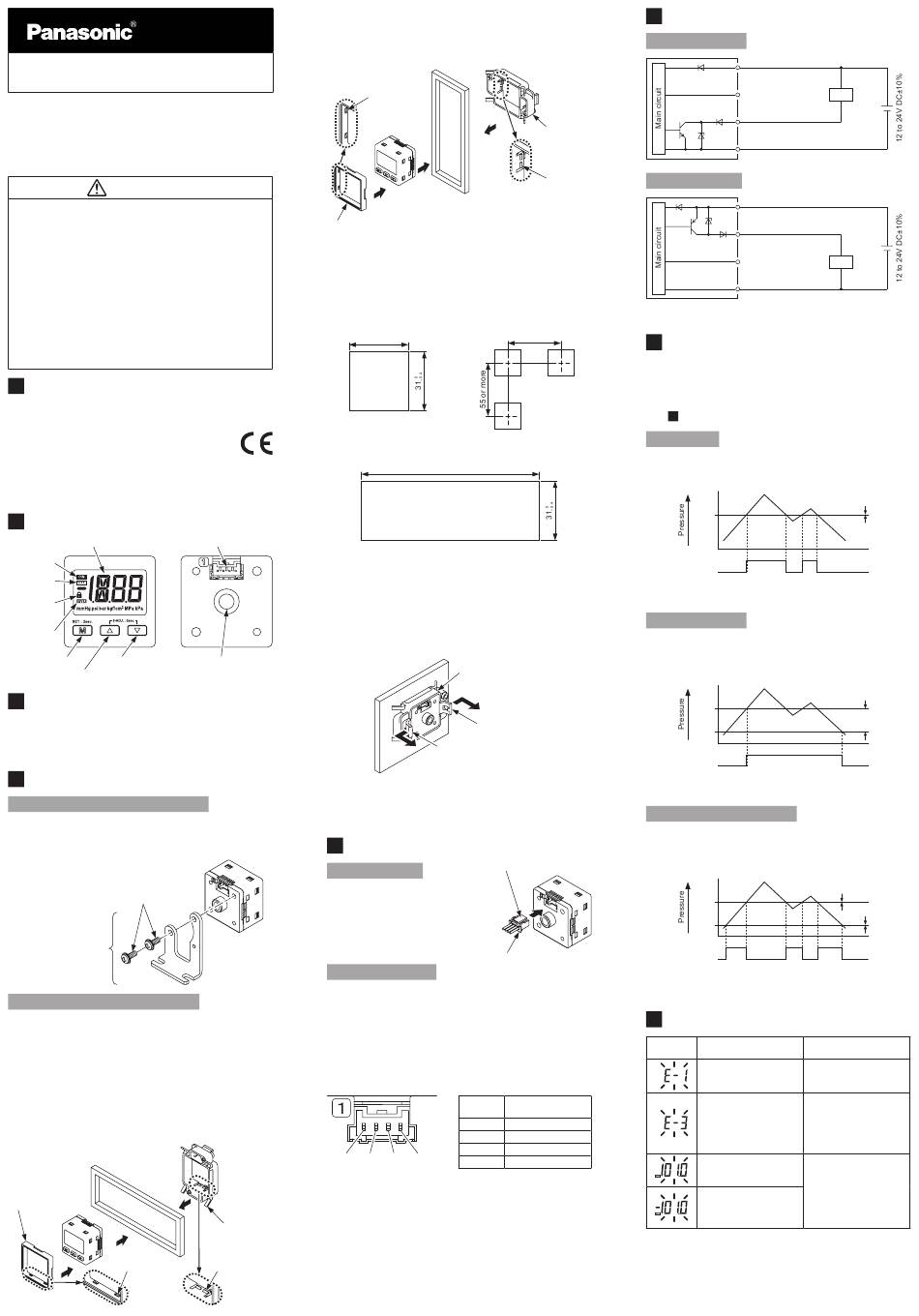

Panasonic DP-00 Series Instruction Manual

INSTRUCTION MANUAL
Digital Display Pressure Sensor
DP-00□(Z)
CMJE-DP0 No.0052-51V
Thank you very much for purchasing Panasonic products.
Read this Instruction Manual carefully and thoroughly for
the correct and optimum use of this product. Kindly keep
this manual in a convenient place for quick reference.
WARNING
● Never use this product as a detection device for
personnel protection.
● In case of using devices as detectors for personnel
protection, use products which meet laws and stan-
dards, such as OSHA, ANSI or IEC etc., for person-
nel protection applicable in each region or country.
● This product is used for noncorrosive gas. The
product shall not be used for liquid or corrosive gas.
Never use fluids having inflammability, toxicity,
etc., that affect the human body, either.
● A product intended for use in Japan conforms to
the Japanese Measurement Act. Do not use a
product intended for use overseas in Japan.
1 APPLICABLE STANDARDS / REGULATIONS
● This product complies with the following stan-
dards / regulations.
<European Directive>
EMC Directive
● Contact for CE
Panasonic Marketing Europe GmbH Panasonic Testing Center
Winsbergring 15, 22525 Hamburg,Germany
2 PART DESCRIPTION
Digital display unit
ON mark
OFF mark
Key lock
mark
OVER mark
Mode selection key Setting value DOWN key
Setting value UP key
3 PIPING
● When using this product, connect a joint available
in the market to the pressure port. At the time, the
tightening torque should be 1.0N·m or less.
4 MOUNTING
Sensor mounting bracket MS-DP1-1
● When mounting this product with sensor mount-
ing bracket, etc., the tightening torque should be
0.5N·m or less.
M3 (length 6mm) screws with washer
(Accessory with MS-DP1-1)
Sensor mounting bracket
MS-DP1-1
Panel mounting bracket MS-DP1-8
<How to mount>
1. Fit the panel mounting adapter on the front side
of the sensor. Mounting direction of the panel
mounting adapter differs depending on the
mounting direction of the panel mounting bracket.
● For horizontal adjacent mounting
• Mount the panel mounting adapter and the
panel mounting bracket so that the fixing hooks
are vertical.
Panel mounting
adapter
Fixing hooks
● For vertical adjacent mounting
• Mount the panel mounting adapter and the
panel mounting bracket so that the fixing hooks
are horizontal.
Panel mounting adapter
2. Insert to the panel, in condition 1.
3. Insert the panel mounting bracket from the rear
side of the sensor till it touches the panel.
<Dimensions of panel cutout>
● For single mounting (Unit: mm)
(Panel thickness: 1 to 3)
● For adjacent mounting (Unit: mm)
Connecting connector
When n pieces are mounted
X = 31 × n + 3.5 × (n - 1)
Note: In case of adjacent mounting, be sure to keep apart from each other
in 55mm or more as well as for single mounting.
<How to remove>
● Pull out the panel mounting bracket while pushing
the removing levers out.
Pressure port
(M5 female thread)
Notes: 1) Take care that it the sensor is forcibly pulled, the sensor itself or
the panel mounting bracket may break.
2) Do not reuse the panel mounting adapter which has been used
once.
5 WIRING
How to connect
● Insert the cable with con-
nector CN-14A-C□ into this
product's connection con-
nector section as shown in
the right figure.
How to disconnect
● Pressing the release lever
of the cable with connector,
pull out the connector.
Note: Do not pull by holding the cable without pressing the release lever,
as this can cause cable break or connector break.
<Connector pin arrangement>
1
Panel mounting
bracket
Fixing hooks
Fixing hooks
Panel mounting
bracket
55 or more
31 0
-0.4
X
Panel mounting bracket
Removing lever
Removing lever
Release lever
Cable with connector
CN-14A-C□
<Recommended product>
Contact:
SPHD-001T-P0.5
Housing: PAP-04V-S
[Manufactured by JST Mfg. Co., Ltd.]
Connector
Terminal name
pin No.
1
2 Comparative output
3 No connection (Note)
2 3 4
4
Note: Open or, Connect to 0V.
6 I/O CIRCUIT DIAGRAMS
NPN output type
PNP output type
Fixing hooks
Note: Open or, Connect to 0V.
7 OUTPUT MODE AND OUTPUT OPERATION
● The EASY mode, hysteresis mode or window
comparator mode can be selected as the output
mode.
For details, refer to <Detailed setting mode> in
" Menu setting mode."
12
EASY mode
● The comparative output ON / OFF state can be
controlled in this mode.
P-1
0
ON
Comparative
output
OFF
H: Hysteresis fixed (4 digits)
(10 digits or more when the product is for overseas use and used in units of psi.)
Hysteresis mode
● The comparative output ON / OFF state can be
controlled with randomly set hysteresis in this
mode.
P-2
P-1
0
Comparative ON
output
OFF
H: 2 digits or more
(5 digits or more when the product is for overseas use and used in units of psi.)
Window comparator mode
● In this mode, the ON or OFF state of the compar-
ative output is controlled with a pressure in the
set range.
P-2
P-1
0
ON
Comparative
output
OFF
H: Hysteresis fixed (4 digits)
(10 digits or more when the product is for overseas use and used in units of psi.)
8 ERROR INDICATION
Error
indication
The load is short-circuited
causing an overcurrent to
flow.
Pressure is applied during
+V
zero point adjustment.
The applied pressure ex-
0V
ceeds the upper limit of the
displayed pressure range.
The applied pressure ex-
ceeds the lower limit (back
pressure) of the displayed
pressure range.
When other error massage is displayed, contact us.
(Brown) +V
(White) No connection
Load
(Note)
+
−
(Black) Comparative output
(Blue) 0V
(Brown) +V
(Black) Comparative output
+
−
(White) No connection
Load
(Note)
(Blue) 0V
H (Hysteresis)
H (Hysteresis)
H (Hysteresis)
H (Hysteresis)
Description Remedy
Turn OFF the power and
check the load.
Applied pressure at the
pressure port should be
brought to atmospheric
pressure and zero-point
adjustment should be done
again.
Applied pressure range
should be brought within
the rated pressure range.
