SECTIO N 1 3-RMS-9
99 -
FIG.
PROGRAMMER SECONDARY
CONNECTOR EPIC MICROVERSATRIP ®
1 3. 1 .2
RMS-9 & EPIC MICROVERSATRIP®
INSTALLATION
The programmer mounts to the u pper left of the breaker
as shown in Fig. 1 00. It mounts to the brac ket assem b ly
shown in Fig. 82. Referring to Fig. 82, the guide pins m ate
with the hole on either side of the programmer connector.
They provide the necessary alignment for the connector
engagement. The locking lever engages with the pin which
is assem b led to the program mer frame and secures the
programmer to the mounting bracket.
I nstallation is as follows:
a. I nsert the g u ide p i ns into the holes and push on the
programmer, engag ing the con nectors.
b. The locki ng lever is released , securing the program­
mer.
c. Verify that the locking lever did engage the program­
mer pin.
To remove the programmer:
a. Pull out locking lever, which will release the program­
mer pin. Remove the programmer.
&
Epic M icroVersaTrip® {Cont. )
1 3.2 CURRENT SENSORS
n ec essary to o p erate the t r i p syst e m .
M icroVersaTrip '), t h e RMS-9 and Epic MicroVersaTrip('
uses a phase and neutral sensor. Fig. 1 0 1 shows the
phase sensors. See Section 1 3 . 5 for cabling diag rams.
their windings. Their COMMON terminal is the right hand
term inal as shown in Fig. 1 01 . A white wire with a termi nal
will be con nected to this COMMON terminal. All p hase
sensors must be correctly wired for the programmer
summing circuit to function properly.
winding. This winding is brought out to separate flag
terminals. These phase sensors are used when the hi­
level instantaneous RMS-9 option (' H ' -option) is req uired .
Fig . 1 0 2 shows an ' H ' -option phase sensor. When the
' H ' -option phase sensor is instal led, there are four leads
con nected to it. There is no polarity associated with the
special winding connection. Fig. 1 0 2 shows the connec­
tions for the add itional ' H ' -option windings.
The current sensors supply the power and signal i nput

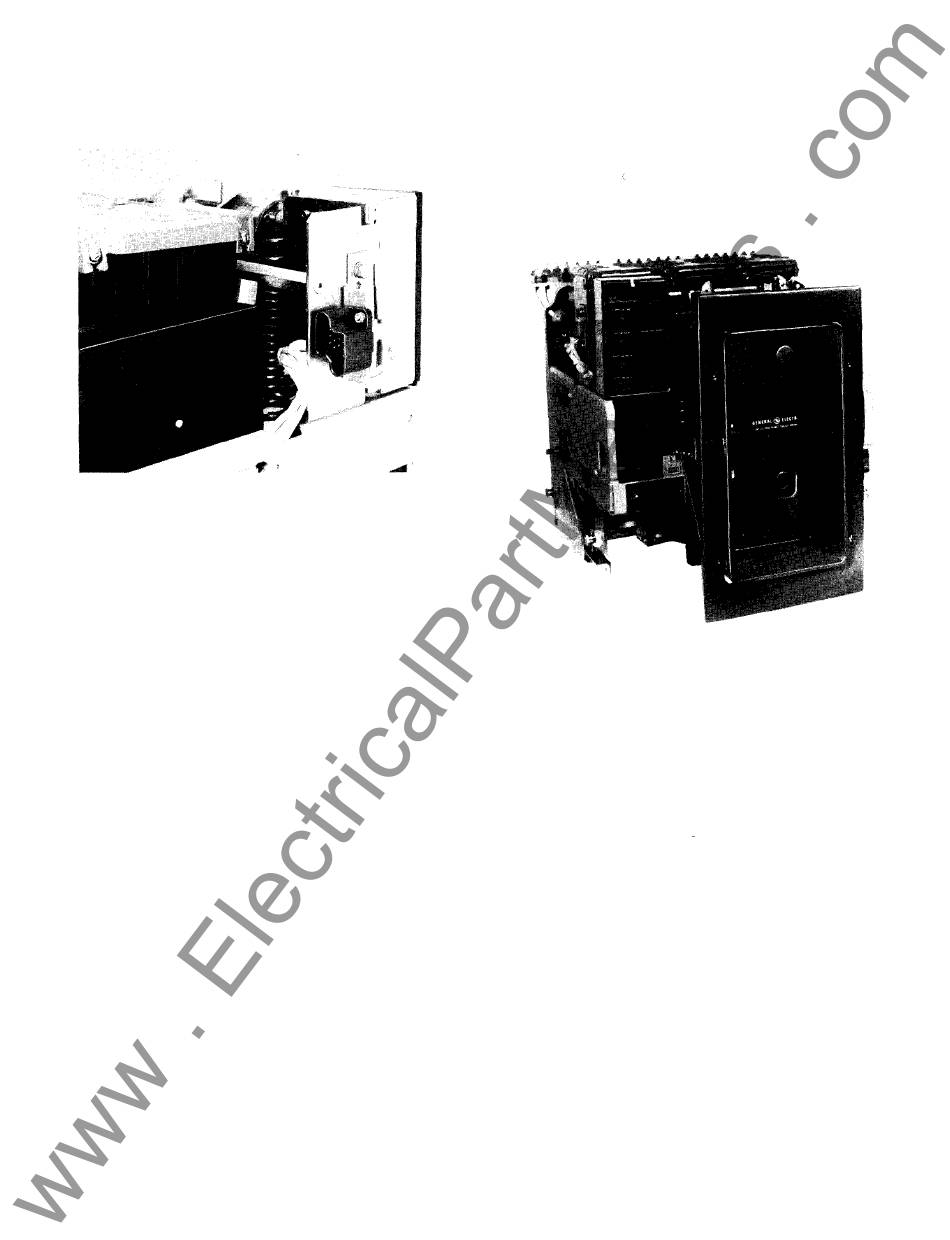

FIG. 1 00 - AKR-70-30
The fixed phase sensors have a polarity associated with
The phase sensors are avai lable with an additional
L i ke t h e
7 1
