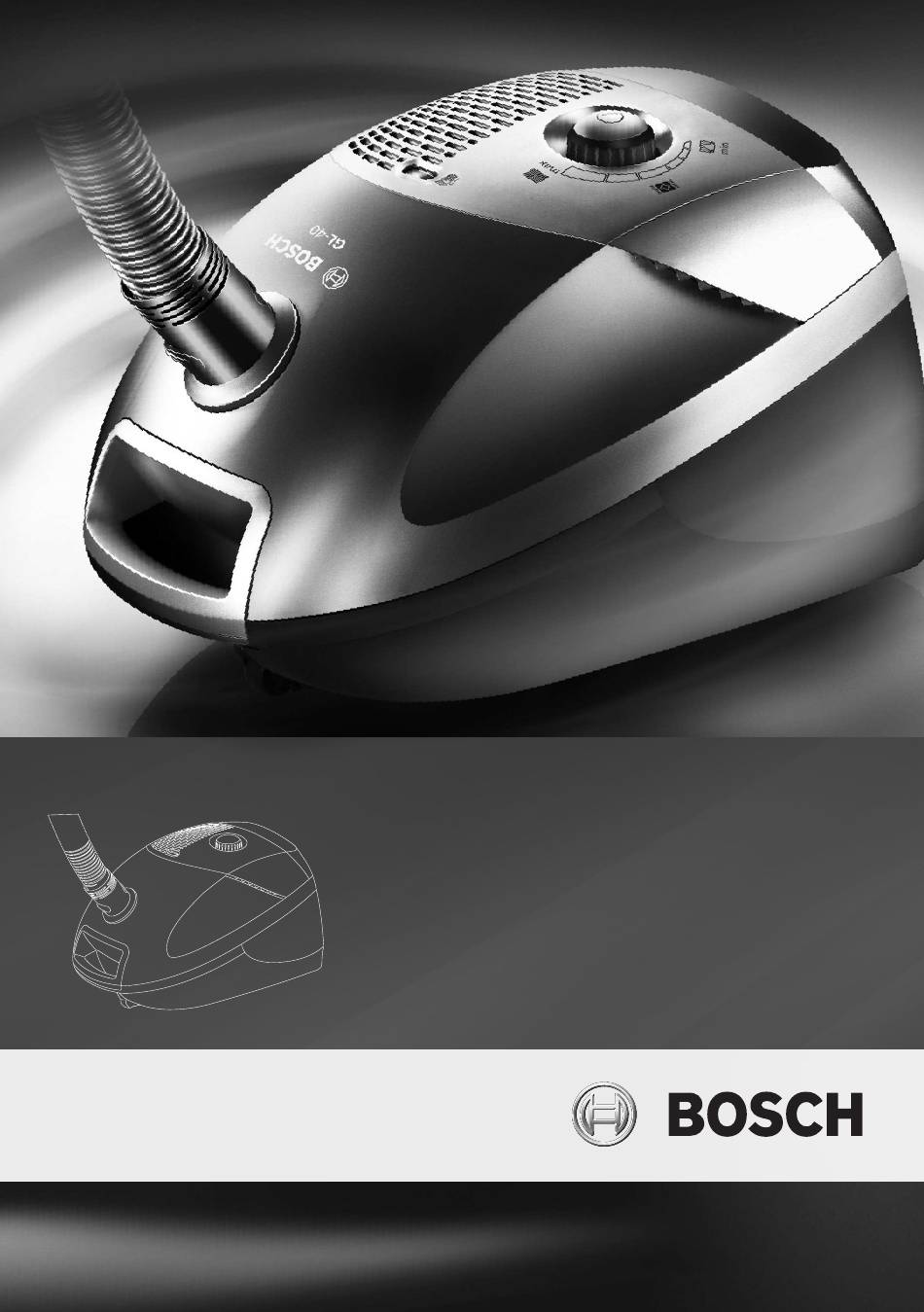

- Page 1 BSGL4022GB Instructions for use...
-
Page 2: Table Of Contents
Intended use ..........3 Safety information . -
Page 3: Intended Use
Please keep this instruction manual. Unplug the power cord from the mains before When passing the vacuum cleaner on to a third party, carrying out any work on the vacuum cleaner or its please also pass on this instruction manual. accessories. -
Page 4: Your Vacuum Cleaner
Your vacuum cleaner 1 Adjustable floor tool 11 On/off button with electronic suction 2 Telescopic tube with adjusting sleeve / regulator 12 Motor protection filter, washable sliding switch 3 Hard-floor brush 13 Storage aid (on underside of unit) 4 Hose handle 14 Dust bag 5 Flexible hose 15 Dust bag compartment lid... -
Page 5: Setting Up
Setting up Before using for the first time Push the handle onto the flexible hose until it engages. CLICK! Push the crevice nozzle and upholstery nozzle into the accessories holder as illustrated. CLICK! Push the flexible tube adapter into the air intake opening in the vacuum cleaner lid until it engages... - Page 6 Setting up Push the handle into the telescopic tube. Push the telescopic tube into floor tool. Release the telescopic tube by moving the adjusting sleeve / sliding switch in the direction of the arrow and adjust the tube to the required length. Holding the power cord by the plug, pull out the required length and plug the plug into the mains socket.
- Page 7 Setting up Switching on/off Your appliance is fitted with a pop-out control button. To switch on the appliance, press the control button in the direction of the arrow down to the stop and release. This will release and extend the controller.
-
Page 8: Vacuuming
Vacuuming Adjusting the floor tool: Rugs and carpets => hard floors => Remove the upholstery nozzle and crevice nozzle from the accessories holder as illustrated. Vacuuming with accessories Attach the nozzles to the tube or handle as required: Crevice nozzle for vacuuming crevices and corners, etc. - Page 9 Vacuuming After use, push the crevice nozzle and upholstery nozzle back into the accessories holder as CLICK! indicated. Hard-floor brush For vacuuming hard floor coverings (tiles, parquet flooring, etc.) Cleaning the hard-floor brush Vacuum from below to clean the brushes. Cut through threads and hairs wound round the rollers using scissors.
- Page 10 Vacuuming The tool connector can be removed if the vacuum channel becomes blocked. Place the brush with the suction opening facing upwards, push the guide at the side of the wheel slightly outwards and pull the tool connector upwards and away from the brush. When refitting the connector, make sure that it is correctly seated and that it engages correctly in the guide.
-
Page 11: When The Work Is Done
When the work is done Unplug the vacuum cleaner. Tug the power cord briefly and let go. The cable then rewinds automatically. To store/ transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner. Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance. -
Page 12: Changing The Dust Bag And Filters
Changing the dust bag and filters Replacing the dust bag If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even if it is not yet full. In this case it is essential to change the dust bag due to the type of material it contains. - Page 13 Changing the dust bag and filters Seal the dust bag by pulling the sealing strip and remove the bag. Slide the new dust bag into the holder to the stop. Caution: the lid will only close if a dust bag has been inserted.
- Page 14 Changing the dust bag and filters Clean the motor protection filter by tapping it. If it is very dirty, the motor protection filter should be rinsed out. The filter must then be left to dry for at least 24 hours. After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.
-
Page 15: Care
Replacement filter pack BBZ52AFGXL Typ GXL Contents: 5 filter bags with lock 1 micro-hygiene filter http://www.dust-bag-bosch.com Textile dust bag (permanent dust bag) BBZ10TFG Reusable bag with Velcro fastener. HEPA filter BBZ153HFB Additional filter for cleaner exhaust air. Recommended for allergy sufferers. Replace once... - Page 16 Replacement parts and accessories Micro active carbon filter BBZ192MAF Combination of micro filter and active carbon fil- ter. Combats unpleasant odours over a long peri- od. Replace twice a year. Replace carbon filter frame with micro filter frame. Please note It is not possible to combine a HEPA filter and a micro active carbon filter.
- Page 20 P rinted on recycled paper The design of this product is environment-friendly. All plastic parts are identified for recycling purposes 5100 003 155 A...
