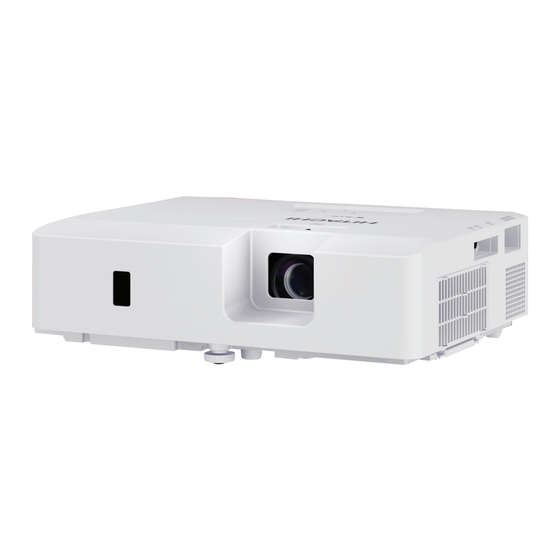

LCD Projector
CP-EX3051WN/CP-EX3551WN/CP-EX4551WN
CP-EW3051WN/CP-EW3551WN/CP-EW4051WN
User's Manual (detailed) Network Guide
Thank you for purchasing this product.
This manual is intended to explain only the network function. For proper use of this
product, please refer to this manual and the other manuals for this product.
WARNING
product. After reading them, store them in a safe place for future reference.
Features
This projector has the network function that brings you the following main features.
Web Control : allows you to monitor and control the projector through a network from a
computer, smartphone and tablet de ice.
Network Presentation : allows the projector to project computer, images transmitted
through a network.
My Image : allows the projector to store up to four still images and project them.
Messenger : allows the projector to display text sent from a computer through a network.
81)
Network Bridge : allows you to control an external de ice through the projector from a
computer.
84)
NOTE
The information in this manual is subject to change without notice.
The illustrations in this manual are for illustrati e purposes. They may differ
slightly from your projector.
The manufacturer assumes no responsibility for any errors that may appear in
this manual.
The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
efore using this product, be sure to read all manuals for this
76)
35)
80)
1

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-EX3051WN

Summary of Contents for Hitachi CP-EX3051WN

  • Page 1 LCD Projector CP-EX3051WN/CP-EX3551WN/CP-EX4551WN CP-EW3051WN/CP-EW3551WN/CP-EW4051WN User's Manual (detailed) Network Guide Thank you for purchasing this product. This manual is intended to explain only the network function. For proper use of this product, please refer to this manual and the other manuals for this product.

  • Page 2: Table Of Contents

    Contents Contents Caution ..................5 1. Network Function ..............6 1.1 Web Control ....................6 1.2 Network Presentation ................. 7 1.3 My Image Function ..................8 1.4 Messenger Function ................... 9 1. Network ridge Function ................10 1.6 Other Functions ..................11 1.6.1 E-mail Alerts ........................
  • Page 3 Contents 3.1.8 Date/Time Settings ......................56 3.1.9 Security Settings ......................58 3.1.9.1 User Account ......................58 3.1.9.2 Network Control ......................59 3.1.9.3 Network Presentation ....................60 3.1.9.4 SNMP ........................61 3.1.10 Projector Control ......................62 3.1.11 Remote Control ......................63 3.1.12 Projector Status ......................
  • Page 4 Contents 8. Other Functions ..............88 8.1 E-mail Alerts ..................... 88 8.2 Projector Management using SNMP ............91 8.3 E ent Scheduling ..................93 8.4 Command Control ia the Network ............97 8.5 Crestron Connected ................102 9. Troubleshooting ..............103 10.

  • Page 5: Caution

    Caution Caution e sure to con rm that the projector has been installed and connected safely e en if it is turned on automatically. If you connect the projector to an existing network, consult a network administrator before setting ser er addresses. Attaching an optional wireless adapter to the projector enables wireless connection.

  • Page 6: Network Function

    1. Network Function 1. Network Function This chapter describes the outline of network function. 1.1 Web Control Connecting the projector and the computer ia the network, remote control and status monitoring of the projector can be performed by Web browser. Two types of interface, “Projector Web Control”...

  • Page 7: Network Presentation

    1. Network Function 1.2 Network Presentation The projector can display or play back the computer screen images and audio data that are transmitted through the network. To use Network Presentation, an exclusi e application, i e iewer is re uired. The following application is re uired to use Network Presentation.

  • Page 8: My Image Function

    1. Network Function 1.3 My Image Function The projector can display still images transferred ia the network. It is possible to allocate up to 4 image les. MY IMA E transmission re uires an exclusi e application for your computer. Use the application to transfer the image data.

  • Page 9: Messenger Function

    1. Network Function 1.4 Messenger Function The projector can display text data transferred ia the network on the screen and play back audio data inside the projector. Up to 12 text data can be stored. Transfer text data Display text data ex.

  • Page 10: Network Ridge Function

    1. Network Function 1.5 Network Bridge Function This projector is e uipped with the NETWORK RID E function to perform mutual con ersion of a network protocol and a serial interface. y making use of the NETWORK RID E function, a computer connected to the projector ia wireless or wired AN is able to control an external de ice ia RS-232C communication using the projector as a network de ice.

  • Page 11: Other Functions

    1. Network Function 1.6 Other Functions 1.6.1 E-mail Alerts The projector can automatically send an alert message to the speci ed e-mail addresses when the projector detects a certain condition re uiring maintenance or detected an error. 1.6.2 Projector Management using SNMP The SNMP Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on the network.

  • Page 12: Connection To The Network

    2. Connection to the network 2. Connection to the network The connection method of wireless AN and wired AN is as follows. Wireless AN US -W -5 ) Item Description Standard IEEE802.11a/b/g/n/ac Channel H : 1 11ch H : 36/40/44/48ch W52) 149/153/157/161/165ch W58) Encryption WPA2-PSK AES/TKIP), WPA-PSK AES/TKIP),...

  • Page 13: Connection Ia Wireless An

    2. Connection to the network Connection via wireless LAN Wireless AN has two types of connection, Simple Access Point and Infrastructure. Fig. 2.2.a Without an access point communication Simple Access Point) Fig. 2.2.b With an access point communication Infrastructure) * Simple Access Point is a mode which connects to computers directly. This projector can assign IP addresses to up to 10 de ices.
  • Page 14 2. Connection to the network NOTE If using a wireless network function, please make sure that NETWORK - WIRE ESS NETWORK setting is ON. Network settings can also be changed in Network Settings of Projector Web Control Wireless AN initial settings for the projector are as follows. Mode: Simple Access Point IP address: 192.168.10.1 Subnet Mask: 255.255.255.0...

  • Page 15: Connection In Simple Access Point Mode

    2. Connection to the network 2.1.1 Connection in Simple Access Point Mode Set the following when connecting the projector and the computer in Simple Access Point mode. Projector setting 1) Turn on the projector. 2) Press the MENU button on the remote control or the control panel of the projector.

  • Page 16: Connection In Infrastructure Mode

    2. Connection to the network 2.1.2 Connection in Infrastructure Mode Set the following when connecting the projector and the computer in Infrastructure mode. Projector setting 1) Turn on the projector. 2) Press the MENU button on the remote control or the control panel of the projector.
  • Page 17 2. Connection to the network Connection in Infrastructure Mode (continued) SSID SCAN LIST function The connection can be set up by selecting from SSID SCAN IST without setting SSID and ENCRYPTION in WIRE ESS SETUP. The procedure of connecting by SSID SCAN IST is as follows.

  • Page 18: Connection Ia Wired An

    2. Connection to the network Connection via wired LAN The connection ia wired AN is a ailable. Set wired AN for the projector by following the instructions of your network administrator when connecting to the existing network. Connection setup of wired LAN 1) Connect the projector to the computer ia a hub with a AN cable CAT-5e or higher).
  • Page 19 2. Connection to the network [About IP address] Setting manually The Network address portion of the IP address setting on your computer must be the same as the setting on the projector. Also, the entire IP address on the computer must not o erlap with that of the other de ices on the same network, including the projector.

  • Page 20: Applications

    2. Connection to the network 2.3 Applications The latest ersion of the application software can be downloaded from the website below. http://www.hitachi-america.us/projectors http://www.hitachidigitalmedia.com/ http://www.hitachiconsumer.com.sg For iOS/Android Network Presentation software, refer to the UR below for the details and downloads of Projector Quick Connection.

  • Page 21: Network Menu

    2. Connection to the network 2.4 NETWORK Menu Remember that incorrect network settings on this projector may cause trouble on the network. e sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK”...
  • Page 22 2. Connection to the network Item Description Displays the network information of the projector. WIRE ESS INFORMATION WIRED INFORMATION OTHER INFORMATION NETWORK INFORMATION NOTE IP ADDRESS, SU NET MASK and DEFAU T ATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP ser er.
  • Page 23 2. Connection to the network Item Description Con gures wireless network. Con gured alues are sa ed after selecting APP Y . NOTE Con gured alues are not sa ed if Menu disappears before selecting APP Y . e sure to execute APP Y after changing the settings. Searches a ailable wireless network and displays the list of SSID.
  • Page 24 2. Connection to the network Item Description Icon Description The projector is connecting to the wireless network. The wireless network is encrypted. The intensity of radio wa e. 2) Select SSID that you want to connect and press the or ENTER button. The display to enter the encryption key appears if SSID is encrypted.
  • Page 25 2. Connection to the network Item Description The OSD below is displayed while the connection is in progress. The keys other than RESET button are not a ailable while the connection is in progress. The connection process is interrupted when pressing the RESET button.
  • Page 26 2. Connection to the network Item Description SSID SCAN LIST (continued) This function is not a ailable in SIMP E ACCESS POINT mode. Switches between SIMP E ACCESS POINT and INFRASTRUCTURE. NETWORK Select the mode of the network communication SETUP system.
  • Page 27 2. Connection to the network Item Description Con gures whether IP address is automatically obtained or not. Use the buttons to turn DHCP on/off. DHCP This function is not a ailable in SIMP E ACCESS POINT mode. [MODE:SIMP E ACCESS POINT] Refer to Connection in Simple Access Point Mode .
  • Page 28 2. Connection to the network Item Description Con gures SSID for wireless network. Enter SSID by using software keyboard. Refer SSID 30) for how to use to PROJECTOR NAME software keyboard. Con gures SSID ROADCAST. When this function is set to OFF, SSID of the projector is not displayed in wireless connection SSID list of the de ice.
  • Page 29 2. Connection to the network Item Description Con gures wired network. Con gured alues are sa ed after selecting APP Y . NOTE ・ Con gured alues are not sa ed if Menu disappears before selecting APP Y . ・ e sure to execute APP Y after changing the settings. Con gures whether IP address is automatically NETWORK obtained or not.
  • Page 30 2. Connection to the network Item Description Any name can be set to the projector to identify it on the network. 1) Select the PROJECTOR NAME and press the button. The PROJECTOR NAME dialog will be displayed. Use displayed software keyboard to enter PROJECTOR NAME.
  • Page 31 2. Connection to the network Item Description Selecting this item displays the MY IMA E menu. Use the application to transfer the image data. It can be downloaded from the website. 80) for the details of MY Refer to 5. My Image Function IMA E.
  • Page 32 2. Connection to the network Item Description Use the buttons to turn the AM De ice Disco ery on/off. AMX D.D. When ON is selected, the projector can be (AMX Device detected by controllers of AM connected Discovery) to the same network. For the details of AM De ice Disco ery, isit the AM website.
  • Page 33 2. Connection to the network Item Description To use Network Presentation, an exclusi e application is re uired. 76) for the details of Refer to 4. Network Presentation Network Presentation. If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked.
  • Page 34 2. Connection to the network Item Description To change from Single PC mode to Multi PC mode, press the button to choose OK in the dialog and press the ENTER or button. The display mode is changed. The Presenter mode setting MULTI PC of the selected computer MODE...

  • Page 35: Web Control

    3. Web Control 3. Web Control You can adjust or control the projector ia a network from a web browser on a computer connected to the same network. Projector Web Control You can control the projector, collect the status such as input status, and set e-mail or schedule, etc.
  • Page 36 3. Web Control Crestron e-Control ® Crestron e-Control is a control ® interface using a web browser pro ided by Crestron Electronics, Inc.. Crestron e-Control can control and ® monitor the projector. NOTE Crestron e-Control is created using Flash . You need to install ®...
  • Page 37 3. Web Control Access from Web browser 1) Please start a Web browser of de ice. 2) Enter the projector s IP address into UR input box of the Web browser as the example below, and then press the Enter key. Example: If the IP address of the projector is set to 192.168.1.10.

  • Page 38: Projector Web Control

    3. Web Control 3.1 Projector Web Control 3.1.1 Login To use the Projector Web Control function, you need to login with your user name and password. elow are the factory default settings for user name and password. ogin window Administrator User name <blank>...
  • Page 39 3. Web Control 3.1 Projector Web Control (continued) Displaying the Main menu and Option menu. In the Header area of the upper part of the screen, the following operations are a ailable. Item Description Displays the Main menu. The detailed screen is displayed by clicking on the item in the Main menu.

  • Page 40: Network Information

    3. Web Control 3.1 Projector Web Control (continued) 3.1.2 Network Information Displays the network setting information of the projector.

  • Page 41: Network Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.3 Network Settings 3.1.3.1 Common Setup Con gures the settings common to wireless and wired AN. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. NOTE If you connect the projector to an existing network, consult a network administrator before setting ser er addresses.
  • Page 42 3. Web Control 3.1 Projector Web Control - Network Settings (continued) Item Description Switches ON/OFF of wireless network function. Wireless Network Con gures the name of the projector. Projector Name Con gures the location to be referred to when using SNMP.

  • Page 43: Wireless Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.2 Wireless Setup Con gures the wireless AN settings. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. Item Description Switches wireless connection mode.
  • Page 44 3. Web Control 3.1 Projector Web Control - Network Settings (continued) 1. Simple Access Point settings Item Description Con gures the IP Address of the projector in Simple Access Point mode. Subnet Mask of this mode is xed to 255.255.255.0. SSID *1 Con gures SSID of Simple Access Point mode.
  • Page 45 3. Web Control 3.1 Projector Web Control - Network Settings (continued) 2. Infrastructure settings Item Description Con gures the network settings of the projector in Infrastructure mode. [DHCP ON] Enables DHCP. [DHCP OFF] Disables DHCP. Con gures IP Address, Subnet Mask, Default ateway and DNS ser er.

  • Page 46: Wired Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.3 Wired Setup Con gures the wired AN settings. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. Item Description Con gures network settings.

  • Page 47: Other Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.4 Other Setup Con gures other network settings. When changing the settings, click the [Apply] button to re ect the settings of the projector. Item Description ® Crestron e-Control *1 Con gures Enable/Disable of Crestron e-Control *1 Refer to chapter “3.2 Crestron e-Control ”...

  • Page 48: Port Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.4 Port Settings Con gures the network communication port. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. Item Description Con gures Enable/Disable of the Port Open.

  • Page 49: Mail Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.5 Mail Settings Con gures the e-mail settings. When changing the settings, click the [Apply] button to re ect the settings of the projector. This setting can be restored to the initial setting when clicking the [Reset] button. Sends a test e-mail when clicking [Send Test Mail].
  • Page 50 3. Web Control 3.1 Projector Web Control - Mail Settings (continued) 1. SMTP / POP Server Item Description Con gures the SMTP ser er address or the POP ser er address. Server Address *1 This item can be set not only by IP address but also by domain name.

  • Page 51: Alert Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.6 Alert Settings Con gures noti cations of errors/warnings. Refer to chapter “8.1 E-mail Alerts” for the details of the abo e errors/warnings. When changing the settings, click the [Apply] button to re ect the settings of the projector.

  • Page 52: Schedule Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.7 Schedule Settings 3.1.7.1 Schedule Management Con gures the schedule settings. Refer to chapter “8.3 E ent Scheduling” for the details of the schedule settings. Click the checkbox of the speci c day or day to perform a schedule, and select the program number to use.
  • Page 53 3. Web Control 3.1 Projector Web Control - Schedule Settings (continued) 3.1.7.2 Program List Displays the e ent information registered in each program. Click the [Back] button to go back to the Schedule Management screen.

  • Page 54: Program Edit

    3. Web Control 3.1 Projector Web Control - Schedule Settings (continued) 3.1.7.3 Program Edit Edits the program. Select the program number to edit, and set the e ent and time to execute. Click the [Register] button to add the e ent to a selected program number. Click the [Delete] button to delete an e ent.

  • Page 55: Program Copy

    3. Web Control 3.1 Projector Web Control - Schedule Settings (continued) 3.1.7.4 Program Copy Con gures the program copy. Select the original program number dropdown list of the upper part of the screen) and program number dropdown list of the lower part of the screen). Click the [Copy to] button to copy the program.

  • Page 56: Date/Time Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.8 Date/Time Settings Con gures the date/time. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. Item Description Con gures the current date. Current Date Con gures the current time.
  • Page 57 3. Web Control 3.1 Projector Web Control - Date/Time Settings (continued) 1. Daylight Saving Time Select the checkbox when using daylight sa ing time. Item Description Con gures the date and time daylight sa ing time begins. Start Con gures the month daylight sa ing time begins. Month Con gures the week of the month daylight sa ing time begins.

  • Page 58: Security Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.9 Security Settings 3.1.9.1 User Account Con gures the user name and password for login to Projector Web Control screen. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector.

  • Page 59: Network Control

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.2 Network Control Con gures the password for authentication in the projector control. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. Item Description Con gures the password.

  • Page 60: Network Presentation

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.3 Network Presentation Con gures the password for the display restriction of the projected screen of Network Presentation. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector.

  • Page 61: Snmp

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.4 SNMP Con gures the community name to use SNMP. When changing the settings, click the [Network Restart] button after clicking the [Apply] button to re ect the settings of the projector. Item Description Con gures the community name.

  • Page 62: Projector Control

    3. Web Control 3.1 Projector Web Control (continued) 3.1.10 Projector Control Con gures the function of each item in the projector menu. Menu aries depending on the model. NOTE If the settings are changed in the menu or by the remote control while changing the settings on this screen, the display and the actual setting may not match.

  • Page 63: Remote Control

    3. Web Control 3.1 Projector Web Control (continued) 3.1.11 Remote Control The menu operation and the input source switching can be performed on this screen like a remote control. Menu aries depending on the model. NOTE Holding down a button is not supported on this screen. The button should be clicked repeatedly to operate continuously.

  • Page 64: Projector Status

    3. Web Control 3.1 Projector Web Control (continued) 3.1.12 Projector Status Displays the information of each status. Displayed information aries depending on the model.

  • Page 65: Connection Test

    3. Web Control 3.1 Projector Web Control (continued) 3.1.13 Connection Test Checks the connection to speci ed IP address. Item Description Click the [Execute] button to test the connection Destination IP Address after entering IP address to connect to. Display example of the connection succeeded Display example of the connection failed NOTE Con rm information of the target IP address with network administrator.

  • Page 66: Network Restart

    3. Web Control 3.1 Projector Web Control (continued) 3.1.14 Network Restart Restarts the network connection. NOTE When the projector has connected successfully with the same network setting as before it restarts, the Network Information screen is automatically displayed after ha ing restarted. The following screen is displayed if the projector cannot connect to the network due to the change of network setting, etc.

  • Page 67: Crestron E-Control

    3. Web Control ® 3.2 Crestron e-Control The Main window as shown abo e is displayed at rst. Howe er, if you ha e enabled User Password on the Tools window 71), a dialog prompting you to enter the password as shown on the right will be displayed, and no operation is enabled until you ha e entered the password.
  • Page 68 3. Web Control ® 3.2 Crestron e-Control (continued) NOTE In any of the following cases, Crestron e-Control cannot be used. ® - Network Settings - Other Setup - Crestron e-Control is Disable - Network Settings - Common Setup - Crestron is OFF - NETWORK menu - E TERNA CONTRO - CRESTRON is OFF Set Crestron to on and enable Crestron e-Control , then close the web browser.

  • Page 69: Main Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.1 Main window You can operate the basic controls of the projector on this screen. NOTE If the projector is in the standby mode, only the [Power] button can be operated. 1 . Click a button and operate as follows. Button Description Turns the power on/off.
  • Page 70 3. Web Control ® 3.2 Crestron e-Control - Main window (continued) 3. Click a button and operate as follows. To show the hidden buttons, click the icons at the left and right ends. Button Description Turns Free e on/off. Freeze Adjusts the contrast setting.

  • Page 71: Tools Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.2 Tools window ® Con gures the settings between the projector and Crestron control system. Click the [Exit] button to return to the Main window. NOTE If two-byte characters are used, the input text or numbers cannot be set correctly.
  • Page 72 3. Web Control ® 3.2 Crestron e-Control - Tools window (continued) 3. Projector Con gures the network settings of the projector. Item Description Enables DHCP. DHCP Con gures the IP address when DHCP is disabled. IP Address Con gures the subnet mask when DHCP is disabled. Subnet Mask Con gures the default gateway when DHCP is disabled.

  • Page 73: Info Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.3 Info window Displays the current settings and status of the projector. Click the [Exit] button to return to the Main window. 1. Projector Information Item Description Displays the projector name settings. Projector Name Displays the location name of the projector.

  • Page 74: Help Desk Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.4 Help Desk window Sends/recei es messages to/from the administrator for Crestron Room iew ® Express and Fusion R ® Button Description Sends a message. Send Checks the recei ed message.

  • Page 75: Emergency Alert

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.5 Emergency Alert When the administrator for Crestron Room iew Express and Fusion R sends ® ® out an alert message, it will be displayed on the screen. You can reply to the alert message ia a chat format. Input a message in the box below the alert message, and click the [Send] button.

  • Page 76: Network Presentation

    4. Network Presentation 4. Network Presentation 4.1 Outline The projector can display or play back the computer screen images and audio data that are transmitted through the network. This Network Presentation feature helps you to smoothly make your presentations and conduct conferences. To use Network Presentation, an exclusi e application, i e iewer is re uired 20).

  • Page 77: Display Mode

    4. Network Presentation 4.2 Display Mode i e iewer has two display modes, Single PC mode and Multi PC mode. 4.2.1 Single PC mode The Single PC mode can display images in full screen from one computer to the projector/switcher ia wireless AN or wired AN. Presenter Mode In the Single PC mode, the projector can be occupied by one computer and can block access from any other computers if Presenter Mode is set to ON in...

  • Page 78: Multi Projector Mode

    4. Network Presentation 4.3 Multi Projector Mode In the Multi Projector/Multi Display mode, up to 12 projectors or switchers connected to projectors can connect with the computer ia wireless or wired AN simultaneously. This function is for Windows users only. 4.4 Moderator Control Mode One computer can be assigned as Moderator Host) to control all other computers Clients) or the switchers connected with the projector ia wireless AN or wired...

  • Page 79: Port Number

    4. Network Presentation 4.5 Port Number The port numbers used for i e iewer are shown below. Port No. Protocol 5500 5900 5901 9720 NOTE When other application uses the ports abo e, i e iewer and Projector Quick Connection may not work.

  • Page 80: My Image Function

    5. My Image Function 5. My Image Function The projector can display still images transferred ia the network. It is possible to allocate up to 4 image les. MY IMA E transmission re uires an exclusi e application for your computer. Use the application to transfer the image data.

  • Page 81: Messenger Function

    6. Messenger Function 6. Messenger Function 6.1 Outline The projector can display text data transferred ia the network on the screen and play back audio data inside the projector. The text data can be displayed on the screen in two ways. One is to display the text transferred from the computer on real time, and the other is to choose the text data stored in the projector and display it.

  • Page 82: Display Style

    6. Messenger Function Messenger function re uires an exclusi e application for your computer. To edit, transfer and display the text data, use the application. For information on the necessary settings and operations for the computer and projector, refer to the manual for the application. 6.2 Display Style There are 4 types of message display style.
  • Page 83 6. Messenger Function NOTE Using MY BUTTON registered as MESSEN ER can turn the displaying messenger text on/off. OPTION menu in the Operating uide) The text le also can be displayed by using schedule function ia the web browser. If data is transferred ia wireless and wired AN at the same time, the projector may not process the data correctly.

  • Page 84: Network Bridge Function

    7. Network Bridge Function 7. Network ridge Function This projector is e uipped with the NETWORK RID E function to perform mutual con ersion of a network protocol and a serial interface. y making use of the NETWORK RID E function, a computer connected to the projector ia wireless or wired AN is able to control an external de ice ia RS- 232C communication using the projector as a network de ice.

  • Page 85: Communication Setup

    7. Network Bridge Function 7.2 Communication setup To con gure the setup of the communication using NETWORK RID E for the projector, use items in the COMMUNICATION menu. Open the menu of the projector and select the OPTION - SER ICE - COMMUNICATION menu. OPTION menu >...

  • Page 86: Transmission Method

    7. Network Bridge Function 7.4 Transmission method The transmission method can be selected from the menus, only when the NETWORK RID E is selected for the COMMUNICATION TYPE. OPTION menu > SER ICE > COMMUNICATION in the Operating uide) HA F-DUP E -DUP E 7.4.1 HALF-DUPLEX This method lets the projector make two way communication, but only one...

  • Page 87: Fu -Dup E

    7. Network Bridge Function 7.4 Transmission method (continued) NOTE With using the HA F-DUP E method, the projector can send out 254 byte data at the maximum at a time. If it is not re uired to monitor the response data from an external de ice and the RESPONSE IMIT TIME is set to OFF, the projector can recei e the data from the computer and send it out to an external de ice continuously.

  • Page 88: Other Functions

    8. Other Functions 8. Other Functions 8.1 E-mail Alerts The projector can automatically send an alert message to the speci ed e-mail addresses when the projector detects a certain condition re uiring maintenance or detected an error. NOTE Up to e e-mail addresses can be speci ed.
  • Page 89 8. Other Functions NOTE The timing of recei ing Filter Error e-mail is depending on the FI TER MESSA E setting in the AMP FI TER item of the SETUP menu which determines the period until the lter message is displayed on the projector screen.
  • Page 90 8. Other Functions To use the projector’s e-mail alert function, please con gure the following items through a web browser. Mail Settings 1) Select [Mail Settings] on main menu in Projector Web Control. 2) Con gure each item in Mail Settings page. Refer to item 3.1.5 Mail Settings 49) for further information.

  • Page 91: Projector Management Using Snmp

    8. Other Functions 8.2 Projector Management using SNMP The SNMP Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on the network. NOTE It is recommended that SNMP functions are executed by a network administrator.
  • Page 92 8. Other Functions Setup the following functions through WE browser, if you want to manage the projector by SNMP. Port Settings 1) Select [Port Settings] on main menu in Projector Web Control. 2) Click the [Download MIB File] to download a MI 3) Click the [Enable] check box to open the SNMP Port.

  • Page 93: E Ent Scheduling

    8. Other Functions 8.3 Event Scheduling The scheduling function enables to setup scheduled e ents including power on / power off. It enables to be “self-management” projector. Note the following before setting the schedule. NOTE Schedule can also be set in OPTION - SCHEDU E menu of the projector.
  • Page 94 8. Other Functions The procedure to set the schedule in Projector Web Control is described in the following. Setting the program is necessary to use the schedule function. arious e ents such as power on/off or switching input source, and the time to execute the e ents are to be registered in the program.
  • Page 95 8. Other Functions 3) After setting the time, e ents and parameters, click the [Register] to add the new e ent. Click the [Delete] button when you want to delete an e ent. Click the [Delete All] button when you want to delete all the e ents in the currently selected program.
  • Page 96 8. Other Functions How to copy the program When you copy the currently selected program to other program, click the [Program Copy] button. Click the [Copy to] button after selecting the program to which you want to copy in dropdown list. The same program as the currently selected one cannot be speci ed as the program to which you want to copy.

  • Page 97: Command Control Ia The Network

    8. Other Functions 8.4 Command Control via the Network You can con gure and control the projector ia the network using RS-232C commands. Communication Port The following two ports are assigned for the command control. TCP 23 (Network Control Port1 (Port: 23)) TCP 9715 (Network Control Port2 (Port: 9715)) NOTE Command control is a ailable only ia the speci ed port abo e.
  • Page 98 8. Other Functions 8.4 Command Control via the Network (continued) 6) Click the [Apply] button to sa e the settings. When the authentication setting is enabled, the following settings are re uired. 7) Click the [Security Settings] on the main menu. 8) Click the [Network Control] and enter the desired password.
  • Page 99 8. Other Functions 8.4 Command Control via the Network (continued) Command Format Command formats differ among the different communication ports. TCP 23 You can use the RS-232C commands without any changes. The reply data format is the same as the RS-232C commands. RS-232C Communication in the Operating uide - Technical)
  • Page 100 8. Other Functions 8.4 Command Control via the Network (continued) Reply Data format The connection ID the data is same as the connection ID data on the sending data format) is attached to the RS-232C commands reply data. <ACK reply> Connection Reply 0x06...
  • Page 101 8. Other Functions 8.4 Command Control via the Network (continued) Automatic Connection Break The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established. Authentication The projector does not accept commands without authentication success when authentication is enabled.

  • Page 102: Crestron Connected

    8. Other Functions 8.5 Crestron Connected Crestron Connected is a multi-user resource management program pro ided by Crestron Electronics, Inc. It is an application for managing and controlling the projector and other A de ices collecti ely. For the details of Crestron Connected , refer to the Crestron website.

  • Page 103: Troubleshooting

    9. Troubleshooting 9. Troubleshooting Phenomenon: Cannot communicate with the projector. Wired network) Item to be checked Solutions Is the projector turned on Turn on the projector. Is the network de ice such as a Turn on the network de ice. router, etc.
  • Page 104 9. Troubleshooting Phenomenon: Cannot communicate with the projector. Wireless network) 1. Common Item to be checked Solutions Is the projector turned on Turn on the projector. Is the network de ice such as an Turn on the network de ice. access point, etc.
  • Page 105 9. Troubleshooting Phenomenon: Cannot communicate with the projector. Wireless network) continued) 1. Common continued) Item to be checked Solutions Is an encryption method which The followings are encryption methods is not supported by the projector supported by the projector: used WPA2-PSK AES) WPA2-PSK TKIP) WPA-PSK AES)
  • Page 106 9. Troubleshooting Phenomenon: Cannot communicate with the projector. Wireless network) continued) 1. Common continued) Item to be checked Solutions Does the IP address o erlap with When the IP address o erlaps, turn off your ® that of the other de ices Wi-Fi de ice and turn on again.
  • Page 107 9. Troubleshooting Phenomenon: Cannot communicate with the projector. Wireless network) continued) 3. INFRASTRUCTURE Item to be checked Solutions Is rewall or packet ltering set in Consult with your network administrator. an access point, etc. Is the wireless network to Set the encryption settings of the projector connect encrypted again and reconnect.
  • Page 108 9. Troubleshooting Phenomenon: Web Projector Web Control) is not displayed correctly. Item to be checked Solutions Is the correct UR entered in Enter the IP address of the projector in Web Web browser browser. ® ® Is Ja aScript enabled Enable Ja aScript How to set is different depending on the Web browser.
  • Page 109 9. Troubleshooting Phenomenon: Cannot send an e-mail correctly. Item to be checked Solutions Are e-mail settings correct Check the settings on the Mail Settings screen of the Projector Web Control. Are the settings of Sender e-mail Set alid e-mail address. Address correct Is a test e-mail sent correctly Check if a test e-mail is sent correctly by...
  • Page 110 9. Troubleshooting Phenomenon: The schedule is not executed correctly. Item to be checked Solutions Is the projector turned on Turn on the projector. Is STAND Y MODE set to The schedule function is not a ailable when NETWORK WO ) or SA IN STAND Y MODE is set to NETWORK WO ) or SA IN .
  • Page 111 9. Troubleshooting Phenomenon: The time settings are not correct. Item to be checked Solutions Is the date and time set correctly Check the settings of Date/Time Settings menu of the Projector Web Control or DATE AND TIME menu of the projector. Is the projector connected to the Connect to the network.

  • Page 112: Warranty And After-Sales Service

    If this does not resol e the problem, please consult your dealer or ser ice company. They will tell you what warranty condition is applied. Please check the following web address where you may nd the latest information for this projector. http://www.hitachi-america.us/projectors https://estadoc.hitachi.eu/index.htm Trademark acknowledgment Microsoft...
