DUST COLLECTION WHILE
EDGE FORMING

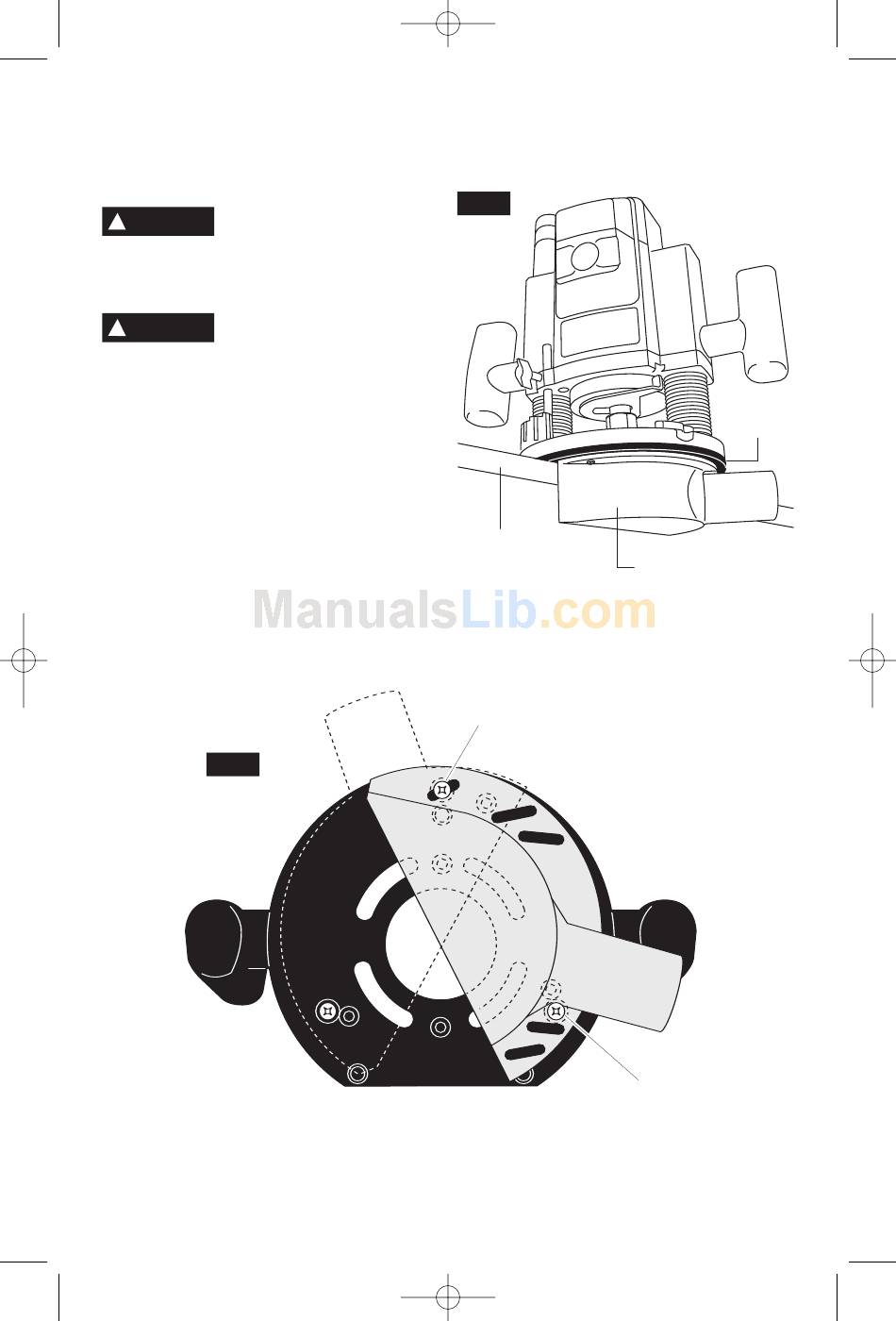

The RA1170 dust extraction hood (optional
accessory) is used for dust collection when
edge-forming (Fig. 13).
Read and understand these
!
WARNING
instructions
manual for use of these accessories.
Do not reach in area of the bit while the
router is ON or plugged in.
To avoid entangling hoses,
!
CAUTION
do not use this dust
extraction hood at the same time as any
other dust extraction hood.
ATTACHING DUST EXTRACTION HOOD
You can attach the hood in several places
according to your needs or preferences. This
hood is attached using two of the screw holes
on the router base that are used to attach the
router's sub-base. Choose the desired location
for the hood. Loosen and take out the two
screws from the router base and attach the
dust extraction hood — over the router's sub-
base — using the screws provided with the
hood. Securely tighten the screws (Fig. 14).
FIG. 14
7/24/06 9:03 AM
The dust extraction hood itself is sized to
accept 35mm vacuum hoses. Also included is
the VAC002 adapter that will connect the hood
to 1-1/4'' and 1-1/2'' vacuum hoses.
FIG. 13
and tool
WORKPIECE
M4 x 16mm
SCREW
SUB-BASE
-13-
Page 13
EDGE
DUST
EXTRACTION
HOOD
M4 x 16mm
SCREW
ROUTER
SUB-BASE
DUST EXTRACTION
HOOD
